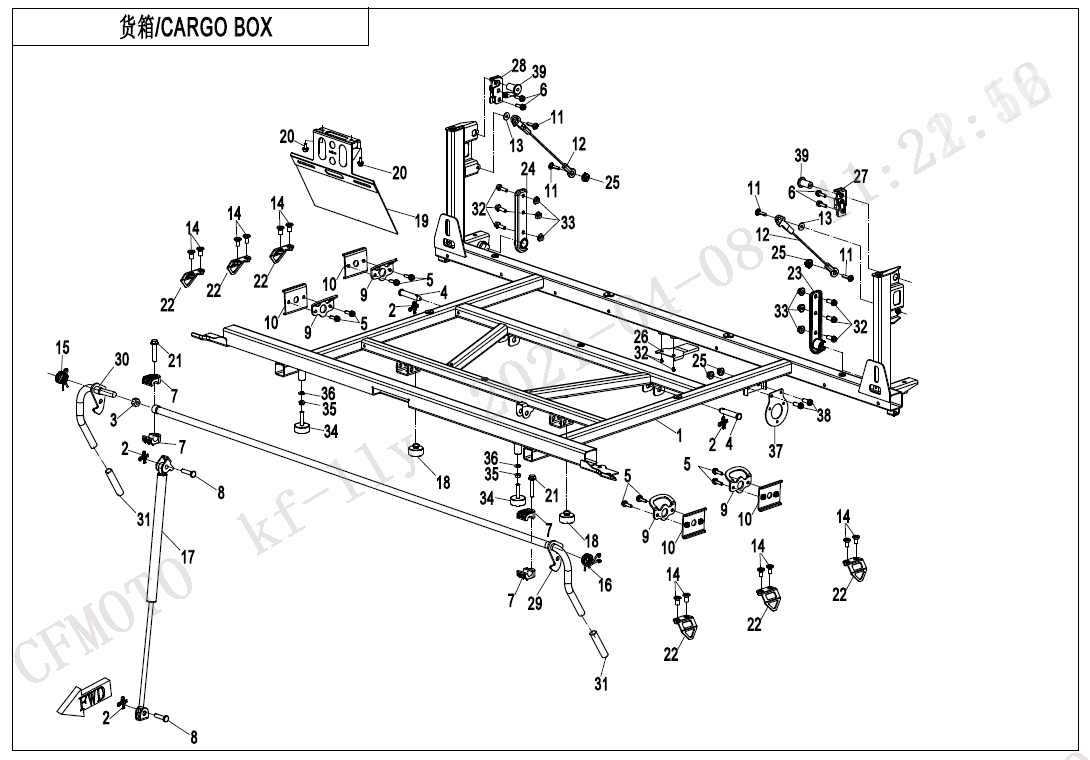

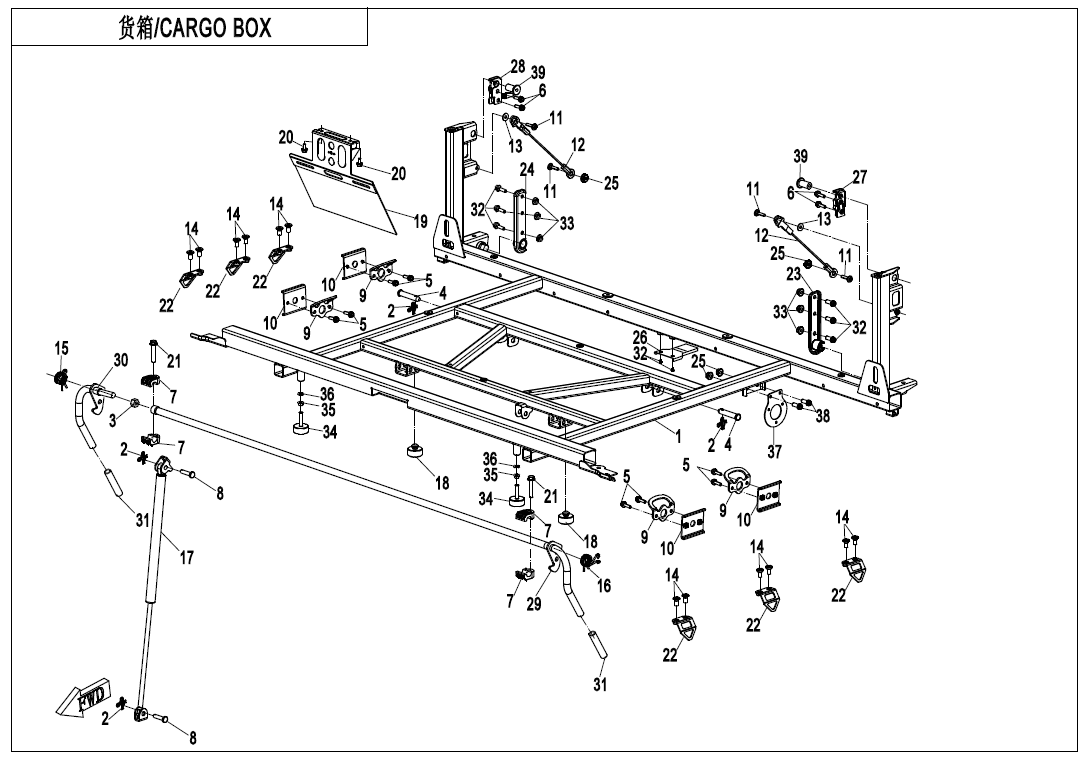

CARGO BOX - F22-2

CARGO BOX - F22-2

No.

01
P/N (SKU): 5HYV-221000-1C00
Part Name: BASE FRAME ASSY
Effective: 2024-05-08
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 264,50 € : 264,50 €
-+
02
P/N (SKU): 5HY#-220008-1000
Part Name: PIN SHAFT
Effective: 2024-05-08
Alternative parts:
Price: 0,55 € : 0,55 €
-+
03
P/N (SKU): 30211-123810
Part Name: NUT M12x1.5
Effective: 2024-05-08
Alternative parts:
Specification: M12x1.5
Price: 1,25 € : 1,25 €
-+
04
P/N (SKU): 9030-220011-00001
Part Name: PIN SAHFT, ROTATION
Effective: 2024-05-08
Alternative parts:
Specification: COLOR ZINC
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 30006-060020870
Part Name: BOLT
Effective: 2024-05-08
Alternative parts:
Specification: M6×20
Price: 0,55 € : 0,55 €
-+
06
P/N (SKU): 30006-060022810
Part Name: BOLT
Effective: 2024-05-08
Alternative parts:
Specification: M6×22
Price: 0,55 € : 0,55 €
-+
07
P/N (SKU): 7030-221123
Part Name: COLLAR, ROTATE SHAFT
Effective: 2024-05-08
Alternative parts:
Price: 1,25 € : 1,25 €
-+
08
P/N (SKU): 7030-222251
Part Name: PIN SHAFT, GAS SPRING
Effective: 2024-05-08
Alternative parts:
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 9030-220004
Part Name: HOOK, BAND
Effective: 2024-05-08
Alternative parts:
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 7030-221140
Part Name: MOUNTING BRACKET, HOOK
Effective: 2024-05-08
Alternative parts:
Price: 4,80 € : 4,80 €
-+
11
P/N (SKU): 7030-010508
Part Name: TAIL BOX CABLE BOLT
Effective: 2024-05-08
Alternative parts:
Price: 3,70 € : 3,70 €
-+
12
P/N (SKU): 7030-010500-10000
Part Name: TAIL BOX FIXING CABLE
Effective: 2024-05-08
Alternative parts:
Price: 11,00 € : 11,00 €
-+
13
P/N (SKU): 30305-060112
Part Name: WASHER
Effective: 2024-05-08
Alternative parts:
Specification: φ6
Price: 0,55 € : 0,55 €
-+
14
P/N (SKU): 5HY0-220113
Part Name: BOLT M8x20
Effective: 2024-05-08
Alternative parts:
Specification: M8x20
Price: 0,95 € : 0,95 €
-+
15
P/N (SKU): 5HY0-220007
Part Name: RH TORSIONAL SPRING
Effective: 2024-05-08
Alternative parts:
Price: 0,55 € : 0,55 €
-+
15
P/N (SKU): 5HYV-220007-1P00
Part Name: RH TORSION SPRING
Effective: 2024-11-05
Alternative parts:
Price: 0,60 € : 0,60 €
-+
16
P/N (SKU): 5HY0-220006
Part Name: TORSIONAL SPRING, LH
Effective: 2024-05-08
Alternative parts:
Price: 0,55 € : 0,55 €
-+
16
P/N (SKU): 5HYV-220006-1P00
Part Name: LH FLIP TORSION SPRING
Effective: 2024-11-05
Alternative parts:
Price: 0,60 € : 0,60 €
-+
17
P/N (SKU): 5HY0-222080-20000
Part Name: AIR SPRING
Effective: 2024-05-08
Alternative parts:
Price: 20,20 € : 20,20 €
-+
18
P/N (SKU): 5HY0-220004
Part Name: RUBBER MAT
Effective: 2024-05-08
Alternative parts:
Price: 1,25 € : 1,25 €
-+
19
P/N (SKU): 5HYV-220010-1C00
Part Name: REAR LICENSE BRACKET
Effective: 2024-05-08
Alternative parts:
Price: 14,70 € : 14,70 €
-+
20
P/N (SKU): 30006-060016870
Part Name: BOLT
Effective: 2024-05-08
Alternative parts:
Specification: M6×16
Price: 0,55 € : 0,55 €
-+
21
P/N (SKU): 30006-080045810
Part Name: BOLT
Effective: 2024-05-08
Alternative parts:
Specification: M8×45
Price: 0,95 € : 0,95 €
-+
22
P/N (SKU): 5HY0-222010
Part Name: CARGO BOX HOOK ASSY
Effective: 2024-05-08
Alternative parts:
Price: 12,50 € : 12,50 €
-+
23
P/N (SKU): 5HY0-222020
Part Name: CARGO BOX DOOR LH BRACKET ASSY
Effective: 2024-05-08
Alternative parts:
Price: 26,40 € : 26,40 €
-+
24
P/N (SKU): 5HY0-222030-10000
Part Name: RH BRACKET, CARGO BOX DOOR
Effective: 2024-05-08
Alternative parts:
Price: 7,70 € : 7,70 €
-+
25
P/N (SKU): 30204-060810
Part Name: NUT
Effective: 2024-05-08
Alternative parts:
Specification: M6
Price: 1,05 € : 1,05 €
-+
26
P/N (SKU): 5HY0-220009
Part Name: CARGO BOX DOOR LIMIT PLATE
Effective: 2024-05-08
Alternative parts:
Price: 2,95 € : 2,95 €
-+
27
P/N (SKU): 5HY0-222060
Part Name: LOCK, LH REAR DOOR
Effective: 2024-05-08
Alternative parts:
Price: 12,50 € : 12,50 €
-+
28
P/N (SKU): 5HY0-222070
Part Name: REAR RH DOOR LOCK
Effective: 2024-05-08
Alternative parts:
Price: 12,50 € : 12,50 €
-+
29
P/N (SKU): 5HY0-222110-10000
Part Name: LH ROTATION SHAFT ASSY
Effective: 2024-05-08
Alternative parts:
Price: 18,70 € : 18,70 €
-+
30
P/N (SKU): 5HY0-222120-10000
Part Name: RH ROTATION SHAFT ASSY
Effective: 2024-05-08
Alternative parts:
Price: 7,70 € : 7,70 €
-+
31
P/N (SKU): 7030-220104
Part Name: SLEEVE, ROTATE
Effective: 2024-05-08
Alternative parts:
Price: 1,25 € : 1,25 €
-+
32
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2024-05-08
Alternative parts:
Specification: M8×20
Price: 0,85 € : 0,85 €
-+
33
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2024-05-08
Alternative parts:
Specification: M8
Price: 0,85 € : 0,85 €
-+
34
P/N (SKU): 7030-221710
Part Name: CARGO BOX ADJUSTING RUBBER DAMPER
Effective: 2024-05-08
Alternative parts:
Price: 2,20 € : 2,20 €
-+
35
P/N (SKU): 30200-080810
Part Name: NUT
Effective: 2024-05-08
Alternative parts:
Specification: M8
Price: 0,95 € : 0,95 €
-+
36
P/N (SKU): 30303-080112
Part Name: WASHER
Effective: 2024-05-08
Alternative parts:
Specification: φ8
Price: 0,55 € : 0,55 €
-+
37
P/N (SKU): 9AWA-036000
Part Name: TRAILER POWER BRACKET ASSY
Effective: 2024-05-08
Alternative parts:
Price: 5,15 € : 5,15 €
-+
38
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2024-05-08
Alternative parts: 30006-060012870
Specification: M6×12
Price: 0,55 € : 0,55 €
-+
39
P/N (SKU): 5HY#-221601-1000
Part Name: SCREW, PIN SHAFT
Effective: 2024-05-08
Alternative parts:
Price: 1,25 € : 1,25 €
-+
