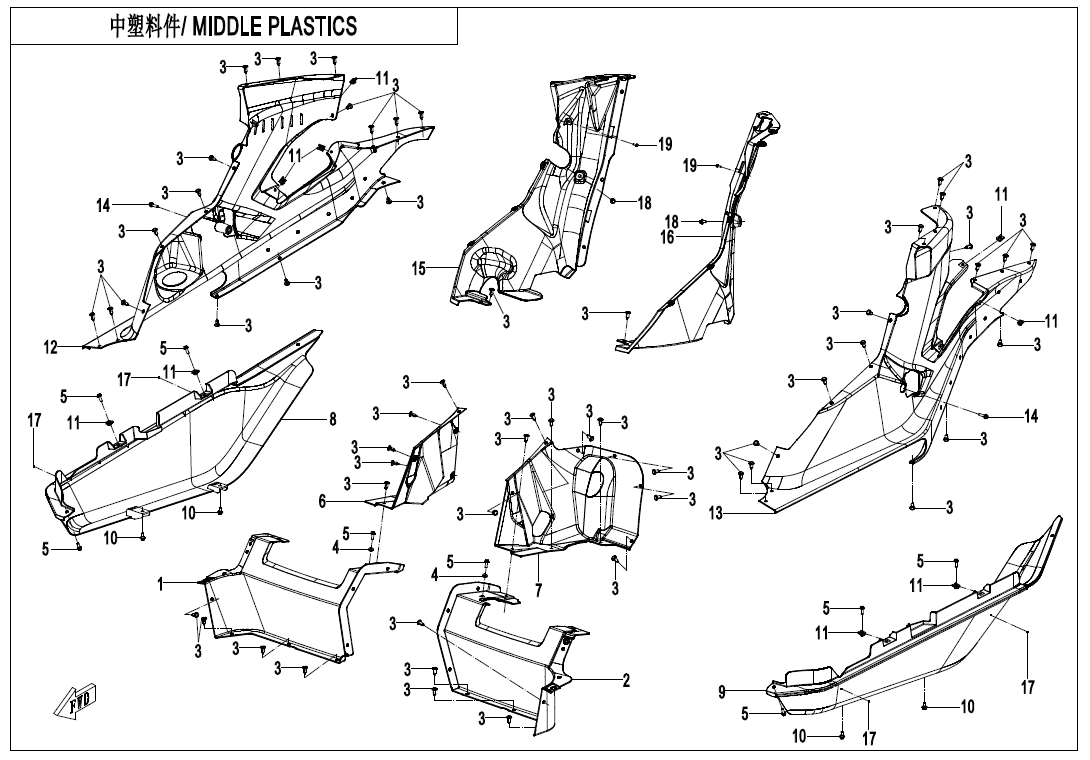

MIDDLE PLASTICS - F04-5

MIDDLE PLASTICS - F04-5

No.

1
P/N (SKU): 5BYV-042052-A100
Part Name: FRONT PANEL, RH SEAT
Effective: 2024-07-22
Remarks: null
Alternative parts: null
Specification: null
Price: 26,00 € : 26,00 €
2
P/N (SKU): 5BYV-042051-A100
Part Name: FRONT PANEL, LH SEAT
Effective: 2024-07-22
Remarks: null
Alternative parts: null
Specification: null
Price: 25,00 € : 25,00 €
3
P/N (SKU): 9060-040310
Part Name: CLAMP ASSY
Effective: 2024-07-22
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
4
P/N (SKU): 30309-060870
Part Name: PLAIN WASHERS
Effective: 2024-07-22
Remarks: null
Alternative parts: null
Specification: φ6
Price: 1,50 € : 1,50 €
5
P/N (SKU): 30006-060016870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-07-22
Remarks: null
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
6
P/N (SKU): 5BYV-041075-A100
Part Name: MIDDLE RH PANEL, SEAT
Effective: 2024-07-22
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
7
P/N (SKU): 5BYV-041074-A100
Part Name: MIDDLE LH PANEL, SEAT
Effective: 2024-07-22
Remarks: null
Alternative parts: null
Specification: null
Price: 13,00 € : 13,00 €
8
P/N (SKU): 5BY0-041052
Part Name: FRONT RH SIDE PANEL
Effective: 2024-07-22
Remarks: null
Alternative parts: null
Price: 46,00 € : 46,00 €
9
P/N (SKU): 5BY0-041051
Part Name: LH FRONT SIDE PANEL
Effective: 2024-07-22
Remarks: null
Alternative parts: null
Price: 46,00 € : 46,00 €
10
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Effective: 2024-07-22
Remarks: null
Alternative parts: null
Specification: M6x14
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 8030-040800-00001
Part Name: NUT CLIP M6
Effective: 2024-07-22
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 5BYV-041054-A100
Part Name: RH REAR PANEL
Effective: 2024-07-22
Remarks: null
Alternative parts: null
Specification: null
Price: 56,00 € : 56,00 €
13
P/N (SKU): 5BYV-041053-A100
Part Name: LH REAR PANEL
Effective: 2024-07-22
Remarks: null
Alternative parts: null
Specification: null
Price: 54,00 € : 54,00 €
14
P/N (SKU): 30006-060025810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-07-22
Remarks: null
Alternative parts: null
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 5BYV-041073-A100
Part Name: RH PANEL, SEAT
Effective: 2024-07-22
Remarks: null
Alternative parts: null
Specification: null
Price: 28,00 € : 28,00 €
16
P/N (SKU): 5BYV-041072-A100
Part Name: LH PANEL, SEAT
Effective: 2024-07-22
Remarks: null
Alternative parts: null
Specification: null
Price: 29,00 € : 29,00 €
17
P/N (SKU): 5BY0-041055
Part Name: PLUG, FRONT SIDE PANEL
Effective: 2024-07-22
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
18
P/N (SKU): 5HY#-040001-1000
Part Name: BOLT M6x14
Effective: 2024-07-22
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
19
P/N (SKU): 30110-420160010
Part Name: CROSS-RECESSED FLAT ROUND HEAD TAPPING SCREWS
Effective: 2024-07-22
Remarks: null
Alternative parts: null
Specification: ST4.2×16
Price: 1,50 € : 1,50 €
-+
