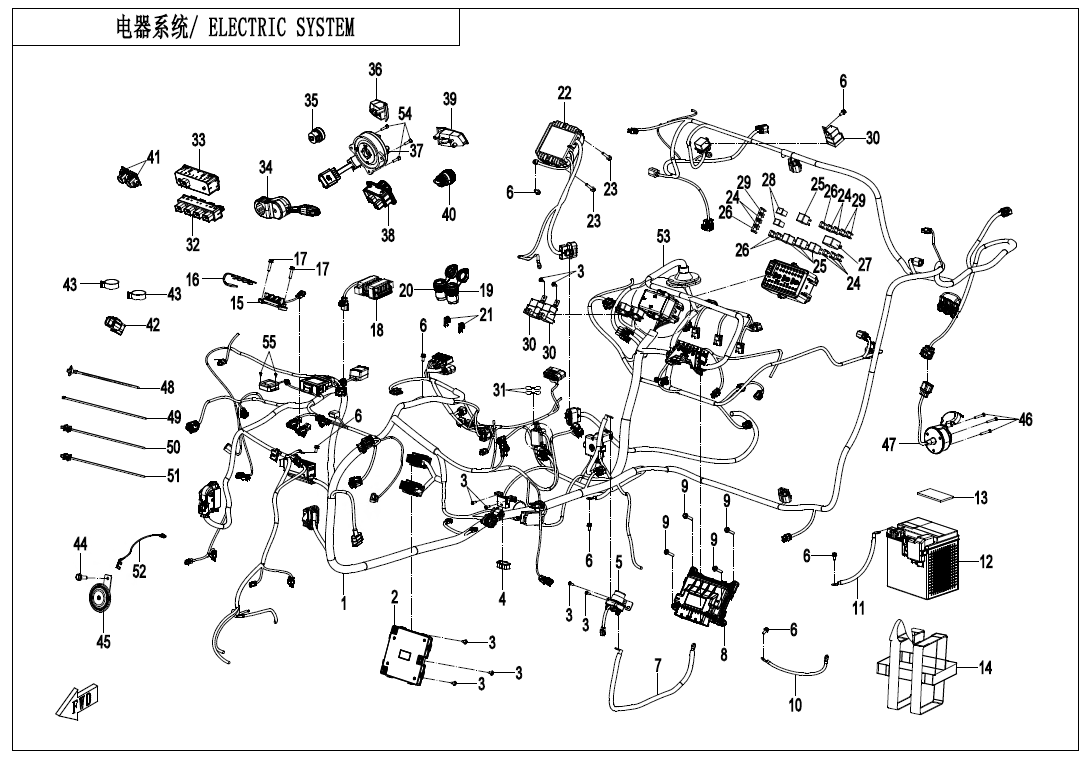

ELECTRIC SYSTEM - F15-1

ELECTRIC SYSTEM - F15-1

No.

1
P/N (SKU): 5GYV-150100-1004
Part Name: MAIN HARNESS
Effective: 2024-11-08
Alternative parts: 5GYV-150100-1005
Price: 0,00 € : 0,00 €
1
P/N (SKU): 5GYV-150100-1302
Part Name: MAIN CABLE
Effective: 2024-11-15
Alternative parts: 5GYV-150100-1303
Price: 0,00 € : 0,00 €
2
P/N (SKU): 5GYV-151900-1000
Part Name: VEHICLE CONTROLLER
Effective: 2024-11-08
Alternative parts:
Price: 230,00 € : 230,00 €
-+
3
P/N (SKU): 5BWV-040016-5000
Part Name: INNER HEX SLEF-TAPPING SCREW ST4.8x16
Effective: 2024-11-08
Alternative parts: 5BWV-040015-5000
Specification: ST4.8x16
Price: 1,50 € : 1,50 €
4
P/N (SKU): CFCV-11H016-2000-M1
Part Name: DIAGNOSIS CONNECTOR COVER
Effective: 2024-11-08
Alternative parts:
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 5BWV-150510-5300
Part Name: STARTER RELAY
Effective: 2024-11-08
Alternative parts:
Price: 27,00 € : 27,00 €
-+
6
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2024-11-08
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
7
P/N (SKU): 5GYV-150320-1000
Part Name: STARTER CABLE
Effective: 2024-11-08
Alternative parts:
Price: 21,00 € : 21,00 €
-+
8
P/N (SKU): 5DYV-001000-1100
Part Name: ECU ASSY
Effective: 2024-11-08
Alternative parts:
Specification: UP8.0
Price: 242,00 € : 242,00 €
-+
9
P/N (SKU): 30110-630320010
Part Name: CROSS RECESSED PAN HEAD TAPPING SCREW
Effective: 2024-11-08
Alternative parts:
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): 5GYV-150430-1000
Part Name: ENGINE NEGATIVE CABLE
Effective: 2024-11-08
Alternative parts:
Price: 12,00 € : 12,00 €
-+
11
P/N (SKU): 5GYV-150420-1000
Part Name: BATTERY NEGATIVE CABLE
Effective: 2024-11-08
Alternative parts:
Price: 12,00 € : 12,00 €
-+
12
P/N (SKU): 31023004
Part Name: BATTERY
Effective: 2024-11-08
Alternative parts:
Specification: DYNAVOLT,12V 32Ah
Price: 272,00 € : 272,00 €
-+
13
P/N (SKU): 5270-150001
Part Name: BATTERY FOAM MAT LH AND RH
Effective: 2024-11-08
Alternative parts:
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 9060-152100
Part Name: BATTERY BELT
Effective: 2024-11-08
Alternative parts:
Price: 4,00 € : 4,00 €
-+
15
P/N (SKU): 5BWV-156905-5000-M1
Part Name: EXTENSION POWER TERMINAL
Effective: 2024-11-08
Alternative parts:
Price: 38,00 € : 38,00 €
-+
16
P/N (SKU): 5BWV-156906-5000-M1
Part Name: EXTENSION POWER TERMINAL CAP
Effective: 2024-11-08
Alternative parts:
Price: 4,00 € : 4,00 €
-+
17
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2024-11-08
Alternative parts:
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): SN1V-691100-1301-11
Part Name: T-BOX
Effective: 2024-11-08
Alternative parts:
Specification: North Amrica
Price: 420,00 € : 420,00 €
-+
18
P/N (SKU): SN1V-691100-1101-11
Part Name: T-BOX
Effective: 2024-11-15
Alternative parts: SN2V-691100-1100-11
Specification: Allytech@China
Price: 283,00 € : 283,00 €
18
P/N (SKU): SN1V-691100-1201-11
Part Name: T-BOX
Effective: 2024-11-15
Alternative parts:
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 420,00 € : 420,00 €
-+
18
P/N (SKU): SN1V-691100-1401-11
Part Name: T-BOX
Effective: 2024-11-15
Alternative parts:
Specification: AllyTech@South America except for Brazil
Price: 420,00 € : 420,00 €
-+
18
P/N (SKU): SN1V-691100-1501-11
Part Name: T-BOX
Effective: 2024-11-15
Alternative parts:
Specification: Turkey
Price: 420,00 € : 420,00 €
-+
18
P/N (SKU): SN1V-691100-1601-11
Part Name: T-BOX
Effective: 2024-11-15
Alternative parts:
Specification: Brazil
Price: 420,00 € : 420,00 €
-+
18
P/N (SKU): SN1V-691100-1102-12
Part Name: T-BOX
Effective: 2024-11-15
Alternative parts:
Specification: Allytech@China@WITH USB
Price: 249,00 € : 249,00 €
-+
19
P/N (SKU): 6WWV-150500-5000-10
Part Name: POWER OUTLET SOCKET
Effective: 2024-11-08
Alternative parts: 6WWV-151100-4000
Price: 25,00 € : 25,00 €
-+
20
P/N (SKU): 9AWV-151200-8000
Part Name: USB OUTPUT SEAT ASSY
Effective: 2024-11-08
Alternative parts:
Price: 38,00 € : 38,00 €
-+
21
P/N (SKU): 6GU#-150001-6000-M1
Part Name: CLASP
Effective: 2024-11-08
Alternative parts:
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 5GYV-151000-1000
Part Name: REGULATOR
Effective: 2024-11-08
Alternative parts:
Price: 131,00 € : 131,00 €
-+
23
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2024-11-08
Alternative parts:
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2024-11-08
Alternative parts:
Specification: 15A
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): CFCV-150525-2000-M1
Part Name: AUXILIARY RELAY
Effective: 2024-11-08
Alternative parts:
Price: 5,00 € : 5,00 €
-+
26
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2024-11-08
Alternative parts:
Specification: 10A
Price: 2,50 € : 2,50 €
-+
27
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2024-11-08
Alternative parts:
Price: 7,00 € : 7,00 €
-+
28
P/N (SKU): CFCV-150005-4504
Part Name: FUSE 60A
Effective: 2024-11-08
Alternative parts:
Price: 2,50 € : 2,50 €
-+
29
P/N (SKU): 806A-151307
Part Name: 25A FUSE
Effective: 2024-11-08
Alternative parts:
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): CFCV-150522-2000-M1
Part Name: 40A RELAY
Effective: 2024-11-08
Alternative parts:
Price: 6,00 € : 6,00 €
-+
31
P/N (SKU): CFCV-156215-4500
Part Name: ANF FUSE 80A
Effective: 2024-11-08
Alternative parts:
Price: 2,00 € : 2,00 €
-+
32
P/N (SKU): 5DYV-169500-1001
Part Name: FUNCTION SWITCH
Effective: 2024-11-08
Remarks: WITHOUT TURNING LIGHT
Alternative parts:
Price: 50,00 € : 50,00 €
-+
32
P/N (SKU): 5FYV-169500-1201
Part Name: FUNCTION SWITCH
Effective: 2024-11-08
Remarks: WITH TURNING LIGHT
Alternative parts:
Price: 49,00 € : 49,00 €
-+
33
P/N (SKU): 5FYV-169080-1002
Part Name: 2WD/4WD SWITCH
Effective: 2024-11-08
Alternative parts:
Price: 37,00 € : 37,00 €
-+
34
P/N (SKU): 5GYV-169480-1200
Part Name: SWITCHGROUP
Effective: 2024-11-08
Alternative parts:
Price: 38,00 € : 38,00 €
-+
35
P/N (SKU): 5FYV-169150-1001
Part Name: ONE-CLICK START SWITCH
Effective: 2024-11-08
Alternative parts:
Price: 26,00 € : 26,00 €
-+
36
P/N (SKU): 5FYV-169550-1002
Part Name: ELECTRICAL DAMPING SWITCH
Effective: 2024-11-08
Alternative parts:
Price: 39,00 € : 39,00 €
-+
37
P/N (SKU): 5FYV-169560-1002
Part Name: CLOCK SPRING
Effective: 2024-11-08
Alternative parts:
Price: 77,00 € : 77,00 €
-+
38
P/N (SKU): 5FYV-169030-1001
Part Name: DIMMER SWITCH
Effective: 2024-11-08
Alternative parts:
Price: 40,00 € : 40,00 €
-+
39
P/N (SKU): 5FYV-169590-1002
Part Name: VOLUME SWITCH
Effective: 2024-11-08
Alternative parts:
Price: 29,00 € : 29,00 €
-+
40
P/N (SKU): 5FYV-169090-1001
Part Name: MODE SWITCH
Effective: 2024-11-08
Alternative parts:
Price: 35,00 € : 35,00 €
-+
41
P/N (SKU): 5ASV-152200-6001
Part Name: SWITCH HOLE COVER_6PIN
Effective: 2024-11-08
Alternative parts:
Specification: 6 PIN
Price: 3,00 € : 3,00 €
-+
42
P/N (SKU): CFCV-156103-2000
Part Name: T-BOX CONNECTOR PLUG
Effective: 2024-11-08
Alternative parts:
Price: 6,00 € : 6,00 €
-+
43
P/N (SKU): 6KMV-150901-B002
Part Name: T-BOX RUBBER RING
Effective: 2024-11-08
Alternative parts:
Price: 2,00 € : 2,00 €
-+
44
P/N (SKU): 30006-080014810
Part Name: BOLT
Effective: 2024-11-08
Alternative parts:
Specification: M8×14
Price: 1,50 € : 1,50 €
-+
45
P/N (SKU): 9DQV-151400-3000
Part Name: HORN
Effective: 2024-11-08
Alternative parts:
Price: 11,00 € : 11,00 €
-+
46
P/N (SKU): 30105-050035410
Part Name: SCREW
Effective: 2024-11-08
Alternative parts:
Specification: M5x35@TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
47
P/N (SKU): 9DQV-151300-3100-10
Part Name: TRAILER POWER SOCKET
Effective: 2024-11-08
Alternative parts:
Price: 37,00 € : 37,00 €
-+
48
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2024-11-08
Alternative parts:
Price: 1,50 € : 1,50 €
-+
49
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2024-11-08
Alternative parts:
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
50
P/N (SKU): 9DS#-150009-6100-M1
Part Name: TIE BAND ZDG
Effective: 2024-11-08
Alternative parts:
Specification: 4.7x194@ZDG4.7X194
Price: 1,50 € : 1,50 €
-+
51
P/N (SKU): 5ASV-150009-6000-M1
Part Name: TIE BAND
Effective: 2024-11-08
Alternative parts:
Specification: ZDG100x4.5
Price: 1,50 € : 1,50 €
-+
52
P/N (SKU): 5HYV-150191-2F00
Part Name: HORN ADAPTER CABLE
Effective: 2024-11-08
Alternative parts:
Price: 3,50 € : 3,50 €
-+
53
P/N (SKU): 5GYV-150200-1000
Part Name: EFI AUXILIARY CABLE
Effective: 2024-11-08
Alternative parts:
Price: 138,00 € : 138,00 €
-+
54
P/N (SKU): 30102-050016810
Part Name: SCREW
Effective: 2024-11-08
Alternative parts:
Specification: GB/T70.1_M5×16
Price: 1,50 € : 1,50 €
-+
55
P/N (SKU): 30110-421130010
Part Name: SELF-TAPPING SCREW
Effective: 2024-11-08
Alternative parts: 30110-420130070
Specification: ST4.2x13@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
