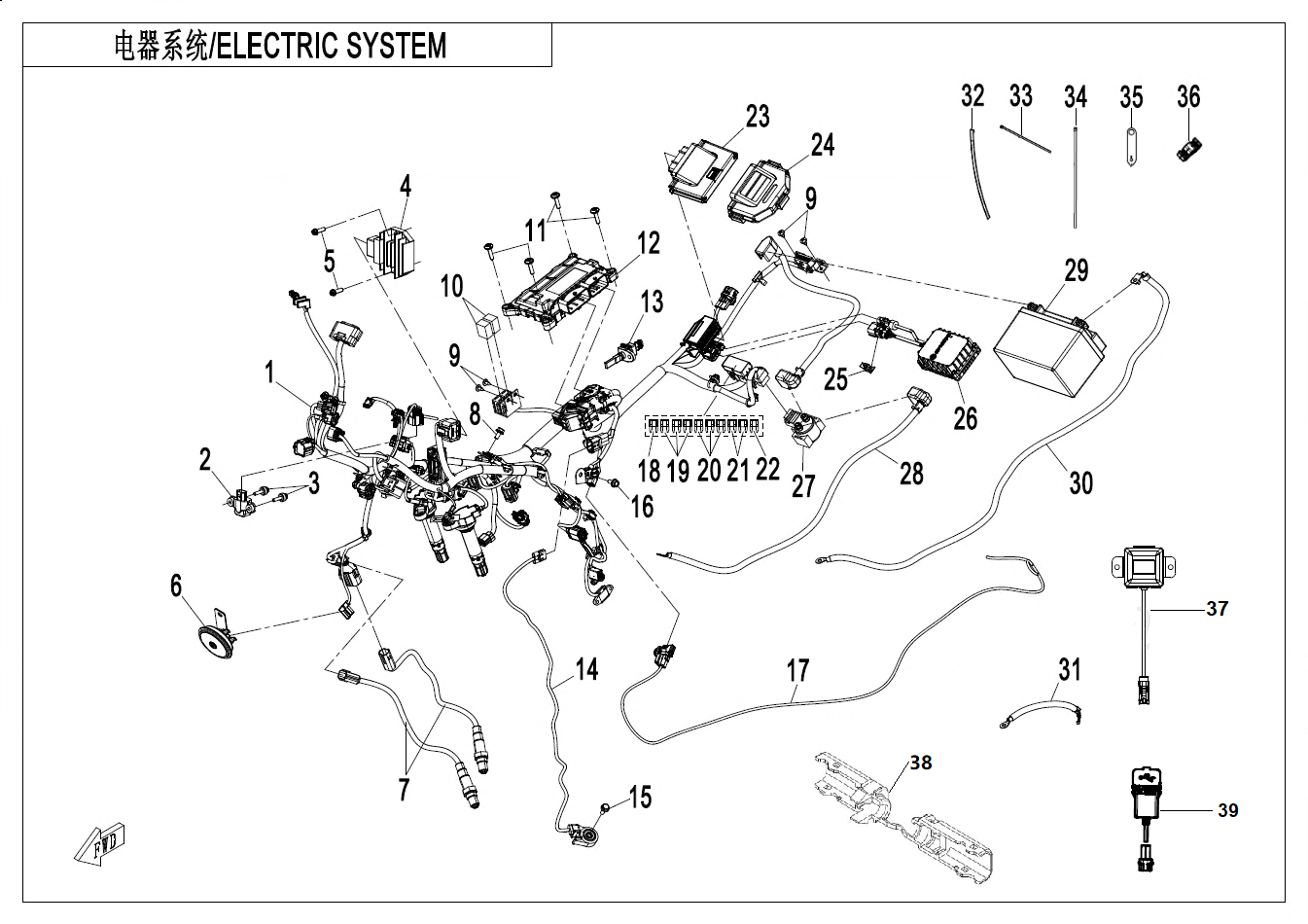

ELECTRIC SYSTEM(ADVANCED) - F15-B

ELECTRIC SYSTEM(ADVANCED) - F15-B

No.

01
P/N (SKU): 6KWV-150100-2000
Part Name: MAIN CABLE
Effective: 2024-09-14
Alternative parts:
Price: 365,76 € : 365,76 €
-+
02
P/N (SKU): 6L30-080040
Part Name: 6D SENSOR
Effective: 2024-09-14
Alternative parts:
Price: 327,60 € : 327,60 €
-+
03
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2024-09-14
Alternative parts:
Specification: M6×16
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 6WWV-177000-5000-M1
Part Name: REGULATOR
Effective: 2024-09-14
Alternative parts: K-60311034100
Price: 126,30 € : 126,30 €
-+
04
P/N (SKU): K-60311034100
Part Name: REGULATOR
Effective: 2025-01-07
Alternative parts:
Price: 0,00 € : 0,00 €
-+
05
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2024-09-14
Alternative parts:
Specification: M6×25
Price: 0,55 € : 0,55 €
-+
06
P/N (SKU): 6KWV-150600-1000
Part Name: HORN
Effective: 2024-09-14
Alternative parts: 6FIV-150600-7000
Price: 7,35 € : 7,35 €
07
P/N (SKU): 6KMV-004100-M300
Part Name: OXYGEN SENSOR
Effective: 2024-09-14
Alternative parts:
Price: 56,40 € : 56,40 €
-+
08
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2024-09-14
Alternative parts:
Specification: M6×16
Price: 0,55 € : 0,55 €
-+
09
P/N (SKU): 30118-480130010
Part Name: SELF-TAPPING SCREW
Effective: 2024-09-14
Alternative parts:
Specification: ST4.8x13@TRIVALENT CHROMIUM
Price: 0,75 € : 0,75 €
-+
10
P/N (SKU): CFCV-150524-2000-M1
Part Name: AUXILIARY RELAY
Effective: 2024-09-14
Alternative parts:
Price: 3,30 € : 3,30 €
-+
11
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2024-09-14
Alternative parts:
Specification: M6×25
Price: 0,55 € : 0,55 €
-+
12
P/N (SKU): 6KWV-001000-2000
Part Name: ECM ASSY
Effective: 2024-09-14
Remarks: A3
Alternative parts:
Price: 230,99 € : 230,99 €
-+
12
P/N (SKU): 6KWV-001000-2000-10
Part Name: ECM ASSY
Effective: 2024-09-14
Remarks: A2
Alternative parts:
Price: 230,99 € : 230,99 €
-+
13
P/N (SKU): 0PW0-173100
Part Name: AIR INTAKE TEMP. SENSOR
Effective: 2024-09-14
Alternative parts:
Price: 35,60 € : 35,60 €
-+
14
P/N (SKU): 6KWV-151200-1000
Part Name: SIDE STAND SWITCH
Effective: 2024-09-14
Alternative parts:
Price: 15,40 € : 15,40 €
-+
15
P/N (SKU): 8010-090005
Part Name: BOLT M6x16
Effective: 2024-09-14
Alternative parts:
Specification: M6x16
Price: 0,55 € : 0,55 €
-+
16
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2024-09-14
Alternative parts: 30006-060012870
Specification: M6×12
Price: 0,55 € : 0,55 €
-+
17
P/N (SKU): 6KWV-150440-1001
Part Name: LICENSE LIGHT AUXILIARY CABLE
Effective: 2024-09-14
Alternative parts:
Price: 21,60 € : 21,60 €
-+
18
P/N (SKU): 8010-151301
Part Name: FUSE 5A
Effective: 2024-09-14
Alternative parts:
Specification: 5A
Price: 0,55 € : 0,55 €
-+
19
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2024-09-14
Alternative parts:
Specification: 10A
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2024-09-14
Alternative parts:
Specification: 15A
Price: 0,55 € : 0,55 €
-+
21
P/N (SKU): 806A-151301
Part Name: FUSE 7.5A
Effective: 2024-09-14
Alternative parts:
Specification: 7.5A
Price: 0,55 € : 0,55 €
-+
22
P/N (SKU): 806A-151307
Part Name: 25A FUSE
Effective: 2024-09-14
Alternative parts:
Price: 0,55 € : 0,55 €
-+
23
P/N (SKU): 6KWV-151900-1000
Part Name: VEHICLE CONTROL UNIT
Effective: 2024-09-14
Alternative parts:
Price: 197,70 € : 197,70 €
-+
24
P/N (SKU): 6WWV-150420-5000-10
Part Name: BCM BUSHING
Effective: 2024-09-14
Alternative parts:
Price: 4,40 € : 4,40 €
-+
25
P/N (SKU): CFCV-CBC005-2000-M1
Part Name: CLIP
Effective: 2024-09-14
Alternative parts:
Price: 0,55 € : 0,55 €
-+
26
P/N (SKU): SN1V-691100-1501-11
Part Name: T-BOX
Effective: 2024-09-14
Remarks: TURKEY
Alternative parts:
Specification: Turkey
Price: 413,00 € : 413,00 €
-+
26
P/N (SKU): SN1V-691100-1601-11
Part Name: T-BOX
Effective: 2024-09-14
Remarks: BRAZIL
Alternative parts:
Specification: Brazil
Price: 413,00 € : 413,00 €
-+
26
P/N (SKU): SN1V-691100-1201-11
Part Name: T-BOX
Effective: 2024-09-14
Remarks: AllyTech, Eurasia, Africa and Australia except Turkey
Alternative parts:
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 413,00 € : 413,00 €
-+
26
P/N (SKU): SN1V-691100-1301-11
Part Name: T-BOX
Effective: 2024-09-14
Alternative parts:
Specification: North Amrica
Price: 413,00 € : 413,00 €
-+
26
P/N (SKU): SN1V-691100-1401-11
Part Name: T-BOX
Effective: 2024-09-14
Alternative parts:
Specification: AllyTech@South America except for Brazil
Price: 413,00 € : 413,00 €
-+
27
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2024-09-14
Alternative parts:
Price: 24,40 € : 24,40 €
-+
28
P/N (SKU): 6KWV-150310-1001
Part Name: STARTER MOTOR POSITIVE CABLE
Effective: 2024-09-14
Alternative parts:
Price: 16,20 € : 16,20 €
-+
29
P/N (SKU): 31021100
Part Name: BATTERY
Effective: 2024-09-14
Alternative parts:
Price: 103,10 € : 103,10 €
-+
30
P/N (SKU): 6KWV-150420-1001
Part Name: BATTERY NEGATIVE CABLE
Effective: 2024-09-14
Alternative parts:
Price: 21,60 € : 21,60 €
-+
31
P/N (SKU): 6KWV-150430-1000
Part Name: FRAME GROUND CABLE
Effective: 2024-09-14
Alternative parts:
Price: 8,45 € : 8,45 €
-+
32
P/N (SKU): 0000-000014
Part Name: TIE BAND
Effective: 2024-09-14
Alternative parts:
Specification: BLACK
Price: 0,95 € : 0,95 €
-+
33
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2024-09-14
Alternative parts:
Specification: 5x250
Price: 1,25 € : 1,25 €
-+
34
P/N (SKU): 9010-150004
Part Name: TIE
Effective: 2024-09-14
Alternative parts:
Price: 0,55 € : 0,55 €
-+
35
P/N (SKU): 6KJ0-100002
Part Name: CLUTCH PULL BINDING
Effective: 2024-09-14
Alternative parts:
Price: 0,95 € : 0,95 €
-+
36
P/N (SKU): 6L30-080006
Part Name: WIRE CLIP 2, BRAKE FLUID HOSE
Effective: 2024-09-14
Alternative parts:
Price: 0,95 € : 0,95 €
-+
37
P/N (SKU): 6WWV-170571-5A01
Part Name: GNSS ANTENNA
Effective: 2024-09-14
Alternative parts:
Price: 50,20 € : 50,20 €
-+
38
P/N (SKU): CFCV-156001-2000-M1
Part Name: CABLE PROTECTOR
Effective: 2024-09-14
Alternative parts:
Price: 0,95 € : 0,95 €
-+
39
P/N (SKU): 6KWV-151500-1000
Part Name: TYPE-C USB SOCKET
Effective: 2024-09-14
Remarks: use with 6KWV-040602-1002
Alternative parts:
Price: 29,30 € : 29,30 €
-+
