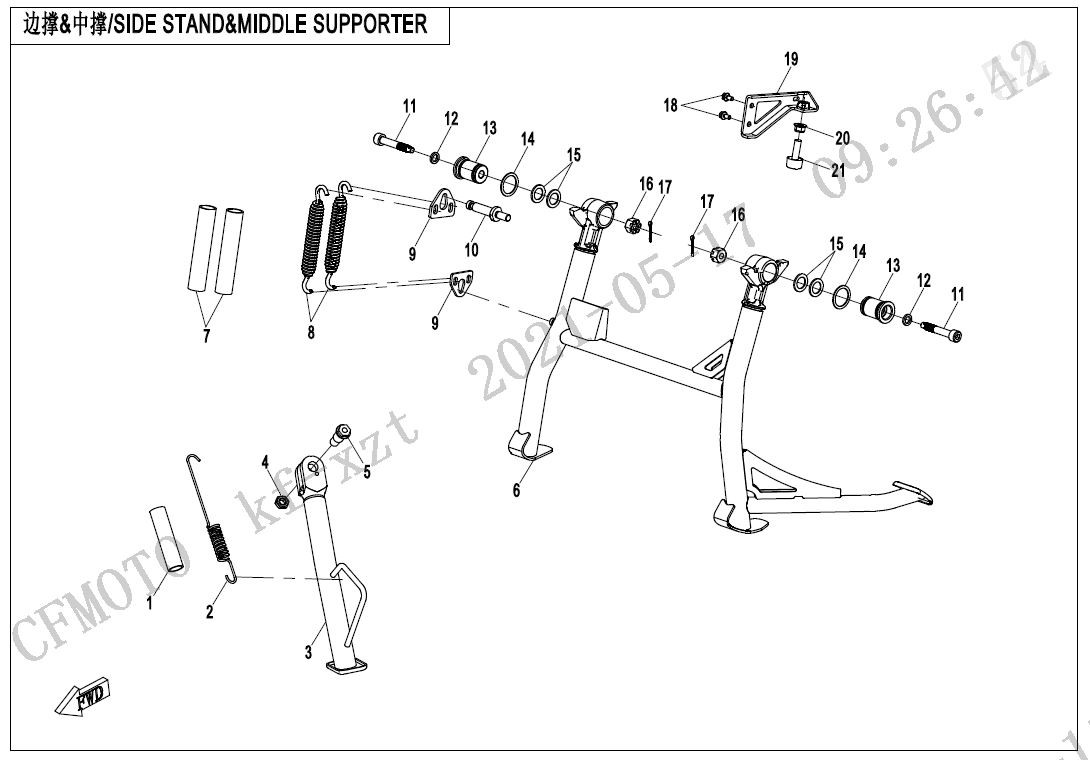

SIDE STAND@^MIDDLE SUPPORTER - F03-4

No.

1
P/N (SKU): A000-030004
Part Name: SIDE STAND SPRING SLEEVE
Effective: 2024-07-22
Alternative parts:
Price: 1,25 € : 1,25 €
-+
2
P/N (SKU): A000-030210
Part Name: SIDE STAND SPRING ASSY
Effective: 2024-07-22
Alternative parts:
Price: 4,80 € : 4,80 €
-+
3
P/N (SKU): 6WWV-030200-5000
Part Name: SIDE BRACKET ASSY
Effective: 2024-07-22
Alternative parts:
Price: 39,90 € : 39,90 €
-+
4
P/N (SKU): 30208-102810
Part Name: NUT
Effective: 2024-07-22
Alternative parts:
Specification: M10x1.25
Price: 0,55 € : 0,55 €
-+
5
P/N (SKU): A000-030006
Part Name: SIDE STAND BOLT
Effective: 2024-07-22
Alternative parts:
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 6WWV-030100-5000
Part Name: MIDDLE SUPPORTER ASSY
Effective: 2024-07-22
Alternative parts:
Price: 89,70 € : 89,70 €
-+
7
P/N (SKU): 6L30-030705
Part Name: SPRING SLEEVE, SIDE BRACKET
Effective: 2024-07-22
Alternative parts:
Price: 1,25 € : 1,25 €
-+
8
P/N (SKU): 6L30-030060
Part Name: SPRING, MAIN BRAKCET
Effective: 2024-07-22
Alternative parts:
Price: 15,40 € : 15,40 €
-+
9
P/N (SKU): 6WWV-030106-5000
Part Name: SPRING HOOK, MIDDLE SUPPORTER
Effective: 2024-07-22
Alternative parts:
Price: 2,60 € : 2,60 €
-+
10
P/N (SKU): 6WWV-030005-5000
Part Name: SPRING PIN, MIDDLE SUPPORTER
Effective: 2024-07-22
Alternative parts:
Price: 3,30 € : 3,30 €
-+
11
P/N (SKU): 6L30-030093
Part Name: BOLT
Effective: 2024-07-22
Alternative parts:
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 6L30-030720
Part Name: SELF-LOCK RETAINER KIT
Effective: 2024-07-22
Alternative parts:
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 6L30-030701
Part Name: BUSHING MAIN BRACKET
Effective: 2024-07-22
Alternative parts:
Price: 5,90 € : 5,90 €
-+
14
P/N (SKU): 6L30-030706
Part Name: FRICTION WASHER
Effective: 2024-07-22
Alternative parts:
Price: 0,55 € : 0,55 €
-+
15
P/N (SKU): 1F30-024014
Part Name: O-RING
Effective: 2024-07-22
Alternative parts:
Specification: 17x2
Price: 0,95 € : 0,95 €
-+
16
P/N (SKU): 6L30-030094
Part Name: SLOTTED NUT
Effective: 2024-07-22
Alternative parts:
Price: 1,25 € : 1,25 €
-+
17
P/N (SKU): 30903-0252610
Part Name: COTTER PIN
Effective: 2024-07-22
Alternative parts:
Specification: 2.5x26
Price: 0,55 € : 0,55 €
-+
18
P/N (SKU): 6WWV-046702-5000
Part Name: INNER HEX SCREW M6x12
Effective: 2024-07-22
Alternative parts:
Price: 0,55 € : 0,55 €
-+
19
P/N (SKU): 6WWV-030190-5000
Part Name: LIMIT SEAT, MIDDLE SUPPORTER
Effective: 2024-07-22
Alternative parts:
Price: 7,00 € : 7,00 €
-+
20
P/N (SKU): 30200-080810
Part Name: NUT
Effective: 2024-07-22
Alternative parts:
Specification: M8
Price: 0,95 € : 0,95 €
-+
21
P/N (SKU): 6L30-030080
Part Name: DAMPING MATE ASSY
Effective: 2024-07-22
Alternative parts:
Price: 2,95 € : 2,95 €
-+
