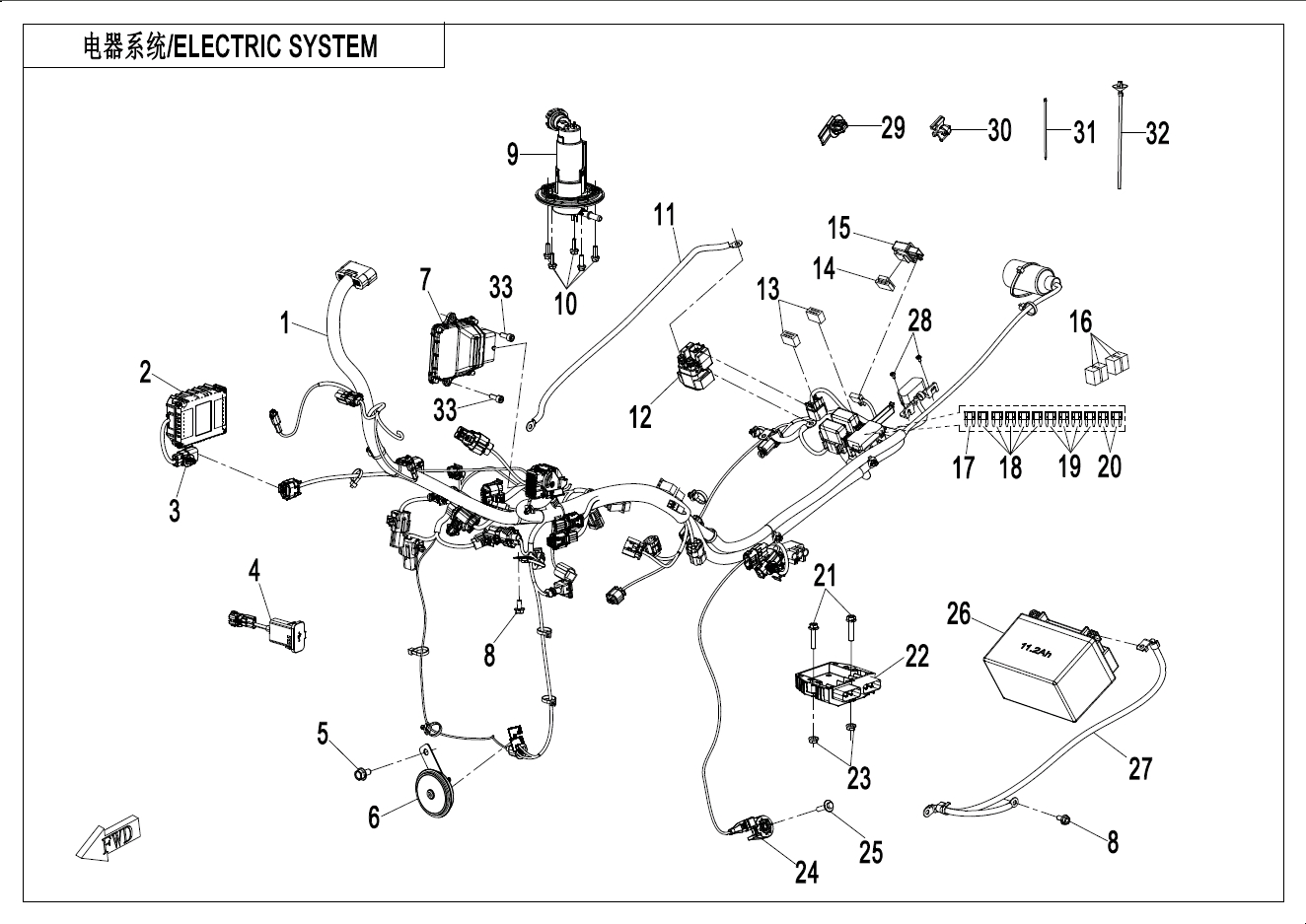

ELECTRIC SYSTEM - F15

ELECTRIC SYSTEM - F15

No.

01
P/N (SKU): 6AQV-150100-6400
Part Name: MAIN CABLE
Effective: 2024-09-09
Alternative parts:
Price: 218,00 € : 218,00 €
-+
02
P/N (SKU): SN1V-691100-1601-11
Part Name: T-BOX
Effective: 2024-09-09
Remarks: BRAZIL
Alternative parts:
Specification: Brazil
Price: 420,00 € : 420,00 €
-+
02
P/N (SKU): SN1V-691100-1501-11
Part Name: T-BOX
Effective: 2024-09-09
Remarks: TURKEY
Alternative parts:
Specification: Turkey
Price: 420,00 € : 420,00 €
-+
02
P/N (SKU): SN1V-691100-1401-11
Part Name: T-BOX
Effective: 2024-09-09
Remarks: SOUTH AMERICA
Alternative parts:
Specification: AllyTech@South America except for Brazil
Price: 420,00 € : 420,00 €
-+
02
P/N (SKU): SN1V-691100-1301-11
Part Name: T-BOX
Effective: 2024-09-09
Remarks: NORTH AMERICA
Alternative parts:
Specification: North Amrica
Price: 420,00 € : 420,00 €
-+
02
P/N (SKU): SN1V-691100-1201-11
Part Name: T-BOX
Effective: 2024-09-09
Remarks: OTHER COUNTRY
Alternative parts:
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 420,00 € : 420,00 €
-+
03
P/N (SKU): CFCV-CBC005-2000-M1
Part Name: CLIP
Effective: 2024-09-09
Alternative parts:
Price: 2,00 € : 2,00 €
-+
04
P/N (SKU): FA8V-150600-1000-10
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2024-09-09
Alternative parts: FA8V-150600-1001-10
Price: 42,00 € : 42,00 €
-+
04
P/N (SKU): FA8V-150600-1001-10
Part Name: USB OUTLET SOCKET
Effective: 2024-10-28
Alternative parts:
Price: 26,00 € : 26,00 €
-+
05
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2024-09-09
Alternative parts:
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 6FIV-150600-7000
Part Name: HORN
Effective: 2024-09-09
Alternative parts:
Price: 11,00 € : 11,00 €
-+
07
P/N (SKU): 6AQV-001000-6400
Part Name: ECM ASSY
Effective: 2024-09-09
Alternative parts:
Specification: MSE6.0
Price: 132,00 € : 132,00 €
-+
08
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2024-09-09
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
09
P/N (SKU): 6AQV-150900-4001
Part Name: FUEL PUMP ASSY
Effective: 2024-09-09
Alternative parts:
Price: 73,00 € : 73,00 €
-+
10
P/N (SKU): 30006-050020810
Part Name: BOLT
Effective: 2024-09-09
Alternative parts:
Specification: M5×20
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 6AQV-150310-1000
Part Name: STARTER MOTOR POSITIVE CABLE
Effective: 2024-09-09
Alternative parts:
Price: 17,00 € : 17,00 €
-+
12
P/N (SKU): 6AQV-150510-6000
Part Name: RELAY, STARTER
Effective: 2024-09-09
Alternative parts:
Price: 19,00 € : 19,00 €
-+
13
P/N (SKU): 6100-150500
Part Name: RUBBER SLEEVE, FLASHER
Effective: 2024-09-09
Alternative parts:
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2024-09-09
Alternative parts:
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 6FIA-150340-6400
Part Name: FLASHER
Effective: 2024-09-09
Alternative parts:
Price: 18,00 € : 18,00 €
-+
16
P/N (SKU): 5BY4-150330
Part Name: AUXILIARY RELAY
Effective: 2024-09-09
Alternative parts:
Price: 7,50 € : 7,50 €
-+
17
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2024-09-09
Alternative parts:
Specification: 10A
Price: 2,50 € : 2,50 €
-+
18
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2024-09-09
Alternative parts:
Specification: 15A
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 8010-151301
Part Name: FUSE 5A
Effective: 2024-09-09
Alternative parts:
Specification: 5A
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 806A-151301
Part Name: FUSE 7.5A
Effective: 2024-09-09
Alternative parts:
Specification: 7.5A
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2024-09-09
Alternative parts:
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 6NTV-151000-3000
Part Name: REGULATOR
Effective: 2024-09-09
Alternative parts:
Price: 54,00 € : 54,00 €
-+
23
P/N (SKU): 30202-060110
Part Name: NUT
Effective: 2024-09-09
Alternative parts: 30204-060810
Specification: M6@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 6KMV-151500-3000
Part Name: SIDE STAND SWITCH
Effective: 2024-09-09
Alternative parts:
Price: 18,00 € : 18,00 €
-+
25
P/N (SKU): 8010-090005
Part Name: BOLT M6x16
Effective: 2024-09-09
Alternative parts:
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 31021100
Part Name: BATTERY
Effective: 2024-09-09
Alternative parts:
Price: 105,00 € : 105,00 €
-+
26
P/N (SKU): 6KWV-151600-1200-M1
Part Name: BATTERY
Effective: 2024-09-09
Remarks: FOR TURKEY
Alternative parts: 6KWV-151600-1201-M1
Price: 73,00 € : 73,00 €
27
P/N (SKU): 6AQV-150420-6000
Part Name: NEGATIVE CABLE, BATTERY
Effective: 2024-09-09
Alternative parts:
Price: 17,00 € : 17,00 €
-+
28
P/N (SKU): 30110-421130010
Part Name: SELF-TAPPING SCREW
Effective: 2024-09-09
Alternative parts:
Specification: ST4.2x13@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 6GU#-150001-6000-M1
Part Name: CLASP
Effective: 2024-09-09
Alternative parts:
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 6AQV-150001-1000-M1
Part Name: CLIP
Effective: 2024-09-09
Alternative parts:
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2024-09-09
Alternative parts:
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
32
P/N (SKU): 801F-100101
Part Name: TIE BAND
Effective: 2024-09-09
Alternative parts:
Price: 2,00 € : 2,00 €
-+
33
P/N (SKU): 30102-060016810
Part Name: SCREW
Effective: 2024-09-09
Alternative parts:
Specification: M6x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
