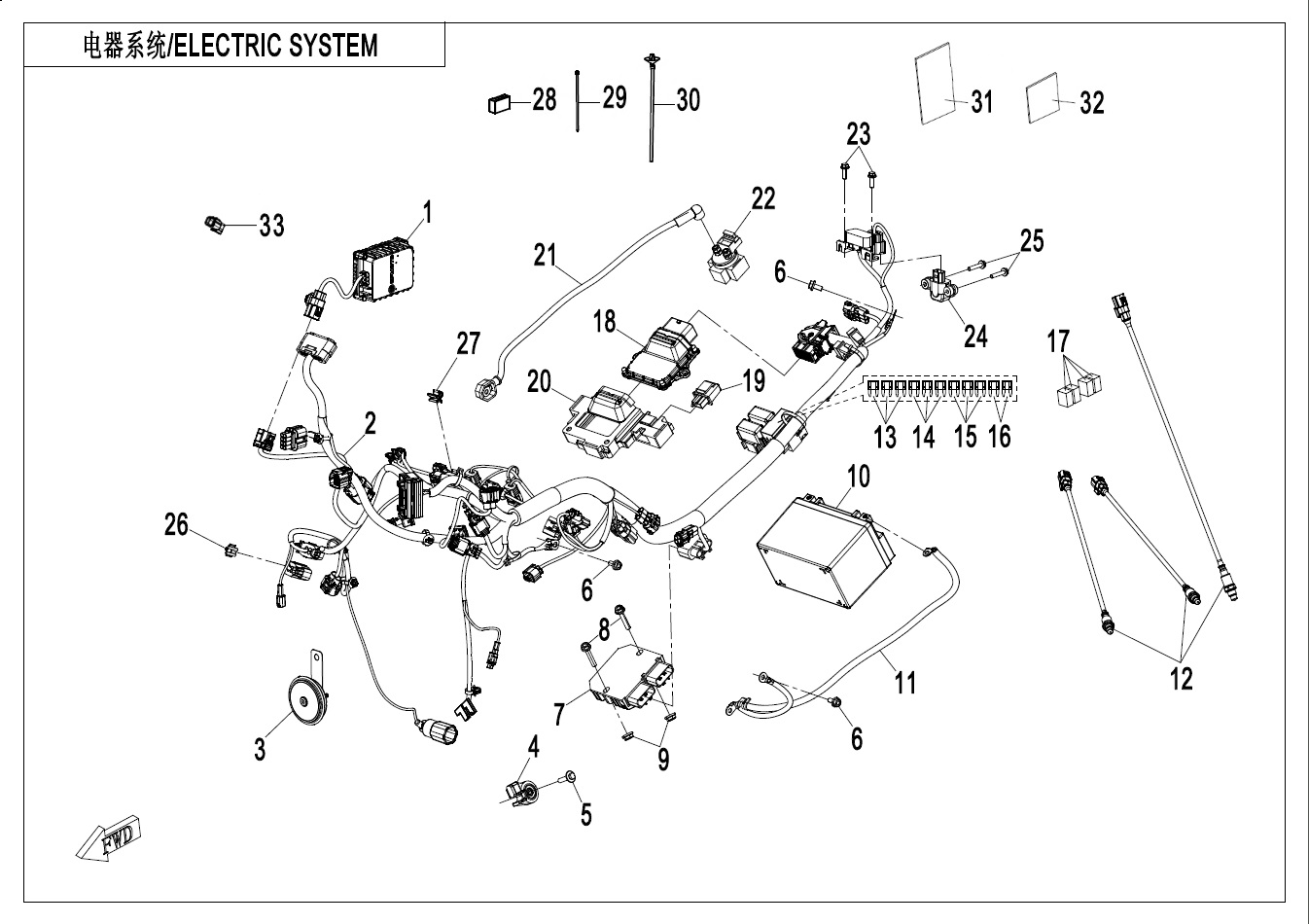

ELECTRIC SYSTEM - F15

ELECTRIC SYSTEM - F15

No.

01
P/N (SKU): SN1V-691100-1301-11
Part Name: T-BOX
Effective: 2024-07-17
Remarks: NORTH AMERICA
Alternative parts:
Specification: North Amrica
Price: 420,00 € : 420,00 €
-+
01
P/N (SKU): SN1V-691100-1201-11
Part Name: T-BOX
Effective: 2024-07-17
Remarks: EURASIA, AFRICA AND AUSTRALIA EXCEPT TURKEY
Alternative parts:
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 420,00 € : 420,00 €
-+
01
P/N (SKU): SN1V-691100-1401-11
Part Name: T-BOX
Effective: 2024-07-17
Remarks: SOUTH AMERICA EXCEPT BRAZIL
Alternative parts:
Specification: AllyTech@South America except for Brazil
Price: 420,00 € : 420,00 €
-+
01
P/N (SKU): SN1V-691100-1501-11
Part Name: T-BOX
Effective: 2024-07-17
Remarks: Turkey_Allytech
Alternative parts:
Specification: Turkey
Price: 420,00 € : 420,00 €
-+
01
P/N (SKU): SN1V-691100-1601-11
Part Name: T-BOX
Effective: 2024-07-18
Remarks: BRAZIL
Alternative parts: SN1V-691100-1601-11
Specification: Brazil
Price: 420,00 € : 420,00 €
02
P/N (SKU): 6AQV-150100-5300
Part Name: MAIN CABLE
Effective: 2024-07-17
Alternative parts:
Price: 242,00 € : 242,00 €
-+
03
P/N (SKU): 6FIV-150600-7000
Part Name: HORN
Effective: 2024-07-17
Alternative parts:
Price: 11,00 € : 11,00 €
-+
04
P/N (SKU): 6KMV-151500-3000
Part Name: SIDE STAND SWITCH
Effective: 2024-07-17
Alternative parts:
Price: 18,00 € : 18,00 €
-+
05
P/N (SKU): 8010-090005
Part Name: BOLT M6x16
Effective: 2024-07-17
Alternative parts:
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2024-07-17
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
07
P/N (SKU): 6NTV-151000-3000
Part Name: REGULATOR
Effective: 2024-07-17
Alternative parts:
Price: 54,00 € : 54,00 €
-+
08
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2024-07-17
Alternative parts:
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 30202-060110
Part Name: NUT
Effective: 2024-07-17
Alternative parts: 30204-060810
Specification: M6@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 31021200
Part Name: BATTERY
Effective: 2024-07-17
Alternative parts:
Specification: 12V12AH
Price: 98,00 € : 98,00 €
-+
11
P/N (SKU): 6AQV-150420-1001
Part Name: BATTERY NEGATIVE CABLE
Effective: 2024-07-17
Alternative parts:
Price: 20,00 € : 20,00 €
-+
12
P/N (SKU): 6KMV-004100-M300
Part Name: OXYGEN SENSOR
Effective: 2024-07-17
Alternative parts:
Price: 71,00 € : 71,00 €
-+
13
P/N (SKU): 8010-151301
Part Name: FUSE 5A
Effective: 2024-07-17
Alternative parts:
Specification: 5A
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2024-07-17
Alternative parts:
Specification: 10A
Price: 2,50 € : 2,50 €
-+
15
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2024-07-17
Alternative parts:
Specification: 15A
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 806A-151307
Part Name: 25A FUSE
Effective: 2024-07-17
Alternative parts:
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 5BY4-150330
Part Name: AUXILIARY RELAY
Effective: 2024-07-17
Alternative parts:
Price: 7,50 € : 7,50 €
-+
18
P/N (SKU): 6AQV-001000-5300
Part Name: ECM ASSY
Effective: 2024-07-17
Alternative parts:
Specification: MSE6.0
Price: 128,00 € : 128,00 €
-+
19
P/N (SKU): 6FIA-150340-6400
Part Name: FLASHER
Effective: 2024-07-17
Alternative parts:
Price: 18,00 € : 18,00 €
-+
20
P/N (SKU): 6AQV-001300-1000
Part Name: ECU RUBBER
Effective: 2024-07-17
Alternative parts:
Price: 8,50 € : 8,50 €
-+
21
P/N (SKU): 6AQV-150310-1000
Part Name: STARTER MOTOR POSITIVE CABLE
Effective: 2024-07-17
Alternative parts:
Price: 17,00 € : 17,00 €
-+
22
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2024-07-17
Alternative parts:
Price: 25,00 € : 25,00 €
-+
23
P/N (SKU): 0010-030002-00001
Part Name: BOLT
Effective: 2024-07-17
Alternative parts:
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 6KJ0-150600
Part Name: ROLL-OVER SENSOR
Effective: 2024-07-17
Alternative parts: 6L30-080040
Price: 20,00 € : 20,00 €
-+
25
P/N (SKU): 30006-050020810
Part Name: BOLT
Effective: 2024-07-17
Alternative parts: 30006-060016810
Specification: M5×20
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): CFCV-CBC005-2000-M1
Part Name: CLIP
Effective: 2024-07-17
Alternative parts:
Price: 2,00 € : 2,00 €
-+
27
P/N (SKU): 6AQV-150001-1000-M1
Part Name: CLIP
Effective: 2024-07-17
Alternative parts:
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 6100-150500
Part Name: RUBBER SLEEVE, FLASHER
Effective: 2024-07-17
Alternative parts:
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2024-07-17
Alternative parts:
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 801F-100101
Part Name: TIE BAND
Effective: 2024-07-17
Alternative parts:
Price: 2,00 € : 2,00 €
-+
31
P/N (SKU): 5270-150001
Part Name: BATTERY FOAM MAT LH AND RH
Effective: 2024-07-17
Alternative parts:
Price: 1,50 € : 1,50 €
-+
32
P/N (SKU): 5270-150002
Part Name: BATTERY FOAM MAT FRONT AND REAR
Effective: 2024-07-17
Alternative parts:
Price: 1,50 € : 1,50 €
-+
33
P/N (SKU): CFCV-156103-2000
Part Name: T-BOX CONNECTOR PLUG
Effective: 2024-07-17
Alternative parts:
Price: 6,00 € : 6,00 €
-+
34
P/N (SKU): 6WWV-004101-5H01
Part Name: CONNECTING CLASP
Effective: 2025-08-19
Alternative parts:
Price: 1,50 € : 1,50 €
-+
