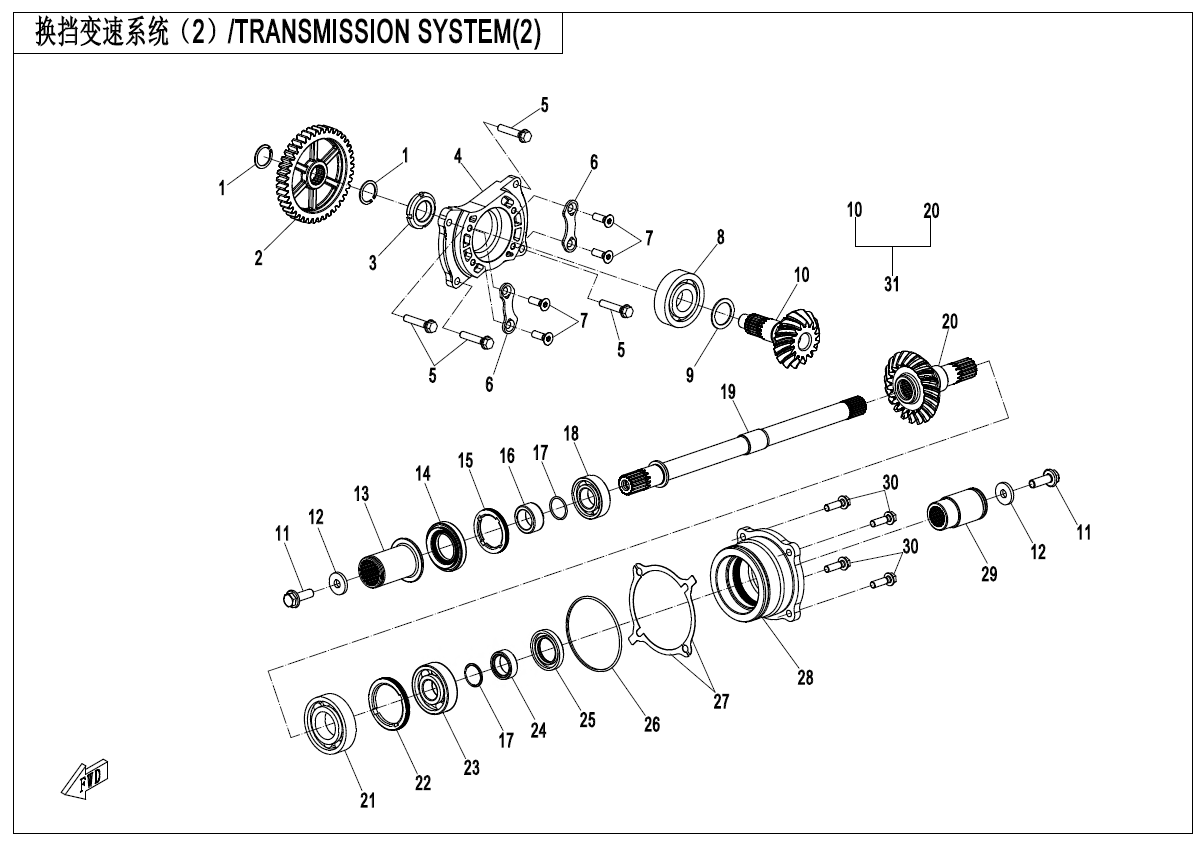

TRANSMISSION SYSTEM(2) - E06-2

TRANSMISSION SYSTEM(2) - E06-2

No.

01
P/N (SKU): 0180-061007-0050
Part Name: CIRCLIP 25
Effective: 2024-06-04
Alternative parts:
Specification: 25
Price: 1,50 € : 1,50 €
-+
02
P/N (SKU): 0800-062102
Part Name: OUTPUT DRIVEN GEAR
Effective: 2024-06-04
Alternative parts:
Price: 42,00 € : 42,00 €
-+
03
P/N (SKU): 0JWV-062102-3000
Part Name: LOCK NUT, BEVEL GEAR
Effective: 2024-06-04
Alternative parts:
Price: 3,00 € : 3,00 €
-+
04
P/N (SKU): 0JWV-062103-3000
Part Name: DRIVE BEVEL GEAR BEARING SEAT
Effective: 2024-06-04
Alternative parts:
Price: 30,00 € : 30,00 €
-+
04
P/N (SKU): 0JWV-062103-3001
Part Name: DRIVE BEVEL GEAR BEARING SEAT
Effective: 2025-02-18
Alternative parts:
Price: 22,00 € : 22,00 €
-+
05
P/N (SKU): 0JWV-010014-3000
Part Name: BOLT
Effective: 2024-06-04
Alternative parts:
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 0180-062104-0010
Part Name: LIMITATOR, BEARING
Effective: 2024-06-04
Alternative parts:
Price: 2,00 € : 2,00 €
-+
07
P/N (SKU): 30124-080025810
Part Name: SCREW
Effective: 2024-06-04
Alternative parts:
Specification: M8x25@COLOR ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 0110-041007
Part Name: BEARING
Effective: 2024-06-04
Alternative parts:
Specification: 28×68×18
Price: 39,00 € : 39,00 €
-+
09
P/N (SKU): 0JYV-062101-1E00-Q0-00001
Part Name: ADJUSTING WASHER, DRIVE BEVEL GEAR
Effective: 2024-06-04
Alternative parts:
Specification: t=1.400-1.449
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0JYV-062101-1E00-Q0-00002
Part Name: ADJUSTING WASHER, DRIVE BEVEL GEAR
Effective: 2024-06-04
Alternative parts:
Specification: t=1.450-1.499
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0JYV-062101-1E00-Q0-00003
Part Name: ADJUSTING WASHER, DRIVE BEVEL GEAR
Effective: 2024-06-04
Alternative parts:
Specification: t=1.500-1.549
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0JYV-062101-1E00-Q0-00004
Part Name: ADJUSTING WASHER, DRIVE BEVEL GEAR
Effective: 2024-06-04
Alternative parts:
Specification: t=1.550-1.599
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0JYV-062101-1E00-Q0-00005
Part Name: ADJUSTING WASHER, DRIVE BEVEL GEAR
Effective: 2024-06-04
Alternative parts:
Specification: t=1.600-1.649
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 0JWA-060002-00001
Part Name: BOLT M10x1.25x30
Effective: 2024-06-04
Alternative parts:
Price: 2,50 € : 2,50 €
-+
12
P/N (SKU): 0GR0-062204
Part Name: WASHER
Effective: 2024-06-04
Alternative parts:
Specification: 10x27.5x4
Price: 2,50 € : 2,50 €
-+
13
P/N (SKU): 0JWV-060201-3000
Part Name: FRONT OUTPUT BUSHING
Effective: 2024-06-04
Alternative parts:
Price: 27,00 € : 27,00 €
-+
14
P/N (SKU): 0JWA-062302-00001
Part Name: OIL SEAL
Effective: 2024-06-04
Alternative parts:
Specification: 35×61×9
Price: 11,00 € : 11,00 €
-+
15
P/N (SKU): 0180-060008
Part Name: BEARING RETAINER, FRONT OUTPUT SHAFT
Effective: 2024-06-04
Alternative parts:
Price: 6,50 € : 6,50 €
-+
16
P/N (SKU): 0800-062201-00001
Part Name: OUTPUT SHAFT SLEEVE
Effective: 2024-06-04
Alternative parts:
Price: 10,00 € : 10,00 €
-+
17
P/N (SKU): 0800-062205
Part Name: O-RING
Effective: 2024-06-04
Alternative parts:
Specification: 25x2
Price: 2,00 € : 2,00 €
-+
18
P/N (SKU): 30400-02501
Part Name: BEARING
Effective: 2024-06-04
Alternative parts:
Specification: 25
Price: 7,50 € : 7,50 €
-+
19
P/N (SKU): 0JWV-062301-3000
Part Name: FRONT OUTPUT SHAFT ASSY
Effective: 2024-06-04
Alternative parts:
Price: 79,00 € : 79,00 €
-+
21
P/N (SKU): 30499-03501
Part Name: BEARING
Effective: 2024-06-04
Alternative parts:
Price: 33,00 € : 33,00 €
-+
22
P/N (SKU): 0800-062206
Part Name: STOPPER NUT, BEARING
Effective: 2024-06-04
Alternative parts:
Price: 4,00 € : 4,00 €
-+
23
P/N (SKU): 30499-02501
Part Name: BEARING
Effective: 2024-06-04
Alternative parts:
Specification: 6305C3@NTN
Price: 20,00 € : 20,00 €
-+
24
P/N (SKU): 0JWV-062208-3000
Part Name: BUSHING
Effective: 2024-06-04
Alternative parts: 0JWV-062208-3001
Price: 10,00 € : 10,00 €
-+
24
P/N (SKU): 0JWV-062208-3001
Part Name: BUSHING
Effective: 2024-09-05
Alternative parts:
Price: 8,00 € : 8,00 €
-+
25
P/N (SKU): 0800-062204
Part Name: OIL SEAL
Effective: 2024-06-04
Alternative parts:
Specification: 35x50x7
Price: 6,50 € : 6,50 €
-+
26
P/N (SKU): 0180-062205
Part Name: O-SEAL RING
Effective: 2024-06-04
Alternative parts:
Specification: 88x2.5
Price: 4,00 € : 4,00 €
-+
27
P/N (SKU): 0800-062203
Part Name: ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.1
Effective: 2024-06-04
Alternative parts:
Specification: T=0.1
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 0800-062203-0001
Part Name: ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.2
Effective: 2024-06-04
Alternative parts:
Specification: T=0.2
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 0800-062203-0002
Part Name: ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.3
Effective: 2024-06-04
Alternative parts:
Specification: T=0.3
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 0800-062203-0003
Part Name: ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.4
Effective: 2024-06-04
Alternative parts:
Specification: T=0.4
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 0800-062203-0004
Part Name: ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.5
Effective: 2024-06-04
Alternative parts:
Specification: T=0.5
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 0800-062203-0050
Part Name: ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.15
Effective: 2024-06-04
Alternative parts:
Specification: T=0.15
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 0800-062202-10001
Part Name: DRIVEN BEVEL GEAR BEARING SEAT
Effective: 2024-06-04
Alternative parts: 0800-062202-10002
Price: 30,00 € : 30,00 €
-+
28
P/N (SKU): 0800-062202-10002
Part Name: DRIVEN BEVEL GEAR BEARING HOUSING
Effective: 2025-03-19
Alternative parts:
Price: 26,00 € : 26,00 €
-+
29
P/N (SKU): 0JWV-060101-3000
Part Name: REAR OUTPUT BUSHING
Effective: 2024-06-04
Alternative parts:
Price: 36,00 € : 36,00 €
-+
30
P/N (SKU): 0JYA-062104
Part Name: BOLT M8x28
Effective: 2024-06-04
Alternative parts:
Specification: M8x28
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): SH-0JWV-0621A0
Part Name: BEVEL GEAR ASSY
Effective: 2024-09-29
Alternative parts:
Price: 130,00 € : 130,00 €
-+
