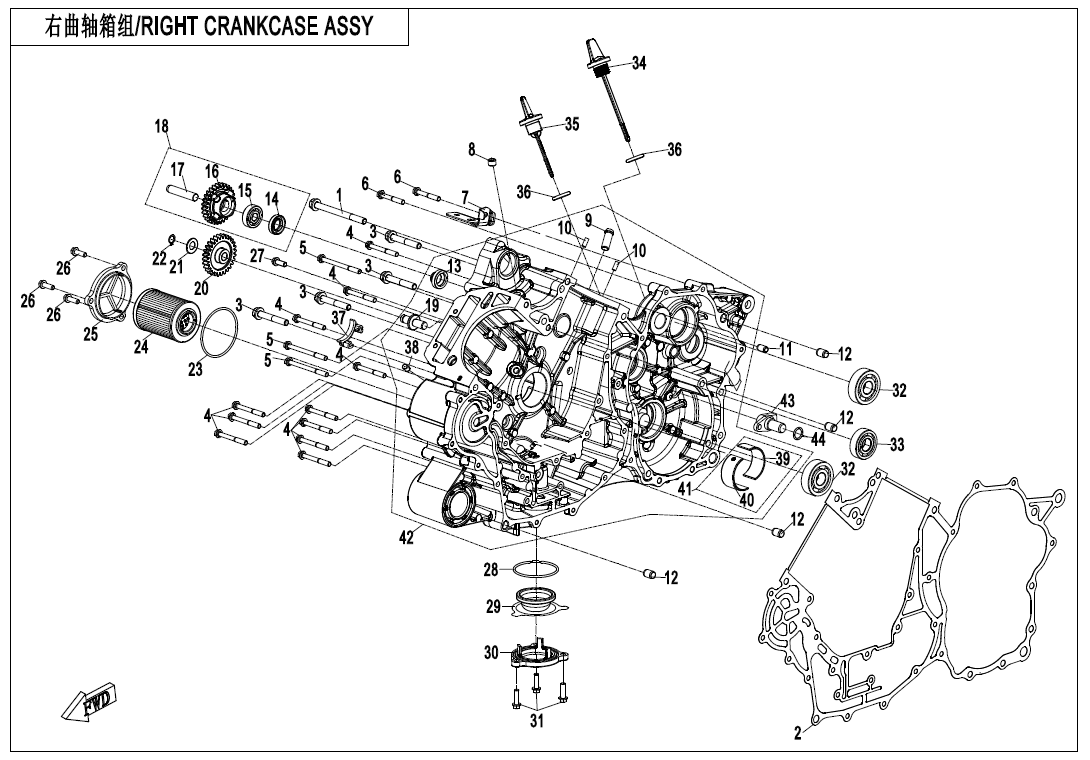

RIGHT CRANKCASE ASSY - E01-2-V1

RIGHT CRANKCASE ASSY - E01-2-V1

No.

01
P/N (SKU): 0JWV-010015-3000
Part Name: BOLT
Effective: 2024-06-04
Price: 2,00 € : 2,00 €
-+
02
P/N (SKU): 0JWV-010016-3000
Part Name: GASKET, CRANKCASE
Effective: 2024-06-04
Alternative parts: 0JWV-010016-3002+0JWV-015002-3002+SH-0JWF-0111A0-1000+SH-0JWF-0150A0-1000
Price: 22,00 € : 22,00 €
-+
03
P/N (SKU): 0040-012006-0010
Part Name: BOLT M8x50
Effective: 2024-06-04
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 0010-013010-0010
Part Name: BOLT M6x50
Effective: 2024-06-04
Alternative parts: 0JWV-011108-3000
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 0020-011018-00001
Part Name: BOLT
Effective: 2024-06-04
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 0010-013009-0010
Part Name: BOLT M6x40
Effective: 2024-06-04
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 0JWV-012108-3000
Part Name: CABLE BRACKET
Effective: 2024-06-04
Price: 3,00 € : 3,00 €
-+
08
P/N (SKU): 01A0-012010-00001
Part Name: SCREW
Effective: 2024-06-04
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0010-013006-0010
Part Name: BREATHER HOSE JOINT
Effective: 2024-06-04
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): 30406-00500
Part Name: NEEDLE ROLLERS
Effective: 2024-06-04
Specification: P5x11.8
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 0010-080008
Part Name: DOWEL PIN
Effective: 2024-06-04
Specification: 8X14
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 0010-021005
Part Name: DOWEL PIN
Effective: 2024-06-04
Specification: 10x14
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 0JWV-011105-3000
Part Name: SEAT, BREATHER
Effective: 2024-06-04
Price: 6,00 € : 6,00 €
-+
14
P/N (SKU): 0800-011203
Part Name: OIL SEAL
Effective: 2024-06-04
Specification: 15x26x6
Price: 3,50 € : 3,50 €
-+
15
P/N (SKU): 30400-01003
Part Name: DEEP GROOVE BALL BEARING
Effective: 2024-06-04
Specification: 10
Price: 4,50 € : 4,50 €
-+
16
P/N (SKU): 0JWV-011201-3000
Part Name: GEAR, BREATHER
Effective: 2024-06-04
Price: 7,00 € : 7,00 €
-+
17
P/N (SKU): 0800-011202
Part Name: BREATHER SHAFT
Effective: 2024-06-04
Price: 3,50 € : 3,50 €
-+
18
P/N (SKU): 0JWF-0112A0
Part Name: BREATHER ASSY
Effective: 2024-06-04
Price: 16,00 € : 16,00 €
-+
19
P/N (SKU): 0800-011104
Part Name: BREATHER IDLE GEAR SHAFT
Effective: 2024-06-04
Price: 7,00 € : 7,00 €
-+
20
P/N (SKU): 0JWV-011004-3000
Part Name: IDLE GEAR, BREATHER
Effective: 2024-06-04
Price: 6,00 € : 6,00 €
-+
21
P/N (SKU): 0800-011005
Part Name: WASHER 10
Effective: 2024-06-04
Specification: 10
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 30801-01005
Part Name: CIRCLIP FOR SHAFT
Effective: 2024-06-04
Specification: 10
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 0800-014003
Part Name: O-SEAL RING
Effective: 2024-06-04
Specification: 63x2.5
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 0800-011300-0004
Part Name: OIL FILTER ELEMENT
Effective: 2024-06-04
Price: 9,50 € : 9,50 €
-+
25
P/N (SKU): 0800-014002-00001
Part Name: FILTER COVER
Effective: 2024-06-04
Price: 7,50 € : 7,50 €
-+
26
P/N (SKU): 0010-023008-00001
Part Name: BOLT
Effective: 2024-06-04
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 0010-090005-0010
Part Name: BOLT M6x16
Effective: 2024-06-04
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): Q830-310006-10000
Part Name: O-RING
Effective: 2024-06-04
Specification: 55×2.5
Price: 3,00 € : 3,00 €
-+
29
P/N (SKU): 0JWV-011011-3000
Part Name: STRAINER ASSY
Effective: 2024-06-04
Price: 9,00 € : 9,00 €
-+
30
P/N (SKU): 0JWV-011012-3000
Part Name: OIL STRAINER COVER
Effective: 2024-06-04
Price: 14,00 € : 14,00 €
-+
31
P/N (SKU): 0010-023010-0010
Part Name: BOLT M6x20
Effective: 2024-06-04
Alternative parts: 0JWV-011107-3000
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
32
P/N (SKU): 30499-01700
Part Name: ROLLING BEARING
Effective: 2024-06-04
Specification: 6303C3@NTN
Price: 15,00 € : 15,00 €
-+
33
P/N (SKU): 30400-01704
Part Name: DEEP GROOVE BALL BEARING
Effective: 2024-06-04
Specification: 10
Price: 13,00 € : 13,00 €
-+
33
P/N (SKU): 30499-01703
Part Name: DEEP GROOVE BALL BEARING
Effective: 2024-12-17
Remarks: ONLY FOR MUD WITHOUT ABS
Specification: 17×40×12
Price: 14,00 € : 14,00 €
-+
34
P/N (SKU): 0JWA-014004
Part Name: DIPSTICK,OIL
Effective: 2024-06-04
Alternative parts: 0JWA-014004-00001
Price: 4,00 € : 4,00 €
-+
34
P/N (SKU): 0JWA-014004-00001
Part Name: ENGINE OIL DIPSTICK
Effective: 2025-05-15
Price: 3,00 € : 3,00 €
-+
35
P/N (SKU): 0JWV-011104-3000
Part Name: DIPSTICK, ENGINE OIL
Effective: 2024-06-04
Price: 3,50 € : 3,50 €
-+
36
P/N (SKU): 0110-013030
Part Name: O-RING
Effective: 2024-06-04
Specification: 18x3.55
Price: 1,50 € : 1,50 €
-+
37
P/N (SKU): 0800-011007
Part Name: CHAIN GUARD
Effective: 2024-06-04
Price: 2,00 € : 2,00 €
-+
38
P/N (SKU): 0800-011400-00001
Part Name: NOZZLE VALVE ASSY
Effective: 2024-06-04
Price: 9,50 € : 9,50 €
-+
39
P/N (SKU): 0JWV-011102-3000-Q0-00001
Part Name: MAIN BEARING 1
Effective: 2024-06-04
Alternative parts: 0JWV-011102-3001-Q0-00001
Specification: RED
Price: 12,00 € : 12,00 €
-+
39
P/N (SKU): 0JWV-011102-3000-Q0-00002
Part Name: MAIN BEARING 1
Effective: 2024-06-04
Alternative parts: 0JWV-011102-3001-Q0-00002
Specification: BLUE
Price: 12,00 € : 12,00 €
-+
40
P/N (SKU): 0JWV-011103-3000-Q0-00001
Part Name: MAIN BEARING 2
Effective: 2024-06-04
Alternative parts: 0JWV-011103-3001-Q0-00001
Specification: RED
Price: 12,00 € : 12,00 €
-+
40
P/N (SKU): 0JWV-011103-3000-Q0-00002
Part Name: MAIN BEARING 2
Effective: 2024-06-04
Alternative parts: 0JWV-011103-3001-Q0-00002
Specification: BLUE
Price: 12,00 € : 12,00 €
-+
41
P/N (SKU): 0JWV-0111A0
Part Name: MAIN BEARING ASSY
Effective: 2024-06-04
Specification: RED
Price: 18,00 € : 18,00 €
-+
41
P/N (SKU): 0JWV-0111B0
Part Name: MAIN BEARING ASSY
Effective: 2024-06-04
Specification: BLUE
Price: 18,00 € : 18,00 €
-+
42
P/N (SKU): 0JWF-0121A0
Part Name: RH CRANKCASE ASSY
Effective: 2024-06-04
Alternative parts: 0JWV-112000-3002+0JWV-114000-3002+SH-0JWF-0121A0-1000/0JWV-112000-3101+0JWV-114000-3002+SH-0JWF-0121A0-1000/0JWV-114000-3002+0JYV-112000-5002+SH-0JWF-0121A0-1000/0JWV-114000-3002+0JYV-112000-5101+SH-0JWF-0121A0-1000/0JYV-112000-5301+0JYV-114000-5302+SH-0JWF-0121A0-1000/0JWV-110000-3202+SH-0JWF-0121A0-1000
Price: 382,00 € : 382,00 €
-+
43
P/N (SKU): 0GQV-011020-2600
Part Name: SPEEDOMETER SENSOR
Effective: 2024-06-04
Price: 23,00 € : 23,00 €
-+
44
P/N (SKU): 01A0-013005
Part Name: O-SEAL RING
Effective: 2024-06-04
Specification: 13x2
Price: 1,50 € : 1,50 €
-+
