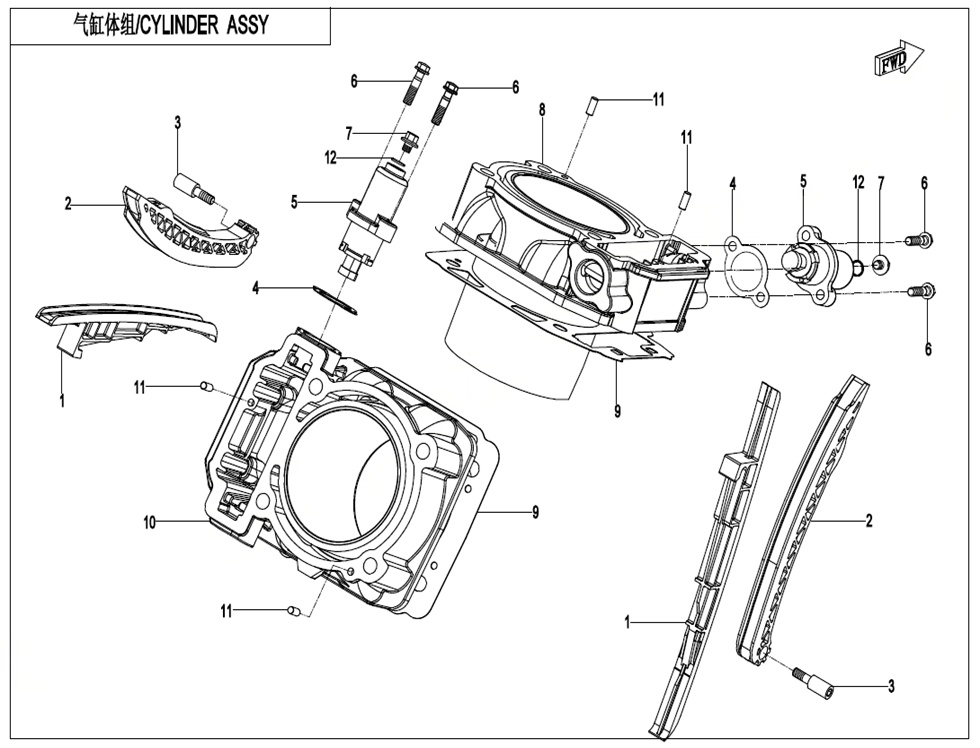

CYLINDER ASSY - E02-3

CYLINDER ASSY - E02-3

No.

01
P/N (SKU): 0JY0-023004
Part Name: GUIDE PLATE
Effective: 2024-05-07
Alternative parts:
Price: 6,60 € : 6,60 €
-+
02
P/N (SKU): 0JY0-023003
Part Name: TENSION PLATE
Effective: 2024-05-07
Alternative parts:
Price: 9,90 € : 9,90 €
-+
03
P/N (SKU): 0800-023001-00002
Part Name: SCREW, TENSIONER PLATE
Effective: 2024-05-07
Alternative parts:
Price: 0,95 € : 0,95 €
-+
04
P/N (SKU): 0180-023003
Part Name: TENSIONER GASKET
Effective: 2024-05-07
Alternative parts:
Price: 1,05 € : 1,05 €
-+
05
P/N (SKU): 0GS0-023200-00001
Part Name: TENSIONER ASSY
Effective: 2024-05-07
Alternative parts:
Price: 20,20 € : 20,20 €
-+
06
P/N (SKU): 0010-021017-0010
Part Name: BOLT M6x25
Effective: 2024-05-07
Alternative parts:
Specification: M6x25
Price: 0,55 € : 0,55 €
-+
07
P/N (SKU): 0JYA-023001-00001
Part Name: HEX FLANGE BOLT
Effective: 2024-05-07
Alternative parts:
Specification: M6x6@GALVANIZED TRIVALEN
Price: 0,55 € : 0,55 €
-+
08
P/N (SKU): 0JY0-023200-10011
Part Name: SECOND CYLINDER BODY ASSY
Effective: 2024-05-07
Alternative parts: 0JY0-023200-10012
Specification: MARK 1
Price: 80,90 € : 80,90 €
-+
08
P/N (SKU): 0JY0-023200-10021
Part Name: SECOND CYLINDER BODY ASSY
Effective: 2024-05-07
Alternative parts: 0JY0-023200-10022
Specification: MARK 2
Price: 80,90 € : 80,90 €
-+
08
P/N (SKU): 0JY0-023200-10012
Part Name: CYLINDER 2 ASSY
Effective: 2024-08-06
Alternative parts:
Specification: MARK 1
Price: 55,00 € : 55,00 €
-+
08
P/N (SKU): 0JY0-023200-10022
Part Name: CYLINDER 2 ASSY
Effective: 2024-08-06
Alternative parts:
Specification: MARK 2
Price: 55,00 € : 55,00 €
-+
09
P/N (SKU): 0800-023002-00001
Part Name: GASKET, CYLINDER
Effective: 2024-05-07
Alternative parts: 0800-023002-00002
Price: 1,10 € : 1,10 €
-+
09
P/N (SKU): 0800-023002-00002
Part Name: CYLINDER GASKET
Effective: 2024-08-06
Alternative parts:
Price: 0,60 € : 0,60 €
-+
10
P/N (SKU): 0JY0-023100-10011
Part Name: FIRST CYLINDER BODY ASSY
Effective: 2024-05-07
Alternative parts: 0JY0-023100-10012
Specification: MARK 1
Price: 80,90 € : 80,90 €
-+
10
P/N (SKU): 0JY0-023100-10021
Part Name: FIRST CYLINDER BODY ASSY
Effective: 2024-05-07
Alternative parts: 0JY0-023100-10022
Specification: MARK 2
Price: 80,90 € : 80,90 €
-+
10
P/N (SKU): 0JY0-023100-10012
Part Name: CYLINDER 1 ASSY
Effective: 2024-08-06
Alternative parts:
Specification: MARK 1
Price: 55,00 € : 55,00 €
-+
10
P/N (SKU): 0JY0-023100-10022
Part Name: CYLINDER 1 ASSY
Effective: 2024-08-06
Alternative parts:
Specification: MARK 2
Price: 55,00 € : 55,00 €
-+
11
P/N (SKU): 30406-00500
Part Name: ROLLER NEEDLE
Effective: 2024-05-07
Alternative parts:
Specification: P5x11.8
Price: 1,05 € : 1,05 €
-+
12
P/N (SKU): 0700-011202
Part Name: O-SEAL RING
Effective: 2024-05-07
Alternative parts:
Specification: 8.2x1.90
Price: 0,95 € : 0,95 €
-+
