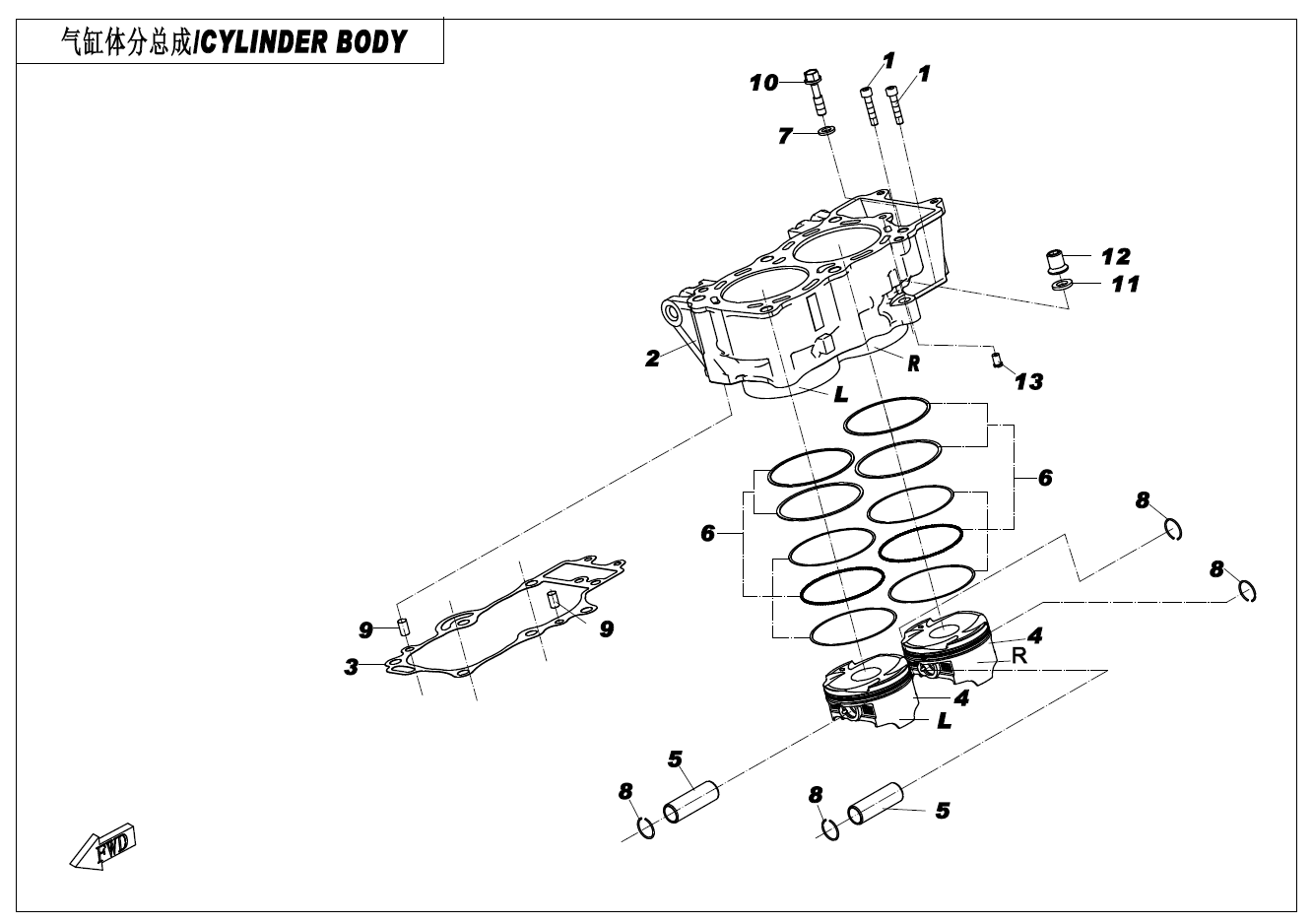

CYLINDER BODY - E02-4

CYLINDER BODY - E02-4

No.

01
P/N (SKU): 0060-030003-00001
Part Name: INNER HEX BOLT
Effective: 2024-12-02
Alternative parts:
Price: 1,50 € : 1,50 €
-+
02
P/N (SKU): 0HU0-023001-3BP02
Part Name: CYLINDER BODY
Effective: 2024-12-02
Alternative parts: 0HU0-023001-3BP03
Specification: MAUD SPIRIT BLACK
Price: 315,00 € : 315,00 €
-+
03
P/N (SKU): 0700-023002-0001
Part Name: CYLINDER BODY GASKET
Effective: 2024-12-02
Alternative parts:
Price: 5,00 € : 5,00 €
-+
04
P/N (SKU): 0HU0-040007-20010
Part Name: PISTON
Effective: 2024-12-02
Remarks: mark I
Alternative parts:
Price: 81,00 € : 81,00 €
-+
04
P/N (SKU): 0HU0-040007-20020
Part Name: PISTON
Effective: 2024-12-02
Remarks: mark II
Alternative parts:
Price: 81,00 € : 81,00 €
-+
05
P/N (SKU): 0HU0-040008
Part Name: PISTON PIN
Effective: 2024-12-02
Alternative parts:
Price: 7,00 € : 7,00 €
-+
06
P/N (SKU): 0700-0400A0
Part Name: PISTON RING ASSY
Effective: 2024-12-02
Alternative parts:
Price: 30,00 € : 30,00 €
-+
07
P/N (SKU): 0700-023004
Part Name: WASHER
Effective: 2024-12-02
Alternative parts:
Specification: 8.5×15.5×2
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 0700-040009
Part Name: CIRCLIP, PISTON PIN
Effective: 2024-12-02
Alternative parts:
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0700-022018
Part Name: SOLID PIN 8x14
Effective: 2024-12-02
Alternative parts:
Specification: 8x14
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 0700-023003-00002
Part Name: BOLT
Effective: 2024-12-02
Alternative parts:
Price: 2,00 € : 2,00 €
-+
11
P/N (SKU): 0700-022016
Part Name: WASHER
Effective: 2024-12-02
Alternative parts:
Specification: 10.5x19x2.3
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 0700-011111-00002
Part Name: NUT
Effective: 2024-12-02
Alternative parts:
Price: 3,00 € : 3,00 €
-+
13
P/N (SKU): 0700-023005
Part Name: RESTRICTION PLUG
Effective: 2024-12-02
Alternative parts:
Price: 2,00 € : 2,00 €
-+
