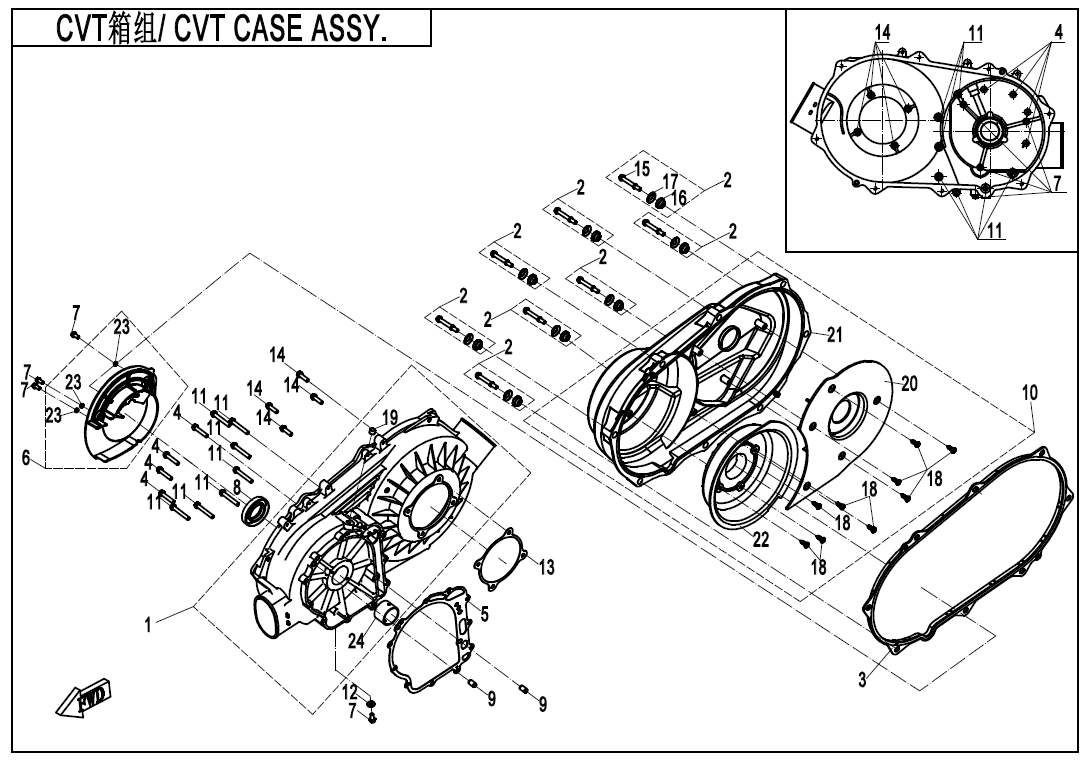

CVT CASE ASSY. - E01-3

CVT CASE ASSY. - E01-3

No.

01
P/N (SKU): 0GR0-013100-10002
Part Name: CVT CASE ASSY
Effective: 2024-08-16
Alternative parts:
Price: 227,30 € : 227,30 €
-+
02
P/N (SKU): 0800-021100
Part Name: CYLINDER HEAD COVER BOLT ASSY
Effective: 2024-08-16
Alternative parts:
Price: 7,05 € : 7,05 €
-+
03
P/N (SKU): 0GR0-013003
Part Name: CVT COVER SEAL RING
Effective: 2024-08-16
Alternative parts:
Price: 15,20 € : 15,20 €
-+
04
P/N (SKU): 0010-060012-0010
Part Name: BOLT M6x30
Effective: 2024-08-16
Alternative parts:
Specification: M6x30
Price: 0,55 € : 0,55 €
-+
05
P/N (SKU): 0GR0-013001-20000
Part Name: STEEL GASKET, CVT CASE
Effective: 2024-08-16
Alternative parts:
Price: 5,90 € : 5,90 €
-+
06
P/N (SKU): 0GR0-013010
Part Name: CVT WIND GUARD ASSY
Effective: 2024-08-16
Alternative parts:
Price: 11,40 € : 11,40 €
-+
07
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Effective: 2024-08-16
Alternative parts:
Specification: M6x12
Price: 0,55 € : 0,55 €
-+
08
P/N (SKU): 0JY0-013103
Part Name: OIL SEAL
Effective: 2024-08-16
Alternative parts:
Specification: 32X55X10
Price: 4,60 € : 4,60 €
-+
09
P/N (SKU): 0010-080008
Part Name: DOWEL PIN
Effective: 2024-08-16
Alternative parts: 0DM0-022201-10000
Specification: 8X14
Price: 1,05 € : 1,05 €
-+
10
P/N (SKU): 0GR0-013300-10000
Part Name: COVER, CVT CASE
Effective: 2024-08-16
Alternative parts:
Specification: GOES
Price: 72,00 € : 72,00 €
-+
11
P/N (SKU): 0010-013009-0010
Part Name: BOLT M6x40
Effective: 2024-08-16
Alternative parts:
Specification: M6x40
Price: 0,55 € : 0,55 €
-+
12
P/N (SKU): 0010-060009
Part Name: WASHER 6
Effective: 2024-08-16
Alternative parts:
Specification: 6
Price: 0,95 € : 0,95 €
-+
13
P/N (SKU): 0800-012002-10000
Part Name: GASKET 2, CVT CASE
Effective: 2024-08-16
Alternative parts:
Price: 2,60 € : 2,60 €
-+
14
P/N (SKU): 0010-023010-0010
Part Name: BOLT M6x20
Effective: 2024-08-16
Alternative parts: 0JWV-011107-3000
Specification: M6x20
Price: 0,55 € : 0,55 €
-+
15
P/N (SKU): 0GSV-013004-3000
Part Name: CVT COVER BOLT 1
Effective: 2024-08-16
Alternative parts:
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 0800-021102-10000
Part Name: RUBBER WASHER
Effective: 2024-08-16
Alternative parts:
Price: 0,95 € : 0,95 €
-+
17
P/N (SKU): 0800-021103
Part Name: CAP, RUBBER WASHER
Effective: 2024-08-16
Alternative parts:
Price: 0,55 € : 0,55 €
-+
18
P/N (SKU): 30110-480160010
Part Name: SELF-TAPPING SCREW
Effective: 2024-08-16
Alternative parts:
Specification: ST4.8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 0,55 € : 0,55 €
-+
19
P/N (SKU): 01A0-012010-00001
Part Name: SCREW
Effective: 2024-08-16
Alternative parts:
Price: 0,55 € : 0,55 €
-+
20
P/N (SKU): 0GR0-013302
Part Name: REAR HEAT INSULATION COVER
Effective: 2024-08-16
Alternative parts:
Price: 13,20 € : 13,20 €
-+
21
P/N (SKU): 0GR0-013002-10000
Part Name: CVT COVER
Effective: 2024-08-16
Alternative parts:
Specification: GOES
Price: 49,50 € : 49,50 €
-+
22
P/N (SKU): 0GR0-013301
Part Name: FRONT HEAT INSULATION COVER
Effective: 2024-08-16
Alternative parts: 0GR0-013301-10000
Specification: GOES
Price: 14,00 € : 14,00 €
23
P/N (SKU): 0GR0-013012
Part Name: BUSHING
Effective: 2024-08-16
Alternative parts:
Price: 1,25 € : 1,25 €
-+
24
P/N (SKU): 0JY0-013102-00011
Part Name: PLAIN BEARING, CVT
Effective: 2024-08-16
Remarks: RED
Alternative parts:
Specification: RED
Price: 6,60 € : 6,60 €
-+
24
P/N (SKU): 0JY0-013102-00021
Part Name: PLAIN BEARING, CVT
Effective: 2024-08-16
Remarks: BLUE
Alternative parts:
Specification: BLUE
Price: 6,60 € : 6,60 €
-+
