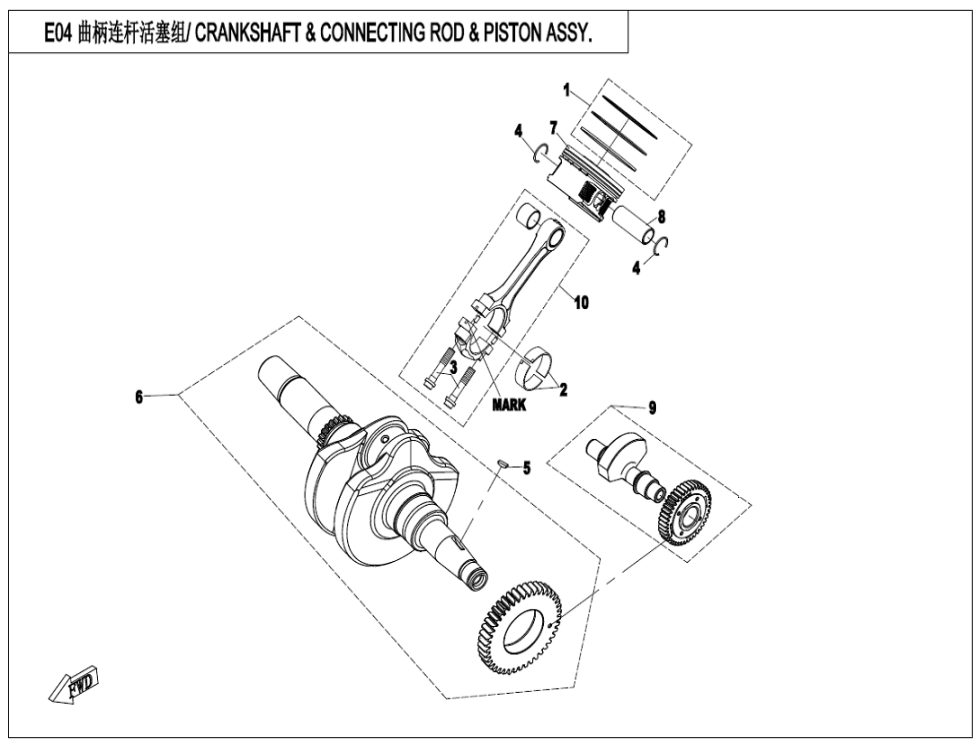

CRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY(FLAT-CUT ROD) - E04-A-V3

No.

01
P/N (SKU): 0JYA-0400B0
Part Name: PISTON RING ASSY
Effective: 2024-08-15
Alternative parts: 0800-0400A0
Specification: SUPPLIERS:ATG
Price: 23,10 € : 23,10 €
02
P/N (SKU): 0800-040006-00012
Part Name: CONNECTING ROD PLAIN BEARING
Effective: 2024-08-15
Remarks: RED
Alternative parts:
Specification: RED@THIN
Price: 6,60 € : 6,60 €
-+
02
P/N (SKU): 0800-040006-00032
Part Name: CONNECTING ROD PLAIN BEARING
Effective: 2024-08-15
Remarks: YELLOW
Alternative parts:
Specification: YELLOW@THICK
Price: 6,60 € : 6,60 €
-+
02
P/N (SKU): 0800-040006-00022
Part Name: CONNECTING ROD PLAIN BEARING
Effective: 2024-08-15
Remarks: BLACK
Alternative parts:
Specification: BLACK@MIDDLE
Price: 6,60 € : 6,60 €
-+
03
P/N (SKU): 0800-042004
Part Name: CONNECTING ROD BOLT
Effective: 2024-08-15
Alternative parts:
Price: 1,25 € : 1,25 €
-+
04
P/N (SKU): 0800-040005
Part Name: CIRCLIP, PISTON PIN
Effective: 2024-08-15
Alternative parts:
Price: 1,65 € : 1,65 €
-+
05
P/N (SKU): 0180-040007
Part Name: WOODRUFF KEY
Effective: 2024-08-15
Alternative parts:
Price: 2,05 € : 2,05 €
-+
06
P/N (SKU): 0GQ0-041100-00013
Part Name: CRANKSHAFT ASSY
Effective: 2024-08-15
Alternative parts:
Specification: MARK A@MATCHED WITH MARK B BALANCER SHAFT ASSY
Price: 333,40 € : 333,40 €
-+
06
P/N (SKU): 0GQ0-041100-00023
Part Name: CRANKSHAFT ASSY
Effective: 2024-08-15
Alternative parts:
Specification: MARK B@MATCHED WITH MARK A BALANCER SHAFT ASSY
Price: 333,40 € : 333,40 €
-+
07
P/N (SKU): 0800-040001-20012
Part Name: PISTON
Effective: 2024-08-15
Remarks: MARK I
Alternative parts:
Specification: MARK 1
Price: 58,00 € : 58,00 €
-+
07
P/N (SKU): 0800-040001-20022
Part Name: PISTON
Effective: 2024-08-15
Remarks: MARK II
Alternative parts:
Specification: MARK 2
Price: 58,00 € : 58,00 €
-+
08
P/N (SKU): 0800-040002-00001
Part Name: PISTON PIN
Effective: 2024-08-15
Alternative parts:
Price: 3,30 € : 3,30 €
-+
09
P/N (SKU): 0GQ0-160000-00021
Part Name: BALANCE SHAFT ASSY
Effective: 2024-08-15
Remarks: MARK B
Alternative parts:
Specification: MARK B@MATCHED WITH MARK A CRANK CONNECTING ROD SUB ASSY
Price: 112,30 € : 112,30 €
-+
09
P/N (SKU): 0GQ0-160000-00011
Part Name: BALANCE SHAFT ASSY
Effective: 2024-08-15
Remarks: MARK A
Alternative parts:
Specification: MARK A@MATCHED WITH MARK B CRANK CONNECTING ROD SUB ASSY
Price: 112,30 € : 112,30 €
-+
10
P/N (SKU): 0800-042000-00011
Part Name: CONNECTING ROD ASSY
Effective: 2024-08-15
Alternative parts:
Specification: MARK 1
Price: 71,70 € : 71,70 €
-+
10
P/N (SKU): 0800-042000-00021
Part Name: CONNECTING ROD ASSY
Effective: 2024-08-15
Alternative parts:
Specification: MARK 2
Price: 71,70 € : 71,70 €
-+
