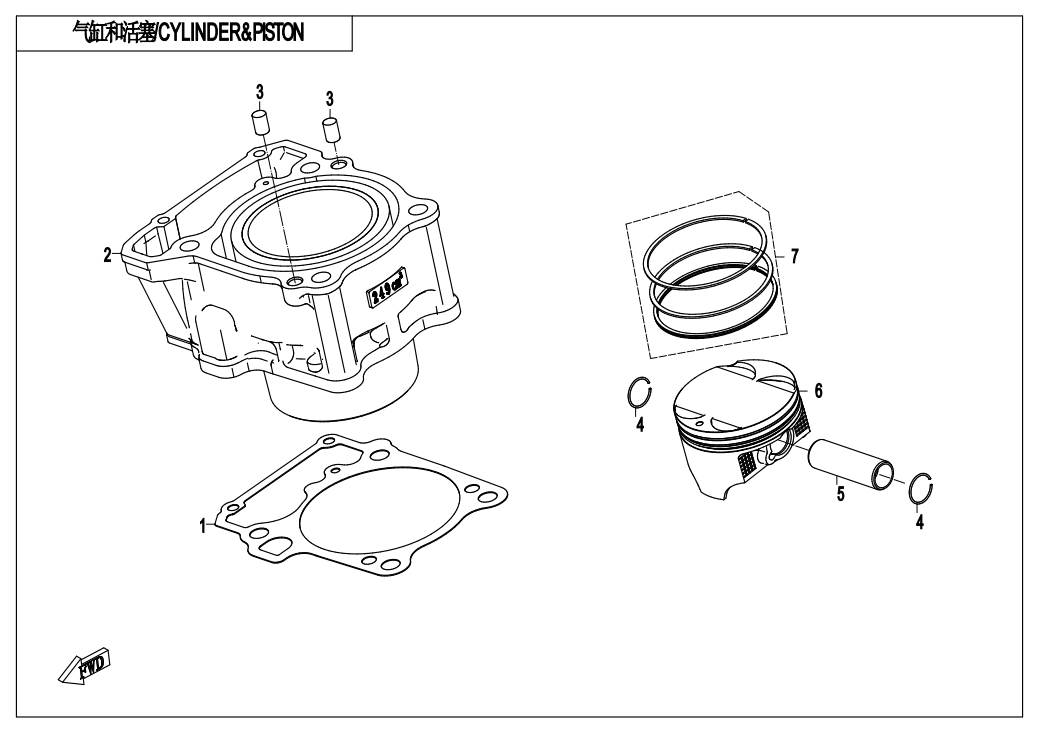

CYLINDER @^ PISTON - E02-3

CYLINDER @^ PISTON - E02-3

No.

01
P/N (SKU): 0DM0-023001-10000
Part Name: SEAL GASKET, CYLINDER
Effective: 2024-09-10
Price: 6,00 € : 6,00 €
-+
02
P/N (SKU): 0DNV-023100-4000-Q0-0BP01
Part Name: CYLINDER BODY ASSY
Effective: 2024-09-10
Remarks: Ⅰ
Specification: MAUD SPIRIT BLACK
Price: 105,00 € : 105,00 €
-+
02
P/N (SKU): 0DNV-023100-4000-Q0-0BP02
Part Name: CYLINDER BODY ASSY
Effective: 2024-09-10
Remarks: Ⅱ
Specification: MAUD SPIRIT BLACK
Price: 105,00 € : 105,00 €
-+
03
P/N (SKU): 30410-00800
Part Name: CYLINDRICAL ROLLERS
Effective: 2024-09-10
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 0110-040006-0050
Part Name: CIRCLIP, PISTON PIN
Effective: 2024-09-10
Price: 2,00 € : 2,00 €
-+
05
P/N (SKU): 0DN0-040008
Part Name: PISTON PIN
Effective: 2024-09-10
Price: 4,00 € : 4,00 €
-+
06
P/N (SKU): 0DNV-040007-4000-Q0-00001
Part Name: PISTON
Effective: 2024-09-10
Specification: MARK 1
Price: 60,00 € : 60,00 €
-+
06
P/N (SKU): 0DNV-040007-4000-Q0-00002
Part Name: PISTON
Effective: 2024-09-10
Specification: MARK 2
Price: 66,00 € : 66,00 €
-+
07
P/N (SKU): 0DN0-0401A0
Part Name: PISTON RING ASSY
Effective: 2024-09-10
Price: 21,00 € : 21,00 €
-+
