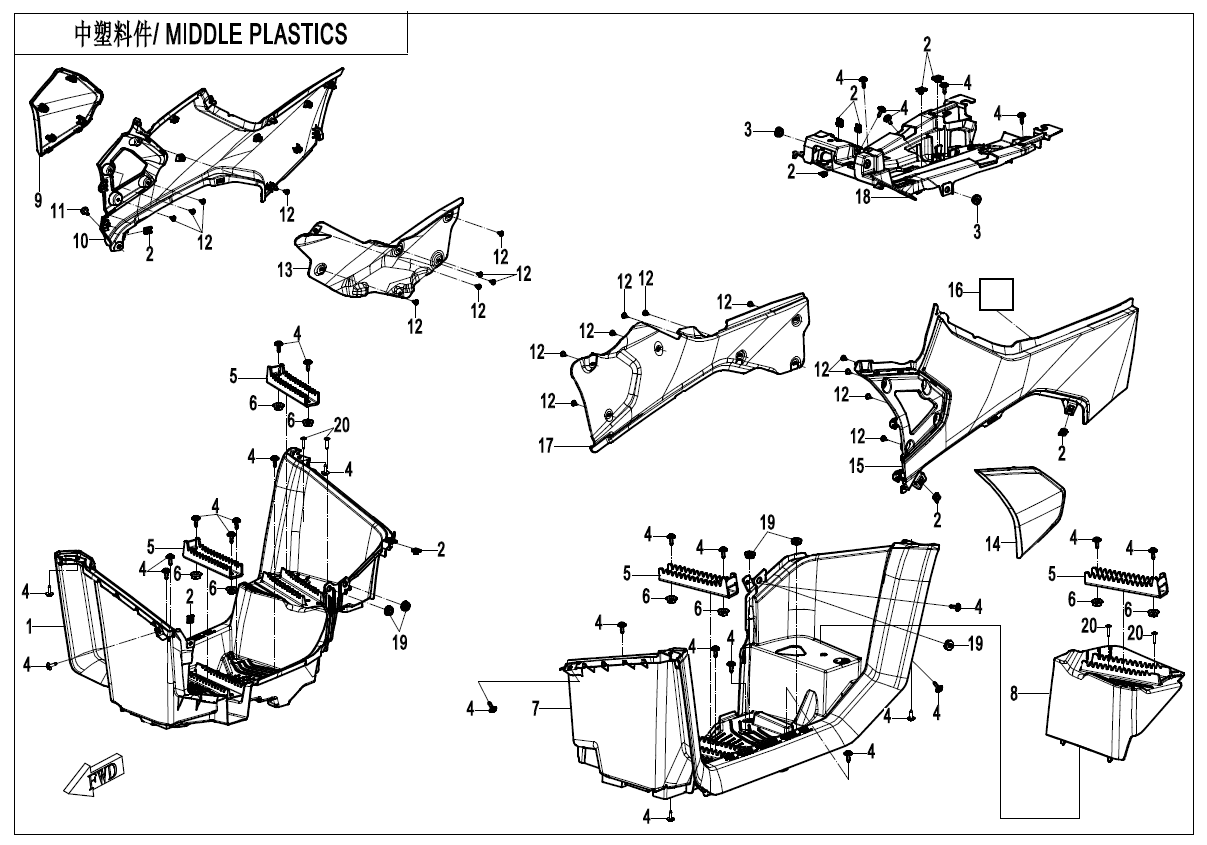

MIDDLE PLASTICS - F04-3-V2

MIDDLE PLASTICS - F04-3-V2

No.

1
P/N (SKU): 9AWV-042032-8002
Part Name: RH FOOT PEDAL
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: null
Price: 52,00 € : 52,00 €
-+
2
P/N (SKU): 8030-040800-00001
Part Name: NUT CLIP M6
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
-+
3
P/N (SKU): 9AWV-015003-8000
Part Name: RUBBER SLEEVE
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
4
P/N (SKU): 5BWV-040007-5000
Part Name: BOLT
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: M6x20
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 9CR6-042040-20000
Part Name: ANTISKID TEETH ASSY.
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Price: 18,00 € : 18,00 €
-+
6
P/N (SKU): 30200-060810
Part Name: NUT
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
-+
7
P/N (SKU): 9AWV-042031-8001
Part Name: LH FOOT PEDAL
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: null
Price: 43,00 € : 43,00 €
-+
8
P/N (SKU): 9AWV-042033-8002
Part Name: LH FOOT PEDAL BLOCK
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: null
Price: 14,00 € : 14,00 €
-+
9
P/N (SKU): 9AWV-042025-8000
Part Name: FRONT RH SIDE COVER
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: null
Price: 7,00 € : 7,00 €
-+
10
P/N (SKU): 9AWV-042022-8001-0HJ00
Part Name: RH SIDE COVER
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: TUNDRA GREY
Price: 59,00 € : 59,00 €
-+
10
P/N (SKU): 9AWV-042022-8001-0RE00
Part Name: RH SIDE COVER
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: TRUE TIMBER CAMO
Price: 63,00 € : 63,00 €
-+
10
P/N (SKU): 9AWV-042022-8001-0YD00
Part Name: RH SIDE COVER
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: LAVA ORANGE
Price: 59,00 € : 59,00 €
-+
11
P/N (SKU): 5BWV-040008-5000
Part Name: INNER HEX BOLT M6x20
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: M6x20
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 5BWV-040015-5000
Part Name: INNER HEX SLEF-TAPPING SCREW
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: ST4.8x13
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 9AWV-042027-8000
Part Name: RH SIDE COVER HEAT INSULATOR
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: null
Price: 27,00 € : 27,00 €
-+
14
P/N (SKU): 9AWV-042024-8000
Part Name: LH FRONT SIDE COVER
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: null
Price: 6,00 € : 6,00 €
-+
15
P/N (SKU): 9AWV-042021-8001-0HJ00
Part Name: LH SIDE COVER
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: TUNDRA GREY
Price: 59,00 € : 59,00 €
-+
15
P/N (SKU): 9AWV-042021-8001-0RE00
Part Name: LH SIDE COVER
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: TRUE TIMBER CAMO
Price: 64,00 € : 64,00 €
-+
15
P/N (SKU): 9AWV-042021-8001-0YD00
Part Name: LH SIDE COVER
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: LAVA ORANGE
Price: 59,00 € : 59,00 €
-+
16
P/N (SKU): TFQ004
Part Name: HEAT INSULATION SCROLL PAPER
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: 50x0.062m
Price: 3,00 € : 3,00 €
17
P/N (SKU): 9AWV-042028-8000
Part Name: LH SIDE COVER HEAT INSULATOR
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: null
Price: 24,00 € : 24,00 €
-+
18
P/N (SKU): 9AWV-042011-8001
Part Name: SEAT LOWER PANEL
Effective: 2024-10-11
Alternative parts: 9AWV-042011-8002
Specification: null
Price: 48,00 € : 48,00 €
18
P/N (SKU): 9AWV-042011-8002
Part Name: SEAT LOWER PANEL
Effective: 2025-04-24
Remarks: null
Alternative parts: null
Specification: null
Price: 17,00 € : 17,00 €
19
P/N (SKU): 5BY0-040010
Part Name: RUBBER SLEEVE
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): 5BWV-040018-5000
Part Name: INNER HEX BOLT
Effective: 2024-10-11
Remarks: null
Alternative parts: null
Specification: M6x30
Price: 2,00 € : 2,00 €
-+
