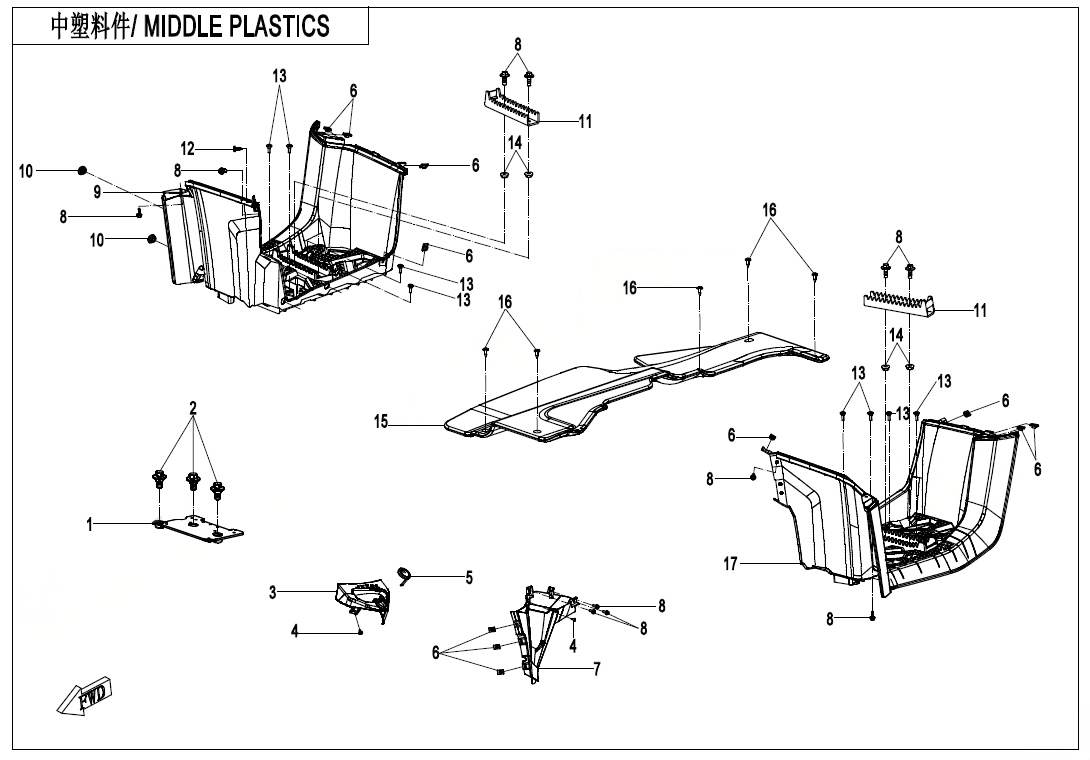

MIDDLE PLASTICS(WITH GEARSHIFT LOCK) - F04-3-V2

MIDDLE PLASTICS(WITH GEARSHIFT LOCK) - F04-3-V2

No.

01
P/N (SKU): 9DSV-042078-6K00
Part Name: ECU BRACKET
Effective: 2024-08-09
Remarks: null
Alternative parts: null
Specification: null
Price: 6,50 € : 6,50 €
02
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Effective: 2024-08-09
Remarks: null
Alternative parts: null
Specification: M6x14
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 9DSV-042023-6001
Part Name: GEARSHIFT DECO COVER
Effective: 2024-08-09
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
04
P/N (SKU): 30110-420130010
Part Name: SELF-TAPPING SCREW_ST4.2x13
Effective: 2024-08-09
Remarks: null
Alternative parts: 30110-421130010
Specification: PERFORMANCE GRADE 4.8_SURFACE TREATMENT: COLOR ZINC PLATED
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 9DSV-042027-6000
Part Name: LOCK COVER
Effective: 2024-08-09
Remarks: null
Alternative parts: null
Specification: null
Price: 2,50 € : 2,50 €
-+
06
P/N (SKU): 8030-040800-00001
Part Name: NUT CLIP M6
Effective: 2024-08-09
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 9DSV-042061-6002
Part Name: LH LOWER SIDE COVER
Effective: 2024-08-09
Remarks: null
Alternative parts: null
Specification: null
Price: 9,00 € : 9,00 €
-+
08
P/N (SKU): 30006-060016870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-08-09
Remarks: null
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
09
P/N (SKU): 9DS#-042032-6002
Part Name: RH FOOT PEDAL
Effective: 2024-08-09
Remarks: null
Alternative parts: null
Price: 63,00 € : 63,00 €
-+
10
P/N (SKU): 8080-040064
Part Name: FRONT FENDER DAMPER
Effective: 2024-08-09
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 9CR6-042040-20000
Part Name: ANTISKID TEETH ASSY.
Effective: 2024-08-09
Remarks: null
Alternative parts: null
Price: 18,00 € : 18,00 €
-+
12
P/N (SKU): 9060-040310
Part Name: CLAMP ASSY
Effective: 2024-08-09
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
13
P/N (SKU): 5HY#-040001-1000
Part Name: BOLT M6x14
Effective: 2024-08-09
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
14
P/N (SKU): 30204-060810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2024-08-09
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 9DS#-042079-6001
Part Name: HEAT INSULATOR, FUEL TANK LOWER PANEL
Effective: 2024-08-09
Remarks: null
Alternative parts: null
Price: 17,00 € : 17,00 €
16
P/N (SKU): 30110-420095010
Part Name: CROSS-RECESSED FLAT ROUND HEAD TAPPING SCREWS
Effective: 2024-08-09
Remarks: null
Alternative parts: null
Specification: ST4.
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 9DS#-042031-6002
Part Name: LH FOOT PEDAL
Effective: 2024-08-09
Remarks: null
Alternative parts: null
Price: 63,00 € : 63,00 €
-+
