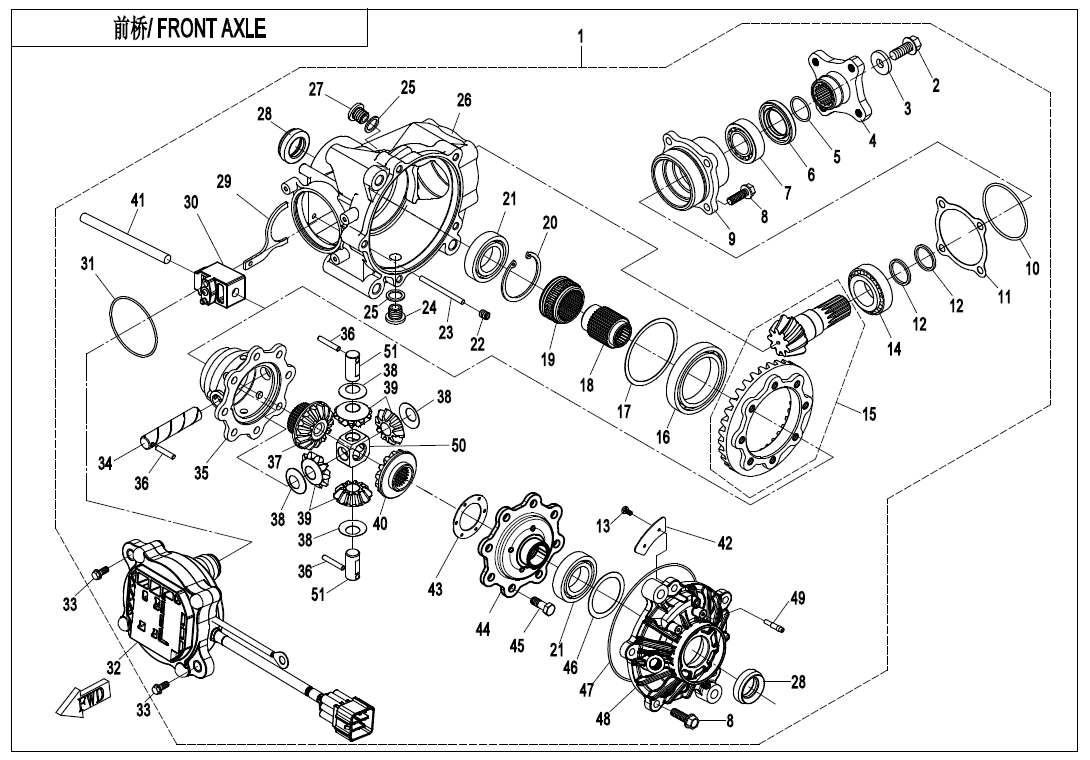

FRONT AXLE - F31 | 2025, ATV, CF600ATR-2LC | CFMOTO OEM

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): Q830-310000-60000

Part Name: FRONT GEAR CASE ASSY

Effective: 2024-06-11

Alternative parts:

Price: 733,00 € : 733,00 €

02

P/N (SKU): 0GR0-062203

Part Name: BOLT M10x1.25x20

Effective: 2024-06-11

Alternative parts:

Specification: M10x1.25x20

Price: 1,55 € : 1,55 €

03

P/N (SKU): 0GR0-062204

Part Name: WASHER

Effective: 2024-06-11

Alternative parts:

Specification: 10x27.5x4

Price: 2,05 € : 2,05 €

04

P/N (SKU): Q850-331002

Part Name: COUPLER

Effective: 2024-06-11

Alternative parts:

Price: 26,50 € : 26,50 €

05

P/N (SKU): 0800-062205

Part Name: O-RING

Effective: 2024-06-11

Alternative parts:

Specification: 25x2

Price: 1,25 € : 1,25 €

06

P/N (SKU): 0800-062204

Part Name: OIL SEAL

Effective: 2024-06-11

Alternative parts:

Specification: 35x50x7

Price: 5,10 € : 5,10 €

07

P/N (SKU): 30409-02500

Part Name: BEARING

Effective: 2024-06-11

Alternative parts:

Specification: 33005(25x47x17)

Price: 15,80 € : 15,80 €

08

P/N (SKU): 0110-060011-0010

Part Name: BOLT M8x28

Effective: 2024-06-11

Alternative parts: 0JYA-062104

Specification: M8x28

Price: 1,55 € : 1,55 €

09

P/N (SKU): Q830-311002-00001

Part Name: BEARING SEAT

Effective: 2024-06-11

Alternative parts:

Price: 19,80 € : 19,80 €

10

P/N (SKU): Q830-310006-10000

Part Name: O-RING 55x2.5

Effective: 2024-06-11

Alternative parts:

Specification: 55x2.5

Price: 2,05 € : 2,05 €

11

P/N (SKU): Q830-310023-00200

Part Name: ADJUSTING WASHER T=0.30

Effective: 2024-06-11

Alternative parts:

Specification: T=0.30

Price: 2,05 € : 2,05 €

11

P/N (SKU): Q830-310023-00100

Part Name: ADJUSTING WASHER T=0.20

Effective: 2024-06-11

Alternative parts:

Specification: T=0.20

Price: 2,05 € : 2,05 €

12

P/N (SKU): Q830-311003-01401

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-06-11

Alternative parts: Q830-311003-01400

Specification: T=3.00

Price: 0,95 € : 0,95 €

12

P/N (SKU): Q830-311003-01301

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-06-11

Alternative parts: Q830-311003-01300

Specification: T=2.90

Price: 0,95 € : 0,95 €

12

P/N (SKU): Q830-311003-01201

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-06-11

Alternative parts: Q830-311003-01200

Specification: T=2.80

Price: 0,95 € : 0,95 €

12

P/N (SKU): Q830-311003-01101

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-06-11

Alternative parts: Q830-311003-01100

Specification: T=2.70

Price: 0,95 € : 0,95 €

12

P/N (SKU): Q830-311003-01001

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-06-11

Alternative parts: Q830-311003-01000

Specification: T=2.60

Price: 0,95 € : 0,95 €

12

P/N (SKU): Q830-311003-00901

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-06-11

Alternative parts: Q830-311003-00900

Specification: T=2.50

Price: 0,95 € : 0,95 €

12

P/N (SKU): Q830-311003-00801

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-06-11

Alternative parts:

Specification: T=2.48

Price: 0,95 € : 0,95 €

12

P/N (SKU): Q830-311003-00701

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-06-11

Alternative parts:

Specification: T=2.46

Price: 0,95 € : 0,95 €

12

P/N (SKU): Q830-311003-00601

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-06-11

Alternative parts:

Specification: T=2.44

Price: 0,95 € : 0,95 €

12

P/N (SKU): Q830-311003-00501

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-06-11

Alternative parts: Q830-311003-00500

Specification: T=2.42

Price: 0,95 € : 0,95 €

12

P/N (SKU): Q830-311003-00401

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-06-11

Alternative parts:

Specification: T=2.40

Price: 0,95 € : 0,95 €

12

P/N (SKU): Q830-311003-00301

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-06-11

Alternative parts: Q830-311003-00300

Specification: T=2.30

Price: 0,95 € : 0,95 €

12

P/N (SKU): Q830-311003-00201

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-06-11

Alternative parts:

Specification: T=2.20

Price: 0,95 € : 0,95 €

12

P/N (SKU): Q830-311003-00101

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2024-06-11

Alternative parts: Q830-311003-00100

Specification: T=2.10

Price: 0,95 € : 0,95 €

13

P/N (SKU): 30105-040008410

Part Name: SCREW

Effective: 2024-06-11

Alternative parts:

Specification: M4x8@TRIVALENT CHROMIUM

Price: 1,55 € : 1,55 €

14

P/N (SKU): 30409-03000

Part Name: BEARING

Effective: 2024-06-11

Alternative parts:

Specification: 32006(30x55x17)

Price: 14,00 € : 14,00 €

15

P/N (SKU): Q830-3100B0

Part Name: BEVEL GEAR ASSY, FRONT GEAR CASE

Effective: 2024-06-11

Alternative parts:

Price: 116,30 € : 116,30 €

16

P/N (SKU): 30400-05500

Part Name: BEARING

Effective: 2024-06-11

Alternative parts:

Specification: 61911(55x80x13)

Price: 22,70 € : 22,70 €

17

P/N (SKU): Q830-310015-00600

Part Name: ADJUSTING WASHER 79.5x68 T=1.00

Effective: 2024-06-11

Alternative parts:

Specification: T=1.00

Price: 1,25 € : 1,25 €

17

P/N (SKU): Q830-310015-00500

Part Name: ADJUSTING WASHER 79.5x68 T=0.50

Effective: 2024-06-11

Alternative parts:

Specification: T=0.50

Price: 1,25 € : 1,25 €

17

P/N (SKU): Q830-310015-00400

Part Name: ADJUSTING WASHER 79.5x68 T=0.40

Effective: 2024-06-11

Alternative parts:

Specification: T=0.40

Price: 1,25 € : 1,25 €

17

P/N (SKU): Q830-310015-00300

Part Name: ADJUSTING WASHER 79.5x68 T=0.30

Effective: 2024-06-11

Alternative parts:

Specification: T=0.30

Price: 1,25 € : 1,25 €

17

P/N (SKU): Q830-310015-00200

Part Name: ADJUSTING WASHER 79.5x68 T=0.20

Effective: 2024-06-11

Alternative parts:

Specification: T=0.20

Price: 1,25 € : 1,25 €

17

P/N (SKU): Q830-310015-00100

Part Name: ADJUSTING WASHER 79.5x68 T=0.10

Effective: 2024-06-11

Alternative parts:

Specification: T=0.10

Price: 1,25 € : 1,25 €

18

P/N (SKU): Q830-310014

Part Name: DRIVE CLUTCH COVER

Effective: 2024-06-11

Alternative parts:

Price: 18,30 € : 18,30 €

19

P/N (SKU): Q830-310013

Part Name: SPLINE BUSHING

Effective: 2024-06-11

Alternative parts:

Price: 13,20 € : 13,20 €

20

P/N (SKU): 30800-05505

Part Name: CIRCLIP FOR HOLE

Effective: 2024-06-11

Alternative parts:

Specification: BLACK

Price: 2,05 € : 2,05 €

21

P/N (SKU): 30400-03001

Part Name: BEARING 30x55x13

Effective: 2024-06-11

Alternative parts:

Specification: 6006

Price: 6,60 € : 6,60 €

22

P/N (SKU): 30130-080010810

Part Name: SCREW

Effective: 2024-06-11

Alternative parts:

Specification: M8x10@TRIVALENT CHROMIUM

Price: 0,55 € : 0,55 €

23

P/N (SKU): Q830-310003

Part Name: PIN SHAFT

Effective: 2024-06-11

Alternative parts:

Price: 3,05 € : 3,05 €

24

P/N (SKU): 0180-332100

Part Name: MAGNETIC DRAIN BOLT

Effective: 2024-06-11

Alternative parts:

Specification: M14x1.25x12

Price: 5,00 € : 5,00 €

25

P/N (SKU): 0180-011006

Part Name: GASKET 14

Effective: 2024-06-11

Alternative parts:

Specification: 14

Price: 1,05 € : 1,05 €

26

P/N (SKU): Q830-310007-20000

Part Name: FRONT GEAR CASE

Effective: 2024-06-11

Alternative parts:

Price: 68,40 € : 68,40 €

27

P/N (SKU): 0180-021008-00001

Part Name: BOLT

Effective: 2024-06-11

Alternative parts:

Specification: M14Ã1.25Ã12

Price: 1,25 € : 1,25 €

28

P/N (SKU): 0180-311001

Part Name: OIL SEAL

Effective: 2024-06-11

Alternative parts:

Specification: 24x38x8

Price: 4,00 € : 4,00 €

29

P/N (SKU): Q830-310005-10001

Part Name: FORK

Effective: 2024-06-11

Alternative parts: Q830-310005-10000

Price: 18,30 € : 18,30 €

30

P/N (SKU): Q890-310010

Part Name: BLOCK ASSY.

Effective: 2024-06-11

Alternative parts:

Price: 22,40 € : 22,40 €

31

P/N (SKU): Q830-310012-10000

Part Name: O-SEAL RING

Effective: 2024-06-11

Alternative parts:

Specification: 67.5x2

Price: 1,55 € : 1,55 €

32

P/N (SKU): Q890-314000-10000

Part Name: MOTOR ASSY, FRONT GEAR CASE

Effective: 2024-06-11

Alternative parts:

Specification: Kaidi PLUG

Price: 161,70 € : 161,70 €

33

P/N (SKU): 0010-023008-0010

Part Name: BOLT M6x18

Effective: 2024-06-11

Alternative parts: 0010-023008-00001

Specification: M6x18

Price: 0,55 € : 0,55 €

34

P/N (SKU): 0180-313002-10000

Part Name: CENTER GEAR SHAFT, DIFFERENTIAL

Effective: 2024-06-11

Alternative parts:

Price: 4,40 € : 4,40 €

35

P/N (SKU): Q830-313003-10000

Part Name: FRONT DIFFERENTIAL CASE

Effective: 2024-06-11

Alternative parts:

Price: 49,10 € : 49,10 €

36

P/N (SKU): 30906-0503000

Part Name: PIN

Effective: 2024-06-11

Alternative parts:

Specification: 5x30

Price: 1,05 € : 1,05 €

37

P/N (SKU): Q830-313004

Part Name: GEAR, CV SHAFT

Effective: 2024-06-11

Alternative parts:

Price: 45,80 € : 45,80 €

38

P/N (SKU): 0181-313011

Part Name: WEARING PAD

Effective: 2024-06-11

Alternative parts:

Price: 1,65 € : 1,65 €

39

P/N (SKU): 0180-313003-00004

Part Name: CENTRAL GEAR, DIFFERENTIAL

Effective: 2024-06-11

Alternative parts:

Specification: SURFACE PEENING TREATMENT, THE INNER HOLE TOLERANCE INCREASING

Price: 11,70 € : 11,70 €

40

P/N (SKU): 0180-313006-00001

Part Name: DRIVEN GEAR, DIFFERENTIAL

Effective: 2024-06-11

Alternative parts:

Price: 22,70 € : 22,70 €

41

P/N (SKU): 30913-0300550

Part Name: PIN SHAFT

Effective: 2024-06-11

Alternative parts:

Price: 0,55 € : 0,55 €

42

P/N (SKU): Q830-310022

Part Name: OIL BAFFLE

Effective: 2024-06-11

Alternative parts:

Price: 1,55 € : 1,55 €

43

P/N (SKU): Q800-313005-00100

Part Name: GEAR WASHER

Effective: 2024-06-11

Alternative parts:

Specification: t=1.00

Price: 1,55 € : 1,55 €

43

P/N (SKU): Q800-313005-00200

Part Name: GEAR WASHER

Effective: 2024-06-11

Alternative parts:

Specification: t=1.20

Price: 1,25 € : 1,25 €

44

P/N (SKU): Q830-313001-10000

Part Name: MOUNTING PLATE

Effective: 2024-06-11

Alternative parts:

Price: 30,40 € : 30,40 €

45

P/N (SKU): 9010-290001

Part Name: BOLT M8x1x22

Effective: 2024-06-11

Alternative parts:

Specification: M8x1x22

Price: 1,65 € : 1,65 €

46

P/N (SKU): Q830-310009-00600

Part Name: ADJUSTING WASHER 54.5x43 T=1.00

Effective: 2024-06-11

Alternative parts:

Specification: T=1.00

Price: 0,95 € : 0,95 €

46

P/N (SKU): Q830-310009-00500

Part Name: ADJUSTING WASHER 54.5x43 T=0.50

Effective: 2024-06-11

Alternative parts:

Specification: T=0.50

Price: 0,95 € : 0,95 €

46

P/N (SKU): Q830-310009-00400

Part Name: ADJUSTING WASHER 54.5x43 T=0.40

Effective: 2024-06-11

Alternative parts:

Specification: T=0.40

Price: 0,95 € : 0,95 €

46

P/N (SKU): Q830-310009-00300

Part Name: ADJUSTING WASHER 54.5x43 T=0.30

Effective: 2024-06-11

Alternative parts:

Specification: T=0.30

Price: 0,95 € : 0,95 €

46

P/N (SKU): Q830-310009-00200

Part Name: ADJUSTING WASHER 54.5x43 T=0.20

Effective: 2024-06-11

Alternative parts:

Specification: T=0.20

Price: 0,95 € : 0,95 €

46

P/N (SKU): Q830-310009-00100

Part Name: ADJUSTING WASHER 54.5x43 T=0.10

Effective: 2024-06-11

Alternative parts:

Specification: T=0.10

Price: 0,95 € : 0,95 €

47

P/N (SKU): Q830-310011

Part Name: O-SEAL RING

Effective: 2024-06-11

Alternative parts:

Specification: 130x2

Price: 3,05 € : 3,05 €

48

P/N (SKU): Q830-310008-10000

Part Name: FRONT GEAR CASE COVER

Effective: 2024-06-11

Alternative parts:

Price: 29,00 € : 29,00 €

49

P/N (SKU): 0180-311004-0020

Part Name: BREATHER HOSE JOINT

Effective: 2024-06-11

Alternative parts:

Price: 0,95 € : 0,95 €

50

P/N (SKU): Q820-333008

Part Name: CROSS BUSHING

Effective: 2024-06-11

Alternative parts:

Price: 10,20 € : 10,20 €

51

P/N (SKU): Q800-313001

Part Name: PLANET GEAR SHAFT, SHORT

Effective: 2024-06-11

Alternative parts:

Price: 4,05 € : 4,05 €
