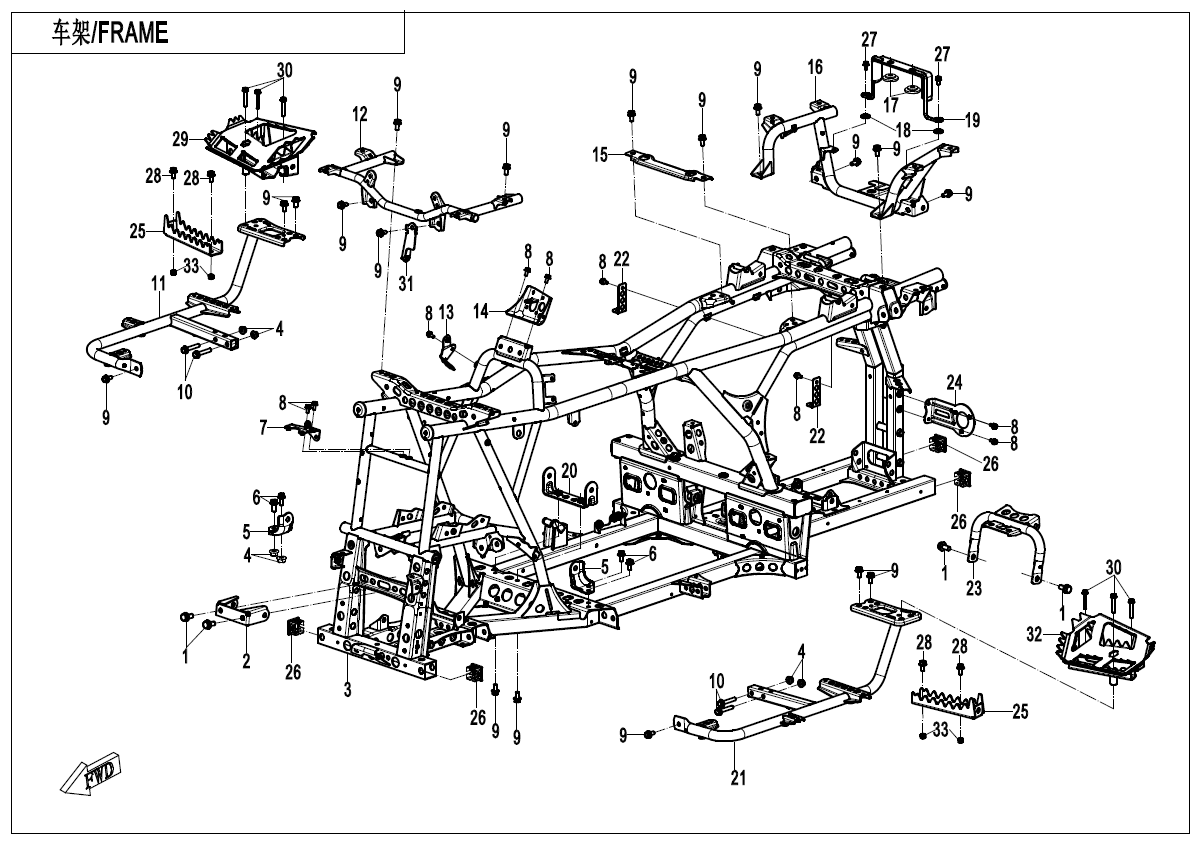

FRAME - F03

FRAME - F03

No.

1
P/N (SKU): 30006-102020810
Part Name: BOLT M10x1.25x20
Effective: 2024-09-29
Alternative parts:
Specification: M10x1.25x20
Price: 2,00 € : 2,00 €
-+
2
P/N (SKU): 5BWV-030050-5000
Part Name: UPPER ADAPTER BRACKET, FRONT GEAR CASE
Effective: 2024-09-29
Alternative parts:
Price: 11,00 € : 11,00 €
-+
3
P/N (SKU): 9AYV-031000-8500
Part Name: FRAME ASSY
Effective: 2024-09-29
Alternative parts: 9AYV-031000-8501
Price: 534,00 € : 534,00 €
3
P/N (SKU): 9AYV-031000-8501-0BP00
Part Name: FRAME ASSY
Effective: 2025-05-27
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 584,00 € : 584,00 €
-+
4
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2024-09-29
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 9AWV-030003-8000
Part Name: ENGINE FRONT BRACKET
Effective: 2024-09-29
Alternative parts:
Price: 3,00 € : 3,00 €
-+
6
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2024-09-29
Alternative parts: 30006-080016810
Specification: M8×20
Price: 1,50 € : 1,50 €
-+
7
P/N (SKU): 9AYV-030060-8500
Part Name: ANGLE SENSOR BRACKET
Effective: 2024-09-29
Alternative parts:
Price: 2,50 € : 2,50 €
-+
8
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2024-09-29
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
9
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2024-09-29
Alternative parts: 30006-080020810
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
10
P/N (SKU): 30006-080045810
Part Name: BOLT
Effective: 2024-09-29
Alternative parts:
Specification: M8x45@COLOR ZINC TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
-+
11
P/N (SKU): 9AWV-030200-8003
Part Name: RH FOOT PEDAL ASSY
Effective: 2024-09-29
Alternative parts:
Price: 40,00 € : 40,00 €
-+
12
P/N (SKU): 9AWV-030400-8001
Part Name: FRONT RACK BRACKET ASSY
Effective: 2024-09-29
Alternative parts:
Price: 25,00 € : 25,00 €
-+
13
P/N (SKU): 9AWV-030090-8002
Part Name: AIR FILTER INTAKE PIPE BRACKET
Effective: 2024-09-29
Alternative parts:
Price: 2,50 € : 2,50 €
-+
14
P/N (SKU): 9AWV-030080-8000
Part Name: AIR FILTER FRONT BRACKET
Effective: 2024-09-29
Alternative parts:
Price: 6,00 € : 6,00 €
-+
15
P/N (SKU): 9AWV-030005-8000
Part Name: FRONT SEAT BRACKET
Effective: 2024-09-29
Alternative parts:
Price: 8,50 € : 8,50 €
-+
16
P/N (SKU): 9AWV-030500-8002
Part Name: REAR RACK BRACKET ASSY
Effective: 2024-09-29
Alternative parts:
Price: 35,00 € : 35,00 €
-+
17
P/N (SKU): 9010-030005
Part Name: BATTERY RUBBER WASHER
Effective: 2024-09-29
Alternative parts:
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 0180-065206-00001
Part Name: GASKET
Effective: 2024-09-29
Alternative parts:
Specification: 6.2x22x2
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 9AWV-030060-8001
Part Name: BATTERY PRESS STRIP
Effective: 2024-09-29
Alternative parts:
Price: 6,50 € : 6,50 €
-+
20
P/N (SKU): 9AWV-030010-8000
Part Name: ENGINE FRONT MIDDLE BRACKET
Effective: 2024-09-29
Alternative parts:
Price: 7,50 € : 7,50 €
-+
21
P/N (SKU): 9AWV-030100-8003
Part Name: LH FOOT PEDAL ASSY
Effective: 2024-09-29
Alternative parts:
Price: 40,00 € : 40,00 €
-+
22
P/N (SKU): 9AWA-030001-10000
Part Name: REAR HEAT INSULATION PLATE BRACKET
Effective: 2024-09-29
Alternative parts:
Price: 3,00 € : 3,00 €
-+
23
P/N (SKU): 9AWV-030020-8000-0BP00
Part Name: REAR GEAR CASE UPPER BRACKET
Effective: 2024-09-29
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 18,00 € : 18,00 €
-+
24
P/N (SKU): 9AYV-030050-8500-0BP00
Part Name: TRAILER POWER BRACKET
Effective: 2024-09-29
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 5,00 € : 5,00 €
-+
25
P/N (SKU): 9AYV-030001-8500-0BP00
Part Name: FRONT ANTI-SLIP TOOTH
Effective: 2024-09-29
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 12,00 € : 12,00 €
-+
26
P/N (SKU): 9AWA-044051
Part Name: PLUG, TUBE
Effective: 2024-09-29
Alternative parts:
Price: 3,50 € : 3,50 €
-+
27
P/N (SKU): 30006-060022810
Part Name: BOLT
Effective: 2024-09-29
Alternative parts:
Specification: M6×22
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2024-09-29
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 9AYV-030020-8500-0BP00
Part Name: REAR RH ANTI-SLIP TOOTH ASSY
Effective: 2024-09-29
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 36,00 € : 36,00 €
-+
30
P/N (SKU): 30006-060040810
Part Name: BOLT
Effective: 2024-09-29
Alternative parts:
Specification: M6x40
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 9AYV-030040-8500
Part Name: AUX WATER BOTTLE BRACKET
Effective: 2024-09-29
Alternative parts:
Price: 3,50 € : 3,50 €
-+
32
P/N (SKU): 9AYV-030010-8500-0BP00
Part Name: REAR LH ANTI-SLIP TOOTH ASSY
Effective: 2024-09-29
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 36,00 € : 36,00 €
-+
33
P/N (SKU): 30204-060810
Part Name: NUT
Effective: 2024-12-03
Alternative parts:
Specification: M6
Price: 1,50 € : 1,50 €
-+
