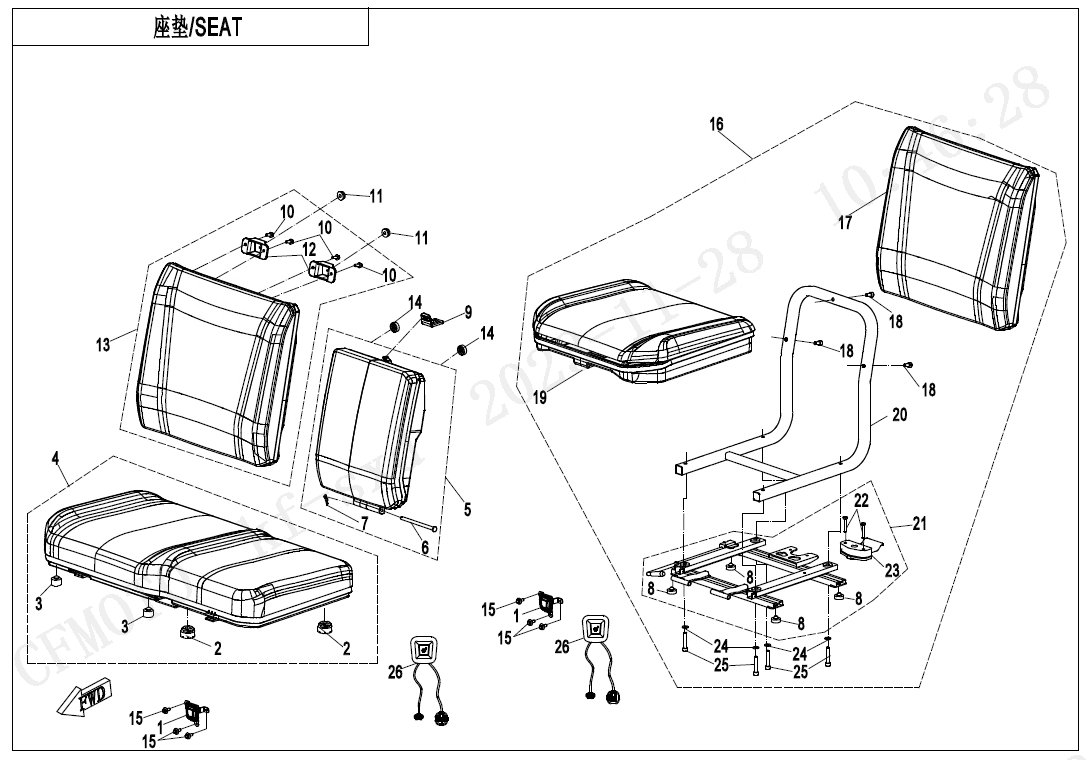

SEAT(HEATING EQUIPMENT) - F13-1-B-V2 | 2024, UTV,

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 5HY0-130001

Part Name: BRACKET, HEATING SWITCH

Effective: 2023-12-11

Price: 6,00 € : 6,00 €

02

P/N (SKU): 7020-130001

Part Name: SEAT LOCATING RUBBER SLEEVE

Effective: 2023-12-11

Price: 2,50 € : 2,50 €

03

P/N (SKU): 5HY0-132004

Part Name: RUBBER DAMPER

Effective: 2023-12-11

Price: 3,00 € : 3,00 €

04

P/N (SKU): 5HY0-132000-30000

Part Name: PASSENGER HEATING SEAT ASSY

Effective: 2023-12-11

Price: 263,00 € : 263,00 €

05

P/N (SKU): 5HYV-134000-1700

Part Name: MIDDLE BACKREST ASSY

Effective: 2023-12-11

Price: 39,61 € : 39,61 €

06

P/N (SKU): 5HYV-134000-1700-24

Part Name: PIN SHAFT

Effective: 2023-12-11

Price: 1,80 € : 1,80 €

07

P/N (SKU): 5HYV-134000-1700-23

Part Name: PIN SHAFT

Effective: 2023-12-11

Price: 1,80 € : 1,80 €

08

P/N (SKU): 9030-131001

Part Name: RUBBER WASHER

Effective: 2023-12-11

Price: 1,50 € : 1,50 €

09

P/N (SKU): 7020-140002

Part Name: TIE BAND, RACK COVER

Effective: 2023-12-11

Price: 4,50 € : 4,50 €

10

P/N (SKU): 30006-060016870

Part Name: HEXAGON FLANGE BOLTS

Effective: 2023-12-11

Specification: BLACK ZINC-PLATED

Price: 1,50 € : 1,50 €

11

P/N (SKU): 5HY#-130002-1000

Part Name: BACKREST DAMPING MAT

Effective: 2023-12-11

Price: 1,50 € : 1,50 €

12

P/N (SKU): 5HYV-133000-1700-23

Part Name: REAR BRACKET

Effective: 2023-12-11

Price: 2,80 € : 2,80 €

13

P/N (SKU): 5HYV-133000-1700

Part Name: PASSENGER BACKREST ASSY

Effective: 2023-12-11

Price: 71,99 € : 71,99 €

14

P/N (SKU): 6KM0-130205

Part Name: CUSHION RUBBER WAHSER

Effective: 2023-12-11

Price: 3,00 € : 3,00 €

15

P/N (SKU): 30110-420095010

Part Name: CROSS-RECESSED FLAT ROUND HEAD TAPPING SCREWS

Effective: 2023-12-11

Specification: ST4.

Price: 1,50 € : 1,50 €

16

P/N (SKU): 5HY0-131000-40000

Part Name: HEATED DRIVER SEAT ASSY

Effective: 2023-12-11

Price: 492,00 € : 492,00 €

17

P/N (SKU): 5HY0-131300-10000

Part Name: MAIN BACKREST

Effective: 2023-12-11

Price: 139,00 € : 139,00 €

18

P/N (SKU): 30102-080016170

Part Name: HEXAGON SOCKET HEAD CAP SCREWS

Effective: 2023-12-11

Specification: M8x16

Price: 1,50 € : 1,50 €

19

P/N (SKU): 5HY0-805100-1000

Part Name: DRIVER HEATING SEAT ASSY

Effective: 2023-12-11

Price: 205,00 € : 205,00 €

20

P/N (SKU): 5HY0-131010

Part Name: SUPPORT

Effective: 2023-12-11

Price: 51,00 € : 51,00 €

21

P/N (SKU): 5HY0-131100-10000

Part Name: BOTTOM BRACKET, MAIN SEAT

Effective: 2023-12-11

Price: 132,00 € : 132,00 €

22

P/N (SKU): 30003-060035810

Part Name: HEXAGON HEAD BOLTS

Effective: 2023-12-11

Price: 1,50 € : 1,50 €

23

P/N (SKU): 5HY0-131140

Part Name: SEAT LOCK

Effective: 2023-12-11

Price: 47,00 € : 47,00 €

24

P/N (SKU): 30306-080870

Part Name: PLAIN WASHERS

Effective: 2023-12-11

Alternative parts: 30306-080112

Price: 1,50 € : 1,50 €

25

P/N (SKU): 30102-080045170

Part Name: HEXAGON SOCKET HEAD CAP SCREWS

Effective: 2023-12-11

Price: 2,00 € : 2,00 €

26

P/N (SKU): 5HY0-136000

Part Name: SEAT HEATING SWITCH

Effective: 2023-12-11

Price: 49,00 € : 49,00 €
