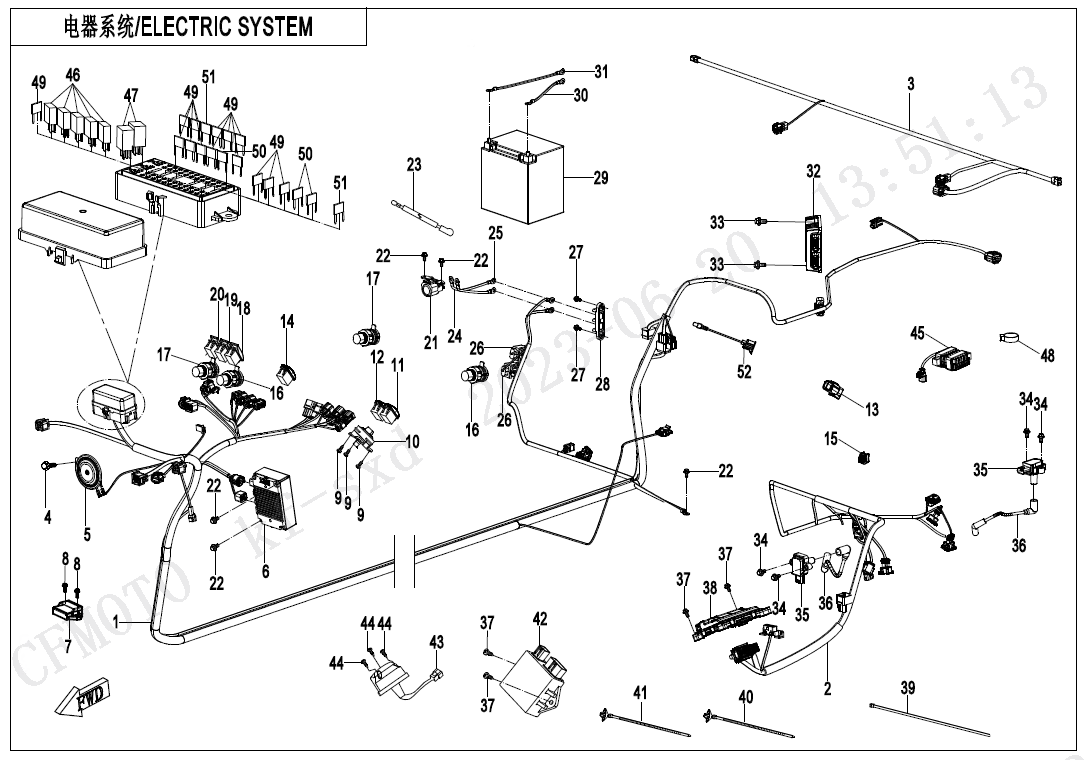

ELECTRIC SYSTEM - F15-1

ELECTRIC SYSTEM - F15-1

No.

01
P/N (SKU): 5SYV-150100-7301
Part Name: MAIN CABLE
Effective: 2023-06-20
Remarks: EU167
Alternative parts:
Price: 793,00 € : 793,00 €
-+
01
P/N (SKU): 5SYV-150100-7401
Part Name: MAIN CABLE
Effective: 2023-06-20
Remarks: LOF
Alternative parts:
Price: 808,00 € : 808,00 €
-+
02
P/N (SKU): 5SYV-150200-7301
Part Name: EFI AUXILIARY CABLE
Effective: 2023-06-20
Alternative parts:
Price: 211,00 € : 211,00 €
-+
03
P/N (SKU): 5HYV-150300-2F00
Part Name: TAIL LIGHT AUXILIARY CABLE
Effective: 2023-06-20
Remarks: EU167
Alternative parts:
Price: 42,00 € : 42,00 €
-+
03
P/N (SKU): 5HYV-150300-2G00
Part Name: TAIL LIGHT AUXILIARY CABLE
Effective: 2023-06-20
Remarks: LOF
Alternative parts:
Price: 40,00 € : 40,00 €
-+
04
P/N (SKU): 30006-080014810
Part Name: BOLT
Effective: 2023-06-20
Alternative parts:
Specification: M8×14
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 6060-150600
Part Name: ELECTRIC HORN
Effective: 2023-06-20
Alternative parts:
Price: 10,00 € : 10,00 €
-+
06
P/N (SKU): 5HYV-150810-1800
Part Name: EPS CONTROLLER
Effective: 2023-06-20
Alternative parts:
Price: 311,00 € : 311,00 €
-+
07
P/N (SKU): 5HYV-161000-1G01
Part Name: FLASHER
Effective: 2023-06-20
Alternative parts:
Price: 23,00 € : 23,00 €
-+
08
P/N (SKU): 30110-420160070
Part Name: SELF-TAPPING SCREW
Effective: 2023-06-20
Alternative parts:
Specification: ST4.2×16
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 30110-480160010
Part Name: SELF-TAPPING SCREW
Effective: 2023-06-20
Alternative parts:
Specification: ST4.8×16
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 5ASV-169080-6R00
Part Name: 2/4 WD SWITCH
Effective: 2023-06-20
Alternative parts:
Price: 36,00 € : 36,00 €
-+
11
P/N (SKU): 5ASV-169030-6001
Part Name: DIMMER SWITCH
Effective: 2023-06-20
Alternative parts:
Price: 15,00 € : 15,00 €
-+
12
P/N (SKU): 5ASV-169020-6001
Part Name: ILLUMINATION SWITCH
Effective: 2023-06-20
Alternative parts:
Price: 15,00 € : 15,00 €
-+
13
P/N (SKU): CFCV-156103-2000
Part Name: T-BOX CONNECTOR PLUG
Effective: 2023-06-20
Alternative parts:
Price: 6,00 € : 6,00 €
-+
14
P/N (SKU): 5ASV-169090-6001
Part Name: MODE SWITCH
Effective: 2023-06-20
Alternative parts:
Price: 15,00 € : 15,00 €
-+
15
P/N (SKU): CFCV-CBC005-2000-M1
Part Name: CLIP
Effective: 2023-06-20
Alternative parts:
Price: 2,00 € : 2,00 €
-+
16
P/N (SKU): 6WWV-150500-5000-10
Part Name: POWER OUTLET SOCKET
Effective: 2023-06-20
Alternative parts:
Price: 25,00 € : 25,00 €
-+
17
P/N (SKU): 6WWV-150600-5000-10
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2023-06-20
Alternative parts: 6WWV-151200-4000
Price: 51,00 € : 51,00 €
-+
18
P/N (SKU): 5ASV-169040-6001
Part Name: HORN SWITCH
Effective: 2023-06-20
Alternative parts:
Price: 15,00 € : 15,00 €
-+
19
P/N (SKU): 5ASV-169060-6001
Part Name: TURN SWITCH
Effective: 2023-06-20
Alternative parts:
Price: 15,00 € : 15,00 €
-+
20
P/N (SKU): 5ASV-169070-6001
Part Name: HAZARD SWITCH
Effective: 2023-06-20
Alternative parts:
Price: 15,00 € : 15,00 €
-+
21
P/N (SKU): 5BWV-150510-5300
Part Name: STARTER RELAY
Effective: 2023-06-20
Alternative parts:
Price: 27,00 € : 27,00 €
-+
22
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2023-06-20
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
23
P/N (SKU): 5HY0-150220
Part Name: CABLE,STARTER
Effective: 2023-06-20
Alternative parts:
Price: 22,00 € : 22,00 €
-+
24
P/N (SKU): 5HY0-150240-10000
Part Name: CABLE, STARTER RELAY
Effective: 2023-06-20
Alternative parts:
Price: 13,00 € : 13,00 €
-+
25
P/N (SKU): 5HY0-150250-10000
Part Name: NEGATIVE CABLE, STARTER
Effective: 2023-06-20
Alternative parts:
Price: 14,00 € : 14,00 €
-+
26
P/N (SKU): 5BY0-150302
Part Name: 40A FUSE
Effective: 2023-06-20
Alternative parts:
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2023-06-20
Alternative parts: 30006-060016870
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 5SY0-151610-6000
Part Name: TERMINAL, CABLE
Effective: 2023-06-20
Alternative parts:
Specification: WITH KAIDI PLUG
Price: 11,00 € : 11,00 €
-+
29
P/N (SKU): 31023004
Part Name: BATTERY
Effective: 2023-06-20
Alternative parts:
Specification: DYNAVOLT,12V30Ah
Price: 272,00 € : 272,00 €
-+
30
P/N (SKU): 5HY0-150230-10000
Part Name: NEGATIVE WIRE,BATTERY
Effective: 2023-06-20
Alternative parts:
Price: 15,00 € : 15,00 €
-+
31
P/N (SKU): 5HY0-150210-10000
Part Name: POSITIVE WIRE,BATTERY
Effective: 2023-06-20
Alternative parts:
Price: 15,00 € : 15,00 €
-+
32
P/N (SKU): 0800-177000-30000
Part Name: REGULATOR
Effective: 2023-06-20
Alternative parts: 9DSV-151000-4000
Specification: 600W
Price: 137,00 € : 137,00 €
-+
33
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2023-06-20
Alternative parts:
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
34
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2023-06-20
Alternative parts:
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
35
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Effective: 2023-06-20
Alternative parts:
Price: 41,00 € : 41,00 €
-+
36
P/N (SKU): 0GRB-178000-10000
Part Name: HIGH-TENSION CABLE
Effective: 2023-06-20
Alternative parts:
Price: 14,00 € : 14,00 €
-+
37
P/N (SKU): 30006-060020810
Part Name: BOLT
Effective: 2023-06-20
Alternative parts: 30006-060020870
Specification: M6×20
Price: 1,50 € : 1,50 €
38
P/N (SKU): 5SYV-001000-7300
Part Name: ECM ASSY
Effective: 2023-06-20
Remarks: T1b
Alternative parts:
Price: 428,00 € : 428,00 €
-+
38
P/N (SKU): 5SYV-001000-7300-10
Part Name: ECM ASSY
Effective: 2023-06-20
Remarks: T1a
Alternative parts:
Price: 428,00 € : 428,00 €
-+
38
P/N (SKU): 5SYV-001000-7400
Part Name: ECM ASSY
Effective: 2023-06-20
Remarks: LOF
Alternative parts:
Price: 428,00 € : 428,00 €
-+
39
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2023-06-20
Alternative parts:
Price: 1,50 € : 1,50 €
-+
40
P/N (SKU): 8010-150003
Part Name: TIE
Effective: 2023-06-20
Alternative parts:
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
41
P/N (SKU): 9DS#-150009-6100-M1
Part Name: TIE BAND ZDG4.7x194
Effective: 2023-06-20
Alternative parts:
Price: 1,50 € : 1,50 €
-+
42
P/N (SKU): 9AWA-150880-20000
Part Name: DRL CONTROLLER
Effective: 2023-06-20
Alternative parts:
Price: 44,00 € : 44,00 €
-+
43
P/N (SKU): 7020-150800-20000
Part Name: POWER SOCKET, TRAILER
Effective: 2023-06-20
Alternative parts:
Price: 18,00 € : 18,00 €
-+
43
P/N (SKU): 9010-151010-1000
Part Name: POWER SOCKET, TRAILER
Effective: 2023-06-20
Remarks: LOF
Alternative parts:
Specification: LOF
Price: 15,00 € : 15,00 €
-+
44
P/N (SKU): 30105-050030410
Part Name: SCREW
Effective: 2023-06-20
Alternative parts:
Specification: M5×30
Price: 1,50 € : 1,50 €
-+
45
P/N (SKU): SN1V-691100-1500-11
Part Name: T-BOX
Effective: 2023-06-20
Remarks: AllyTech, Turkey
Alternative parts:
Price: 427,00 € : 427,00 €
-+
45
P/N (SKU): SN1V-691100-1201-11
Part Name: T-BOX
Effective: 2023-06-20
Remarks: AllyTech, Eurasia, Africa and Australia except Turkey
Alternative parts:
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 420,00 € : 420,00 €
-+
46
P/N (SKU): 5BY4-150330
Part Name: AUXILIARY RELAY
Effective: 2023-06-20
Alternative parts:
Price: 7,50 € : 7,50 €
-+
47
P/N (SKU): CFCV-150521-2000-M1
Part Name: AUXILIARY RELAY
Effective: 2023-06-20
Alternative parts:
Price: 4,50 € : 4,50 €
-+
48
P/N (SKU): 6KMV-150901-B002
Part Name: T-BOX RUBBER RING
Effective: 2023-06-20
Alternative parts:
Price: 2,00 € : 2,00 €
-+
49
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2023-06-20
Alternative parts: 806A-151303
Specification: 15A
Price: 1,50 € : 1,50 €
50
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2023-06-20
Alternative parts:
Specification: 10A
Price: 2,50 € : 2,50 €
-+
51
P/N (SKU): 8010-151301
Part Name: FUSE 5A
Effective: 2023-06-20
Alternative parts:
Specification: 5A
Price: 1,50 € : 1,50 €
-+
52
P/N (SKU): 0JWA-012202-10000
Part Name: ADAPTOR CABLE, OIL PRESSURE SWITCH
Effective: 2023-06-20
Alternative parts:
Price: 13,00 € : 13,00 €
-+
