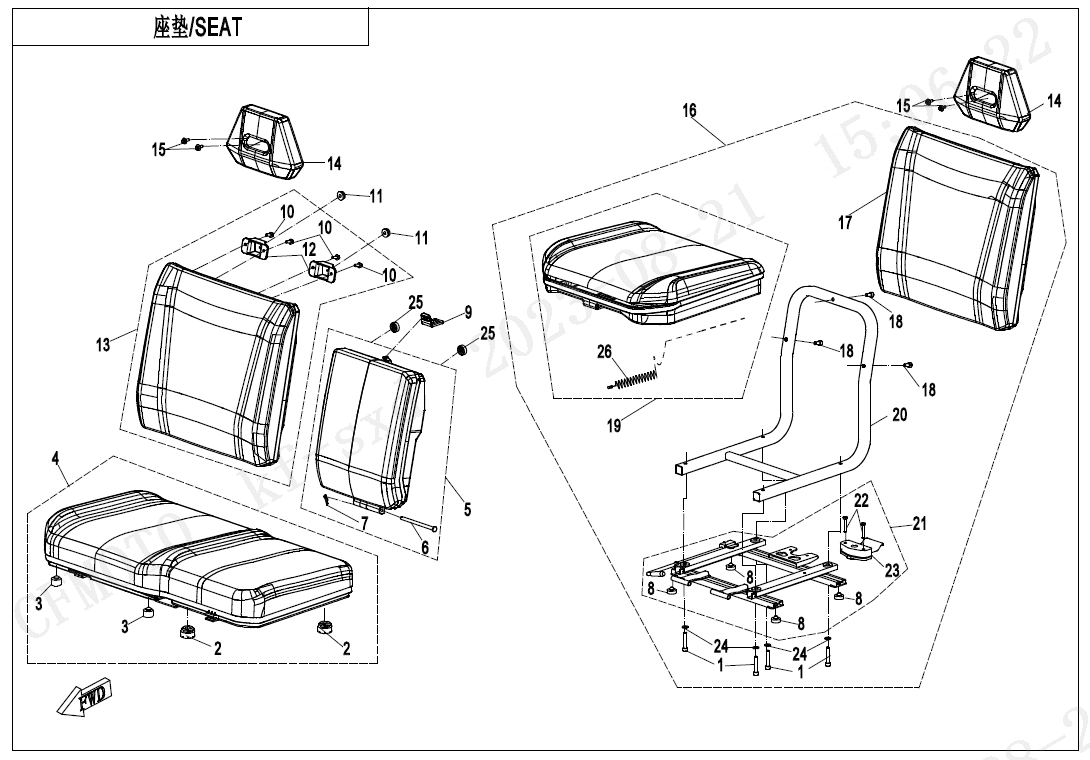

SEAT - F13

SEAT - F13

No.

01
P/N (SKU): 30102-080045170
Part Name: SCREW
Effective: 2023-05-03
Alternative parts:
Price: 0,95 € : 0,95 €
-+
02
P/N (SKU): 7020-130001
Part Name: RUBBER SLEEVE, SEAT
Effective: 2023-05-03
Alternative parts:
Price: 1,55 € : 1,55 €
-+
03
P/N (SKU): 5HY0-132004
Part Name: RUBBER DAMPER
Effective: 2023-05-03
Alternative parts:
Price: 1,85 € : 1,85 €
-+
04
P/N (SKU): 5HY0-132000-40000
Part Name: PASSENGER SEAT ASSY
Effective: 2023-05-03
Alternative parts:
Price: 258,10 € : 258,10 €
-+
05
P/N (SKU): 5HYV-134000-1C00
Part Name: BACKREST
Effective: 2023-05-03
Alternative parts:
Price: 58,00 € : 58,00 €
-+
06
P/N (SKU): 30904-080A220
Part Name: PIN SHAFT
Effective: 2023-05-03
Alternative parts:
Price: 10,65 € : 10,65 €
-+
07
P/N (SKU): 30910-0183220
Part Name: LOCK PIN
Effective: 2023-05-03
Alternative parts:
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 9030-131001
Part Name: RUBBER WASHER
Effective: 2023-05-05
Alternative parts:
Price: 0,55 € : 0,55 €
-+
09
P/N (SKU): 7020-140002
Part Name: TIE BAND, RACK COVER
Effective: 2023-05-03
Alternative parts:
Price: 4,10 € : 4,10 €
-+
10
P/N (SKU): 30006-060016870
Part Name: BOLT
Effective: 2023-05-03
Alternative parts:
Specification: M6×16
Price: 0,55 € : 0,55 €
-+
11
P/N (SKU): 5HY#-130002-1000
Part Name: BACKREST DAMPING MAT
Effective: 2023-05-03
Alternative parts:
Price: 0,95 € : 0,95 €
-+
12
P/N (SKU): 5HY#-133001-1000
Part Name: REAR BRACKET
Effective: 2023-05-03
Alternative parts:
Price: 5,50 € : 5,50 €
-+
13
P/N (SKU): 5HY#-133000-1000
Part Name: PASSENGER BACKREST ASSY
Effective: 2023-05-03
Alternative parts:
Price: 131,80 € : 131,80 €
-+
14
P/N (SKU): 5HY0-135000
Part Name: HEAD REST
Effective: 2023-05-03
Alternative parts:
Price: 61,00 € : 61,00 €
-+
15
P/N (SKU): 5HY#-040001-1000
Part Name: BOLT M6x14
Effective: 2023-05-03
Alternative parts:
Price: 0,55 € : 0,55 €
-+
16
P/N (SKU): 5HY3-131000-20000
Part Name: DRIVER SEAT ASSY
Effective: 2023-05-03
Alternative parts:
Price: 521,00 € : 521,00 €
-+
17
P/N (SKU): 5HY0-131300-10000
Part Name: MAIN BACKREST
Effective: 2023-05-03
Alternative parts:
Price: 135,50 € : 135,50 €
-+
18
P/N (SKU): 30102-080016170
Part Name: SCREW M8x16
Effective: 2023-05-03
Alternative parts:
Price: 0,55 € : 0,55 €
-+
19
P/N (SKU): 5HY3-1312A0
Part Name: MAIN SEAT ASSY
Effective: 2023-05-03
Alternative parts:
Price: 245,30 € : 245,30 €
-+
20
P/N (SKU): 5HY0-131010
Part Name: SUPPORT
Effective: 2023-05-03
Alternative parts:
Price: 49,50 € : 49,50 €
-+
21
P/N (SKU): 5HY0-131100-10000
Part Name: BOTTOM BRACKET, MAIN SEAT
Effective: 2023-05-03
Alternative parts:
Price: 129,40 € : 129,40 €
-+
22
P/N (SKU): 30003-060035810
Part Name: BOLT
Effective: 2023-05-03
Alternative parts:
Price: 0,55 € : 0,55 €
-+
23
P/N (SKU): 5HY0-131140
Part Name: SEAT LOCK
Effective: 2023-05-03
Alternative parts:
Price: 45,40 € : 45,40 €
-+
24
P/N (SKU): 30306-080142
Part Name: WASHER
Effective: 2023-05-03
Alternative parts: 30306-080112
Specification: 8
Price: 0,55 € : 0,55 €
25
P/N (SKU): 6KM0-130205
Part Name: CUSHION RUBBER WAHSER
Effective: 2023-05-03
Alternative parts:
Price: 1,65 € : 1,65 €
-+
26
P/N (SKU): 9GQS-130010
Part Name: PRESSURE SENSOR
Effective: 2023-08-21
Alternative parts:
Price: 21,30 € : 21,30 €
-+
