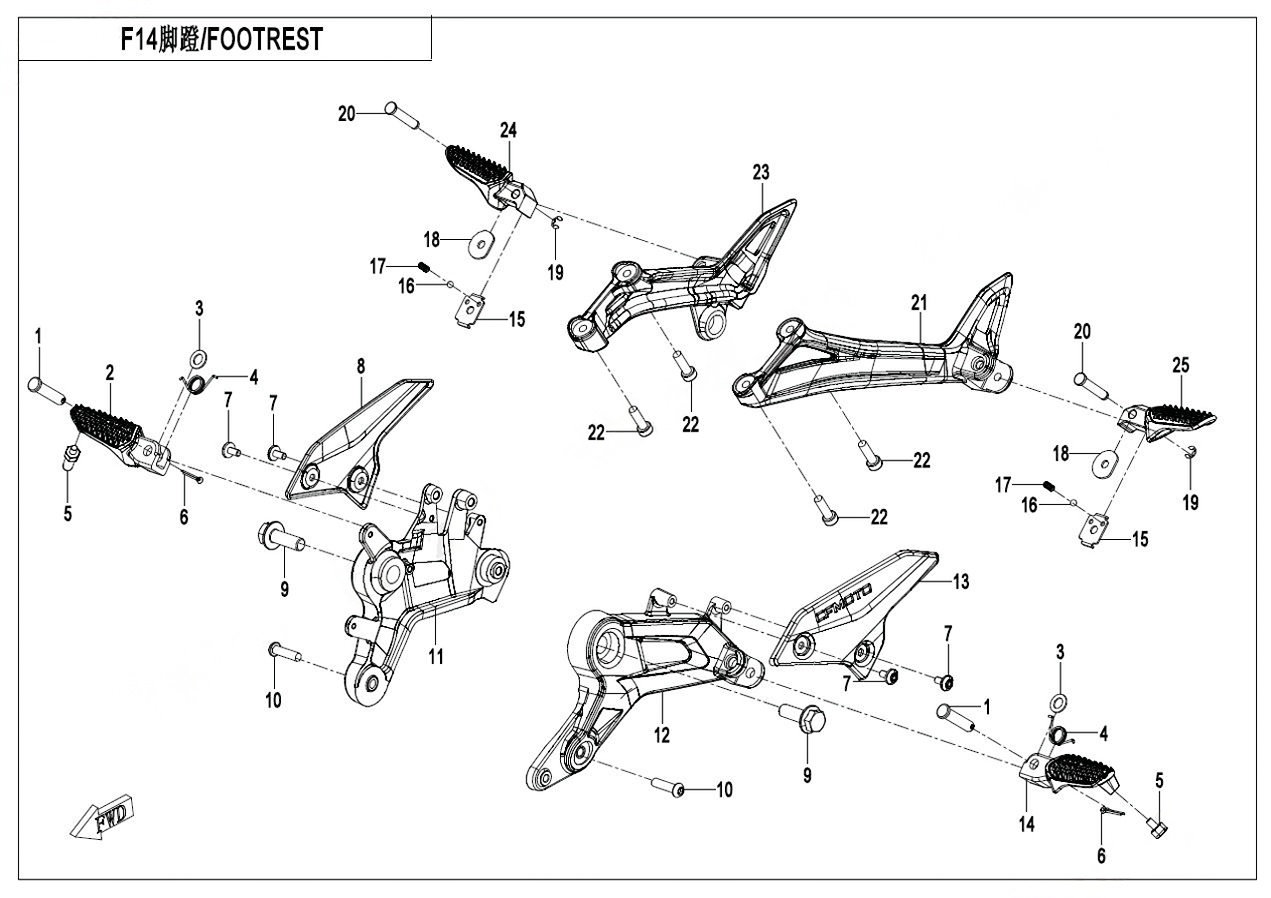

FOOTREST - F14-V2

FOOTREST - F14-V2

No.

01
P/N (SKU): 6WWV-140141-5000
Part Name: PIN SHAFT
Effective: 2024-08-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
02
P/N (SKU): 6AQV-140900-1001-0VR00
Part Name: FRONT RH FOOTREST SEAT
Effective: 2024-08-26
Alternative parts:
Price: 16,00 € : 16,00 €
-+
03
P/N (SKU): 30300-100112
Part Name: WASHER
Effective: 2024-08-26
Alternative parts:
Specification: φ10
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): A000-140103-20000
Part Name: SPRING
Effective: 2024-08-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 6AQV-140620-1000
Part Name: LIMIT SCREW
Effective: 2024-08-26
Alternative parts:
Price: 4,00 € : 4,00 €
-+
06
P/N (SKU): 30903-0322210
Part Name: COTTER PIN
Effective: 2024-08-26
Alternative parts:
Specification: φ3.2x22@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 6WWV-046701-5000
Part Name: INNER HEX SCREW
Effective: 2024-08-26
Alternative parts: 6WWV-046702-5000
Specification: M6×12
Price: 1,50 € : 1,50 €
08
P/N (SKU): 6AQV-140710-1000-0VR00
Part Name: FRONT RH FOOTREST BRACKET PANEL
Effective: 2024-08-26
Alternative parts:
Specification: ELECTRO SILVER
Price: 19,00 € : 19,00 €
-+
09
P/N (SKU): 0800-014009-00002
Part Name: BOLT
Effective: 2024-08-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): 30006-080030810
Part Name: BOLT
Effective: 2024-08-26
Alternative parts:
Specification: M8×30
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 6AQV-142750-1000
Part Name: FRONT RH FOOTREST BRACKET ASSY
Effective: 2024-08-26
Alternative parts:
Price: 75,00 € : 75,00 €
-+
12
P/N (SKU): 6AQV-142650-1000
Part Name: FRONT LH FOOTREST BRACKET ASSY
Effective: 2024-08-26
Alternative parts:
Price: 75,00 € : 75,00 €
-+
13
P/N (SKU): 6AQV-140610-1000-0VR00
Part Name: PANEL, LH FRONT FOOTREST BRACKET
Effective: 2024-08-26
Alternative parts:
Specification: MERCURY SILVER
Price: 19,00 € : 19,00 €
-+
14
P/N (SKU): 6AQV-140800-1001-0VR00
Part Name: FRONT LH FOOTREST SEAT
Effective: 2024-08-26
Alternative parts:
Price: 16,00 € : 16,00 €
-+
15
P/N (SKU): A000-140104
Part Name: LOCATING GASKET 1
Effective: 2024-08-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
16
P/N (SKU): 5190-037814
Part Name: STEEL BALL
Effective: 2024-08-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 5190-037813
Part Name: SPRING
Effective: 2024-08-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): A000-140106
Part Name: LOCATING GASKET 2
Effective: 2024-08-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 30802-00603
Part Name: SPLIT WASHER 6
Effective: 2024-08-26
Alternative parts:
Specification: 6
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): A000-140142
Part Name: PIN SHAFT Dia 8
Effective: 2024-08-26
Alternative parts:
Specification: Dia 8
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 6AQV-140250-1000-0D300
Part Name: REAR LH FOOTREST BRACKET
Effective: 2024-08-26
Alternative parts: 6AQV-140200-1002-0D300
Specification: JET BLACK
Price: 53,00 € : 53,00 €
22
P/N (SKU): 30102-080020810
Part Name: SCREW
Effective: 2024-08-26
Alternative parts:
Specification: M8x20@TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 6AQV-140350-1000-0D300
Part Name: RH REAR FOOTREST BRACKET
Effective: 2024-08-26
Alternative parts:
Specification: JET BLACK
Price: 56,00 € : 56,00 €
-+
24
P/N (SKU): 6AQV-140500-1001-0VR00
Part Name: REAR RH FOOTREST SEAT
Effective: 2024-08-26
Alternative parts: 6AQV-140500-1002-0VR00
Price: 16,00 € : 16,00 €
-+
25
P/N (SKU): 6AQV-140400-1001-0VR00
Part Name: REAR LH FOOTREST SEAT
Effective: 2024-08-26
Alternative parts: 6AQV-140400-1002-0VR00
Price: 16,00 € : 16,00 €
-+
