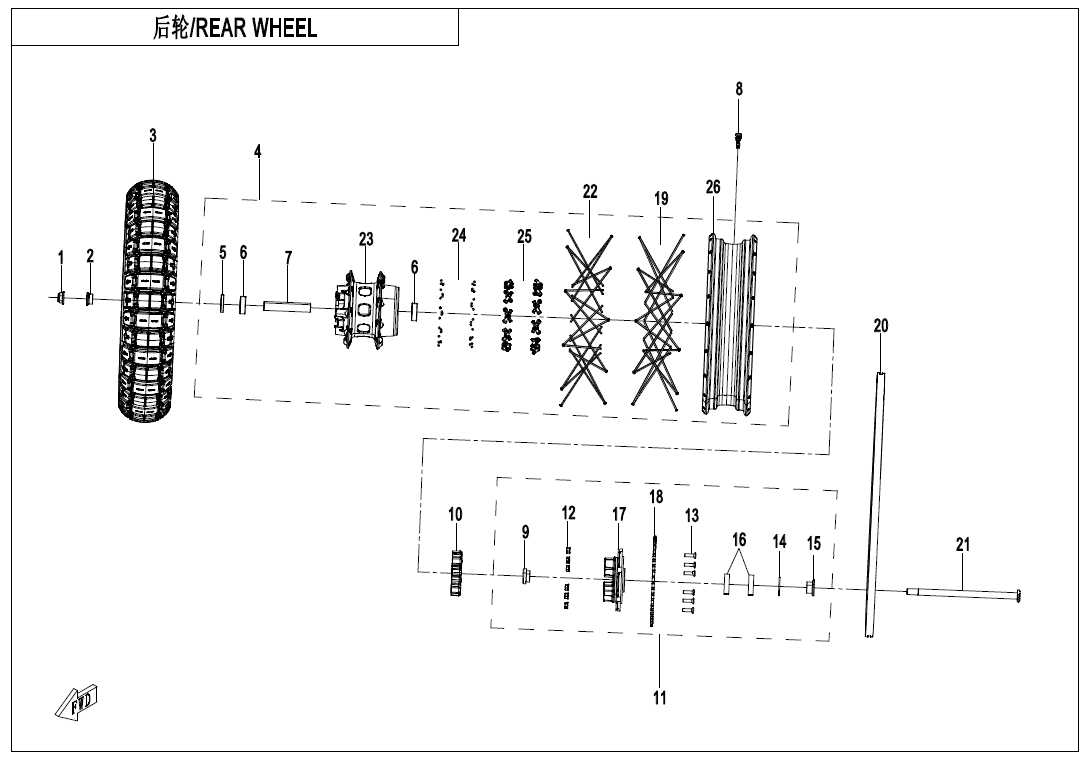

REAR WHEEL - F11-V2

REAR WHEEL - F11-V2

No.

1
P/N (SKU): 6AQV-060006-1000-M1
Part Name: NUT
Effective: 2024-10-23
Remarks: null
Alternative parts: null
Specification: M16×1.5
Price: 2,50 € : 2,50 €
2
P/N (SKU): 6AQV-110004-1000
Part Name: REAR WHEEL RH SHAFT SLEEVE
Effective: 2024-10-23
Remarks: null
Alternative parts: null
Specification: null
Price: 4,50 € : 4,50 €
-+
3
P/N (SKU): 30705-1804
Part Name: TIRE
Effective: 2024-10-23
Remarks: null
Alternative parts: 30705SH-180400
Specification: null
Price: 178,00 € : 178,00 €
-+
4
P/N (SKU): 6AQV-110100-6000-M1
Part Name: REAR RIM ASSY
Effective: 2024-10-23
Remarks: null
Alternative parts: null
Specification: null
Price: 929,00 € : 929,00 €
-+
5
P/N (SKU): 6AQV-110104-6000-20
Part Name: OIL SEAL
Effective: 2024-10-23
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 30400-01784
Part Name: DEEP GROOVE BALL BEARING
Effective: 2024-10-23
Remarks: null
Alternative parts: null
Specification: null
Price: 8,00 € : 8,00 €
-+
7
P/N (SKU): 6AQV-110105-6000-M1
Part Name: REAR WHEEL MIDDLE SPACER
Effective: 2024-10-23
Remarks: null
Alternative parts: null
Specification: null
Price: 4,50 € : 4,50 €
-+
8
P/N (SKU): 6WWV-070300-5000-M1
Part Name: INFLATION VALVE
Effective: 2024-10-23
Remarks: null
Alternative parts: null
Specification: null
Price: 4,50 € : 4,50 €
-+
9
P/N (SKU): 6AQV-110302-6000
Part Name: SPROCKET SEAT RH BUSHING
Effective: 2024-10-23
Alternative parts: null
Specification: null
Price: 17,00 € : 17,00 €
10
P/N (SKU): 6L30-110003
Part Name: RUBBER DAMPING BLOCK
Effective: 2024-10-23
Remarks: null
Alternative parts: 6AQV-110011-1000
Price: 3,50 € : 3,50 €
-+
11
P/N (SKU): 6AQV-110300-6001
Part Name: SPROCKET SEAT ASSY
Effective: 2024-10-23
Remarks: null
Alternative parts: null
Specification: null
Price: 67,00 € : 67,00 €
-+
12
P/N (SKU): 30204-080810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2024-10-23
Remarks: null
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 6AQV-110300-1000-22
Part Name: BOLT
Effective: 2024-10-23
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
14
P/N (SKU): 6WWV-110300-5000-20
Part Name: NILOS RING
Effective: 2024-10-23
Remarks: null
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
15
P/N (SKU): 6AQV-110303-6000
Part Name: SPACER BUSH. SPROCKET SUPP.
Effective: 2024-10-23
Alternative parts: null
Specification: null
Price: 17,00 € : 17,00 €
16
P/N (SKU): 30400-03080
Part Name: DEEP GROOVE BALL BEARING
Effective: 2024-10-23
Remarks: null
Alternative parts: null
Specification: 6006-2RS
Price: 9,00 € : 9,00 €
17
P/N (SKU): 6AQV-110301-1001
Part Name: SPROCKET SEAT
Effective: 2024-10-23
Remarks: null
Alternative parts: null
Specification: null
Price: 37,00 € : 37,00 €
-+
18
P/N (SKU): 6AQV-110005-6000
Part Name: REAR SPROCKET
Effective: 2024-10-23
Remarks: null
Alternative parts: null
Specification: null
Price: 31,00 € : 31,00 €
-+
19
P/N (SKU): 6AQV-110107-6000-M1
Part Name: SPOKE 1
Effective: 2024-10-23
Remarks: 219.6mm
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
20
P/N (SKU): 3120913
Part Name: CHAIN
Effective: 2024-10-23
Remarks: null
Alternative parts: 3120958
Price: 168,00 € : 168,00 €
21
P/N (SKU): 6AQV-110007-6000
Part Name: REAR WHEEL SHAFT
Effective: 2024-10-23
Remarks: null
Alternative parts: null
Specification: null
Price: 26,00 € : 26,00 €
-+
22
P/N (SKU): 6AQV-110108-6000-M1
Part Name: SPOKE 2
Effective: 2024-10-23
Remarks: 206.6mm
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
23
P/N (SKU): 6AQV-110102-6000-M1
Part Name: REAR WHEEL MIDDLE HUB
Effective: 2024-11-12
Alternative parts: null
Specification: null
Price: 151,00 € : 151,00 €
24
P/N (SKU): 6AQV-110109-6000-22
Part Name: LOCKING SCREW
Effective: 2024-11-12
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
25
P/N (SKU): 6AQV-110106-6000-M1
Part Name: SPOKE NIPPLE
Effective: 2024-11-12
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
26
P/N (SKU): 6AQV-110101-6000-M1
Part Name: REAR WHEEL RIM
Effective: 2024-11-12
Remarks: null
Alternative parts: null
Specification: null
Price: 259,00 € : 259,00 €
