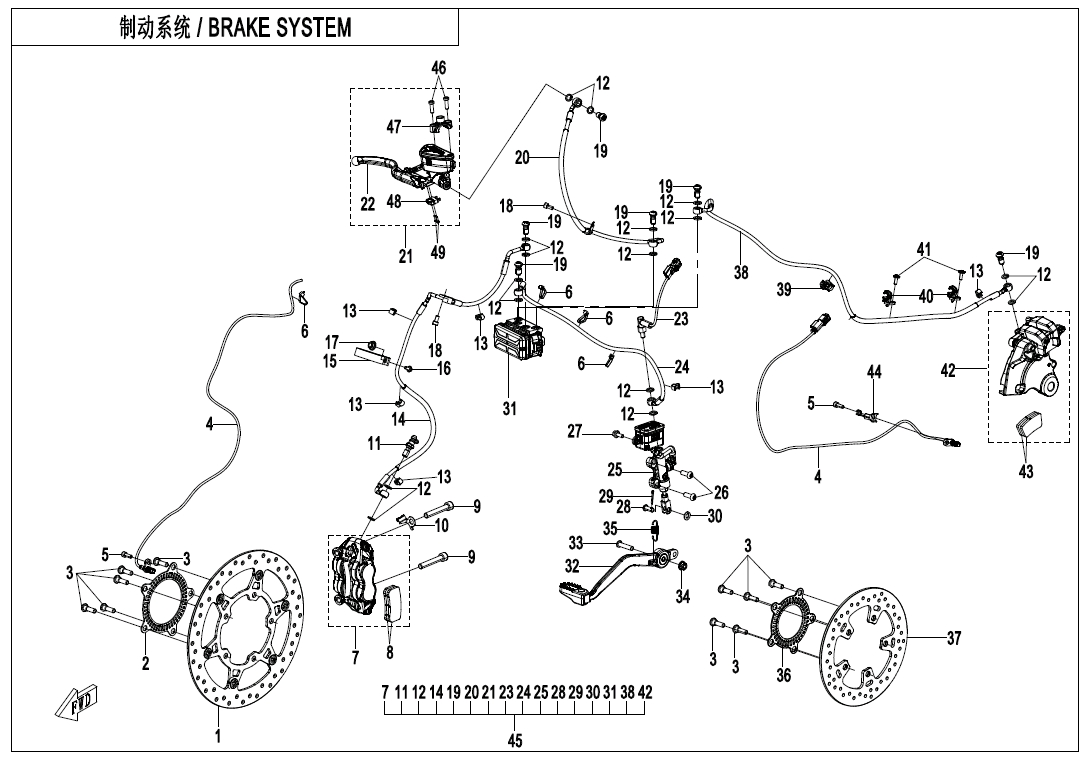

BRAKE SYSTEM - F08

BRAKE SYSTEM - F08

No.

1
P/N (SKU): 6AQV-080001-1000-M1
Part Name: FRONT BRAKE DISC
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 85,00 € : 85,00 €
-+
2
P/N (SKU): 6AQV-080002-1000
Part Name: FRONT GEAR RING
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 13,00 € : 13,00 €
-+
3
P/N (SKU): 6KJ0-080005
Part Name: FRONT BRAKE DISC BOLT
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
4
P/N (SKU): 6L30-080020
Part Name: SPEED SENSOR, FRONT WHEEL
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Price: 41,00 € : 41,00 €
-+
5
P/N (SKU): 30102-060016870
Part Name: SCREW
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: M6x16@BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: 5x250
Price: 1,50 € : 1,50 €
7
P/N (SKU): 6WWV-081200-5001
Part Name: FRONT RH BRAKE CALIPER ASSY
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 308,00 € : 308,00 €
-+
8
P/N (SKU): 6GUV-0811A0-6000
Part Name: FRONT BRAKE PAD ASSY
Effective: 2024-01-29
Remarks: null
Alternative parts: 6AQV-081200-71A0
Specification: null
Price: 131,00 € : 131,00 €
-+
9
P/N (SKU): 30102-102060810
Part Name: SCREW
Effective: 2024-01-29
Remarks: null
Alternative parts: F04V-051003-1000
Specification: M10x1.25x60
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 6AQV-081002-1000
Part Name: WIRE CLIP, FRONT SPEED SENSOR
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
11
P/N (SKU): 6GU#-081000-6000-22
Part Name: BANJO BOLT 1
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Price: 9,50 € : 9,50 €
-+
12
P/N (SKU): 6HVV-081000-1000-20
Part Name: WASHER
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Price: 7,15 € : 7,15 €
13
P/N (SKU): 6KJ0-080003-00001
Part Name: BRAKE HOSE CLIP
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
14
P/N (SKU): 6AQV-081600-6001
Part Name: FRONT BRAKE FLUID INLET PIPE ASSY
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 48,00 € : 48,00 €
-+
15
P/N (SKU): 6AQV-080002-6000
Part Name: BRAKE FLUID PIPE CLASP
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
16
P/N (SKU): 30006-050020810
Part Name: BOLT
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: M5×20
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 30200-050810
Part Name: NUT
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: M5
Price: 1,50 € : 1,50 €
18
P/N (SKU): 30102-060012810
Part Name: SCREW
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: M6×12
Price: 1,50 € : 1,50 €
19
P/N (SKU): 6GU#-081000-6000-23
Part Name: BANJO BOLT 2
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Price: 11,00 € : 11,00 €
-+
20
P/N (SKU): 6AQV-081500-6000
Part Name: FRONT BRAKE FLUID OUTLET PIPE ASSY
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 42,00 € : 42,00 €
-+
21
P/N (SKU): 6AQV-081100-6001-M1
Part Name: FRONT BRAKE MASTER CYLINDER ASSY
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 199,00 € : 199,00 €
-+
22
P/N (SKU): 6WWV-080110-5000-24
Part Name: HANDLE
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 21,00 € : 21,00 €
23
P/N (SKU): 6NTV-081070-9300-M1
Part Name: REAR BRAKE LIGHT SWITCH
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 39,00 € : 39,00 €
-+
24
P/N (SKU): 6AQV-081800-6000
Part Name: REAR BRAKE FLUID OUTLET PIPE ASSY
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 22,00 € : 22,00 €
-+
25
P/N (SKU): 6AQV-081400-6001-M1
Part Name: REAR BRAKE MASTER CYLINDER
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 139,00 € : 139,00 €
-+
26
P/N (SKU): 6GUV-080001-7000
Part Name: SCREW
Effective: 2024-01-29
Remarks: null
Alternative parts: C90709062000
Specification: null
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): A000-080216-2000
Part Name: PIN SHAFT
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Price: 3,50 € : 3,50 €
-+
29
P/N (SKU): A000-080233-2000
Part Name: PIN
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): A000-080234-2000
Part Name: WASHER 8
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
31
P/N (SKU): 6AQV-081200-6000-M1
Part Name: MAB EXECUTION UNIT
Effective: 2024-01-29
Remarks: null
Alternative parts: 6AQV-081200-6001-M1
Specification: null
Price: 563,00 € : 563,00 €
-+
32
P/N (SKU): 6AQV-080300-6000
Part Name: REAR BRAKE PEDAL ASSY
Effective: 2024-01-29
Remarks: null
Alternative parts: 6AQV-080300-6001
Specification: null
Price: 54,00 € : 54,00 €
-+
33
P/N (SKU): 30121-080035860
Part Name: SCREW
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: M8x35
Price: 2,00 € : 2,00 €
34
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
35
P/N (SKU): 6KMV-080005-C000
Part Name: RETURN SPRING
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
36
P/N (SKU): 6GU#-090002-6001
Part Name: REAR GEAR RING
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Price: 9,50 € : 9,50 €
-+
37
P/N (SKU): 6NQV-080006-2600
Part Name: REAR BRAKE DISC
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 32,00 € : 32,00 €
-+
38
P/N (SKU): 6AQV-081900-6000
Part Name: REAR BRAKE FLUID INLET PIPE ASSY
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 46,00 € : 46,00 €
-+
39
P/N (SKU): 6L30-080006
Part Name: WIRE CLIP 2, BRAKE FLUID HOSE
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
40
P/N (SKU): 6L30-080005
Part Name: WIRE CLIP 1, BRAKE FLUID HOSE
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
41
P/N (SKU): 6WWV-047102-5000
Part Name: INNER HEX SCREW M5x14
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
42
P/N (SKU): 6AQV-081700-6000
Part Name: REAR BRAKE CALIPER ASSY
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 199,00 € : 199,00 €
-+
43
P/N (SKU): A000-0801D0
Part Name: REAR BRAKE PAD ASSY
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Price: 72,00 € : 72,00 €
-+
44
P/N (SKU): 6AQV-081003-1000
Part Name: REAR SPEED SENSOR WIRE CLIP
Effective: 2024-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
45
P/N (SKU): 6AQV-081000-6001
Part Name: ABS BRAKE ASSY
Effective: 2024-01-29
Remarks: null
Alternative parts: 6AQV-081000-6002
Specification: null
Price: 1 732,00 € : 1 732,00 €
46
P/N (SKU): A000-080135-2000
Part Name: SCREW
Effective: 2025-02-07
Alternative parts: null
Specification: M6x20
Price: 3,00 € : 3,00 €
47
P/N (SKU): A000-080126-2000
Part Name: COVER
Effective: 2025-02-07
Remarks: null
Alternative parts: null
Specification: null
Price: 16,00 € : 16,00 €
48
P/N (SKU): A000-080137-2000
Part Name: BRAKE SWITCH
Effective: 2025-02-07
Alternative parts: null
Price: 57,00 € : 57,00 €
49
P/N (SKU): A000-080138-2000
Part Name: SCREW
Effective: 2025-02-07
Remarks: null
Alternative parts: null
Specification: M2.5×10
Price: 1,50 € : 1,50 €
