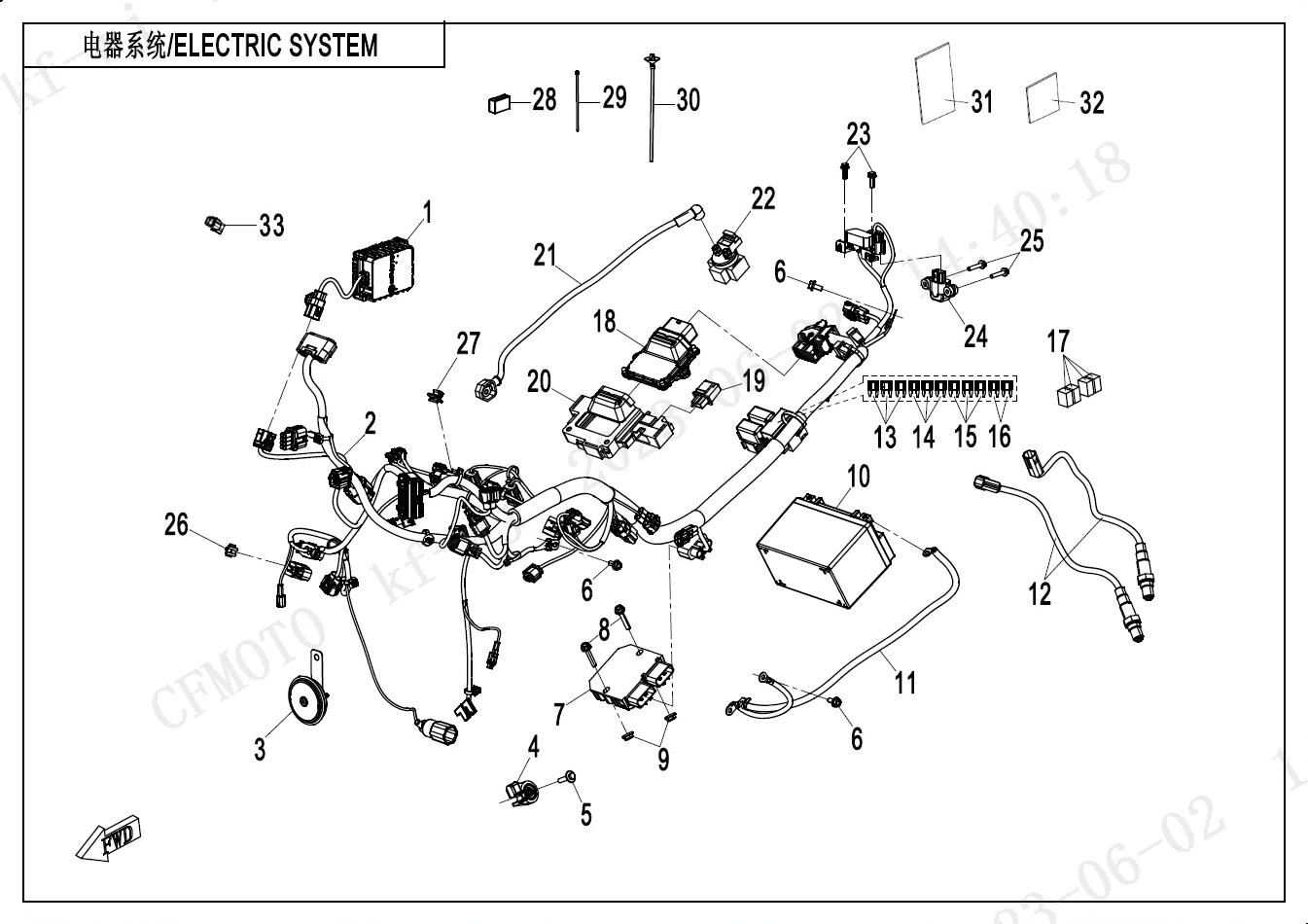

ELECTRIC SYSTEM - F15

ELECTRIC SYSTEM - F15

No.

01
P/N (SKU): SN1V-691100-1500-11
Part Name: T-BOX
Effective: 2023-11-13
Remarks: TURKEY
Alternative parts: SN1V-691100-1501-11
Specification: Turkey
Price: 419,40 € : 419,40 €
01
P/N (SKU): 6GUV-151800-6902-M1
Part Name: T-BOX
Effective: 2023-11-13
Remarks: BRAZIL
Alternative parts:
Specification: AllyTech@Brazil
Price: 420,90 € : 420,90 €
-+
01
P/N (SKU): SN1V-691100-1301-11
Part Name: T-BOX
Effective: 2023-11-13
Remarks: NORTH AMERICA
Alternative parts:
Specification: North Amrica
Price: 413,00 € : 413,00 €
-+
01
P/N (SKU): SN1V-691100-1201-11
Part Name: T-BOX
Effective: 2023-11-13
Remarks: EURASIA, AFRICA AND AUSTRALIA EXCEPT TURKEY
Alternative parts:
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 413,00 € : 413,00 €
-+
01
P/N (SKU): SN1V-691100-1401-11
Part Name: T-BOX
Effective: 2023-11-13
Remarks: SOUTH AMERICA EXCEPT BRAZIL
Alternative parts:
Specification: AllyTech@South America except for Brazil
Price: 413,00 € : 413,00 €
-+
01
P/N (SKU): SN1V-691100-1501-11
Part Name: T-BOX
Effective: 2024-02-28
Remarks: Turkey_Allytech
Alternative parts:
Specification: Turkey
Price: 413,00 € : 413,00 €
-+
02
P/N (SKU): 6AQV-150100-5101
Part Name: MAIN CABLE
Effective: 2023-11-13
Alternative parts:
Price: 504,20 € : 504,20 €
-+
03
P/N (SKU): 6FIV-150600-7000
Part Name: HORN
Effective: 2023-11-13
Alternative parts:
Price: 10,07 € : 10,07 €
-+
04
P/N (SKU): 6KMV-151500-3000
Part Name: SIDE STAND SWITCH
Effective: 2023-11-13
Alternative parts:
Price: 16,92 € : 16,92 €
-+
05
P/N (SKU): 8010-090005
Part Name: BOLT M6x16
Effective: 2023-11-13
Alternative parts:
Specification: M6x16
Price: 1,00 € : 1,00 €
-+
06
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2023-11-13
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,00 € : 1,00 €
07
P/N (SKU): 6NTV-151000-3000
Part Name: REGULATOR
Effective: 2023-11-13
Alternative parts:
Price: 53,10 € : 53,10 €
-+
08
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2023-11-13
Alternative parts:
Specification: M6×25
Price: 1,00 € : 1,00 €
-+
09
P/N (SKU): 30202-060110
Part Name: NUT
Effective: 2023-11-13
Alternative parts: 30204-060810
Specification: M6
Price: 1,00 € : 1,00 €
-+
10
P/N (SKU): 31021200
Part Name: BATTERY
Effective: 2023-11-13
Alternative parts:
Specification: 12V12AH
Price: 95,50 € : 95,50 €
-+
11
P/N (SKU): 6AQV-150420-1001
Part Name: BATTERY NEGATIVE CABLE
Effective: 2023-11-13
Alternative parts:
Price: 19,10 € : 19,10 €
-+
12
P/N (SKU): 0HU0-176000
Part Name: OXYGEN SENSOR
Effective: 2023-11-13
Alternative parts:
Price: 82,10 € : 82,10 €
-+
13
P/N (SKU): 8010-151301
Part Name: FUSE 5A
Effective: 2023-11-13
Alternative parts:
Specification: 5A
Price: 1,00 € : 1,00 €
-+
14
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2023-11-13
Alternative parts:
Specification: 10A
Price: 2,20 € : 2,20 €
-+
15
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2023-11-13
Alternative parts:
Specification: 15A
Price: 1,00 € : 1,00 €
-+
16
P/N (SKU): 806A-151307
Part Name: 25A FUSE
Effective: 2023-11-13
Alternative parts:
Price: 1,00 € : 1,00 €
-+
17
P/N (SKU): 5BY4-150330
Part Name: AUXILIARY RELAY
Effective: 2023-11-13
Alternative parts:
Price: 7,00 € : 7,00 €
-+
18
P/N (SKU): 6AQV-001000-5100
Part Name: ECU ASSY
Effective: 2023-11-13
Alternative parts:
Price: 223,90 € : 223,90 €
-+
19
P/N (SKU): 6FIA-150340-6400
Part Name: FLASHER
Effective: 2023-11-13
Alternative parts:
Price: 16,90 € : 16,90 €
-+
20
P/N (SKU): 6AQV-001300-1000
Part Name: ECU RUBBER
Effective: 2023-11-13
Alternative parts:
Price: 8,30 € : 8,30 €
-+
21
P/N (SKU): 6AQV-150310-1000
Part Name: STARTER MOTOR POSITIVE CABLE
Effective: 2023-11-13
Alternative parts:
Price: 16,44 € : 16,44 €
-+
22
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2023-11-13
Alternative parts:
Price: 24,40 € : 24,40 €
-+
23
P/N (SKU): 0010-030002-00001
Part Name: BOLT
Effective: 2023-11-13
Alternative parts:
Price: 1,00 € : 1,00 €
-+
24
P/N (SKU): 6KJ0-150600
Part Name: ROLL-OVER SENSOR
Effective: 2023-11-13
Alternative parts:
Price: 18,70 € : 18,70 €
-+
25
P/N (SKU): 30006-050020810
Part Name: BOLT
Effective: 2023-11-13
Alternative parts:
Specification: M5×20
Price: 1,00 € : 1,00 €
-+
26
P/N (SKU): CFCV-CBC005-2000-M1
Part Name: CLIP
Effective: 2023-11-13
Alternative parts:
Price: 1,80 € : 1,80 €
-+
27
P/N (SKU): 6AQV-150001-1000-M1
Part Name: CLIP
Effective: 2023-11-13
Alternative parts:
Price: 1,00 € : 1,00 €
-+
28
P/N (SKU): 6100-150500
Part Name: RUBBER SLEEVE, FLASHER
Effective: 2023-11-13
Alternative parts:
Price: 1,00 € : 1,00 €
-+
29
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2023-11-13
Alternative parts:
Specification: 5x250
Price: 1,30 € : 1,30 €
-+
30
P/N (SKU): 801F-100101
Part Name: TIE BAND
Effective: 2023-11-13
Alternative parts:
Price: 1,80 € : 1,80 €
-+
31
P/N (SKU): 5270-150001
Part Name: BATTERY FOAM MAT LH AND RH
Effective: 2023-11-13
Alternative parts:
Price: 1,00 € : 1,00 €
-+
32
P/N (SKU): 5270-150002
Part Name: BATTERY FOAM MAT FRONT AND REAR
Effective: 2023-11-13
Alternative parts:
Price: 1,00 € : 1,00 €
-+
33
P/N (SKU): CFCV-156103-2000
Part Name: T-BOX CONNECTOR PLUG
Effective: 2023-11-13
Alternative parts:
Price: 5,80 € : 5,80 €
-+
