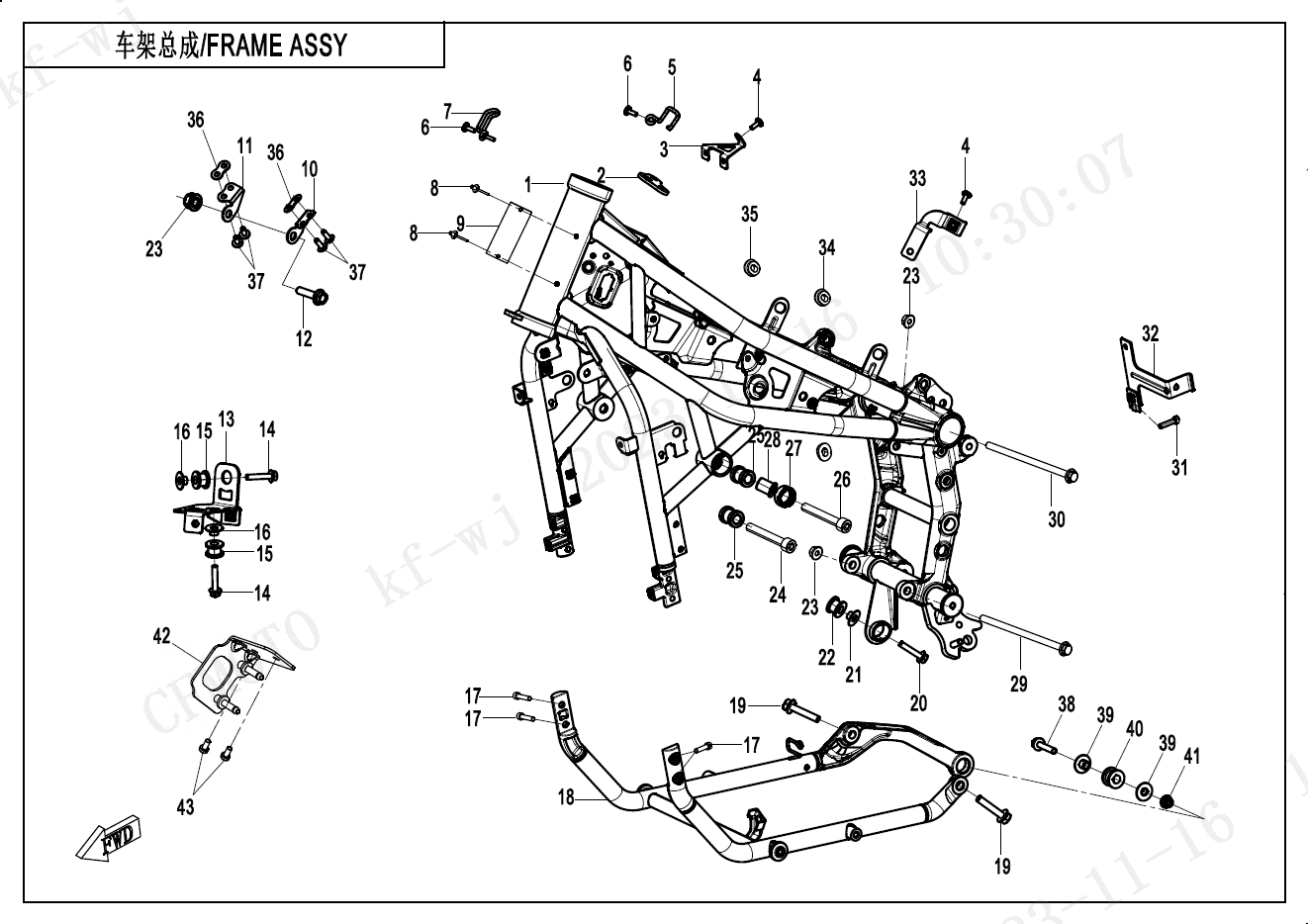

FRAMEⅠ - F03-1

FRAMEⅠ - F03-1

No.

1
P/N (SKU): 6AQV-033000-7101-0BP00
Part Name: FRONT FRAME ASSY
Effective: 2023-11-28
Specification: MAUD SPIRIT BLACK
Price: 771,00 € : 771,00 €
-+
2
P/N (SKU): 6AQV-033098-7100
Part Name: DEAD BOLT PLATE
Effective: 2023-11-28
Price: 2,00 € : 2,00 €
-+
3
P/N (SKU): 6AQV-030290-7100
Part Name: BRACKET, ROLL-OVER SENSOR
Effective: 2023-11-28
Price: 3,00 € : 3,00 €
-+
4
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2023-11-28
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 6AQV-030480-7100
Part Name: THROTTLE CABLE CLIP
Effective: 2023-11-28
Price: 3,00 € : 3,00 €
-+
6
P/N (SKU): 6WWV-047102-5000
Part Name: INNER HEX SCREW M5x14
Effective: 2023-11-28
Price: 1,50 € : 1,50 €
-+
7
P/N (SKU): 6AQV-030470-7100
Part Name: CABLE CLIP
Effective: 2023-11-28
Price: 3,00 € : 3,00 €
-+
8
P/N (SKU): 30902-0420820
Part Name: RIVET
Effective: 2023-11-28
Alternative parts: 30902-0401320
Specification: GB/T12618_4.2×8
Price: 1,50 € : 1,50 €
9
P/N (SKU): 6AQV-190011-7500
Part Name: VIN PLATE
Effective: 2023-11-28
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): 6AQV-030410-7100-0BP00
Part Name: HEADLIGHT LH BRACKET
Effective: 2023-11-28
Specification: MAUD SPIRIT BLACK
Price: 14,00 € : 14,00 €
-+
11
P/N (SKU): 6AQV-030420-7100-0BP00
Part Name: HEADLIGHT RH BRACKET
Effective: 2023-11-28
Specification: MAUD SPIRIT BLACK
Price: 14,00 € : 14,00 €
-+
12
P/N (SKU): 30006-102040810
Part Name: BOLT
Effective: 2023-11-28
Specification: M10×1.25×40
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 6AQV-030250-7100
Part Name: ABS BRACKET
Effective: 2023-11-28
Price: 4,00 € : 4,00 €
-+
14
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2023-11-28
Alternative parts: 30006-060016870
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 6WWV-030019-5000
Part Name: CUSHION SLEEVE
Effective: 2023-11-28
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 9060-180029
Part Name: RADIATOR SLEEVE TUBE
Effective: 2023-11-28
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 30102-080020870
Part Name: SCREW
Effective: 2023-11-28
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 6AQV-030700-7100-0BP00
Part Name: BOTTOM BRACKET
Effective: 2023-11-28
Specification: MAUD SPIRIT BLACK
Price: 113,00 € : 113,00 €
-+
19
P/N (SKU): 30006-080030870
Part Name: BOLT
Effective: 2023-11-28
Specification: M8×30
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 30006-080045810
Part Name: BOLT
Effective: 2023-11-28
Specification: M8×45
Price: 2,00 € : 2,00 €
-+
21
P/N (SKU): 6KJ0-020004
Part Name: BUSHING, MUFFLER
Effective: 2023-11-28
Price: 2,00 € : 2,00 €
-+
22
P/N (SKU): 6KJ0-020003
Part Name: BUSHING, MUFFLER
Effective: 2023-11-28
Price: 2,00 € : 2,00 €
-+
23
P/N (SKU): 30204-102110
Part Name: NUT
Effective: 2023-11-28
Alternative parts: 30204-102810
Specification: M10×1.25
Price: 1,50 € : 1,50 €
24
P/N (SKU): 6WWV-030011-5000
Part Name: INNER HEX SCREW M10x45
Effective: 2023-11-28
Price: 2,00 € : 2,00 €
-+
25
P/N (SKU): 6AQV-030004-1000
Part Name: BUSHING, ENGINE
Effective: 2023-11-28
Price: 3,00 € : 3,00 €
-+
26
P/N (SKU): 6AQV-030093-1000
Part Name: INNER HEX SCREW
Effective: 2023-11-28
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 6NT1-000292
Part Name: NUT M18
Effective: 2023-11-28
Specification: M18
Price: 4,00 € : 4,00 €
-+
28
P/N (SKU): 6AQV-030092-1000
Part Name: ADJUSTING SCREW, ENGINE
Effective: 2023-11-28
Price: 4,00 € : 4,00 €
-+
29
P/N (SKU): 30001-102170110
Part Name: BOLT
Effective: 2023-11-28
Specification: M10×1.25×170
Price: 4,00 € : 4,00 €
-+
30
P/N (SKU): 30001-102150110
Part Name: BOLT M10x1.25x150
Effective: 2023-11-28
Specification: M10x1.25x150
Price: 3,50 € : 3,50 €
-+
31
P/N (SKU): 30102-060020870
Part Name: INNER HEX SCREW M6×20
Effective: 2023-11-28
Specification: M6×20
Price: 1,50 € : 1,50 €
-+
32
P/N (SKU): 6AQV-030350-7100
Part Name: REGULATOR BRACKET
Effective: 2023-11-28
Price: 3,50 € : 3,50 €
-+
33
P/N (SKU): 6AQV-030003-4000
Part Name: FLUID RESERVOIR BRACKET
Effective: 2023-11-28
Price: 2,50 € : 2,50 €
-+
34
P/N (SKU): 6KWV-041114-1000
Part Name: RUBBER HEAD
Effective: 2023-11-28
Price: 2,00 € : 2,00 €
-+
35
P/N (SKU): 6KMV-041112-3000
Part Name: M6 RUBBER SLEEVE
Effective: 2023-11-28
Price: 3,50 € : 3,50 €
-+
36
P/N (SKU): 6AQV-030460-7100
Part Name: HEADLIGHT RUBBER
Effective: 2023-11-28
Price: 2,00 € : 2,00 €
-+
37
P/N (SKU): 6WWV-046802-5000
Part Name: INNER HEX SCREW M6×16
Effective: 2023-11-28
Price: 1,50 € : 1,50 €
-+
38
P/N (SKU): 30006-080040810
Part Name: BOLT
Effective: 2023-11-28
Specification: M8×40
Price: 2,00 € : 2,00 €
-+
39
P/N (SKU): 6GU#-020002-6001
Part Name: BUSHING
Effective: 2023-11-28
Price: 1,50 € : 1,50 €
-+
40
P/N (SKU): A000-020004
Part Name: DAMPER, MUFFLER
Effective: 2023-11-28
Price: 2,00 € : 2,00 €
-+
41
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2023-11-28
Specification: M8
Price: 1,50 € : 1,50 €
-+
42
P/N (SKU): 0SQV-140001-1000
Part Name: BRACKET, SECONDARY GULP VALVE
Effective: 2023-11-30
Price: 7,00 € : 7,00 €
-+
43
P/N (SKU): 30102-050012810
Part Name: SCREW
Effective: 2023-11-30
Specification: M5×12
Price: 1,50 € : 1,50 €
-+
