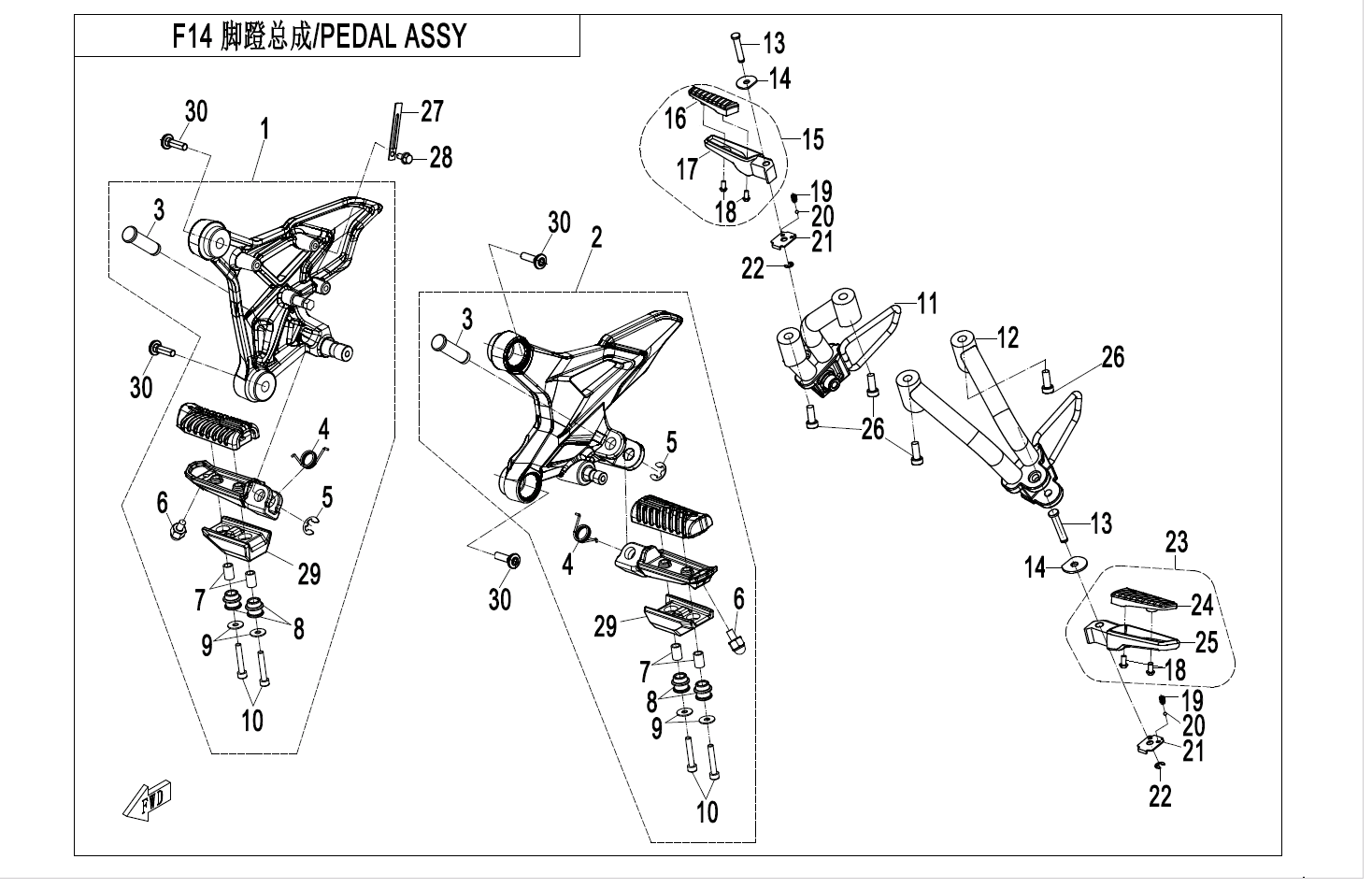

FOOTREST - F14

FOOTREST - F14

No.

01
P/N (SKU): 6KMV-144000-B001-0BP00
Part Name: RH FRONT FOOTREST ASSY
Effective: 2023-11-23
Remarks: null
Alternative parts: 6KMV-144000-B002-0BP00
Specification: MAUD SPIRIT BLACK
Price: 69,00 € : 69,00 €
02
P/N (SKU): 6KMV-143000-B001-0BP00
Part Name: LH FRONT FOOTREST ASSY
Effective: 2023-11-23
Remarks: null
Alternative parts: 6KMV-143000-B002-0BP00
Specification: MAUD SPIRIT BLACK
Price: 69,00 € : 69,00 €
03
P/N (SKU): 6NQ0-140001
Part Name: PIN Dia 12, FRONT FOOTREST
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Price: 4,50 € : 4,50 €
-+
04
P/N (SKU): A000-140103-20000
Part Name: SPRING
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 30802-00903
Part Name: E RINGS
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Specification: 9
Price: 1,50 € : 1,50 €
06
P/N (SKU): 6KM0-130123
Part Name: BOLT
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
07
P/N (SKU): 6NTG-200419
Part Name: BUSHING
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
08
P/N (SKU): 6KN0-140002
Part Name: CUSHION RUBBER
Effective: 2023-11-23
Remarks: null
Alternative parts: 6KMV-140001-3000
Price: 2,00 € : 2,00 €
09
P/N (SKU): 30305-050112
Part Name: PLAIN WASHERS
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Specification: φ5
Price: 1,50 € : 1,50 €
10
P/N (SKU): 30102-050030860
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Specification: M5x30
Price: 2,00 € : 2,00 €
11
P/N (SKU): 6KMV-140040-8100-0BP00
Part Name: REAR RH FOOTREST BRACKET
Effective: 2023-11-23
Remarks: null
Alternative parts: 6KMV-140040-8101-0BP00
Specification: MAUD SPIRIT BLACK
Price: 47,00 € : 47,00 €
12
P/N (SKU): 6KMV-140030-8100-0BP00
Part Name: REAR LH FOOTREST BRACKET
Effective: 2023-11-23
Remarks: null
Alternative parts: 6KMV-140030-8101-0BP00
Specification: MAUD SPIRIT BLACK
Price: 61,00 € : 61,00 €
13
P/N (SKU): A000-140142
Part Name: PIN SHAFT 8
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Specification: Dia 8
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): A000-140106
Part Name: LOCATING GASKET 2
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 6KJV-140160-8000-0BP00
Part Name: REAR RH FOOTREST ASSY
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 24,00 € : 24,00 €
-+
16
P/N (SKU): 6KJ0-140142
Part Name: RH FOOTREST RUBBER ASSY
Effective: 2023-11-23
Remarks: null
Alternative parts: 6KMV-140142-M100
Price: 8,50 € : 8,50 €
-+
17
P/N (SKU): 6KJV-140161-8000-0BP00
Part Name: REAR RH FOOTREST SEAT
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 18,00 € : 18,00 €
-+
18
P/N (SKU): 30105-050014470
Part Name: PAN HEAD SCREWS WITH CROSS RECESS
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Specification: M5×14
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 5190-037813
Part Name: SPRING
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 5190-037814
Part Name: STEEL BALL
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): A000-140104
Part Name: LOCATING GASKET 1
Effective: 2023-11-23
Remarks: null
Alternative parts: 6HVV-140006-1000
Price: 2,00 € : 2,00 €
-+
22
P/N (SKU): 30802-00603
Part Name: E RINGS
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Specification: GB/T896_6
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 6KJV-140150-8000-0BP00
Part Name: REAR LH FOOTREST ASSY
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 24,00 € : 24,00 €
-+
24
P/N (SKU): 6KJ0-140132
Part Name: RUBBER, LH FOOT PEDAL
Effective: 2023-11-23
Remarks: null
Alternative parts: 6KMV-140132-M100
Price: 6,50 € : 6,50 €
-+
25
P/N (SKU): 6KJV-140151-8000-0BP00
Part Name: REAR LH FOOTREST SEAT
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 19,00 € : 19,00 €
-+
26
P/N (SKU): 30102-080030810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Specification: M8×30
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2023-11-23
Remarks: null
Alternative parts: 6WWV-030080-8000
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 6WWV-046802-5000
Part Name: INNER HEX SCREW M6x16
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
29
P/N (SKU): 6KM#-140001-8001-0BP00
Part Name: BALANCE BLOCK, FOOTREST
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 11,00 € : 11,00 €
30
P/N (SKU): 6KM0-140103
Part Name: BOLT
Effective: 2023-11-23
Remarks: null
Alternative parts: null
Specification: M8x25
Price: 2,00 € : 2,00 €
