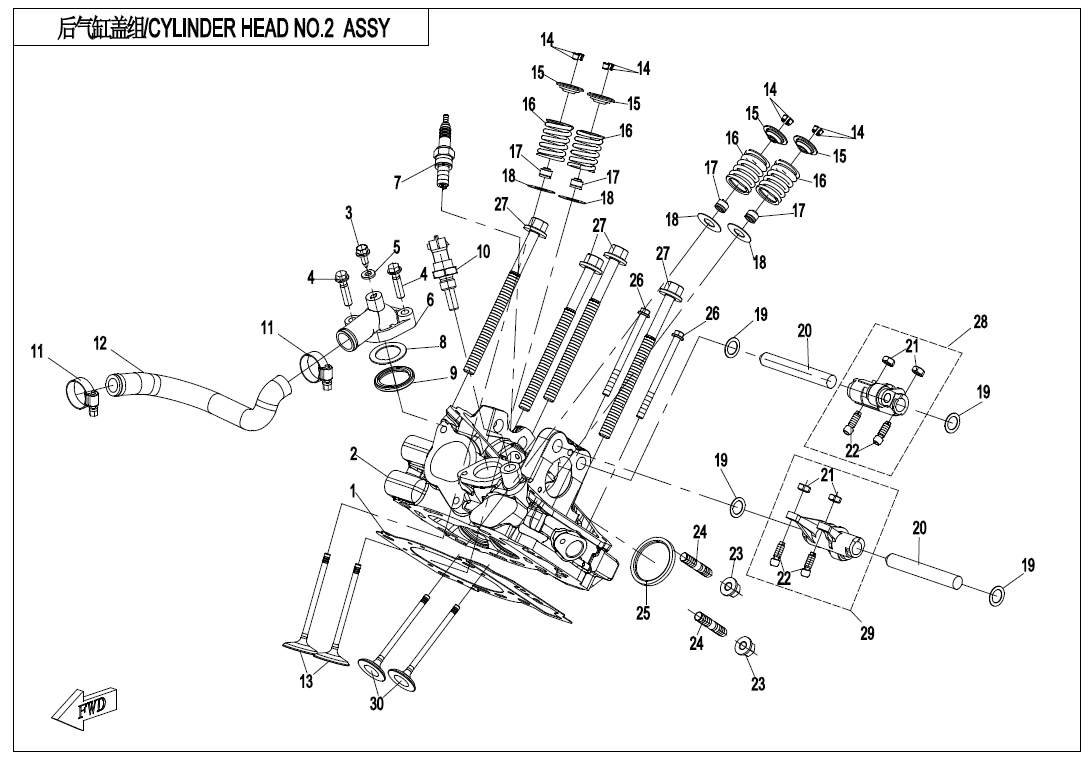

CYLINDER HEAD NO.2 ASSY - E02-6

CYLINDER HEAD NO.2 ASSY - E02-6

No.

01
P/N (SKU): 0800-022200-00002
Part Name: CYLINDER HEAD GASKET
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Specification: null
Price: 15,00 € : 15,00 €
-+
02
P/N (SKU): 0JYC-022100
Part Name: CYLINDER HEAD
Effective: 2023-06-25
Remarks: null
Alternative parts: 0JYC-022100-10000
Price: 183,00 € : 183,00 €
03
P/N (SKU): 0010-021017-0010
Part Name: BOLT M6x25
Effective: 2023-06-25
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 0180-013208-0010
Part Name: BOLT M6x45
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 0800-022011-00001
Part Name: WASHER
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
06
P/N (SKU): 0800-022013-10000
Part Name: THERMOSTAT CAP
Effective: 2023-06-25
Remarks: null
Alternative parts: 080V-022900-1000/080V-022900-1001
Price: 5,00 € : 5,00 €
-+
07
P/N (SKU): 0800-022800
Part Name: SPARK PLUG
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Price: 15,00 € : 15,00 €
08
P/N (SKU): 0800-026002
Part Name: WASHER
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Specification: 20.5x30x0.8
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0010-022802
Part Name: SEAL RING
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
10
P/N (SKU): 018B-022810
Part Name: COOLANT TEMP. SENSOR
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Price: 27,00 € : 27,00 €
-+
11
P/N (SKU): 30603-125020
Part Name: HOSE CLAMPS
Effective: 2023-06-25
Alternative parts: null
Specification: D25
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): 0JYA-026001
Part Name: CONNECTING PIPE, FRONT & REAR CYLINDER
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Price: 8,00 € : 8,00 €
-+
13
P/N (SKU): 0800-022004
Part Name: VALVE, INTAKE
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Price: 13,00 € : 13,00 €
-+
14
P/N (SKU): 0800-022016
Part Name: LOCK CLIP, VALVE
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
15
P/N (SKU): 0800-022007
Part Name: UPPER SEAT, VALVE SPRING
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
16
P/N (SKU): 0800-022006-10001
Part Name: VALVE SPRING
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Specification: null
Price: 2,50 € : 2,50 €
-+
17
P/N (SKU): 0010-022500-10000
Part Name: SEAL RING, VALVE STEM
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
18
P/N (SKU): 0800-022008
Part Name: LOWER SEAT, VALVE SPRING
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 0800-022002
Part Name: WASHER
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Specification: 12.3x18.5x0.5
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 0800-022001
Part Name: ROCKER ARM SHAFT
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Price: 4,50 € : 4,50 €
-+
21
P/N (SKU): 0800-022506
Part Name: ADJUST NUT, VALVE CLEARANCE
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 0800-022510
Part Name: ADJUST SCREW, VALVE CLEARANCE
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
-+
23
P/N (SKU): 0010-011700-0010
Part Name: STOP NUT M8
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 0180-022003-00001
Part Name: STUD
Effective: 2023-06-25
Remarks: null
Alternative parts: 0180-022003-00002
Price: 1,50 € : 1,50 €
25
P/N (SKU): 0800-022300
Part Name: EXHAUST PIPE GASKET ASSY
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Price: 4,50 € : 4,50 €
-+
26
P/N (SKU): 0060-013021-00002
Part Name: BOLT M6x85
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Specification: M6x85
Price: 2,00 € : 2,00 €
27
P/N (SKU): 0JY0-022003-00001
Part Name: CYLINDER BOLT
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 3,50 € : 3,50 €
-+
28
P/N (SKU): 0800-022600-20000
Part Name: ROCKER ARM ASSY, AIR EXHAUST
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Price: 28,00 € : 28,00 €
-+
29
P/N (SKU): 0800-022500-20000
Part Name: ROCKER ARM ASSY, AIR INTAKE
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Price: 27,00 € : 27,00 €
-+
30
P/N (SKU): 0800-022005
Part Name: EXHAUST VALVE
Effective: 2023-06-25
Remarks: null
Alternative parts: null
Price: 14,00 € : 14,00 €
-+
