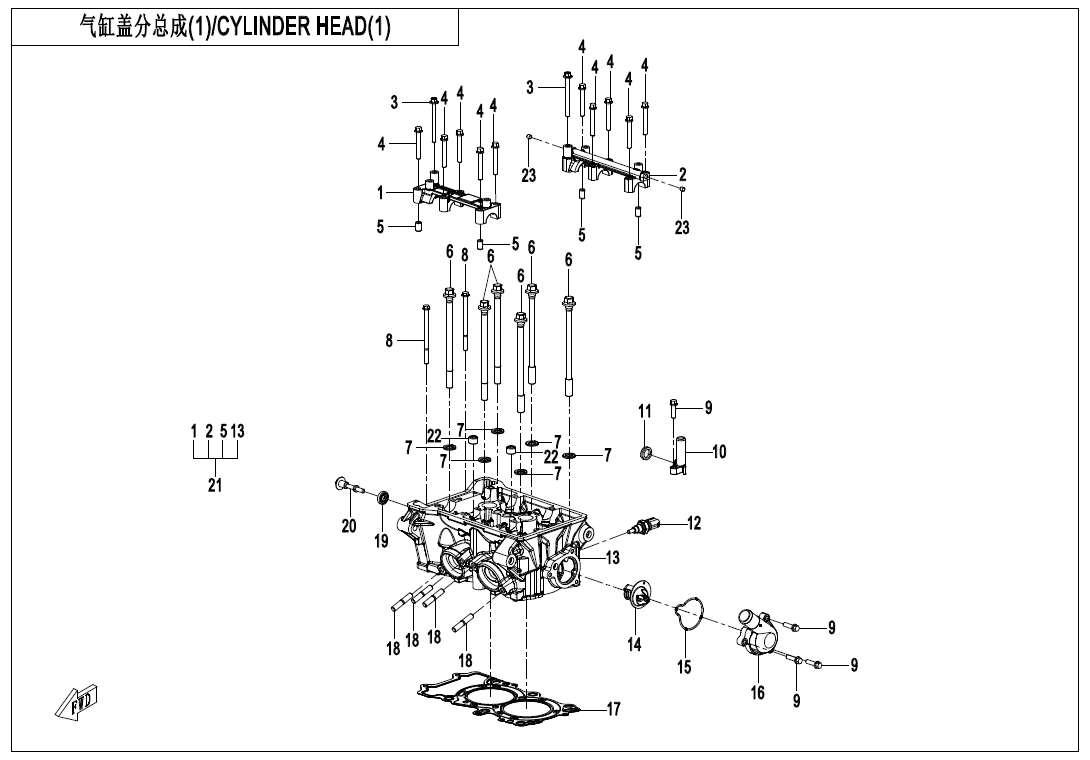

CYLINDER HEAD(1) - E02-2

CYLINDER HEAD(1) - E02-2

No.

03
P/N (SKU): 0SQV-022105-1000
Part Name: BOLT
Effective: 2023-12-07
Remarks: null
Alternative parts: null
Specification: M6x65
Price: 1,50 € : 1,50 €
04
P/N (SKU): 0SQV-022106-1001
Part Name: HEX FLANGE BOLT
Effective: 2023-12-07
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
05
P/N (SKU): 0DM0-022201-10000
Part Name: DOWEL PIN
Effective: 2023-12-07
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 0SQV-022008-1000
Part Name: CYLINDER HEAD BOLT
Effective: 2023-12-07
Remarks: null
Alternative parts: null
Specification: M10x150
Price: 4,50 € : 4,50 €
-+
07
P/N (SKU): 0700-022016
Part Name: WASHER
Effective: 2023-12-07
Remarks: null
Alternative parts: null
Specification: 10.5x19x2.3
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 0SQV-022011-1000
Part Name: BOLT
Effective: 2023-12-07
Remarks: null
Alternative parts: null
Specification: M6x90
Price: 2,00 € : 2,00 €
09
P/N (SKU): 0010-022020-00002
Part Name: BOLT
Effective: 2023-12-07
Remarks: null
Alternative parts: 0010-080013-0010
Specification: M6x22
Price: 1,50 € : 1,50 €
10
P/N (SKU): 0SQV-022200-1000
Part Name: CONNECTOR ASSY
Effective: 2023-12-07
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
-+
11
P/N (SKU): 1F30-024016
Part Name: SURFACE OIL SEAL
Effective: 2023-12-07
Remarks: null
Alternative parts: null
Price: 6,50 € : 6,50 €
-+
12
P/N (SKU): 018B-022810
Part Name: COOLANT TEMP. SENSOR
Effective: 2023-12-07
Remarks: null
Alternative parts: null
Price: 27,00 € : 27,00 €
-+
14
P/N (SKU): 0MQ0-022500
Part Name: THERMOSTAT
Effective: 2023-12-07
Remarks: null
Alternative parts: null
Price: 14,00 € : 14,00 €
-+
15
P/N (SKU): 0SQV-022002-1000
Part Name: THERMOSTAT CAP SEAL RING
Effective: 2023-12-07
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
-+
16
P/N (SKU): 0SQV-022001-1000-10-0HB00
Part Name: THERMOSTAT CAP
Effective: 2023-12-07
Remarks: null
Alternative parts: null
Specification: DYNAMIC GRAY
Price: 19,00 € : 19,00 €
17
P/N (SKU): 0SQV-022300-1000
Part Name: CYLINDER HEAD GASKET ASSY
Effective: 2023-12-07
Remarks: null
Alternative parts: null
Specification: null
Price: 19,00 € : 19,00 €
18
P/N (SKU): 0180-022003-00001
Part Name: STUD
Effective: 2023-12-07
Remarks: null
Alternative parts: 0180-022003-00002
Price: 1,50 € : 1,50 €
19
P/N (SKU): 0700-021200
Part Name: CYLINDER HEAD COVER BOLT SEAL RING
Effective: 2023-12-07
Remarks: null
Alternative parts: null
Price: 3,50 € : 3,50 €
-+
20
P/N (SKU): 0DM0-022008-00001
Part Name: CYLINDER HEAD DAMPING BOLT
Effective: 2023-12-07
Remarks: null
Alternative parts: null
Specification: null
Price: 2,50 € : 2,50 €
21
P/N (SKU): 0SQV-022100-1005-0HB00
Part Name: CYLINDER HEAD ASSY
Effective: 2023-12-07
Alternative parts: 0SQV-022100-1006-0HB00
Specification: null
Price: 402,00 € : 402,00 €
-+
21
P/N (SKU): 0SQV-022100-1006-0HB00
Part Name: CYLINDER HEAD ASSY
Effective: 2024-07-19
Remarks: null
Alternative parts: null
Specification: DYNAMIC GRAY
Price: 245,00 € : 245,00 €
22
P/N (SKU): 0700-012105-00001
Part Name: PLUG, MAIN OIL RAIL
Effective: 2024-03-29
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
23
P/N (SKU): 0700-066005
Part Name: PLUG 6
Effective: 2025-09-28
Remarks: null
Alternative parts: null
Specification: 6
Price: 2,00 € : 2,00 €
-+
