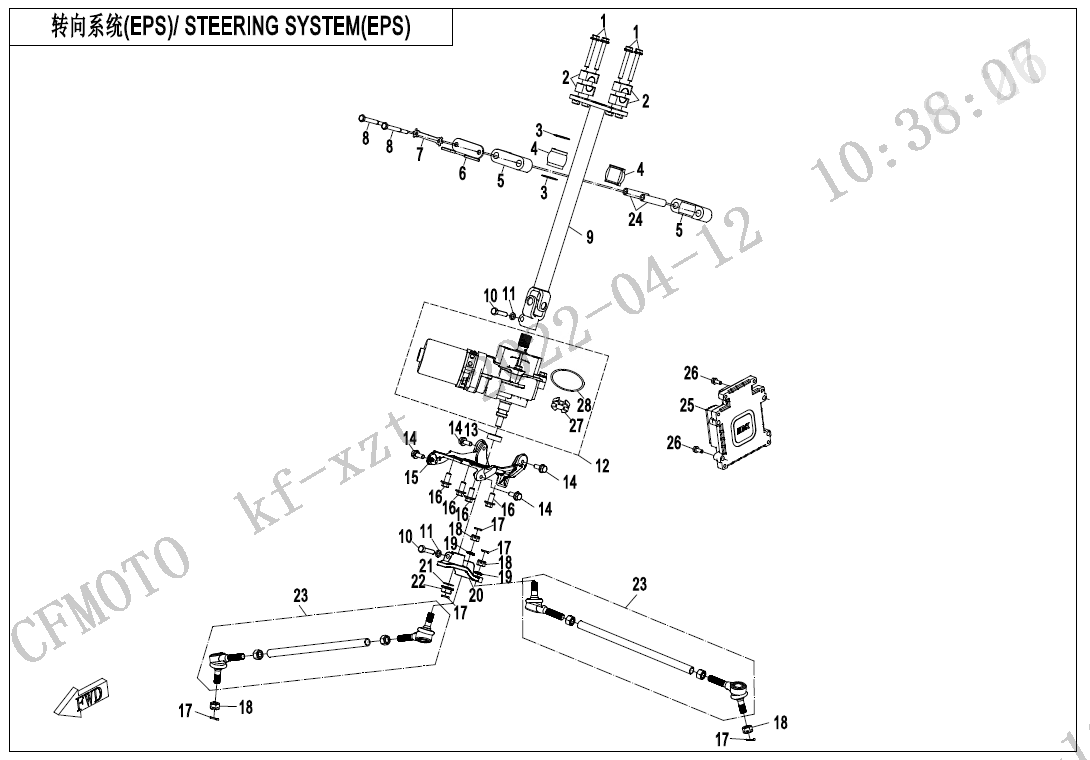

STEERING SYSTEM(EPS) - F10-2-B-V2

STEERING SYSTEM(EPS) - F10-2-B-V2

No.

01
P/N (SKU): 30102-080045810
Part Name: SCREW
Effective: 2023-05-09
Alternative parts:
Specification: M8x45@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
02
P/N (SKU): 9DSV-100001-6K01
Part Name: HANDLEBAR BLOCK
Effective: 2023-05-09
Alternative parts:
Price: 14,00 € : 14,00 €
-+
03
P/N (SKU): 30502-032800N
Part Name: O-RING
Effective: 2023-05-09
Alternative parts:
Specification: 32x1.8
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 7020-100602
Part Name: INNER BUSHING, STEERING SHAFT SPHERICAL
Effective: 2023-05-09
Alternative parts:
Price: 9,00 € : 9,00 €
-+
05
P/N (SKU): 7020-100601-00001
Part Name: OUTER BUSHING, STEERING SHAFT SPHERICAL
Effective: 2023-05-09
Alternative parts:
Price: 5,00 € : 5,00 €
-+
06
P/N (SKU): 7020-100610-10000
Part Name: LINKING PLATE ASSY
Effective: 2023-05-09
Alternative parts:
Price: 3,00 € : 3,00 €
-+
07
P/N (SKU): 7020-100603
Part Name: LOCKING PIECE
Effective: 2023-05-09
Alternative parts:
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 30003-080075810
Part Name: BOLT M8x75
Effective: 2023-05-09
Alternative parts:
Specification: M8x75
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 9AWV-102100-7401
Part Name: EPS STEERING SHAFT ASSY
Effective: 2023-05-09
Alternative parts:
Price: 71,00 € : 71,00 €
-+
10
P/N (SKU): 9CR6-102003
Part Name: BOLT M8x35
Effective: 2023-05-09
Alternative parts:
Specification: M8x35
Price: 3,00 € : 3,00 €
-+
11
P/N (SKU): 30303-080112
Part Name: WASHER
Effective: 2023-05-09
Alternative parts:
Specification: φ8@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 9CR6-103300-30000
Part Name: EPS DRIVER
Effective: 2023-05-09
Alternative parts:
Price: 699,00 € : 699,00 €
-+
12
P/N (SKU): 9DQV-150820-4200
Part Name: EPS MOTOR
Effective: 2023-07-04
Alternative parts:
Price: 693,00 € : 693,00 €
-+
13
P/N (SKU): 9CR6-103003
Part Name: SPLINE SLEEVE
Effective: 2023-05-09
Alternative parts:
Price: 3,00 € : 3,00 €
-+
14
P/N (SKU): 30006-080025810
Part Name: BOLT
Effective: 2023-05-09
Alternative parts:
Specification: M8×25
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 9AWV-100011-2E00
Part Name: BRACKET, STEERING SEAT
Effective: 2023-05-09
Alternative parts:
Price: 61,00 € : 61,00 €
-+
16
P/N (SKU): 30006-100020810
Part Name: BOLT M10x20
Effective: 2023-05-09
Alternative parts: 30006-102020810
Specification: M10x20
Price: 2,00 € : 2,00 €
17
P/N (SKU): 30903-0201610
Part Name: COTTER PIN
Effective: 2023-05-09
Alternative parts:
Specification: φ2×16
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 9010-100002
Part Name: 1-TYPE NUT
Effective: 2023-05-09
Alternative parts:
Specification: M10x1.25
Price: 2,00 € : 2,00 €
-+
19
P/N (SKU): 30306-100112
Part Name: WASHER
Effective: 2023-05-09
Alternative parts:
Specification: φ10
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 9AWA-100001-20000
Part Name: STEERING ARM
Effective: 2023-05-09
Alternative parts:
Price: 21,00 € : 21,00 €
-+
21
P/N (SKU): 30306-140112
Part Name: WASHER
Effective: 2023-05-09
Alternative parts:
Specification: φ14
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 30204-122810
Part Name: NUT
Effective: 2023-05-09
Alternative parts:
Specification: M12×1.25
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 9AWA-104100
Part Name: STEERING ROD
Effective: 2023-05-09
Alternative parts:
Price: 47,00 € : 47,00 €
-+
24
P/N (SKU): 7020-100604-00001
Part Name: BUSHING
Effective: 2023-05-09
Alternative parts:
Price: 3,00 € : 3,00 €
-+
25
P/N (SKU): 9AWV-150810-4000
Part Name: EPS CONTROLLER
Effective: 2023-05-09
Alternative parts:
Price: 331,00 € : 331,00 €
-+
26
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2023-05-09
Alternative parts:
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 9CR6-103301
Part Name: CUSHION RUBBER
Effective: 2023-05-09
Alternative parts:
Price: 5,00 € : 5,00 €
-+
28
P/N (SKU): 30504-065800N
Part Name: O-RING
Effective: 2023-05-09
Alternative parts:
Price: 3,00 € : 3,00 €
-+
