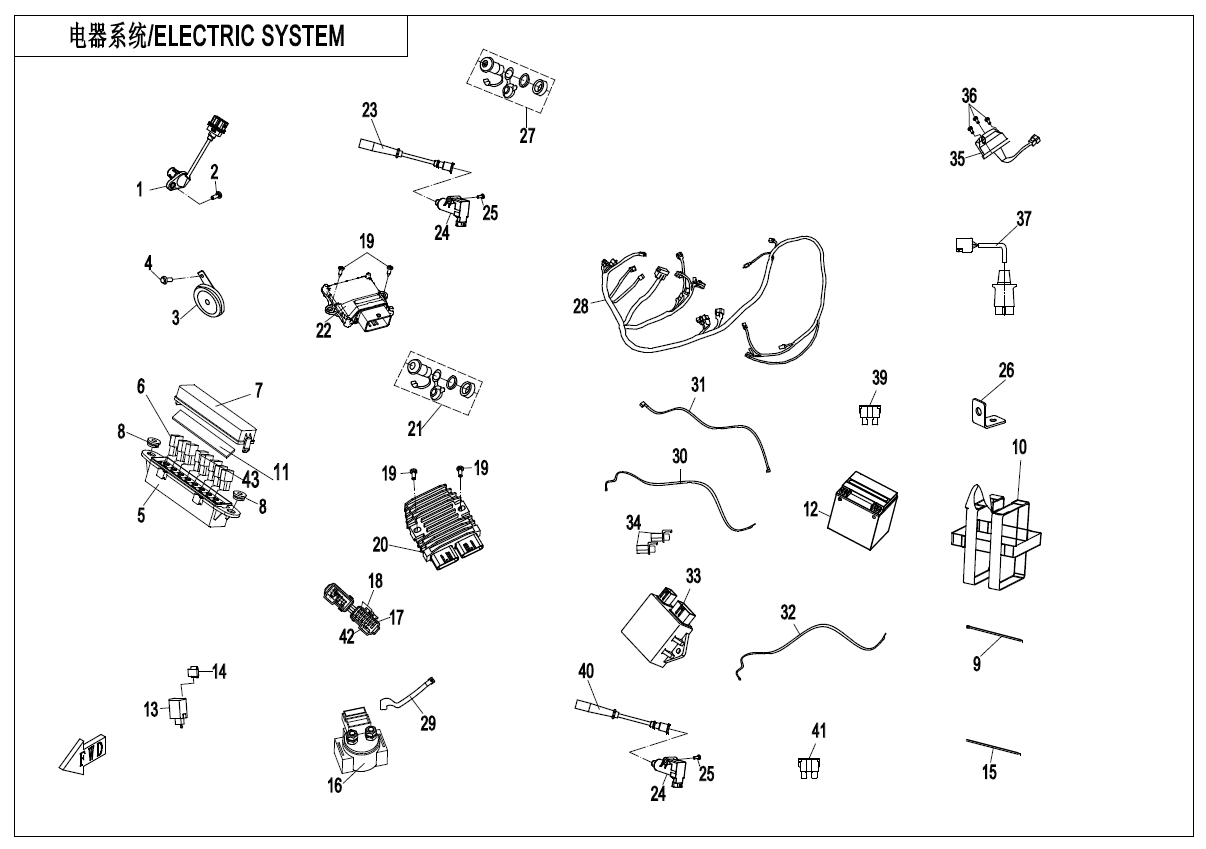

ELECTRIC SYSTEM - F15-1-V3

ELECTRIC SYSTEM - F15-1-V3

No.

01
P/N (SKU): 7020-150400
Part Name: SPEED SENSOR
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 34,00 € : 34,00 €
-+
02
P/N (SKU): 30006-060020810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-05-09
Remarks: null
Alternative parts: 30006-060020870
Specification: M6×20
Price: 1,50 € : 1,50 €
03
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2023-05-09
Remarks: null
Alternative parts: EG4V-150600-1000
Price: 11,00 € : 11,00 €
04
P/N (SKU): 30006-080016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
05
P/N (SKU): 7020-040411
Part Name: RELAY BOX
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 7,50 € : 7,50 €
-+
06
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2023-05-09
Alternative parts: null
Price: 7,00 € : 7,00 €
-+
07
P/N (SKU): 7020-040412-10000
Part Name: COVER,RELAY BOX
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 5,00 € : 5,00 €
-+
08
P/N (SKU): 0180-015003
Part Name: RUBBER SLEEVE
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 9010-150004
Part Name: TIE BAND
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
10
P/N (SKU): 9060-152100
Part Name: BATTERY BELT
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 4,00 € : 4,00 €
-+
11
P/N (SKU): 7020-040414
Part Name: RUBBER WASHER, RELAY BOX COVER
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): 31023004
Part Name: BATTERY
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Specification: DYNAVOLT,12V 32Ah
Price: 272,00 € : 272,00 €
13
P/N (SKU): 9AWA-150340-10000
Part Name: FLASHER
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 11,00 € : 11,00 €
-+
14
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
15
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Specification: 5x250
Price: 1,50 € : 1,50 €
16
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 25,00 € : 25,00 €
-+
17
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Specification: 10A
Price: 2,50 € : 2,50 €
-+
18
P/N (SKU): 806A-151303
Part Name: FUSE
Effective: 2023-05-09
Remarks: null
Alternative parts: 806A-151305
Specification: 15A
Price: 4,00 € : 4,00 €
19
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 9DSV-151000-4000
Part Name: REGULATOR
Effective: 2023-05-09
Remarks: null
Alternative parts: 9DSV-151000-4000-10
Specification: null
Price: 189,00 € : 189,00 €
-+
21
P/N (SKU): 9GQ0-150500-20000
Part Name: POWER OUTLET SOCKET
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 14,00 € : 14,00 €
-+
22
P/N (SKU): 9AWV-001000-7001
Part Name: ECU ASSY
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Specification: MSE6.0
Price: 230,00 € : 230,00 €
-+
23
P/N (SKU): 0JWV-179200-7000
Part Name: HIGH TENSION CABLE(315)
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Specification: null
Price: 14,00 € : 14,00 €
24
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 41,00 € : 41,00 €
-+
25
P/N (SKU): 30006-060035810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Specification: M6×35
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 7020-038002
Part Name: FUSE BOX BRACKET
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
27
P/N (SKU): 9GQ0-150600-20000
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 23,00 € : 23,00 €
-+
28
P/N (SKU): 9AWV-150100-7003
Part Name: MAIN CABLE
Effective: 2023-05-09
Alternative parts: 9AWV-150100-7004
Specification: null
Price: 537,00 € : 537,00 €
28
P/N (SKU): 9AWV-150100-7004
Part Name: MAIN CABLE
Effective: 2024-03-28
Remarks: null
Alternative parts: null
Specification: null
Price: 527,00 € : 527,00 €
29
P/N (SKU): 9AWA-150220
Part Name: CABLE,STARTING MOTOR
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 26,00 € : 26,00 €
30
P/N (SKU): 9AWA-150230
Part Name: BATTERY NEGATIVE WIRE
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 20,00 € : 20,00 €
31
P/N (SKU): 9AWA-150210-20000
Part Name: BATTERY POSITIVE WIRE
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 10,00 € : 10,00 €
32
P/N (SKU): 9AWA-150240-10000
Part Name: NEGATIVE CABLE, STARTER MOTOR
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 19,00 € : 19,00 €
-+
33
P/N (SKU): 9AWA-150880-20000
Part Name: DRL CONTROLLER
Effective: 2023-05-09
Remarks: null
Alternative parts: 5SYV-150880-7500
Price: 44,00 € : 44,00 €
-+
34
P/N (SKU): 6090-150500
Part Name: DIODE, STARTER
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
35
P/N (SKU): 7020-150800-20000
Part Name: TRAILER POWER SOCKET
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 18,00 € : 18,00 €
-+
36
P/N (SKU): 30105-050030410
Part Name: PAN HEAD SCREWS WITH CROSS RECESS
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Specification: M5x30
Price: 1,50 € : 1,50 €
-+
37
P/N (SKU): 9010-151020
Part Name: TRAILER POWER ADAPTOR SEAT
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Price: 16,00 € : 16,00 €
-+
38
P/N (SKU): 30006-060025810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
39
P/N (SKU): 9CR6-103501
Part Name: FUSE 40A
Effective: 2023-05-09
Alternative parts: null
Specification: 40A
Price: 4,00 € : 4,00 €
40
P/N (SKU): 0JWV-179100-7000
Part Name: HIGH TENSION CABLE(100)
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Specification: null
Price: 13,00 € : 13,00 €
41
P/N (SKU): CFC#-150005-4502
Part Name: FUSE 40A
Effective: 2023-05-09
Remarks: null
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
42
P/N (SKU): 806A-151307
Part Name: 25A FUSE
Effective: 2023-05-09
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
43
P/N (SKU): CFCV-150524-2000-M1
Part Name: AUXILIARY RELAY
Effective: 2024-01-25
Remarks: null
Alternative parts: null
Specification: null
Price: 4,50 € : 4,50 €
