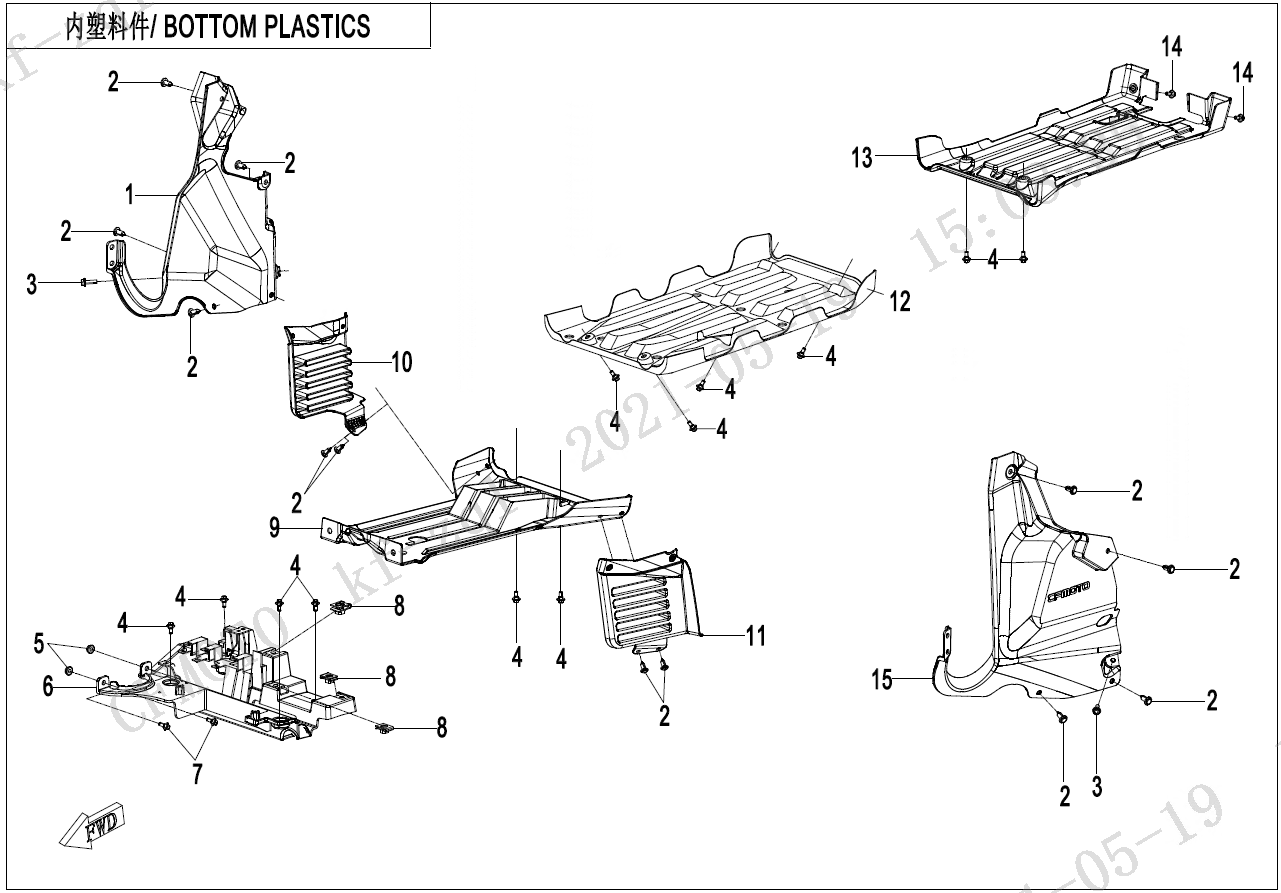

BOTTOM PLASTICS - F04-7-V3

BOTTOM PLASTICS - F04-7-V3

No.

01
P/N (SKU): 9DSV-044012-6K00
Part Name: FRONT RH INNER FEDNER
Effective: 2023-06-21
Alternative parts: 9DSV-044012-6K01
Price: 11,80 € : 11,80 €
02
P/N (SKU): 9060-040310
Part Name: CLAMP ASSY
Effective: 2023-06-21
Alternative parts:
Price: 1,65 € : 1,65 €
-+
03
P/N (SKU): 30006-060020870
Part Name: BOLT
Effective: 2023-06-21
Alternative parts:
Specification: M6×20
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Effective: 2023-06-21
Alternative parts:
Specification: M6x14
Price: 0,55 € : 0,55 €
-+
05
P/N (SKU): 30202-060110
Part Name: NUT
Effective: 2023-06-21
Alternative parts: 30204-060810
Specification: M6
Price: 0,55 € : 0,55 €
-+
06
P/N (SKU): 9DSV-044054-6K00
Part Name: ELECTRICAL BRACKET
Effective: 2023-06-21
Alternative parts:
Price: 11,80 € : 11,80 €
-+
07
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2023-06-21
Alternative parts:
Specification: M6×16
Price: 0,55 € : 0,55 €
-+
08
P/N (SKU): 8030-040800-00001
Part Name: NUT CLIP M6
Effective: 2023-06-21
Alternative parts:
Specification: M6
Price: 0,55 € : 0,55 €
-+
09
P/N (SKU): 9DSV-044021-6002
Part Name: FRONT PANEL, ENGINE
Effective: 2023-06-21
Alternative parts:
Price: 33,40 € : 33,40 €
-+
10
P/N (SKU): 9DS#-042087-6000
Part Name: FRONT RH INNER LOWER FENDER
Effective: 2023-06-21
Alternative parts: 9DSV-042087-6601
Price: 9,90 € : 9,90 €
11
P/N (SKU): 9DS#-042086-6000
Part Name: FRONT LH INNER LOWER FENDER
Effective: 2023-06-21
Alternative parts: 9DSV-042086-6601
Price: 9,90 € : 9,90 €
-+
12
P/N (SKU): 9CR6-044022-20000
Part Name: MIDDLE PANEL, ENGINE
Effective: 2023-06-21
Alternative parts:
Price: 32,60 € : 32,60 €
-+
13
P/N (SKU): 9DS#-044023-6001
Part Name: REAR PANEL, ENGINE
Effective: 2023-06-21
Alternative parts:
Price: 42,90 € : 42,90 €
-+
14
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2023-06-21
Alternative parts: 30006-060012870
Specification: M6×12
Price: 0,55 € : 0,55 €
-+
15
P/N (SKU): 9DSV-044011-6K00
Part Name: FRONT LH INNER FEDNER
Effective: 2023-06-21
Alternative parts:
Price: 11,80 € : 11,80 €
-+
