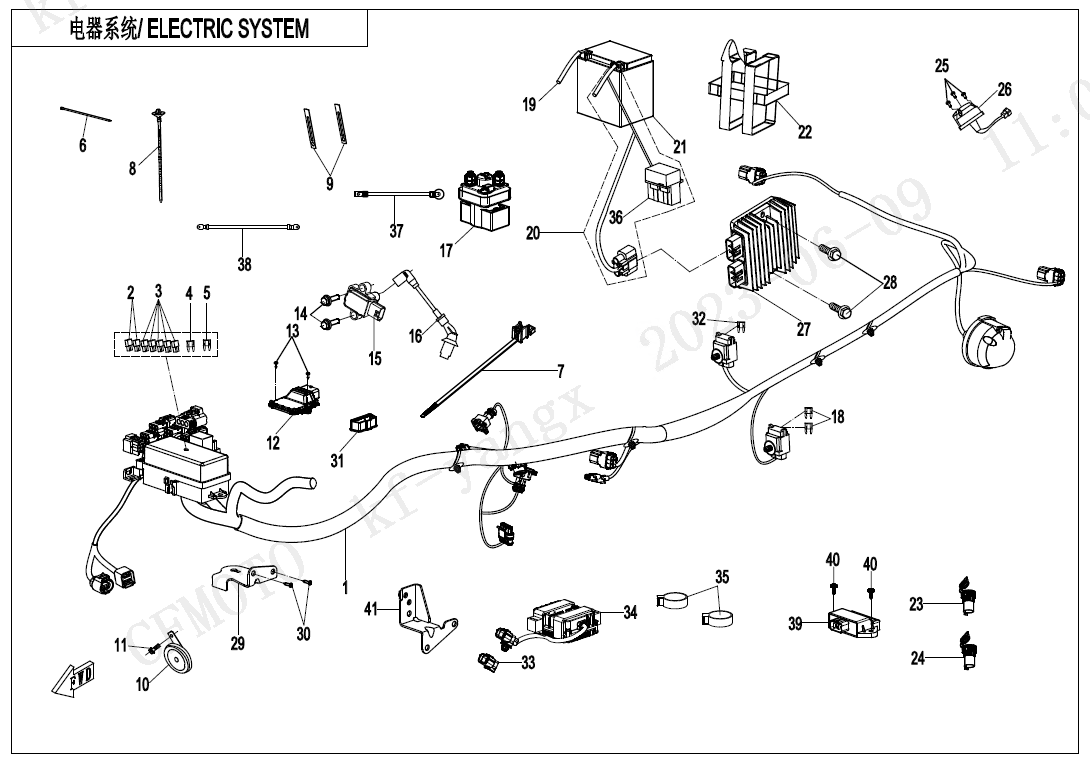

ELECTRIC SYSTEM - F15-1

ELECTRIC SYSTEM - F15-1

No.

01
P/N (SKU): 9DSV-150100-B100
Part Name: MAIN CABLE
Effective: 2023-05-29
Alternative parts:
Price: 617,00 € : 617,00 €
-+
02
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2023-05-29
Alternative parts:
Price: 7,00 € : 7,00 €
-+
03
P/N (SKU): CFCV-150525-2000-M1
Part Name: AUXILIARY RELAY
Effective: 2023-05-29
Alternative parts:
Price: 5,00 € : 5,00 €
-+
04
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2023-05-29
Alternative parts: 806A-151303
Specification: 15A
Price: 1,50 € : 1,50 €
05
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2023-05-29
Alternative parts:
Specification: 10A
Price: 2,50 € : 2,50 €
-+
06
P/N (SKU): 8010-150003
Part Name: TIE
Effective: 2023-05-29
Alternative parts:
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 9DS#-150009-6100-M1
Part Name: TIE BAND ZDG4.7x194
Effective: 2023-05-29
Alternative parts:
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2023-05-29
Alternative parts:
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0180-014010
Part Name: WIRE CLIP
Effective: 2023-05-29
Alternative parts:
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2023-05-29
Alternative parts:
Price: 11,00 € : 11,00 €
-+
11
P/N (SKU): 30006-080014810
Part Name: BOLT
Effective: 2023-05-29
Alternative parts:
Specification: M8×14
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 9DSV-001000-B100-10
Part Name: ECM ASSY
Effective: 2023-05-29
Remarks: T3a
Alternative parts:
Price: 428,00 € : 428,00 €
-+
12
P/N (SKU): 9DSV-001000-B100
Part Name: ECM ASSY
Effective: 2023-05-29
Remarks: T3b
Alternative parts: 9DSV-001000-B101
Price: 428,00 € : 428,00 €
12
P/N (SKU): 9DSV-001000-B101
Part Name: ECM ASSY
Effective: 2023-10-08
Remarks: T3b
Alternative parts:
Price: 428,00 € : 428,00 €
-+
13
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2023-05-29
Alternative parts:
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2023-05-29
Alternative parts:
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Effective: 2023-05-29
Alternative parts:
Price: 41,00 € : 41,00 €
-+
16
P/N (SKU): 0GSV-178000-3001
Part Name: HIGH-TENSION CABLE
Effective: 2023-05-29
Alternative parts:
Price: 16,00 € : 16,00 €
-+
17
P/N (SKU): 9DSV-150510-5001
Part Name: STARTER RELAY
Effective: 2023-05-29
Alternative parts:
Price: 33,00 € : 33,00 €
-+
18
P/N (SKU): 806A-151308
Part Name: 30A FUSE
Effective: 2023-05-29
Alternative parts:
Price: 2,00 € : 2,00 €
-+
19
P/N (SKU): 9DS#-150210-6000
Part Name: NEGATIVE WIRE, BATTERY
Effective: 2023-05-29
Alternative parts:
Price: 16,00 € : 16,00 €
-+
20
P/N (SKU): 9DS#-150230-6002
Part Name: POSITIVE WIRE, BATTERY
Effective: 2023-05-29
Alternative parts:
Price: 34,00 € : 34,00 €
-+
21
P/N (SKU): 31023004
Part Name: BATTERY
Effective: 2023-05-29
Alternative parts:
Specification: DYNAVOLT,12V30Ah
Price: 272,00 € : 272,00 €
-+
22
P/N (SKU): 9060-152100
Part Name: BELT, BATTERY
Effective: 2023-05-29
Alternative parts:
Price: 4,00 € : 4,00 €
-+
23
P/N (SKU): 9DSV-151200-6000
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2023-05-29
Alternative parts:
Price: 21,00 € : 21,00 €
-+
24
P/N (SKU): 9DSV-150500-6R01
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2023-05-29
Alternative parts:
Price: 22,00 € : 22,00 €
-+
25
P/N (SKU): 30105-050030410
Part Name: SCREW
Effective: 2023-05-29
Alternative parts:
Specification: M5×30
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 9DQV-151300-3101
Part Name: TRAILER POWER SOCKET
Effective: 2023-05-29
Alternative parts: 9DQV-151300-3100-10
Price: 66,00 € : 66,00 €
26
P/N (SKU): 9DQV-151300-3100-10
Part Name: TRAILER POWER SOCKET
Effective: 2023-12-18
Alternative parts:
Price: 37,00 € : 37,00 €
-+
27
P/N (SKU): 0800-177000-30000
Part Name: REGULATOR
Effective: 2023-05-29
Alternative parts: 9DSV-151000-4000
Specification: 600W
Price: 137,00 € : 137,00 €
-+
28
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2023-05-29
Alternative parts:
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 9DS#-030501-6000
Part Name: FUSE BOX BRACKET
Effective: 2023-05-29
Alternative parts:
Price: 4,00 € : 4,00 €
-+
30
P/N (SKU): 30110-420130010
Part Name: SELF-TAPPING SCREW
Effective: 2023-05-29
Alternative parts: 30110-421130010
Specification: ST4.2×13
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 5BY0-150305
Part Name: CAP, DIAGNOSIS CONNECTOR
Effective: 2023-05-29
Alternative parts:
Price: 3,00 € : 3,00 €
-+
32
P/N (SKU): 9CR6-103501
Part Name: FUSE 40A
Effective: 2023-05-29
Alternative parts:
Specification: 40A
Price: 4,00 € : 4,00 €
-+
33
P/N (SKU): CFCV-156103-2000
Part Name: T-BOX CONNECTOR PLUG
Effective: 2023-05-29
Alternative parts:
Price: 6,00 € : 6,00 €
-+
34
P/N (SKU): SN1V-691100-1500-11
Part Name: T-BOX
Effective: 2023-05-29
Remarks: AllyTech, Turkey
Alternative parts: SN1V-691100-1501-11
Price: 427,00 € : 427,00 €
34
P/N (SKU): SN1V-691100-1201-11
Part Name: T-BOX
Effective: 2023-05-29
Remarks: AllyTech, Eurasia, Africa and Australia except Turkey
Alternative parts:
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 420,00 € : 420,00 €
-+
34
P/N (SKU): SN1V-691100-1501-11
Part Name: T-BOX
Effective: 2024-02-28
Remarks: Turkey_Allytech
Alternative parts:
Price: 420,00 € : 420,00 €
-+
35
P/N (SKU): 6KMV-150901-B002
Part Name: T-BOX RUBBER RING
Effective: 2023-05-29
Alternative parts:
Price: 2,00 € : 2,00 €
-+
36
P/N (SKU): CFC#-150008-4500
Part Name: FUSE 50A
Effective: 2023-05-29
Alternative parts:
Price: 3,50 € : 3,50 €
-+
37
P/N (SKU): 9DS#-150220-6001
Part Name: CABLE, STARTER MOTOR
Effective: 2023-05-29
Alternative parts:
Price: 21,00 € : 21,00 €
-+
38
P/N (SKU): 9DS#-150250-6000
Part Name: NEGATIVE CABLE, STARTER MOTOR
Effective: 2023-05-29
Alternative parts:
Price: 15,00 € : 15,00 €
-+
39
P/N (SKU): 9DSV-161000-A200
Part Name: FLASHER
Effective: 2023-05-29
Alternative parts:
Price: 24,00 € : 24,00 €
-+
40
P/N (SKU): 5BWV-040008-5000
Part Name: INNER HEX BOLT M6x20
Effective: 2023-05-29
Alternative parts:
Specification: M6x20
Price: 1,50 € : 1,50 €
-+
41
P/N (SKU): 9GQA-030010-20000
Part Name: STEPPER MOTOR BRACKET ASSY
Effective: 2023-05-29
Alternative parts:
Price: 4,50 € : 4,50 €
-+
