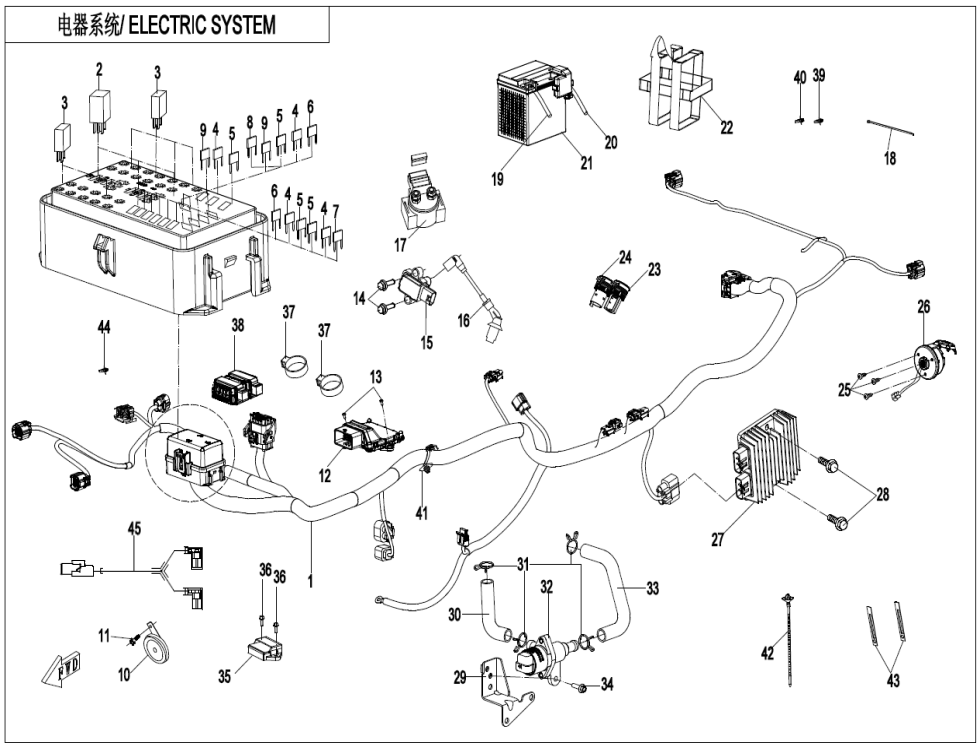

ELECTRIC SYSTEM - F15-1

ELECTRIC SYSTEM - F15-1

No.

01
P/N (SKU): 9CQV-150100-3400
Part Name: MAIN CABLE
Effective: 2023-05-11
Remarks: EU168
Alternative parts: 9CQV-150100-3401
Price: 680,00 € : 680,00 €
01
P/N (SKU): 9CQV-150100-4700
Part Name: MAIN CABLE
Effective: 2023-05-11
Remarks: INTERNATIONAL
Alternative parts: 9CQV-150100-4701
Price: 622,00 € : 622,00 €
01
P/N (SKU): 9CQV-150100-3401
Part Name: MAIN CABLE
Effective: 2023-08-03
Remarks: EU168
Alternative parts:
Price: 688,00 € : 688,00 €
-+
01
P/N (SKU): 9CQV-150100-4701
Part Name: MAIN CABLE
Effective: 2023-08-03
Remarks: INTERNATIONAL
Alternative parts:
Price: 629,00 € : 629,00 €
-+
01
P/N (SKU): 9CRV-150100-G801
Part Name: MAIN CABLE
Effective: 2023-09-11
Remarks: FOR BRAZIL ONLY
Alternative parts:
Price: 653,00 € : 653,00 €
-+
02
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2023-05-11
Alternative parts:
Price: 7,00 € : 7,00 €
-+
03
P/N (SKU): CFCV-150525-2000-M1
Part Name: AUXILIARY RELAY
Effective: 2023-05-11
Alternative parts:
Price: 5,00 € : 5,00 €
-+
04
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2023-05-11
Alternative parts:
Specification: 15A
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2023-05-11
Alternative parts:
Specification: 10A
Price: 2,50 € : 2,50 €
-+
06
P/N (SKU): 806A-151307
Part Name: 25A FUSE
Effective: 2023-05-11
Alternative parts:
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 5BY0-150301
Part Name: 30A FUSE
Effective: 2023-05-11
Alternative parts:
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 5BY0-150302
Part Name: 40A FUSE
Effective: 2023-05-11
Alternative parts:
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 806A-151301
Part Name: FUSE 7.5A
Effective: 2023-05-11
Alternative parts:
Specification: 7.5A
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2023-05-11
Alternative parts:
Price: 11,00 € : 11,00 €
-+
10
P/N (SKU): 9DQV-151400-3000
Part Name: HORN
Effective: 2023-08-29
Remarks: INTERNATIONAL
Alternative parts:
Price: 11,00 € : 11,00 €
-+
11
P/N (SKU): 30006-080014810
Part Name: BOLT
Effective: 2023-05-11
Alternative parts:
Specification: M8×14
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 9CRV-001000-G700
Part Name: ECM ASSY
Effective: 2023-05-11
Remarks: EU168
Alternative parts:
Specification: LEMON GREEN@MSE6.0
Price: 228,00 € : 228,00 €
-+
12
P/N (SKU): 9DRV-001000-7000
Part Name: ECM ASSY
Effective: 2023-05-11
Remarks: INTERNATIONAL
Alternative parts: 9DRV-001000-7001
Specification: MSE8.0
Price: 159,00 € : 159,00 €
13
P/N (SKU): 30102-060016810
Part Name: SCREW
Effective: 2023-05-11
Alternative parts:
Specification: M6x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2023-05-11
Alternative parts:
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Effective: 2023-05-11
Alternative parts:
Price: 41,00 € : 41,00 €
-+
16
P/N (SKU): 0GR0-178000-10000
Part Name: HIGH-TENSION CABLE
Effective: 2023-05-11
Alternative parts:
Price: 15,00 € : 15,00 €
-+
17
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2023-05-11
Alternative parts:
Price: 25,00 € : 25,00 €
-+
18
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2023-05-11
Alternative parts:
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 9CQV-150420-3001
Part Name: NEGATIVE CABLE, BATTERY
Effective: 2023-05-11
Alternative parts:
Price: 29,00 € : 29,00 €
-+
20
P/N (SKU): 9DQV-150410-3001
Part Name: POSITIVE CABLE, BATTERY
Effective: 2023-05-11
Alternative parts:
Price: 39,00 € : 39,00 €
-+
21
P/N (SKU): 31023004
Part Name: BATTERY
Effective: 2023-05-11
Alternative parts:
Specification: DYNAVOLT,12V 32Ah
Price: 272,00 € : 272,00 €
-+
21
P/N (SKU): 9DQV-151600-4400-M1
Part Name: BATTERY
Effective: 2023-08-03
Alternative parts: 9DQV-151600-4401-M1
Price: 215,00 € : 215,00 €
22
P/N (SKU): 9060-152100
Part Name: BATTERY BELT
Effective: 2023-05-11
Alternative parts:
Price: 4,00 € : 4,00 €
-+
23
P/N (SKU): 9DSV-151200-6000
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2023-05-11
Alternative parts:
Price: 21,00 € : 21,00 €
-+
24
P/N (SKU): 9DSV-150500-6R01
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2023-05-11
Alternative parts:
Price: 22,00 € : 22,00 €
-+
25
P/N (SKU): 30105-050030410
Part Name: SCREW
Effective: 2023-05-11
Alternative parts:
Specification: M5x30@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 9DQV-151300-3101
Part Name: TRAILER POWER SOCKET
Effective: 2023-05-11
Remarks: INTERNATIONAL
Alternative parts: 9DQV-151300-3100-10
Price: 66,00 € : 66,00 €
26
P/N (SKU): 9DQV-151300-3100-10
Part Name: TRAILER POWER SOCKET
Effective: 2023-12-18
Remarks: EU168
Alternative parts:
Price: 37,00 € : 37,00 €
-+
27
P/N (SKU): 9DQV-151000-3000-20
Part Name: REGULATOR
Effective: 2023-05-11
Alternative parts: 9DQV-151000-3001-10
Price: 95,00 € : 95,00 €
-+
27
P/N (SKU): 0800-177000-20000
Part Name: REGULATOR
Effective: 2023-06-20
Alternative parts: 9DQV-151000-3000-20
Price: 208,00 € : 208,00 €
28
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2023-05-11
Alternative parts:
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 9GQA-030010-20000
Part Name: STEPPER MOTOR BRACKET ASSY
Effective: 2023-05-11
Remarks: INTERNATIONAL
Alternative parts:
Price: 4,50 € : 4,50 €
-+
29
P/N (SKU): 9GQA-030010-30000
Part Name: STEPPER MOTOR BRACKET ASSY
Effective: 2023-05-11
Remarks: EU168
Alternative parts:
Price: 4,50 € : 4,50 €
-+
30
P/N (SKU): 9GQA-001002
Part Name: STEPPER MOTOR EXHAUST PIPE
Effective: 2023-05-11
Alternative parts:
Price: 12,00 € : 12,00 €
-+
31
P/N (SKU): 30601-118010
Part Name: CLAMP
Effective: 2023-05-11
Alternative parts:
Specification: A18
Price: 1,50 € : 1,50 €
-+
32
P/N (SKU): 0GQ0-175000
Part Name: STEPPER MOTOR ASSY
Effective: 2023-05-11
Alternative parts:
Price: 90,00 € : 90,00 €
-+
33
P/N (SKU): 9GQA-001001
Part Name: STEPPER MOTOR INLET PIPE
Effective: 2023-05-11
Alternative parts: 9GQA-001001-00001
Price: 18,00 € : 18,00 €
-+
34
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2023-05-11
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
35
P/N (SKU): 9DSV-161000-A200
Part Name: FLASHER
Effective: 2023-05-11
Remarks: INTERNATIONAL
Alternative parts:
Price: 24,00 € : 24,00 €
-+
35
P/N (SKU): 9DRV-161000-B001
Part Name: FLASHER
Effective: 2023-05-12
Remarks: EU168
Alternative parts: 9DRV-161000-B002
Price: 45,00 € : 45,00 €
-+
36
P/N (SKU): 5BWV-040008-5000
Part Name: INNER HEX BOLT M6x20
Effective: 2023-05-11
Alternative parts:
Specification: M6x20
Price: 1,50 € : 1,50 €
-+
37
P/N (SKU): 6KMV-150901-B002
Part Name: T-BOX RUBBER RING
Effective: 2023-05-11
Alternative parts:
Price: 2,00 € : 2,00 €
-+
38
P/N (SKU): SN1V-691100-1401-11
Part Name: T-BOX
Effective: 2023-05-11
Remarks: AllyTech, South America except Brazil
Alternative parts:
Specification: AllyTech@South America except for Brazil
Price: 420,00 € : 420,00 €
-+
38
P/N (SKU): 6GUV-151800-6901-M1
Part Name: T-BOX
Effective: 2023-05-11
Remarks: AllyTech, Brazil
Alternative parts:
Specification: AllyTech@Brazil
Price: 472,00 € : 472,00 €
-+
38
P/N (SKU): SN1V-691100-1301-11
Part Name: T-BOX
Effective: 2023-05-11
Remarks: AllyTech, North America
Alternative parts:
Specification: North Amrica
Price: 420,00 € : 420,00 €
-+
38
P/N (SKU): SN1V-691100-1201-11
Part Name: T-BOX
Effective: 2023-05-11
Remarks: AllyTech, Eurasia, Africa and Australia except Turkey
Alternative parts:
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 420,00 € : 420,00 €
-+
38
P/N (SKU): SN1V-691100-1101-11
Part Name: T-BOX
Effective: 2023-05-11
Remarks: AllyTech, CHINA
Alternative parts: SN2V-691100-1100-11
Specification: Allytech@China
Price: 283,00 € : 283,00 €
39
P/N (SKU): A000-050015
Part Name: WIRE CLIP, FRONT BRAKE FLUID HOSE
Effective: 2023-05-11
Alternative parts:
Price: 1,50 € : 1,50 €
-+
40
P/N (SKU): CFCV-CBC001-2001-M1
Part Name: CLIP
Effective: 2023-05-11
Alternative parts:
Price: 2,00 € : 2,00 €
-+
41
P/N (SKU): 9DS#-150009-6100-M1
Part Name: TIE BAND ZDG
Effective: 2023-05-11
Alternative parts:
Specification: 4.7x194@ZDG4.7X194
Price: 1,50 € : 1,50 €
-+
42
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2023-05-11
Alternative parts:
Price: 1,50 € : 1,50 €
-+
43
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2023-05-11
Alternative parts: 6WWV-030080-8000
Price: 1,50 € : 1,50 €
-+
44
P/N (SKU): CFCV-156103-2000
Part Name: T-BOX CONNECTOR PLUG
Effective: 2023-05-11
Alternative parts:
Price: 6,00 € : 6,00 €
-+
45
P/N (SKU): 5HYV-150191-2F00
Part Name: HORN ADAPTER CABLE
Effective: 2023-05-11
Alternative parts:
Price: 3,50 € : 3,50 €
-+
