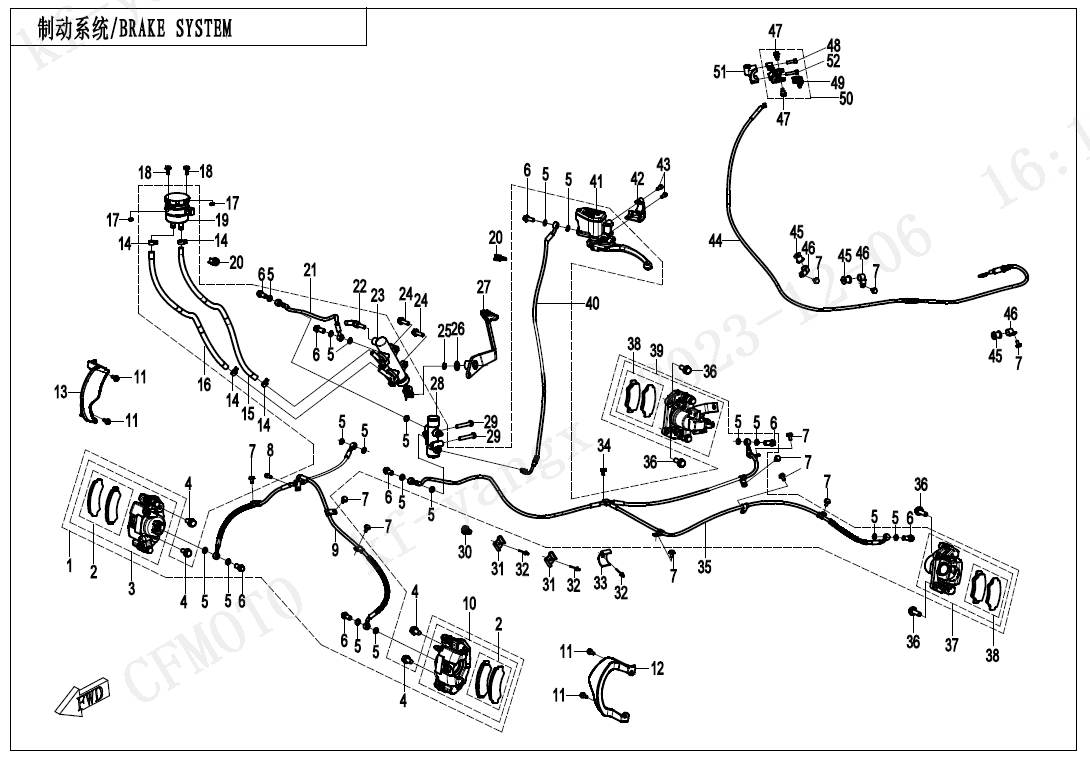

BRAKE SYSTEM(EU168) - F08-B-V4

BRAKE SYSTEM(EU168) - F08-B-V4

No.

1
P/N (SKU): 9CQV-081000-3202
Part Name: HYDRAULIC BRAKE ASSY
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 1 067,00 € : 1 067,00 €
2
P/N (SKU): 9DQV-0813A1
Part Name: BRAKE PAD ASSY
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 34,00 € : 34,00 €
-+
3
P/N (SKU): 9DQV-081400-3201
Part Name: FRONT RH BRAKE CALIPER ASSY
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 107,00 € : 107,00 €
-+
4
P/N (SKU): 30006-102020810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: M10x1.25x20
Price: 2,00 € : 2,00 €
-+
5
P/N (SKU): 901B-080102
Part Name: WASHER
Effective: 2023-12-25
Remarks: null
Alternative parts: 0010-060010
Specification: 80
Price: 1,50 € : 1,50 €
6
P/N (SKU): 7020-081004
Part Name: BANJO BOLT
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Price: 3,50 € : 3,50 €
-+
7
P/N (SKU): 30006-060010810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: M6×10
Price: 1,50 € : 1,50 €
8
P/N (SKU): 30102-060016810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: M6x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
9
P/N (SKU): 9DQV-080150-3201
Part Name: FRONT BRAKE FLUID HOSE
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 78,00 € : 78,00 €
10
P/N (SKU): 9DQV-081300-3201
Part Name: FRONT LH BRAKE CALIPER ASSY
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 107,00 € : 107,00 €
-+
11
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: M6x14
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 9DS#-080001-6001
Part Name: GUARD, FRONT LH CV JOINT
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Price: 4,50 € : 4,50 €
13
P/N (SKU): 9DS#-080002-6001
Part Name: GUARD, FRONT RH CV JOINT
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
-+
14
P/N (SKU): 9010-080405
Part Name: CLAMP
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
15
P/N (SKU): 9DQV-080101-3200
Part Name: RESERVOIR HOSE 1
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 13,00 € : 13,00 €
16
P/N (SKU): 9DQV-080102-3200
Part Name: RESERVOIR HOSE 2
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 13,00 € : 13,00 €
17
P/N (SKU): 30204-060810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 9GQ0-080110
Part Name: FLUID RESERVOIR
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Price: 20,00 € : 20,00 €
20
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: 5x250
Price: 1,50 € : 1,50 €
21
P/N (SKU): 9DQV-080170-3201
Part Name: FLUID HOSE, BRAKE MASTER CYLINDER
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 25,00 € : 25,00 €
-+
22
P/N (SKU): 9DQV-080010-3000
Part Name: HYDRAULIC SENSOR SWITCH
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 18,00 € : 18,00 €
-+
23
P/N (SKU): 9DQV-081800-3200
Part Name: MASTER CYLINDER ASSY
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 86,00 € : 86,00 €
-+
24
P/N (SKU): 30006-080025810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: M8×25
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 30801-01405
Part Name: CIRCLIPS FOR SHAFT
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: 14
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 30304-140410
Part Name: PLAIN WASHERS
Effective: 2023-12-25
Remarks: null
Alternative parts: 30306-140112
Specification: 14
Price: 1,50 € : 1,50 €
27
P/N (SKU): 9DQV-080210-3200
Part Name: BRAKE PEDAL ASSY
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 23,00 € : 23,00 €
28
P/N (SKU): 9AWV-081070-4000
Part Name: HYDRAULIC DISTRIBUTION VALVE
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 85,00 € : 85,00 €
-+
29
P/N (SKU): 30006-080045810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: M8x45@COLOR ZINC TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
30
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 9DQV-080003-3000
Part Name: PLASTIC CLASP 3
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
32
P/N (SKU): 30902-0400820
Part Name: MUSHROOM HEAD BREAK MANDREL BLIND RIVETS
Effective: 2023-12-25
Remarks: null
Alternative parts: 30902-0401320
Specification: φ4×8
Price: 1,50 € : 1,50 €
33
P/N (SKU): 9DQV-080001-3000
Part Name: PLASTIC CLASP 1
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
34
P/N (SKU): 30102-060012810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: M6×12
Price: 1,50 € : 1,50 €
35
P/N (SKU): 9CQV-080160-3200
Part Name: REAR BRAKE FLUID HOSE
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 82,00 € : 82,00 €
-+
36
P/N (SKU): 30006-102030810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: M10×1.25×30
Price: 1,50 € : 1,50 €
-+
37
P/N (SKU): 9DQV-081500-3201
Part Name: REAR LH BRAKE CALIPER ASSY
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 107,00 € : 107,00 €
-+
38
P/N (SKU): 9DQV-0815A1
Part Name: BRAKE PAD ASSY
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 28,00 € : 28,00 €
-+
39
P/N (SKU): 9DQV-081600-3201
Part Name: REAR RH BRAKE CALIPER
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 170,00 € : 170,00 €
-+
40
P/N (SKU): 9DQV-080130-3202
Part Name: HAND BRAKE FLUID HOSE
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 36,00 € : 36,00 €
41
P/N (SKU): 9DQV-081100-7000
Part Name: MASTER CYLINDER ASSY, LH HAND BRAKE
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 86,00 € : 86,00 €
-+
42
P/N (SKU): 9DQV-080005-3000
Part Name: PRESS CAP, HAND BRAKE MASTER CYLINDER
Effective: 2023-12-25
Remarks: WITH WINCH
Alternative parts: null
Specification: null
Price: 15,00 € : 15,00 €
-+
42
P/N (SKU): 9AY0-080005
Part Name: PRESS CAP, HAND BRAKE MASTER CYLINDER
Effective: 2023-12-25
Remarks: WITHOUT WINCH
Alternative parts: 9AYV-084500-5K00
Price: 6,50 € : 6,50 €
-+
43
P/N (SKU): 30102-060020870
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2023-12-25
Remarks: null
Alternative parts: 30102-060016810
Specification: M6×20
Price: 1,50 € : 1,50 €
-+
44
P/N (SKU): 9CQV-080300-3200
Part Name: REAR BRAKE PARKING CABLE
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 18,00 € : 18,00 €
-+
45
P/N (SKU): 9030-180008
Part Name: RUBBER SLEEVE
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
46
P/N (SKU): 9AWA-080004
Part Name: FIXING CLIP
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
47
P/N (SKU): 9050-080263-10000
Part Name: PIN, PARKING BRAKE LEVER
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
48
P/N (SKU): 30102-060020870
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2023-12-25
Remarks: null
Alternative parts: 30102-060016810
Specification: M6×20
Price: 1,50 € : 1,50 €
-+
49
P/N (SKU): 9DSV-080260-6H02-20
Part Name: PARKING HANDLE
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 51,00 € : 51,00 €
-+
50
P/N (SKU): 9DSV-080260-6H02
Part Name: RH PARKING LEVER
Effective: 2023-12-25
Remarks: null
Alternative parts: 9DSV-080260-6H03
Specification: null
Price: 56,00 € : 56,00 €
-+
51
P/N (SKU): 9DQV-080006-3201
Part Name: REAR VIEW MIRROR MOUNTING SEAT
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 9,00 € : 9,00 €
-+
52
P/N (SKU): 30102-060030870
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2023-12-25
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
