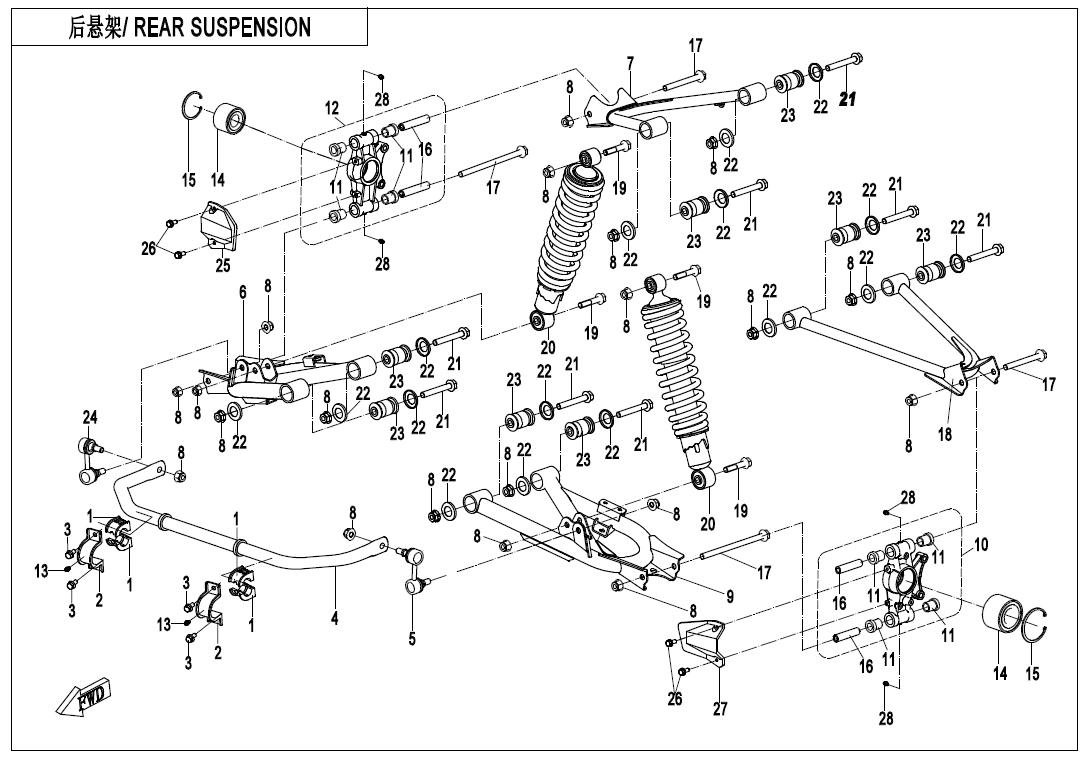

REAR SUSPENSION - F06

REAR SUSPENSION - F06

No.

01
P/N (SKU): 9GQ0-060003
Part Name: SUPPORTER, SWAY BAR
Effective: 2023-10-20
Alternative parts:
Price: 2,20 € : 2,20 €
-+
02
P/N (SKU): 9GQ0-060601-00001
Part Name: COVER, SWAY BAR
Effective: 2023-10-20
Alternative parts:
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 30006-080012810
Part Name: BOLT
Effective: 2023-10-20
Alternative parts:
Specification: M8×12
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 9GQ0-060610-10000
Part Name: REAR SWAY BAR ASSY
Effective: 2023-10-20
Alternative parts:
Price: 40,70 € : 40,70 €
-+
05
P/N (SKU): 9010-060700-20000
Part Name: BALL PIN, LH
Effective: 2023-10-20
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 27,50 € : 27,50 €
-+
06
P/N (SKU): 9GQ0-060410-0BP02
Part Name: REAR RH LOWER SWING ARM ASSY
Effective: 2023-10-20
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 53,50 € : 53,50 €
-+
07
P/N (SKU): 9GQ0-060310-0BP00
Part Name: REAR RH UPPER SWING ARM ASSY
Effective: 2023-10-20
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 28,20 € : 28,20 €
-+
08
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2023-10-20
Alternative parts:
Specification: M10×1.25
Price: 0,55 € : 0,55 €
-+
09
P/N (SKU): 9GQ0-060210-0BP02
Part Name: REAR LH LOWER SWING ARM ASSY
Effective: 2023-10-20
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 53,50 € : 53,50 €
-+
10
P/N (SKU): 7020-0607A0
Part Name: LH REAR BEARING CARRIER ASSY,
Effective: 2023-10-20
Alternative parts:
Price: 82,10 € : 82,10 €
-+
11
P/N (SKU): 9060-050003
Part Name: SHORT BUSHING, SWING ARM
Effective: 2023-10-20
Alternative parts:
Price: 5,10 € : 5,10 €
-+
12
P/N (SKU): 7020-0608A0
Part Name: REAR RH BEARING SEAT ASSY
Effective: 2023-10-20
Alternative parts:
Price: 73,60 € : 73,60 €
-+
13
P/N (SKU): 3121401
Part Name: OIL CUP
Effective: 2023-10-20
Alternative parts:
Specification: 45 DEGREE
Price: 0,95 € : 0,95 €
-+
14
P/N (SKU): 9GQ0-050710
Part Name: BEARING, HUB
Effective: 2023-10-20
Alternative parts:
Price: 31,30 € : 31,30 €
-+
15
P/N (SKU): 30800-05505
Part Name: CIRCLIP FOR HOLE 55
Effective: 2023-10-20
Alternative parts:
Specification: 55
Price: 2,05 € : 2,05 €
-+
16
P/N (SKU): 7020-060702-00001
Part Name: REAR WHEEL SHAFT BRACKET MIDDLE BUSHING
Effective: 2023-10-20
Alternative parts:
Price: 2,60 € : 2,60 €
-+
17
P/N (SKU): 30006-102100810
Part Name: BOLT M10x1.25x100
Effective: 2023-10-20
Alternative parts:
Specification: M10x1.25x100
Price: 1,25 € : 1,25 €
-+
18
P/N (SKU): 9GQ0-060110-0BP00
Part Name: REAR LH UPPER SWING ARM ASSY
Effective: 2023-10-20
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 28,20 € : 28,20 €
-+
19
P/N (SKU): 30006-102055810
Part Name: BOLT
Effective: 2023-10-20
Alternative parts:
Specification: M10×1.25×55
Price: 0,95 € : 0,95 €
-+
20
P/N (SKU): 9GQ0-060500
Part Name: REAR SHOCK ABSORBER ASSY
Effective: 2023-10-20
Alternative parts:
Price: 99,70 € : 99,70 €
-+
21
P/N (SKU): 30006-102070810
Part Name: BOLT
Effective: 2023-10-20
Alternative parts:
Specification: M10×1.25×70
Price: 0,95 € : 0,95 €
-+
22
P/N (SKU): 9010-050003
Part Name: CUSHION SLEEVE CAP
Effective: 2023-10-20
Alternative parts: 9DSV-050900-6K00
Price: 1,65 € : 1,65 €
-+
23
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE ASSY
Effective: 2023-10-20
Alternative parts:
Price: 3,70 € : 3,70 €
-+
24
P/N (SKU): 9010-060800-20000
Part Name: BALL PIN, RH
Effective: 2023-10-20
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 27,50 € : 27,50 €
-+
25
P/N (SKU): 9GQ0-044046
Part Name: REAR RH SUSPENSION SMALL FENDER
Effective: 2023-10-20
Alternative parts:
Price: 2,60 € : 2,60 €
-+
26
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2023-10-20
Alternative parts: 30006-060016870
Specification: M6×16
Price: 0,55 € : 0,55 €
-+
27
P/N (SKU): 9GQ0-044045
Part Name: LH FENDER, REAR SUSPENSION
Effective: 2023-10-20
Alternative parts:
Price: 2,60 € : 2,60 €
-+
28
P/N (SKU): 3121400
Part Name: OIL CUP
Effective: 2023-10-20
Alternative parts:
Specification: 90 DEGREE
Price: 0,95 € : 0,95 €
-+
