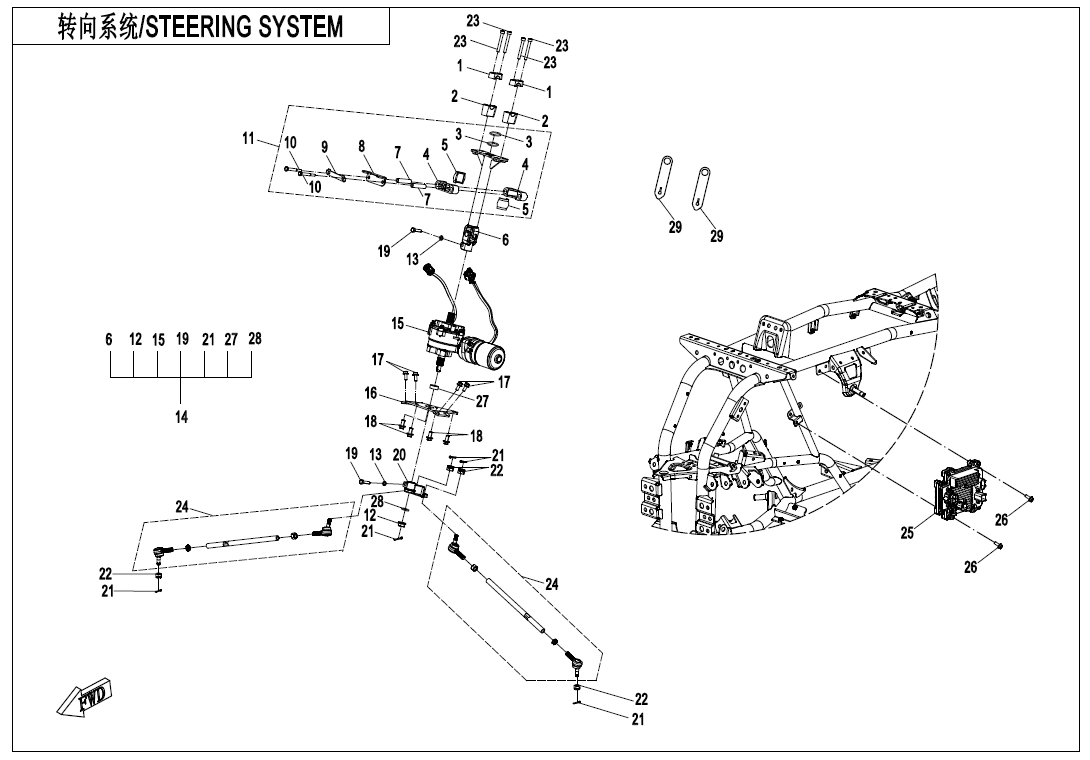

STEERING SYSTEM(EPS) - F10-2-B

STEERING SYSTEM(EPS) - F10-2-B

No.

01
P/N (SKU): 9DSV-100001-6K01
Part Name: HANDLEBAR BLOCK
Effective: 2023-05-05
Alternative parts:
Price: 10,25 € : 10,25 €
-+
02
P/N (SKU): 9DQV-100004-3000
Part Name: LOWER BLOCK, HANDLEBAR
Effective: 2023-05-05
Alternative parts:
Price: 4,40 € : 4,40 €
-+
03
P/N (SKU): 30502-032800N
Part Name: O-RING
Effective: 2023-05-05
Alternative parts:
Specification: 32x1.8
Price: 0,55 € : 0,55 €
-+
04
P/N (SKU): 7020-100601-00001
Part Name: OUTER BUSHING, STEERING SHAFT SPHERICAL
Effective: 2023-05-05
Alternative parts:
Price: 3,70 € : 3,70 €
-+
05
P/N (SKU): 7020-100602
Part Name: INNER BUSHING, STEERING SHAFT SPHERICAL
Effective: 2023-05-05
Alternative parts:
Price: 6,25 € : 6,25 €
-+
06
P/N (SKU): 9DQV-101200-3101
Part Name: EPS STEERING SHAFT ASSY
Effective: 2023-05-05
Alternative parts:
Price: 57,90 € : 57,90 €
-+
07
P/N (SKU): 7020-100604-00001
Part Name: BUSHING
Effective: 2023-05-05
Alternative parts:
Price: 0,95 € : 0,95 €
-+
08
P/N (SKU): 7020-100610-10000
Part Name: LINKING PLATE ASSY
Effective: 2023-05-05
Alternative parts:
Price: 1,85 € : 1,85 €
-+
09
P/N (SKU): 7020-100603
Part Name: LOCKING PIECE
Effective: 2023-05-05
Alternative parts:
Price: 0,95 € : 0,95 €
-+
10
P/N (SKU): 30003-080075810
Part Name: BOLT M8x75
Effective: 2023-05-05
Alternative parts:
Specification: M8x75
Price: 0,95 € : 0,95 €
-+
11
P/N (SKU): 7020-1006A0
Part Name: BUSHING, STEERING SHAFT
Effective: 2023-05-05
Alternative parts:
Price: 31,60 € : 31,60 €
-+
12
P/N (SKU): 30204-122810
Part Name: NUT
Effective: 2023-05-05
Alternative parts:
Specification: M12×1.25
Price: 1,05 € : 1,05 €
-+
13
P/N (SKU): 30303-080112
Part Name: WASHER
Effective: 2023-05-05
Alternative parts:
Specification: φ8
Price: 0,55 € : 0,55 €
-+
14
P/N (SKU): 9DQV-1508C0
Part Name: EPS SYSTEM ASSY
Effective: 2023-05-05
Alternative parts:
Price: 728,10 € : 728,10 €
-+
15
P/N (SKU): 9DQV-150820-4200
Part Name: EPS MOTOR
Effective: 2023-05-05
Remarks: TJDK
Alternative parts:
Price: 681,70 € : 681,70 €
-+
16
P/N (SKU): 9DQV-100001-3100
Part Name: BRACKET, EPS
Effective: 2023-05-05
Alternative parts:
Price: 11,40 € : 11,40 €
-+
17
P/N (SKU): 30006-080025810
Part Name: BOLT
Effective: 2023-05-05
Alternative parts:
Specification: M8×25
Price: 0,55 € : 0,55 €
-+
18
P/N (SKU): 30006-100020810
Part Name: BOLT M10x20
Effective: 2023-05-05
Alternative parts: 30006-102020810
Specification: M10x20
Price: 0,95 € : 0,95 €
19
P/N (SKU): 9CR6-102003
Part Name: BOLT M8x35
Effective: 2023-05-05
Alternative parts:
Specification: M8x35
Price: 1,25 € : 1,25 €
-+
20
P/N (SKU): 9DQV-100006-3100
Part Name: EPS STEERING ARM
Effective: 2023-05-05
Alternative parts:
Price: 20,50 € : 20,50 €
-+
21
P/N (SKU): 30903-0201610
Part Name: COTTER PIN
Effective: 2023-05-05
Alternative parts:
Specification: φ2×16
Price: 0,95 € : 0,95 €
-+
22
P/N (SKU): 9010-100002
Part Name: 1-TYPE NUT
Effective: 2023-05-05
Alternative parts:
Specification: M10x1.25
Price: 1,25 € : 1,25 €
-+
23
P/N (SKU): 30102-080065810
Part Name: SCREW
Effective: 2023-05-05
Alternative parts:
Price: 1,25 € : 1,25 €
-+
24
P/N (SKU): 9DQV-100530-3000
Part Name: STEERING ROD
Effective: 2023-05-05
Alternative parts: 9DQV-100530-3000-M2
Price: 59,00 € : 59,00 €
24
P/N (SKU): 9DQV-100530-3000-M2
Part Name: STEERING ROD
Effective: 2024-01-25
Alternative parts:
Price: 52,50 € : 52,50 €
-+
25
P/N (SKU): 9DQV-150810-4200
Part Name: EPS CONTROLLER
Effective: 2023-05-05
Alternative parts:
Price: 318,50 € : 318,50 €
-+
26
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2023-05-05
Alternative parts: 30006-060012870
Specification: M6×12
Price: 0,55 € : 0,55 €
-+
27
P/N (SKU): 9CR6-103003
Part Name: SPLINE SLEEVE
Effective: 2023-05-05
Alternative parts:
Price: 2,05 € : 2,05 €
-+
28
P/N (SKU): 30306-120112
Part Name: WASHER
Effective: 2023-05-05
Alternative parts:
Specification: φ12
Price: 0,55 € : 0,55 €
-+
29
P/N (SKU): 6KJ0-100002
Part Name: CLUTCH PULL BINDING
Effective: 2023-05-05
Alternative parts:
Price: 0,95 € : 0,95 €
-+
