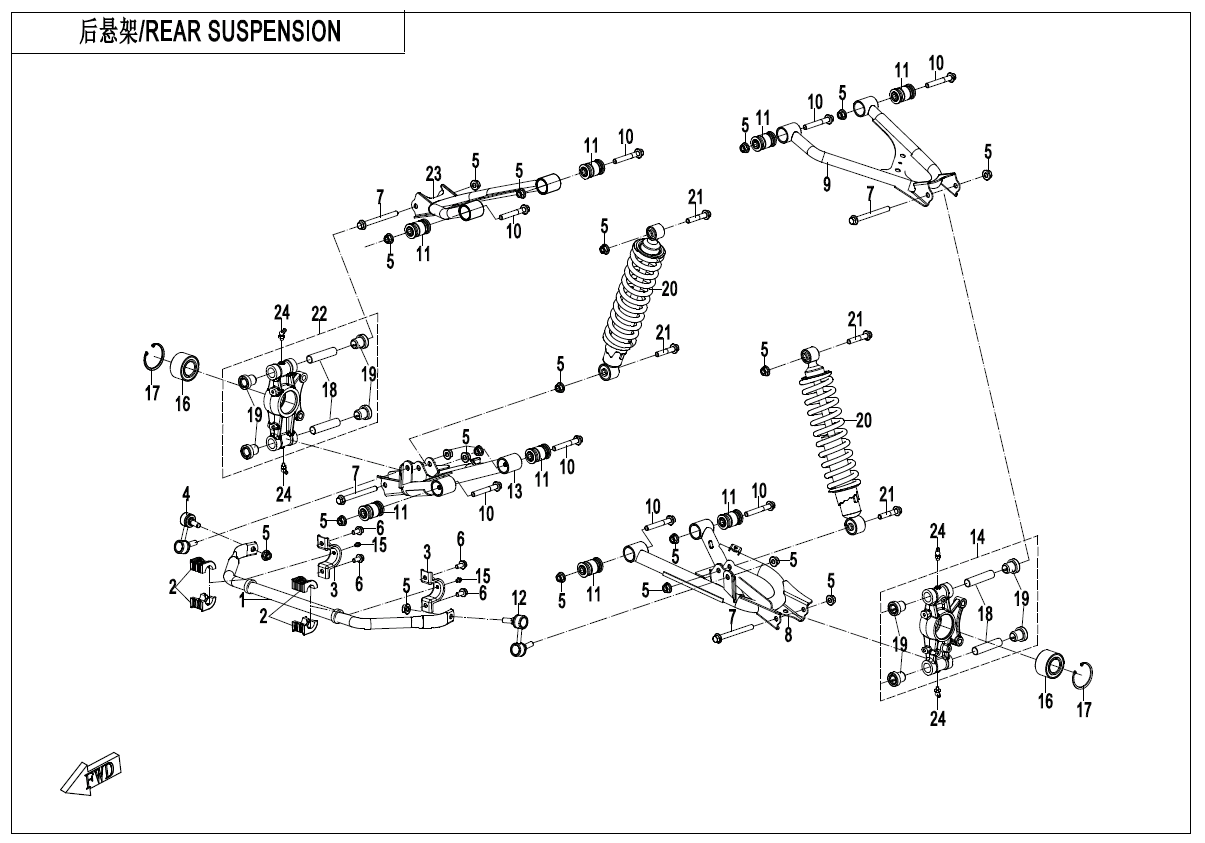

REAR SUSPENSION - F06

REAR SUSPENSION - F06

No.

1
P/N (SKU): 9DQV-060610-3000
Part Name: REAR SWAY BAR ASSY
Effective: 2023-05-05
Price: 48,00 € : 48,00 €
-+
2
P/N (SKU): 9GQ0-060003
Part Name: SUPPORTER, SWAY BAR
Effective: 2023-05-05
Price: 3,00 € : 3,00 €
-+
3
P/N (SKU): 9GQ0-060601-00001
Part Name: COVER, SWAY BAR
Effective: 2023-05-05
Price: 2,50 € : 2,50 €
-+
4
P/N (SKU): 9010-060800-20000
Part Name: RH BALL PIN ASSY
Effective: 2023-05-05
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 28,00 € : 28,00 €
-+
4
P/N (SKU): 9DQV-060800-3000-M2
Part Name: RH BALL PIN ASSY
Effective: 2024-01-23
Price: 22,00 € : 22,00 €
-+
5
P/N (SKU): 30204-102810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2023-05-05
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 30006-080016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-05-05
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
7
P/N (SKU): 30006-102100810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-05-05
Specification: M10x1.25x100
Price: 2,00 € : 2,00 €
-+
8
P/N (SKU): 9DQV-060210-3000-0BP00
Part Name: REAR LH LOWER SWING ARM ASSY
Effective: 2023-05-05
Alternative parts: 9DQV-060210-3001-0BP00
Specification: MAUD SPIRIT BLACK
Price: 59,00 € : 59,00 €
9
P/N (SKU): 9DQV-060110-3000-0BP00
Part Name: REAR LH UPPER SWING ARM ASSY
Effective: 2023-05-05
Alternative parts: 9DQV-060110-3002-0BP00
Specification: MAUD SPIRIT BLACK
Price: 36,00 € : 36,00 €
10
P/N (SKU): 30006-102070810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-05-05
Specification: M10×1.25×70
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 9DQV-050900-3000
Part Name: CUSHION SLEEVE ASSY
Effective: 2023-05-05
Price: 4,50 € : 4,50 €
-+
12
P/N (SKU): 9010-060700-20000
Part Name: LH BALL PIN ASSY
Effective: 2023-05-05
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 28,00 € : 28,00 €
-+
12
P/N (SKU): 9DQV-060700-3000-M2
Part Name: LH BALL PIN ASSY
Effective: 2024-01-23
Price: 22,00 € : 22,00 €
-+
13
P/N (SKU): 9DQV-060410-3000-0BP00
Part Name: REAR RH LOWER SWING ARM ASSY
Effective: 2023-05-05
Alternative parts: 9DQV-060410-3001-0BP00
Specification: MAUD SPIRIT BLACK
Price: 59,00 € : 59,00 €
14
P/N (SKU): 7020-0607B0
Part Name: LH REAR BEARING CARRIER ASSY
Effective: 2023-05-05
Price: 90,00 € : 90,00 €
-+
15
P/N (SKU): 3120100
Part Name: OIL CUP
Effective: 2023-05-05
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 9GQ0-050710
Part Name: BEARING, HUB
Effective: 2023-05-05
Price: 32,00 € : 32,00 €
-+
17
P/N (SKU): 30800-05505
Part Name: CIRCLIPS FOR HOLES
Effective: 2023-05-05
Specification: BLACK
Price: 2,50 € : 2,50 €
-+
18
P/N (SKU): 7020-060702-00001
Part Name: REAR WHEEL SHAFT BRACKET MIDDLE BUSHING
Effective: 2023-05-05
Price: 3,50 € : 3,50 €
-+
19
P/N (SKU): 5ASV-050002-6001
Part Name: SLEEVE
Effective: 2023-05-05
Price: 4,50 € : 4,50 €
-+
20
P/N (SKU): 9DQV-060500-3000
Part Name: REAR SHOCK ABSORBER ASSY
Effective: 2023-05-05
Price: 110,00 € : 110,00 €
-+
21
P/N (SKU): 30006-102055810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-05-05
Specification: M10×1.25×55
Price: 2,00 € : 2,00 €
-+
22
P/N (SKU): 7020-0608B0
Part Name: RH REAR BEARING CARRIER ASSY
Effective: 2023-05-05
Price: 89,00 € : 89,00 €
-+
23
P/N (SKU): 9DQV-060310-3000-0BP00
Part Name: REAR RH UPPER SWING ARM ASSY
Effective: 2023-05-05
Alternative parts: 9DQV-060310-3002-0BP00
Specification: MAUD SPIRIT BLACK
Price: 36,00 € : 36,00 €
24
P/N (SKU): 3121401
Part Name: OIL CUP
Effective: 2023-05-05
Specification: 45 DEGREE
Price: 1,50 € : 1,50 €
-+
