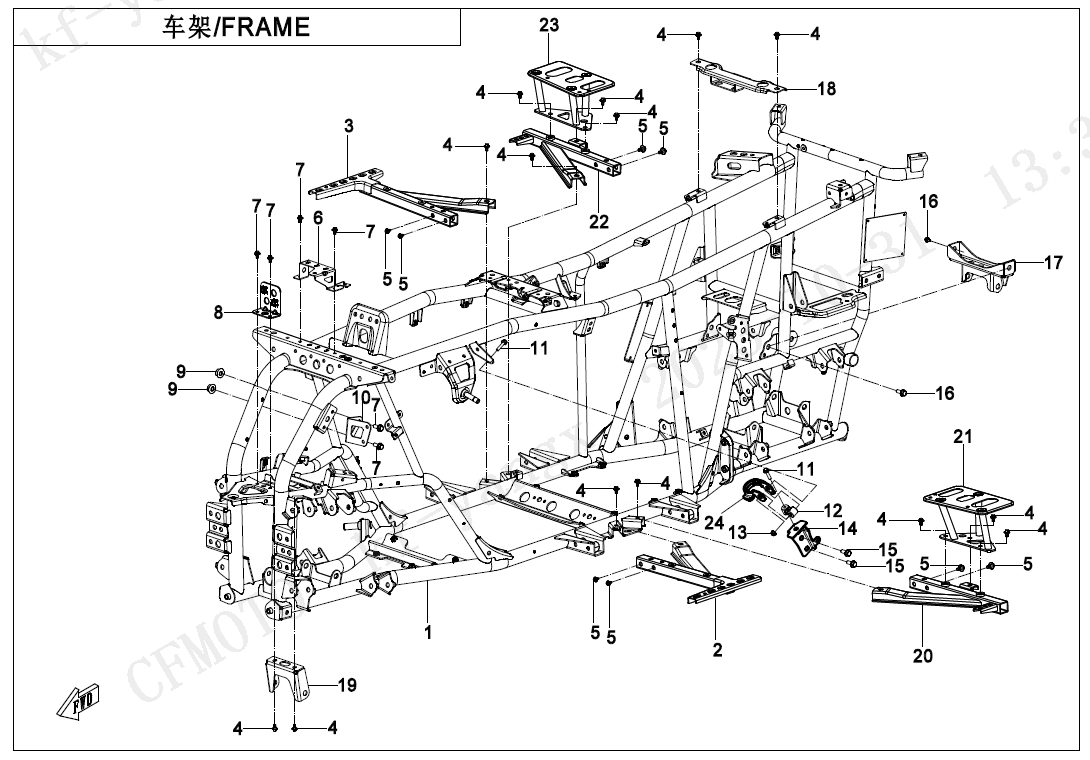

FRAME - F03-V2

FRAME - F03-V2

No.

01
P/N (SKU): 9CQV-031000-3004-01
Part Name: FRAME ASSY
Effective: 2023-10-31
Alternative parts: 9CQV-031000-3005-01
Price: 740,00 € : 740,00 €
02
P/N (SKU): 9DQV-030300-3000
Part Name: LH FRONT FOOT PEDAL ASSY
Effective: 2023-10-31
Alternative parts:
Price: 32,00 € : 32,00 €
-+
03
P/N (SKU): 9DQV-030400-3000
Part Name: FRONT RH FOOT PEDAL ASSY
Effective: 2023-10-31
Alternative parts:
Price: 32,00 € : 32,00 €
-+
04
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2023-10-31
Alternative parts: 30006-080020810
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
05
P/N (SKU): 30006-080045810
Part Name: BOLT
Effective: 2023-10-31
Alternative parts:
Specification: M8x45@COLOR ZINC TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
-+
06
P/N (SKU): 9DQV-030003-3000
Part Name: BRACKET, CVT AIR INLET PIPE
Effective: 2023-10-31
Alternative parts:
Price: 3,50 € : 3,50 €
-+
07
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2023-10-31
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
08
P/N (SKU): 9DQV-030030-3000
Part Name: BRACKET, BRAKE VALVE
Effective: 2023-10-31
Alternative parts:
Price: 3,50 € : 3,50 €
-+
09
P/N (SKU): 30204-060810
Part Name: NUT
Effective: 2023-10-31
Alternative parts:
Specification: M6
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 9DQV-030001-3000
Part Name: CANISTER BRACKET
Effective: 2023-10-31
Alternative parts:
Price: 3,50 € : 3,50 €
-+
11
P/N (SKU): 30006-080040810
Part Name: BOLT
Effective: 2023-10-31
Alternative parts:
Specification: M8×40
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): 7020-000160
Part Name: CONNECTING PARTS, ENGINE UPPER BRACKET
Effective: 2023-10-31
Alternative parts:
Price: 12,00 € : 12,00 €
-+
13
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2023-10-31
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 9DQV-030040-3001
Part Name: UPPER BRACKET, ENGINE
Effective: 2023-10-31
Alternative parts:
Price: 4,00 € : 4,00 €
-+
15
P/N (SKU): 30006-103020810
Part Name: BOLT M10x20
Effective: 2023-10-31
Alternative parts:
Specification: M10x20
Price: 2,00 € : 2,00 €
-+
16
P/N (SKU): 30102-102020810
Part Name: SCREW
Effective: 2023-10-31
Alternative parts:
Specification: M10x1.25x20@COLOR ZINC-PLATED
Price: 2,50 € : 2,50 €
-+
17
P/N (SKU): 9DQV-030090-3000
Part Name: UPPER BRACKET, REAR GEAR CASE
Effective: 2023-10-31
Alternative parts:
Price: 16,00 € : 16,00 €
-+
18
P/N (SKU): 9DQV-030120-3000
Part Name: BRACKET, SEAT
Effective: 2023-10-31
Alternative parts:
Price: 11,00 € : 11,00 €
-+
19
P/N (SKU): 9DQV-030010-3000
Part Name: UPPER BRACKET, FRONT GEAR CASE
Effective: 2023-10-31
Alternative parts:
Price: 6,50 € : 6,50 €
-+
20
P/N (SKU): 9CQV-030100-3000
Part Name: LH REAR LOWER FOOTREST ASSY
Effective: 2023-10-31
Alternative parts:
Price: 31,00 € : 31,00 €
-+
21
P/N (SKU): 9CQV-030300-3000
Part Name: LH REAR UPPER FOOTREST ASSY
Effective: 2023-10-31
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 23,00 € : 23,00 €
-+
22
P/N (SKU): 9CQV-030200-3000
Part Name: RH REAR LOWER FOOTREST ASSY
Effective: 2023-10-31
Alternative parts:
Price: 30,00 € : 30,00 €
-+
23
P/N (SKU): 9CQV-030400-3000
Part Name: RH REAR UPPER FOOTREST ASSY
Effective: 2023-10-31
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 23,00 € : 23,00 €
-+
24
P/N (SKU): 9DSV-030060-6000
Part Name: UPPER LIMIT BRACKET ASSY, ENGINE
Effective: 2023-10-31
Alternative parts:
Price: 9,00 € : 9,00 €
-+
