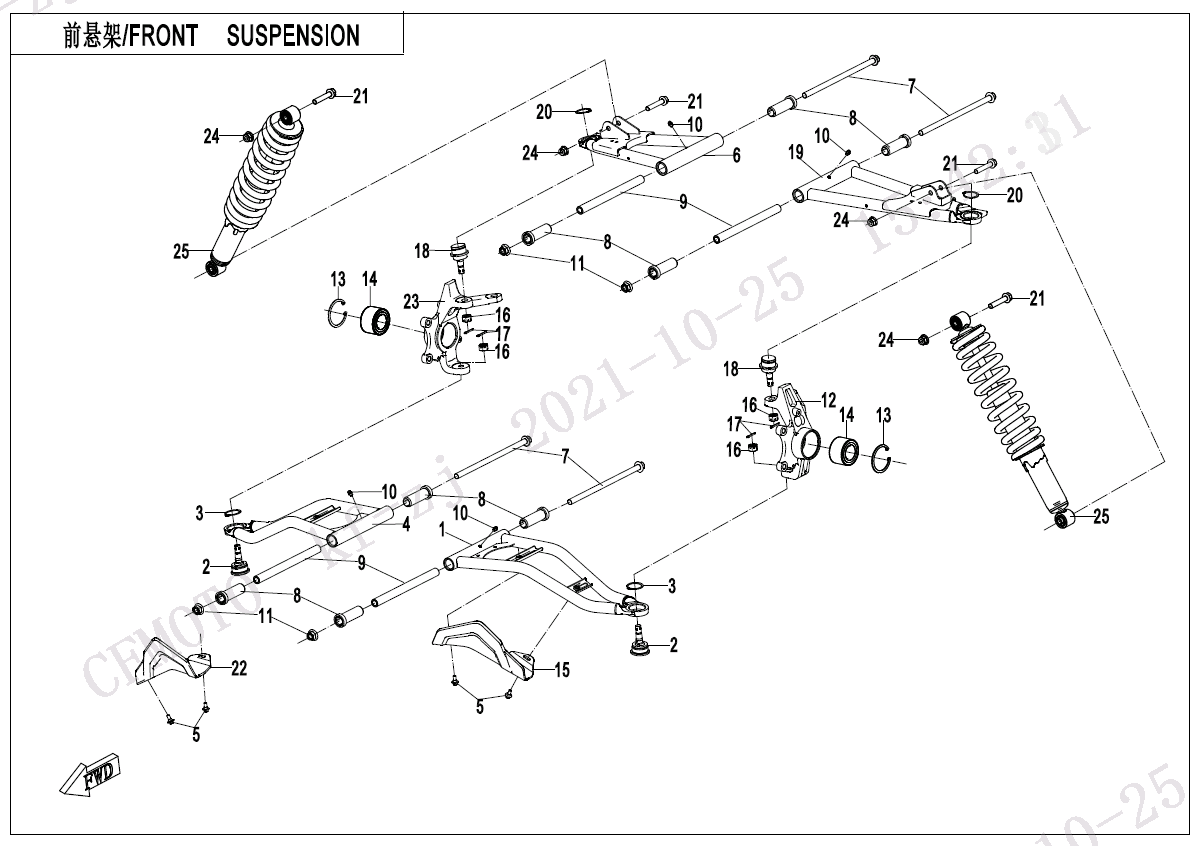

FRONT SUSPENSION - F05 | 2023, UTV, CF1000UTR-5 | CFMOTO OEM

You are here

No.

P/N (SKU)

Part Name

Price

Your price

1

P/N (SKU): 5SYV-050210-6001

Part Name: FRONT LOWER LH SWING ARM ASSY

Effective: 2022-07-16

Alternative parts: 5SYV-050210-6001-0BP00

Price: 58,90 € : 58,90 €

2

P/N (SKU): 9060-050900-10000

Part Name: BALL PIN ASSY

Effective: 2022-07-16

Remarks: CCVI

Alternative parts:

Specification: CCVI

Price: 21,60 € : 21,60 €

3

P/N (SKU): 30801-03405

Part Name: CIRCLIPS FOR SHAFT

Effective: 2022-07-16

Alternative parts:

Specification: 34

Price: 0,55 € : 0,55 €

4

P/N (SKU): 5SYV-050410-6001

Part Name: FRONT LOWER RH SWING ARM ASSY

Effective: 2022-07-16

Alternative parts:

Price: 58,90 € : 58,90 €

5

P/N (SKU): 8010-000004

Part Name: BOLT M6x14

Effective: 2022-07-16

Alternative parts:

Specification: M6x14

Price: 0,55 € : 0,55 €

6

P/N (SKU): 5SYV-050310-6001

Part Name: FRONT UPPER RH SWING ARM ASSY

Effective: 2022-07-16

Alternative parts:

Price: 67,80 € : 67,80 €

7

P/N (SKU): 5SYV-050103-6000

Part Name: SWING ARM SHAFT

Effective: 2022-07-16

Alternative parts:

Price: 7,00 € : 7,00 €

8

P/N (SKU): 5BY0-050102

Part Name: DAMPING SLEEVE, FRONT UPPER SWING ARM

Effective: 2022-07-16

Alternative parts:

Price: 2,60 € : 2,60 €

9

P/N (SKU): 5SYV-050101-6000

Part Name: MIDDLE SPACER, SWING ARM

Effective: 2022-07-16

Alternative parts:

Price: 7,00 € : 7,00 €

10

P/N (SKU): 3120100

Part Name: OIL CUP

Effective: 2022-07-16

Alternative parts:

Price: 0,95 € : 0,95 €

11

P/N (SKU): 30204-122910

Part Name: NUT M12x1.25

Effective: 2022-07-16

Alternative parts:

Specification: M12x1.25

Price: 0,95 € : 0,95 €

12

P/N (SKU): 5SYV-050701-6000

Part Name: LH STEERING KNUCKLE

Effective: 2022-07-16

Alternative parts:

Price: 78,70 € : 78,70 €

13

P/N (SKU): 30800-06005

Part Name: CIRCLIP FOR HOLE

Effective: 2022-07-16

Alternative parts:

Specification: 60

Price: 1,25 € : 1,25 €

14

P/N (SKU): 30411-03080

Part Name: HUB BEARING

Effective: 2022-07-16

Alternative parts: 30411-03081

Price: 41,00 € : 41,00 €

14

P/N (SKU): 30411-03081

Part Name: HUB BEARING

Effective: 2023-07-21

Alternative parts:

Specification: 30Ã60Ã37

Price: 29,70 € : 29,70 €

15

P/N (SKU): 5ASV-050201-6000

Part Name: GUARD, FRONT LH SWING ARM

Effective: 2022-07-16

Alternative parts:

Price: 5,15 € : 5,15 €

16

P/N (SKU): 30219-122810

Part Name: NUT M12x1.25

Effective: 2022-07-16

Alternative parts:

Specification: M12x1.25

Price: 0,95 € : 0,95 €

17

P/N (SKU): 30903-0322210

Part Name: COTTER PIN

Effective: 2022-07-16

Alternative parts:

Specification: Ï3.2Ã22

Price: 0,55 € : 0,55 €

18

P/N (SKU): 9030-050600-10000

Part Name: MAIN PIN ASSY

Effective: 2022-07-16

Remarks: CCVI

Alternative parts:

Specification: CCVI

Price: 20,20 € : 20,20 €

19

P/N (SKU): 5SYV-050110-6001

Part Name: FRONT UPPER LH SWING ARM ASSY

Effective: 2022-07-16

Alternative parts:

Price: 67,80 € : 67,80 €

20

P/N (SKU): 30801-03205

Part Name: CIRCLIPS FOR SHAFT

Effective: 2022-07-16

Alternative parts:

Specification: 32 A-TYPE

Price: 0,55 € : 0,55 €

21

P/N (SKU): 30006-102055110

Part Name: BOLT

Effective: 2022-07-16

Alternative parts:

Price: 0,95 € : 0,95 €

22

P/N (SKU): 5ASV-050401-6000

Part Name: GUARD, FRONT RH SWING ARM

Effective: 2022-07-16

Alternative parts:

Price: 5,15 € : 5,15 €

23

P/N (SKU): 5SYV-050801-6000

Part Name: RH STEERING KNUCKLE

Effective: 2022-07-16

Alternative parts:

Price: 78,70 € : 78,70 €

24

P/N (SKU): 30204-102810

Part Name: NUT

Effective: 2022-07-16

Alternative parts:

Specification: M10Ã1.25

Price: 0,55 € : 0,55 €

25

P/N (SKU): 5SYV-050500-6001

Part Name: FRONT SHOCK ABSORBER

Effective: 2022-07-16

Alternative parts:

Price: 155,90 € : 155,90 €
