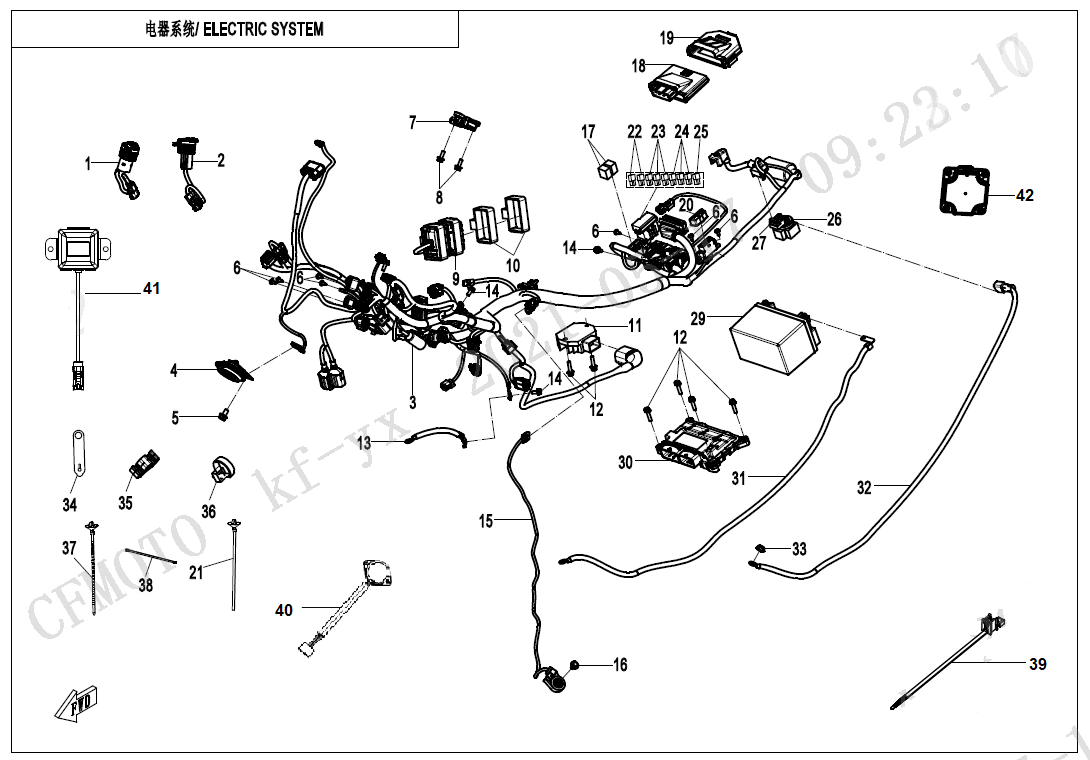

ELECTRIC SYSTEM(EXPLORE EDITION) - F15-1-C

ELECTRIC SYSTEM(EXPLORE EDITION) - F15-1-C

No.

1
P/N (SKU): 6WWV-150500-5000-10
Part Name: POWER OUTLET SOCKET
Effective: 2023-01-04
Remarks: null
Alternative parts: 6WWV-151100-4000
Specification: null
Price: 25,00 € : 25,00 €
-+
2
P/N (SKU): 6WWV-150600-5000-10
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2023-01-04
Remarks: null
Alternative parts: 6WWV-151200-4000
Specification: null
Price: 51,00 € : 51,00 €
-+
3
P/N (SKU): 6WWV-150100-5B00
Part Name: MAIN CABLE
Effective: 2023-01-04
Alternative parts: 6WWV-150100-5B01
Specification: null
Price: 775,00 € : 775,00 €
4
P/N (SKU): KNL0-150600
Part Name: HORN
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Price: 8,50 € : 8,50 €
5
P/N (SKU): 30006-080014810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Specification: M8×14
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 30118-480130010
Part Name: CROSS-RECESSED PAN HEAD TAPPING SCREWS
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Specification: ST4.8x13@TR
Price: 1,50 € : 1,50 €
7
P/N (SKU): 6L30-080040
Part Name: 6D SENSOR
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Price: 333,00 € : 333,00 €
-+
8
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
9
P/N (SKU): 6GUV-151800-6801-M1
Part Name: T-BOX
Effective: 2023-01-04
Remarks: null
Alternative parts: SN1V-691100-1500-11/SN1V-691100-1501-11
Specification: AllyTech@Turkey
Price: 472,00 € : 472,00 €
9
P/N (SKU): 6GUV-151800-7501-M1
Part Name: T-BOX
Effective: 2023-01-04
Alternative parts: 6GUV-151800-7502-M1/SN1V-691100-1201-11
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 472,00 € : 472,00 €
-+
9
P/N (SKU): 6GUV-151800-7502-M1
Part Name: T-BOX
Effective: 2023-04-18
Alternative parts: SN1V-691100-1201-11
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 428,00 € : 428,00 €
9
P/N (SKU): SN1V-691100-1201-11
Part Name: T-BOX
Effective: 2023-08-12
Remarks: AllyTech, Eurasia, Africa and Australia except Turkey
Alternative parts: null
Specification: @Eurasia and Africa and Australia except Turkey,BN,IN,BD,MN,NP
Price: 420,00 € : 420,00 €
-+
9
P/N (SKU): SN1V-691100-1501-11
Part Name: T-BOX
Effective: 2023-08-23
Remarks: Turkey
Alternative parts: null
Specification: Turkey
Price: 420,00 € : 420,00 €
10
P/N (SKU): 6KMV-150901-B001
Part Name: RUBBER RING, T-BOX
Effective: 2023-01-04
Remarks: null
Alternative parts: 6KMV-150901-B002
Specification: null
Price: 2,00 € : 2,00 €
11
P/N (SKU): 6WWV-177000-5000-M1
Part Name: REGULATOR
Effective: 2023-01-04
Remarks: null
Alternative parts: 6WWV-151000-5A00
Specification: null
Price: 129,00 € : 129,00 €
-+
12
P/N (SKU): 30006-060025810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 6WWV-150300-5000
Part Name: STARTER MOTOR NEGATIVE CABLE
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Specification: null
Price: 8,50 € : 8,50 €
14
P/N (SKU): 30006-060012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2023-01-04
Remarks: null
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
15
P/N (SKU): 6KWV-151200-1000
Part Name: SIDE STAND SWITCH
Effective: 2023-01-04
Alternative parts: null
Specification: null
Price: 18,00 € : 18,00 €
15
P/N (SKU): 6WWV-151200-5000
Part Name: SIDE STAND SWITCH
Effective: 2023-11-27
Remarks: null
Alternative parts: 6KWV-151200-1000
Specification: null
Price: 15,00 € : 15,00 €
-+
16
P/N (SKU): 8010-090005
Part Name: BOLT M6x16
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): CFCV-150524-2000-M1
Part Name: AUXILIARY RELAY
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Specification: null
Price: 4,50 € : 4,50 €
-+
18
P/N (SKU): 6WWV-150410-5000-10
Part Name: VEHICLE CONTROL UNIT
Effective: 2023-01-04
Remarks: Replacing parts requires following the code used in the original vehicle
Alternative parts: 6ARV-151900-1000
Specification: DOMESTIC BCM
Price: 199,00 € : 199,00 €
-+
18
P/N (SKU): 6WWV-150410-5000
Part Name: VEHICLE CONTROL UNIT
Effective: 2024-03-07
Remarks: Replacing parts requires following the code used in the original vehicle
Alternative parts: null
Specification: null
Price: 727,00 € : 727,00 €
19
P/N (SKU): 6WWV-150420-5000-10
Part Name: VEHICLE CONTROL UNIT BUSHING
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Specification: null
Price: 6,50 € : 6,50 €
-+
19
P/N (SKU): 6WWV-150420-5000
Part Name: BUSHING, VEHICLE CONTROL UNIT
Effective: 2024-03-07
Remarks: null
Alternative parts: null
Specification: null
Price: 5,50 € : 5,50 €
20
P/N (SKU): 5BY0-150305
Part Name: DIAGNOSIS CONNECTOR COVER
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
-+
21
P/N (SKU): 801F-100101
Part Name: TIE BAND
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
22
P/N (SKU): 806A-151301
Part Name: FUSE 7.5A
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Specification: 7.5A
Price: 1,50 € : 1,50 €
23
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Specification: 10A
Price: 2,50 € : 2,50 €
-+
24
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Specification: 15A
Price: 1,50 € : 1,50 €
25
P/N (SKU): 8010-151301
Part Name: FUSE 5A
Effective: 2023-01-04
Alternative parts: null
Specification: 5A
Price: 1,50 € : 1,50 €
26
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Price: 25,00 € : 25,00 €
-+
27
P/N (SKU): 5BY4-151301
Part Name: 30A FUSE
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
29
P/N (SKU): 31021100
Part Name: BATTERY
Effective: 2023-01-04
Remarks: null
Alternative parts: 6GUV-151600-5600-M1
Price: 105,00 € : 105,00 €
30
P/N (SKU): 6WWV-001000-5B00
Part Name: ECM ASSY
Effective: 2023-04-21
Remarks: A3
Alternative parts: null
Specification: UP6.0
Price: 516,00 € : 516,00 €
-+
30
P/N (SKU): 6WWV-001000-5B00-11
Part Name: ECM ASSY
Effective: 2023-08-30
Remarks: A2
Alternative parts: null
Specification: UP6.0
Price: 515,00 € : 515,00 €
-+
31
P/N (SKU): 6WWV-150400-5000
Part Name: BATTERY NEGATIVE WIRE
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Specification: null
Price: 18,00 € : 18,00 €
32
P/N (SKU): 6WWV-150200-5000
Part Name: STARTER MOTOR POSITIVE CABLE
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Specification: null
Price: 23,00 € : 23,00 €
33
P/N (SKU): 30220-060810
Part Name: TORQUE TYPE HEXAGON NUTS
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
34
P/N (SKU): 6KJ0-100002
Part Name: CLUTCH PULL BINDING
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
35
P/N (SKU): 6L30-080006
Part Name: WIRE CLIP 2, BRAKE FLUID HOSE
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
36
P/N (SKU): 6L30-150003
Part Name: TIE BAND
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Specification: 2.5×95
Price: 1,50 € : 1,50 €
37
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
38
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2023-01-04
Remarks: null
Alternative parts: null
Specification: 5x250
Price: 1,50 € : 1,50 €
39
P/N (SKU): 9DS#-150009-6100-M1
Part Name: TIE BAND ZDG
Effective: 2023-01-06
Alternative parts: null
Specification: 4.7x194@ZDG4.7X194
Price: 1,50 € : 1,50 €
-+
40
P/N (SKU): 9DQV-150300-3000
Part Name: ALARM
Effective: 2023-01-06
Remarks: null
Alternative parts: 9DQV-150300-3000-10/9AWV-156800-2800
Specification: null
Price: 28,00 € : 28,00 €
-+
41
P/N (SKU): 6WWV-170571-5A00
Part Name: GNSS
Effective: 2023-01-11
Remarks: null
Alternative parts: 6WWV-170571-5A01
Specification: null
Price: 56,00 € : 56,00 €
41
P/N (SKU): 6WWV-170571-5A01
Part Name: GNSS ANTENNA
Effective: 2023-11-30
Remarks: null
Alternative parts: 6WWV-170571-5A00-M1
Specification: null
Price: 53,00 € : 53,00 €
-+
42
P/N (SKU): 6WWV-460100-5A00-M1
Part Name: REAR RADAR
Effective: 2023-02-27
Remarks: null
Alternative parts: null
Specification: DISTANCE MEASURING SENSOR
Price: 178,00 € : 178,00 €
