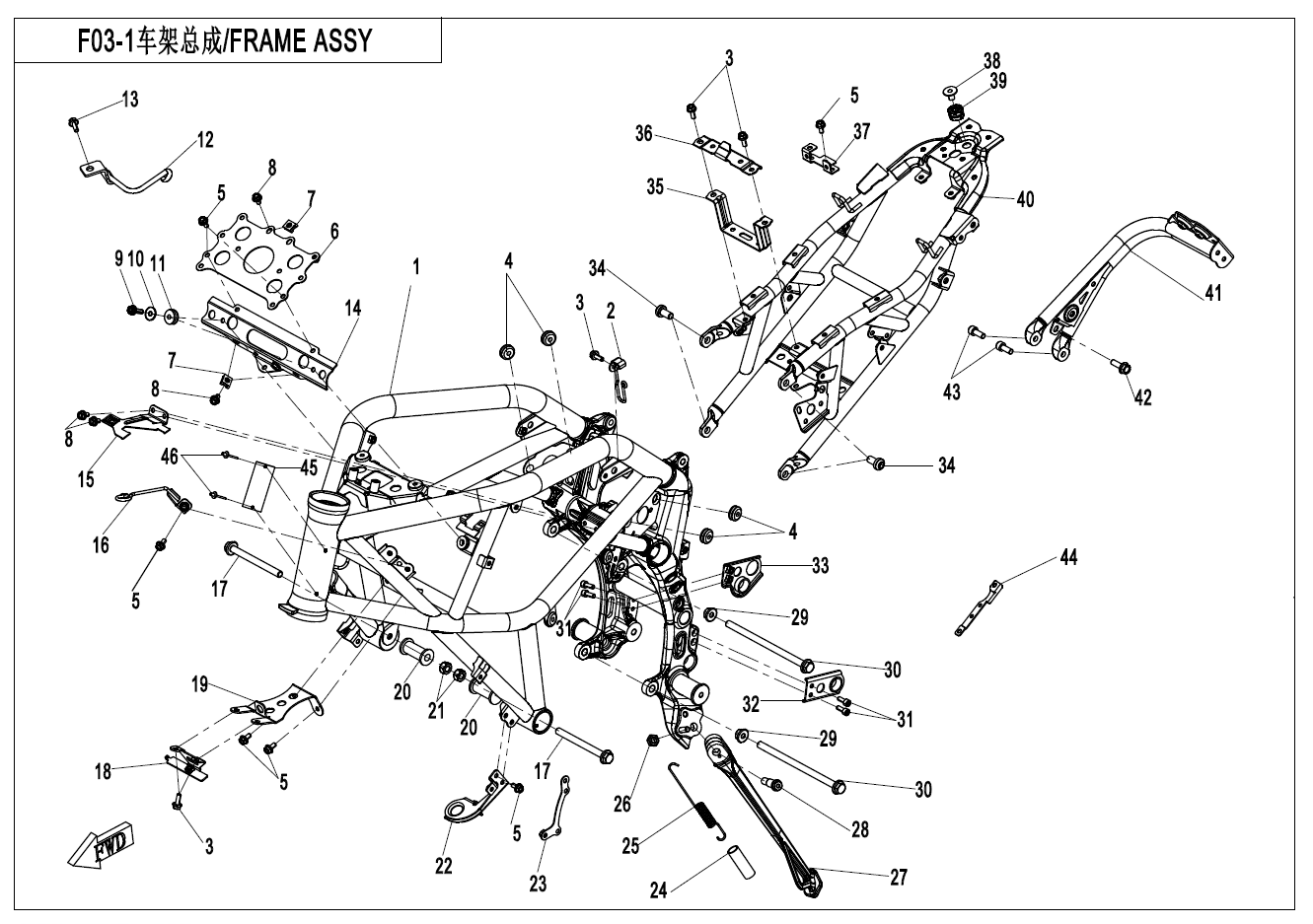

FRAME - F03-1

FRAME - F03-1

No.

01
P/N (SKU): 6GUV-031000-6004-0BY00
Part Name: FRAME
Effective: 2022-12-05
Alternative parts:
Specification: NANO BLACK
Price: 793,00 € : 793,00 €
-+
02
P/N (SKU): 6GU#-030110-6000
Part Name: REAR BRAKE FLUID HOSE WIRE CLIP
Effective: 2022-12-05
Alternative parts:
Price: 3,50 € : 3,50 €
-+
03
P/N (SKU): 30006-060016870
Part Name: BOLT
Effective: 2022-12-05
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 6GUV-043801-8000
Part Name: DAMPING RUBBER SLEEVE
Effective: 2022-12-05
Alternative parts:
Price: 2,00 € : 2,00 €
-+
05
P/N (SKU): 30006-060010810
Part Name: BOLT
Effective: 2022-12-05
Alternative parts:
Specification: M6×10
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 6GU#-030020-6000
Part Name: BRACKET, ECU
Effective: 2022-12-05
Alternative parts:
Price: 7,00 € : 7,00 €
-+
07
P/N (SKU): 8030-040800-00001
Part Name: NUT CLIP M6
Effective: 2022-12-05
Alternative parts:
Specification: M6
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 30006-060012870
Part Name: BOLT
Effective: 2022-12-05
Alternative parts:
Specification: M6x12@BLACK ZINC
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 30006-060020870
Part Name: BOLT
Effective: 2022-12-05
Alternative parts:
Specification: M6×20
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): 6GU#-030150-6001
Part Name: LIMIT BRACKET
Effective: 2022-12-05
Alternative parts:
Price: 2,00 € : 2,00 €
-+
11
P/N (SKU): 9010-160101
Part Name: HEADLIGHT RUBBER DAMPER
Effective: 2022-12-05
Alternative parts:
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 6GU#-030130-6000
Part Name: BRACKET, CLUTCH CABLE
Effective: 2022-12-05
Alternative parts:
Price: 3,50 € : 3,50 €
-+
13
P/N (SKU): 30006-050012810
Part Name: BOLT
Effective: 2022-12-05
Alternative parts:
Specification: M5×12
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 6GU#-030050-6000
Part Name: BRACKET, AIR FILTER
Effective: 2022-12-05
Alternative parts:
Price: 11,00 € : 11,00 €
-+
15
P/N (SKU): 6GU#-030006-6000
Part Name: BRACKET, ROLL-OVER VALVE
Effective: 2022-12-05
Alternative parts:
Price: 4,50 € : 4,50 €
-+
16
P/N (SKU): 6GUV-030140-6002
Part Name: LIMIT BRACKET
Effective: 2022-12-05
Alternative parts:
Price: 4,00 € : 4,00 €
-+
17
P/N (SKU): 30006-102110110
Part Name: BOLT
Effective: 2022-12-05
Alternative parts:
Specification: M10×1.25×110
Price: 2,00 € : 2,00 €
-+
18
P/N (SKU): 6GUV-030060-8000
Part Name: LOCK BRACKET, FRONT BRAKE FLUID HOSE
Effective: 2022-12-05
Alternative parts:
Price: 3,50 € : 3,50 €
-+
19
P/N (SKU): 6GU#-030040-6000
Part Name: BRACKET, ABS
Effective: 2022-12-05
Alternative parts:
Price: 6,00 € : 6,00 €
-+
20
P/N (SKU): A000-000201
Part Name: BUSHING, ENGINE
Effective: 2022-12-05
Alternative parts:
Price: 4,00 € : 4,00 €
-+
21
P/N (SKU): 30203-102110
Part Name: NUT M10x1.25
Effective: 2022-12-05
Alternative parts:
Specification: M10x1.25
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 6GU#-030090-6000
Part Name: BRACKET, RADIATOR
Effective: 2022-12-05
Alternative parts:
Price: 5,00 € : 5,00 €
-+
24
P/N (SKU): A000-030210
Part Name: SIDE STAND SPRING ASSY
Effective: 2022-12-05
Alternative parts: 6WWV-030006-5000
Price: 7,00 € : 7,00 €
-+
25
P/N (SKU): A000-030004
Part Name: SIDE STAND SPRING SLEEVE
Effective: 2022-12-05
Alternative parts:
Price: 2,00 € : 2,00 €
-+
26
P/N (SKU): 30208-102810
Part Name: NUT
Effective: 2022-12-05
Alternative parts: 30208-102010
Specification: M10x1.25
Price: 1,50 € : 1,50 €
27
P/N (SKU): 6GUV-030005-8000
Part Name: SIDE BRACKET
Effective: 2022-12-05
Alternative parts:
Price: 64,00 € : 64,00 €
-+
28
P/N (SKU): 6GU#-030008-6000
Part Name: SIDE BRACKET BOLT
Effective: 2022-12-05
Alternative parts:
Price: 3,50 € : 3,50 €
-+
29
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2022-12-05
Alternative parts:
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 6GU#-030002-6000
Part Name: ENGINE MOUNTING SHAFT
Effective: 2022-12-05
Alternative parts:
Price: 4,00 € : 4,00 €
-+
31
P/N (SKU): 30102-060016810
Part Name: SCREW
Effective: 2022-12-05
Alternative parts: 30102-060016830
Specification: M6x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
32
P/N (SKU): 6GU#-030070-6000
Part Name: LH BRACKET, MUFFLER
Effective: 2022-12-05
Alternative parts:
Price: 5,50 € : 5,50 €
-+
33
P/N (SKU): 6GU#-030080-6000
Part Name: RH BRACKET, MUFFLER
Effective: 2022-12-05
Alternative parts:
Price: 14,00 € : 14,00 €
-+
34
P/N (SKU): 6GU#-030007-6000
Part Name: REAR FRAME BOLT
Effective: 2022-12-05
Alternative parts:
Price: 2,00 € : 2,00 €
-+
35
P/N (SKU): 6GU#-030010-6000
Part Name: BRACKET, FUEL TANK
Effective: 2022-12-05
Alternative parts:
Price: 3,50 € : 3,50 €
-+
36
P/N (SKU): 6GU#-030001-6000
Part Name: LIMIT BRACKET, SEAT
Effective: 2022-12-05
Alternative parts:
Price: 3,50 € : 3,50 €
-+
37
P/N (SKU): 6GU#-030120-6000
Part Name: ROLL-OVER SENSOR BRACKET
Effective: 2022-12-05
Alternative parts:
Price: 3,50 € : 3,50 €
-+
38
P/N (SKU): 6KM0-120010
Part Name: T-TYPE BUSHING ASSY
Effective: 2022-12-05
Alternative parts:
Price: 2,00 € : 2,00 €
-+
39
P/N (SKU): 5020-031001
Part Name: RUBBER SLEEVE, FRONT LICENSE BRACKET
Effective: 2022-12-05
Alternative parts:
Price: 2,00 € : 2,00 €
-+
40
P/N (SKU): 6GUV-032000-8001-0BY00
Part Name: REAR FRAME ASSY
Effective: 2022-12-05
Alternative parts:
Specification: NANO BLACK
Price: 306,00 € : 306,00 €
-+
41
P/N (SKU): 6GU#-030200-6000
Part Name: REAR FENDER BRACKET ASSY
Effective: 2022-12-05
Alternative parts:
Price: 51,00 € : 51,00 €
-+
42
P/N (SKU): 30006-080025810
Part Name: BOLT
Effective: 2022-12-05
Alternative parts:
Specification: M8×25
Price: 1,50 € : 1,50 €
-+
43
P/N (SKU): 30102-080020870
Part Name: SCREW
Effective: 2022-12-05
Alternative parts:
Price: 1,50 € : 1,50 €
-+
44
P/N (SKU): 6GU#-030160-6000
Part Name: FENDER GUARD BRACKET
Effective: 2022-12-05
Alternative parts:
Price: 4,50 € : 4,50 €
-+
45
P/N (SKU): 6GUV-190011-8100
Part Name: VEHICLE PLATE
Effective: 2022-12-05
Alternative parts: 6GUV-190011-8101
Price: 2,00 € : 2,00 €
46
P/N (SKU): 30902-0420820
Part Name: RIVET
Effective: 2022-12-05
Alternative parts: 30902-0401320
Specification: GB/T12618_4.2×8
Price: 1,50 € : 1,50 €
