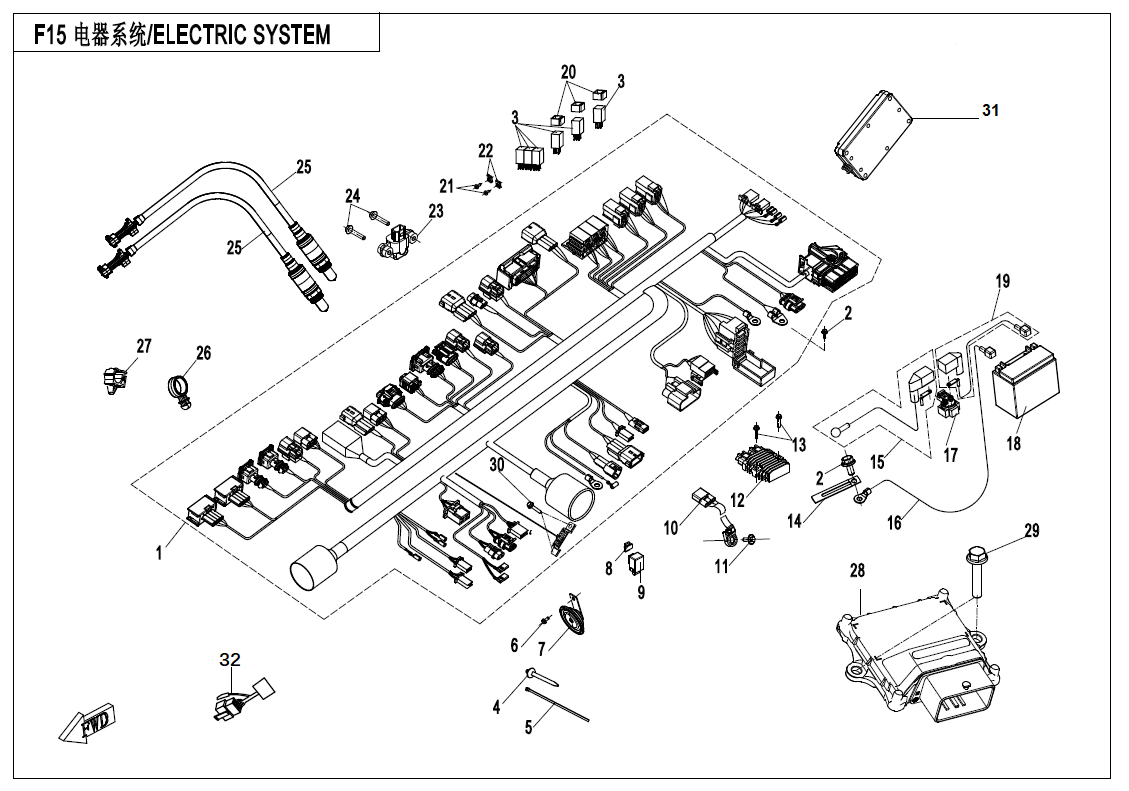

ELECTRIC SYSTEM - F15

ELECTRIC SYSTEM - F15

No.

01
P/N (SKU): 6NTV-150100-C202
Part Name: MAIN CABLE
Effective: 2022-12-05
Alternative parts:
Price: 503,00 € : 503,00 €
-+
01
P/N (SKU): 6NTV-150100-C200-10
Part Name: MAIN CABLE
Effective: 2023-08-15
Remarks: Ruili
Alternative parts:
Price: 478,90 € : 478,90 €
-+
02
P/N (SKU): 30006-060012870
Part Name: BOLT M6x12
Effective: 2022-12-05
Alternative parts:
Specification: M6x12
Price: 0,55 € : 0,55 €
-+
03
P/N (SKU): CFCV-150524-2000-M1
Part Name: AUXILIARY RELAY
Effective: 2022-12-05
Alternative parts:
Price: 3,30 € : 3,30 €
-+
04
P/N (SKU): 801F-100101
Part Name: TIE BAND
Effective: 2022-12-05
Alternative parts:
Price: 0,95 € : 0,95 €
-+
05
P/N (SKU): 8010-150003
Part Name: TIE
Effective: 2022-12-05
Alternative parts:
Specification: 5x250
Price: 1,25 € : 1,25 €
-+
06
P/N (SKU): 30006-080014810
Part Name: BOLT M8x14
Effective: 2022-12-05
Alternative parts:
Specification: M8x14
Price: 0,55 € : 0,55 €
-+
07
P/N (SKU): A000-150500
Part Name: HORN 12V
Effective: 2022-12-05
Alternative parts:
Price: 8,45 € : 8,45 €
-+
08
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2022-12-05
Alternative parts:
Price: 0,55 € : 0,55 €
-+
09
P/N (SKU): 6FIA-150340-6400
Part Name: FLASHER
Effective: 2022-12-05
Alternative parts:
Price: 16,90 € : 16,90 €
-+
10
P/N (SKU): 6KMV-151200-8501
Part Name: SIDE STAND SWITCH
Effective: 2022-12-05
Alternative parts:
Price: 10,25 € : 10,25 €
-+
11
P/N (SKU): 8010-090005
Part Name: BOLT M6x16
Effective: 2022-12-05
Alternative parts:
Specification: M6x16
Price: 0,55 € : 0,55 €
-+
12
P/N (SKU): 6NTV-151000-3000
Part Name: REGULATOR
Effective: 2022-12-05
Alternative parts:
Price: 53,10 € : 53,10 €
-+
13
P/N (SKU): 30006-060030810
Part Name: BOLT M6x30
Effective: 2022-12-05
Alternative parts:
Specification: M6x30
Price: 0,55 € : 0,55 €
-+
14
P/N (SKU): 0180-014010
Part Name: WIRE CLIP
Effective: 2022-12-05
Alternative parts:
Price: 0,55 € : 0,55 €
-+
15
P/N (SKU): 6NQ#-150200-2601
Part Name: POSITIVE WIRE, STARTER MOTOR
Effective: 2022-12-05
Alternative parts:
Price: 9,55 € : 9,55 €
-+
16
P/N (SKU): A000-150300
Part Name: NEGATIVE CABLE, STARTER MOTOR
Effective: 2022-12-05
Alternative parts:
Price: 11,40 € : 11,40 €
-+
17
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2022-12-05
Alternative parts:
Price: 24,40 € : 24,40 €
-+
18
P/N (SKU): 31021200
Part Name: BATTERY
Effective: 2022-12-05
Alternative parts:
Specification: 12V12AH
Price: 95,50 € : 95,50 €
-+
19
P/N (SKU): 6NQ#-150700-2600
Part Name: CABLE, STARTER RELAY
Effective: 2022-12-05
Alternative parts:
Price: 12,90 € : 12,90 €
-+
20
P/N (SKU): A000-150801
Part Name: RUBBER RING, AUXILIARY RELAY
Effective: 2022-12-05
Alternative parts:
Price: 0,95 € : 0,95 €
-+
21
P/N (SKU): 30110-421130010
Part Name: SCREW
Effective: 2022-12-05
Alternative parts:
Specification: ST4.2x13
Price: 0,95 € : 0,95 €
-+
22
P/N (SKU): 8080-000002
Part Name: CLIP NUT ST4.8
Effective: 2022-12-05
Alternative parts:
Specification: ST4.8
Price: 0,55 € : 0,55 €
-+
23
P/N (SKU): 6KJ0-150600
Part Name: SENSOR, ROLL-OVER
Effective: 2022-12-05
Alternative parts:
Price: 18,70 € : 18,70 €
-+
24
P/N (SKU): 0A70-014004
Part Name: BOLT M5x25
Effective: 2022-12-05
Alternative parts: 0A70-014004-00001
Specification: M5x25
Price: 0,55 € : 0,55 €
25
P/N (SKU): 0HU0-176000
Part Name: OXYGEN SENSOR
Effective: 2022-12-05
Alternative parts:
Price: 82,10 € : 82,10 €
-+
26
P/N (SKU): A000-050015
Part Name: WIRE CLIP, FRONT BRAKE FLUID HOSE
Effective: 2022-12-05
Alternative parts:
Price: 0,55 € : 0,55 €
-+
27
P/N (SKU): A000-100002
Part Name: CLIP, CLUTCH CABLE
Effective: 2022-12-05
Alternative parts:
Price: 0,55 € : 0,55 €
-+
28
P/N (SKU): 6NTV-001000-D200
Part Name: ECU ASSY
Effective: 2022-12-05
Alternative parts:
Price: 195,20 € : 195,20 €
-+
29
P/N (SKU): 30006-050012810
Part Name: BOLT
Effective: 2022-12-05
Alternative parts:
Specification: M5x12
Price: 1,25 € : 1,25 €
-+
30
P/N (SKU): 30102-060016810
Part Name: SCREW
Effective: 2022-12-05
Alternative parts:
Price: 0,55 € : 0,55 €
-+
31
P/N (SKU): 6GUV-151800-7101-M1
Part Name: T-BOX
Effective: 2022-12-05
Remarks: US/CA/MX
Alternative parts: SN1V-691100-1301-11
Price: 464,00 € : 464,00 €
31
P/N (SKU): 6GUV-151800-7301-M1
Part Name: T-BOX
Effective: 2022-12-05
Remarks: OTHER COUNTRIES IN SOUTH AMERICA EXCEPT BRAZIL
Alternative parts: SN1V-691100-1401-11
Specification: AllyTech@South America except for Brazil
Price: 464,00 € : 464,00 €
31
P/N (SKU): 6GUV-151800-7501-M1
Part Name: T-BOX
Effective: 2022-12-05
Remarks: EU/AU/MIDDLE EAST/AFRICA/SOUTHEAST ASIA/WESTERN ASIA
Alternative parts: SN1V-691100-1201-11
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 464,00 € : 464,00 €
-+
31
P/N (SKU): SN1V-691100-1301-11
Part Name: T-BOX
Effective: 2023-04-18
Remarks: US/CA/MX
Alternative parts:
Price: 413,00 € : 413,00 €
-+
31
P/N (SKU): 6GUV-151800-7502-M1
Part Name: T-BOX
Effective: 2023-04-18
Remarks: EU/AU/MIDDLE EAST/AFRICA/SOUTHEAST ASIA/WESTERN ASIA
Alternative parts: SN1V-691100-1201-11
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 420,90 € : 420,90 €
31
P/N (SKU): SN1V-691100-1201-11
Part Name: T-BOX
Effective: 2023-08-12
Remarks: AllyTech, Eurasia, Africa and Australia except Turkey
Alternative parts:
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 413,00 € : 413,00 €
-+
31
P/N (SKU): SN1V-691100-1401-11
Part Name: T-BOX
Effective: 2023-08-12
Alternative parts:
Specification: AllyTech@South America except for Brazil
Price: 413,00 € : 413,00 €
-+
32
P/N (SKU): 6NQV-152700-B100
Part Name: GEAR CONTROL UNIT
Effective: 2022-12-05
Alternative parts:
Price: 25,70 € : 25,70 €
-+
