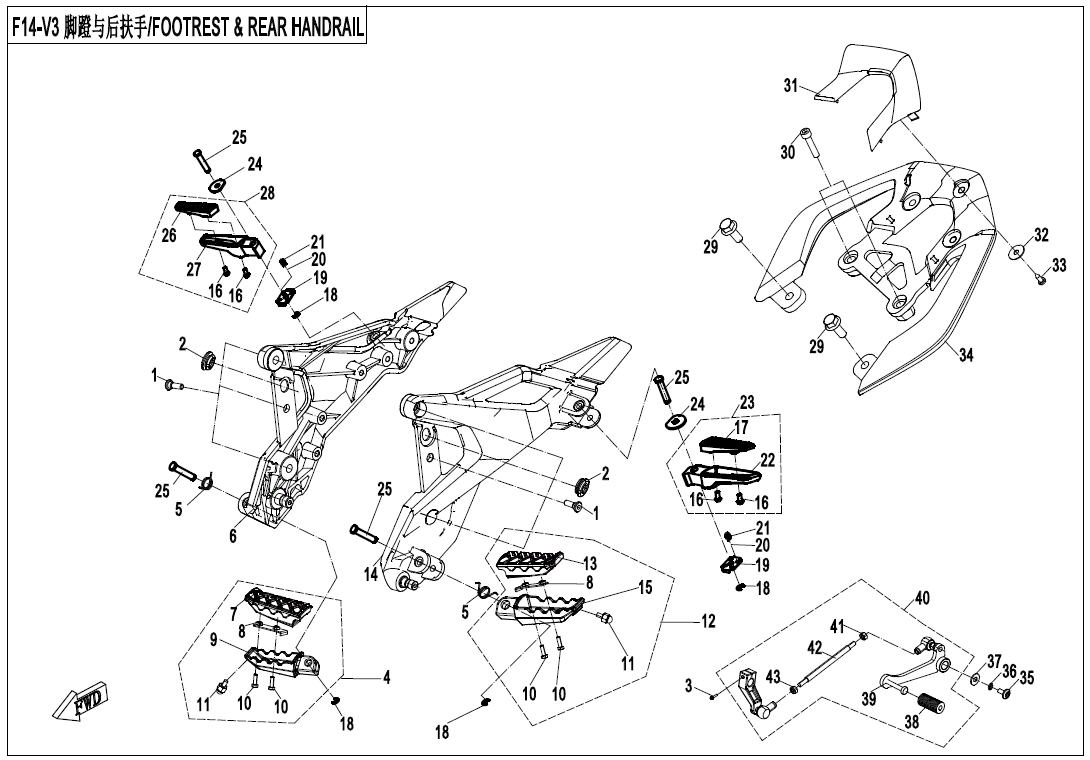

FOOTREST @^ REAR HANDRAIL - F14

FOOTREST @^ REAR HANDRAIL - F14

No.

01
P/N (SKU): 6100-140103
Part Name: BOLT M8x25
Effective: 2022-12-05
Alternative parts:
Specification: M8X25
Price: 4,40 € : 4,40 €
-+
02
P/N (SKU): 8080-040064
Part Name: FRONT FENDER DAMPER
Effective: 2022-12-05
Alternative parts:
Price: 0,55 € : 0,55 €
-+
03
P/N (SKU): 30006-060020810
Part Name: BOLT M6x20
Effective: 2022-12-05
Alternative parts: 30006-060020870
Specification: M6x20
Price: 0,55 € : 0,55 €
04
P/N (SKU): 6NT1-140130-2V100
Part Name: FRONT FOOTREST, RH
Effective: 2022-12-05
Alternative parts:
Specification: SILVER WHITE
Price: 52,00 € : 52,00 €
-+
05
P/N (SKU): 6NT1-140103
Part Name: TORSIONAL SPRING
Effective: 2022-12-05
Alternative parts:
Price: 0,95 € : 0,95 €
-+
06
P/N (SKU): 6NT1-140140-2V100
Part Name: BRACKET ASSY, RH FOOT PEDAL
Effective: 2022-12-05
Alternative parts: 6NTV-140140-4000-0V100
Specification: SILVER WHITE
Price: 57,10 € : 57,10 €
06
P/N (SKU): 6NTV-140140-4000-0V100
Part Name: RH FOOTREST BRACKET
Effective: 2023-04-11
Alternative parts:
Specification: SILVER WHITE
Price: 98,90 € : 98,90 €
-+
07
P/N (SKU): 6NT1-140132-00001
Part Name: FOOT PEDAL RUBBER
Effective: 2022-12-05
Alternative parts:
Price: 4,05 € : 4,05 €
-+
08
P/N (SKU): 6NT1-140150
Part Name: CONNECTING PLATE, FOOTREST
Effective: 2022-12-05
Alternative parts:
Price: 4,40 € : 4,40 €
-+
09
P/N (SKU): 6NT1-140131-2V100
Part Name: FRONT FOOT PEDAL, RH
Effective: 2022-12-05
Alternative parts:
Specification: SILVER WHITE
Price: 14,70 € : 14,70 €
-+
10
P/N (SKU): 30105-050016410
Part Name: SCREW M5x16
Effective: 2022-12-05
Alternative parts:
Specification: M5x16
Price: 0,55 € : 0,55 €
-+
11
P/N (SKU): A010-140123
Part Name: LIMIT BOLT
Effective: 2022-12-05
Alternative parts:
Price: 4,80 € : 4,80 €
-+
12
P/N (SKU): 6NT1-140120-2V100
Part Name: FRONT FOOTREST, LH
Effective: 2022-12-05
Alternative parts:
Specification: SILVER WHITE
Price: 54,20 € : 54,20 €
-+
13
P/N (SKU): 6NT1-140122-00001
Part Name: FOOT PEDAL RUBBER
Effective: 2022-12-05
Alternative parts:
Price: 4,05 € : 4,05 €
-+
14
P/N (SKU): 6NT1-140110-2V100
Part Name: BRACKET ASSY, LH FOOTREST
Effective: 2022-12-05
Alternative parts: 6NTV-140110-4000-0V100
Specification: SILVER WHITE
Price: 56,50 € : 56,50 €
14
P/N (SKU): 6NTV-140110-4000-0V100
Part Name: LH FOOTREST BRACKET
Effective: 2023-04-11
Alternative parts:
Specification: SILVER WHITE
Price: 90,90 € : 90,90 €
-+
15
P/N (SKU): 6NT1-140121-2V100
Part Name: FRONT FOOT PEDAL, LH
Effective: 2022-12-05
Alternative parts:
Specification: SILVER WHITE
Price: 14,70 € : 14,70 €
-+
16
P/N (SKU): 30105-050012410
Part Name: SCREW M5x12
Effective: 2022-12-05
Alternative parts:
Specification: M5x12
Price: 0,55 € : 0,55 €
-+
17
P/N (SKU): 6KJ0-140132
Part Name: RUBBER, LH FOOT PEDAL
Effective: 2022-12-05
Alternative parts:
Price: 4,40 € : 4,40 €
-+
18
P/N (SKU): 30802-00603
Part Name: CIRCLIP 6
Effective: 2022-12-05
Alternative parts: 30802-00605
Specification: 6
Price: 0,55 € : 0,55 €
-+
19
P/N (SKU): A000-140104
Part Name: LOCATING GASKET 1
Effective: 2022-12-05
Alternative parts:
Price: 1,25 € : 1,25 €
-+
20
P/N (SKU): 5190-037814
Part Name: STEEL BALL
Effective: 2022-12-05
Alternative parts:
Price: 0,55 € : 0,55 €
-+
21
P/N (SKU): 5190-037813
Part Name: SPRING
Effective: 2022-12-05
Alternative parts:
Price: 0,55 € : 0,55 €
-+
22
P/N (SKU): 6KJ0-140151-2V100
Part Name: REAR FOOTREST SEAT, LH
Effective: 2022-12-05
Alternative parts: 6KJV-140151-8000-0V100
Specification: SILVER WHITE
Price: 11,40 € : 11,40 €
23
P/N (SKU): 6KJ0-140150-1V100
Part Name: REAR FOOTREST, LH
Effective: 2022-12-05
Alternative parts:
Specification: SILVER WHITE
Price: 14,30 € : 14,30 €
-+
24
P/N (SKU): A000-140106
Part Name: LOCATING GASKET 2
Effective: 2022-12-05
Alternative parts:
Price: 0,95 € : 0,95 €
-+
25
P/N (SKU): A000-140142
Part Name: PIN SHAFT Dia 8
Effective: 2022-12-05
Alternative parts:
Specification: Dia 8
Price: 0,95 € : 0,95 €
-+
26
P/N (SKU): 6KJ0-140142
Part Name: RUBBER ASSY, RH FOOTREST
Effective: 2022-12-05
Alternative parts:
Price: 5,90 € : 5,90 €
-+
27
P/N (SKU): 6KJ0-140161-2V100
Part Name: REAR FOOTREST SEAT, RH
Effective: 2022-12-05
Alternative parts: 6KJV-140161-8000-0V100
Specification: SILVER WHITE
Price: 11,00 € : 11,00 €
28
P/N (SKU): 6KJ0-140160-1V100
Part Name: REAR FOOTREST,RH
Effective: 2022-12-05
Alternative parts:
Specification: SILVER WHITE
Price: 14,30 € : 14,30 €
-+
29
P/N (SKU): 30006-080020810
Part Name: BOLT M8x20
Effective: 2022-12-05
Alternative parts:
Specification: M8x20
Price: 0,85 € : 0,85 €
-+
30
P/N (SKU): 30102-080030810
Part Name: SCREW
Effective: 2022-12-05
Alternative parts:
Specification: M8x30
Price: 0,55 € : 0,55 €
-+
31
P/N (SKU): 6NT1-140202
Part Name: COVER, REAR ARMREST
Effective: 2022-12-05
Alternative parts:
Price: 1,85 € : 1,85 €
-+
32
P/N (SKU): 30305-050112
Part Name: WASHER
Effective: 2022-12-05
Alternative parts:
Specification: 5
Price: 0,75 € : 0,75 €
-+
33
P/N (SKU): 30110-421130010
Part Name: SCREW
Effective: 2022-12-05
Alternative parts:
Specification: ST4.2x13
Price: 0,95 € : 0,95 €
-+
34
P/N (SKU): 6NT1-140201-0B200
Part Name: REAR ARMREST
Effective: 2022-12-05
Alternative parts:
Specification: MATTE BLACK
Price: 58,60 € : 58,60 €
-+
35
P/N (SKU): A000-040702
Part Name: INNER HEX SCREW M6x12
Effective: 2022-12-05
Alternative parts: 6KM#-040702-8000
Specification: M6x12
Price: 0,55 € : 0,55 €
36
P/N (SKU): 30303-060112
Part Name: WASHER
Effective: 2022-12-05
Alternative parts:
Specification: 6
Price: 0,55 € : 0,55 €
-+
37
P/N (SKU): 30305-060112
Part Name: WASHER
Effective: 2022-12-05
Alternative parts:
Specification: 6
Price: 0,55 € : 0,55 €
-+
38
P/N (SKU): 6090-033601
Part Name: SLEEVE, FOOT PEDAL
Effective: 2022-12-05
Alternative parts:
Price: 2,60 € : 2,60 €
-+
40
P/N (SKU): 6NT1-141100-20000
Part Name: GEARSHIFT ROD ASSY
Effective: 2022-12-05
Alternative parts:
Price: 27,10 € : 27,10 €
-+
41
P/N (SKU): 30200-060810
Part Name: NUT
Effective: 2022-12-05
Alternative parts:
Specification: M6
Price: 0,55 € : 0,55 €
-+
42
P/N (SKU): 6NT1-141102-20000
Part Name: CONNECTING ROD
Effective: 2022-12-05
Alternative parts:
Price: 2,20 € : 2,20 €
-+
43
P/N (SKU): 30200-06082L
Part Name: NUT M6
Effective: 2022-12-05
Alternative parts:
Specification: M6, LEFT-HAND THREAD
Price: 0,55 € : 0,55 €
-+
