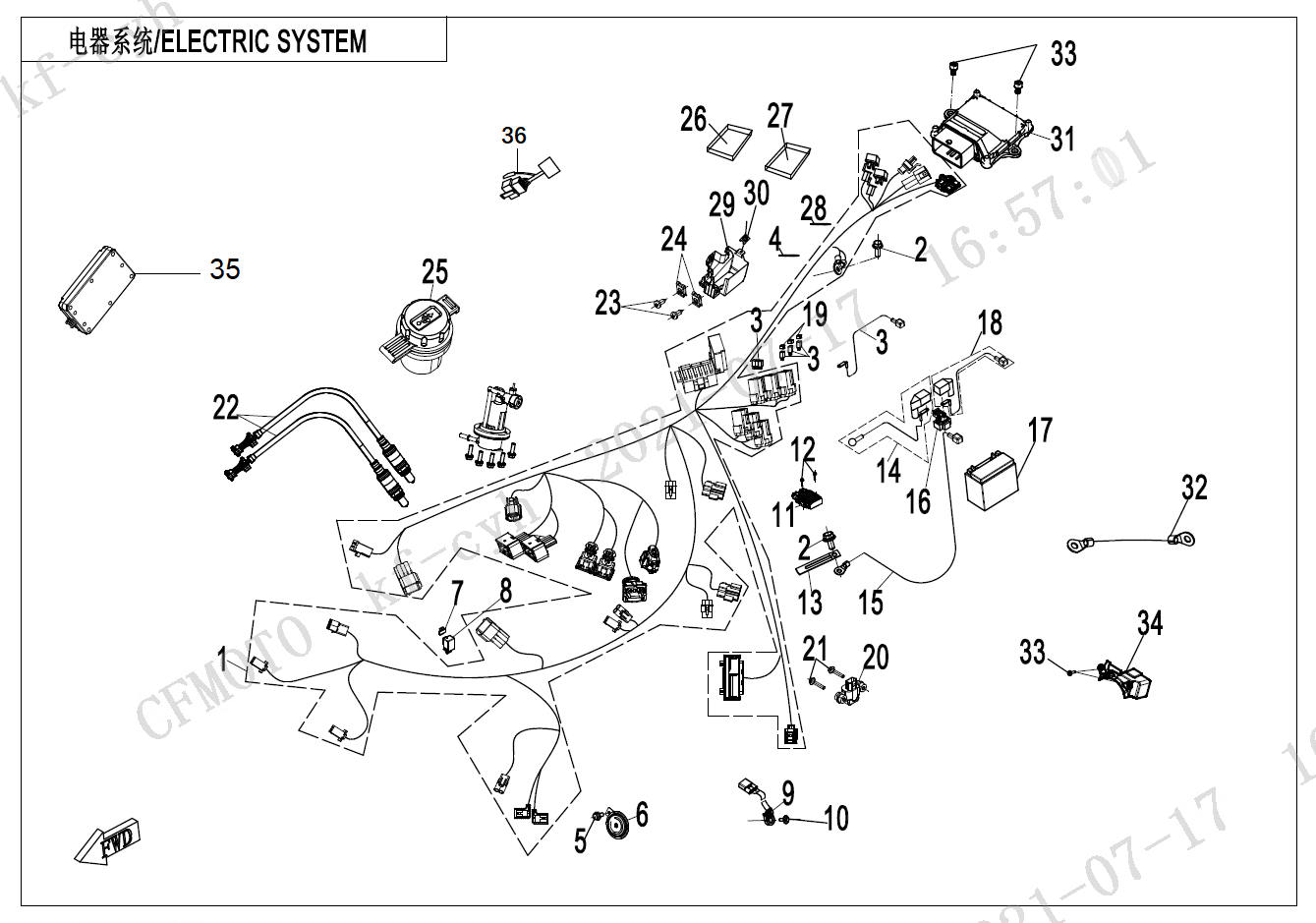

ELECTRIC SYSTEM - F15

ELECTRIC SYSTEM - F15

No.

01
P/N (SKU): 6NTV-150100-B201
Part Name: MAIN CABLE
Effective: 2022-12-05
Remarks: Dalu Mab ;A3
Price: 518,00 € : 518,00 €
-+
01
P/N (SKU): 6NTV-150100-B200-10
Part Name: MAIN CABLE
Effective: 2023-08-15
Remarks: Ruili;A3
Alternative parts: 6NTV-150100-B201-10
Price: 548,00 € : 548,00 €
01
P/N (SKU): 6NTV-150100-B001
Part Name: MAIN CABLE
Effective: 2023-11-14
Remarks: A2
Price: 387,00 € : 387,00 €
-+
02
P/N (SKU): 30006-060012870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-12-05
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): CFCV-150524-2000-M1
Part Name: AUXILIARY RELAY
Effective: 2022-12-05
Price: 4,50 € : 4,50 €
-+
04
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2022-12-05
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 30006-080014810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-12-05
Specification: M8×14
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 6NT1-150600
Part Name: HORN
Effective: 2022-12-05
Price: 8,50 € : 8,50 €
-+
07
P/N (SKU): 8010-150002
Part Name: CUSHION WASHER, FLASHER
Effective: 2022-12-05
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 6NTV-161000-2701
Part Name: FLASHER
Effective: 2022-12-05
Price: 19,00 € : 19,00 €
-+
09
P/N (SKU): 6KMV-151200-8501
Part Name: SIDE STAND SWITCH
Effective: 2022-12-05
Price: 14,00 € : 14,00 €
-+
10
P/N (SKU): 8010-090005
Part Name: BOLT M6x16
Effective: 2022-12-05
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 6NTV-151000-3000
Part Name: REGULATOR
Effective: 2022-12-05
Price: 54,00 € : 54,00 €
-+
12
P/N (SKU): 30006-060030810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-12-05
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2022-12-05
Alternative parts: 6WWV-030080-8000
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 6NTV-150310-2700
Part Name: POSITIVE CABLE, STARTER MOTOR
Effective: 2022-12-05
Price: 12,00 € : 12,00 €
-+
15
P/N (SKU): 6NTV-150420-2700
Part Name: NEGATIVE CABLE, BATTERY
Effective: 2024-01-18
Price: 29,00 € : 29,00 €
-+
16
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2022-12-05
Price: 25,00 € : 25,00 €
-+
17
P/N (SKU): 31021200
Part Name: BATTERY
Effective: 2022-12-05
Specification: 12V12AH
Price: 98,00 € : 98,00 €
-+
19
P/N (SKU): 6WWV-045901-5000
Part Name: AUXILIARY RELAY RUBBER BUSHING
Effective: 2022-12-05
Price: 3,50 € : 3,50 €
-+
20
P/N (SKU): 6KJ0-150600
Part Name: ROLL-OVER SENSOR
Effective: 2022-12-05
Price: 20,00 € : 20,00 €
-+
21
P/N (SKU): 30006-050020810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-12-05
Specification: M5×20
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 0HU0-176000
Part Name: OXYGEN SENSOR
Effective: 2022-12-05
Price: 84,00 € : 84,00 €
-+
23
P/N (SKU): 30118-420130010
Part Name: CROSS-RECESSED PAN HEAD TAPPING SCREWS
Effective: 2022-12-05
Specification: ST4.2x13@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 8080-000002
Part Name: CLAMP
Effective: 2022-12-05
Specification: ST4.8
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 6NTV-151200-2700
Part Name: USB OUTLET SOCKET
Effective: 2022-12-05
Price: 27,00 € : 27,00 €
-+
26
P/N (SKU): 5270-150001
Part Name: BATTERY FOAM MAT LH AND RH
Effective: 2022-12-05
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 5270-150002
Part Name: BATTERY FOAM MAT FRONT AND REAR
Effective: 2022-12-05
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 801F-100101
Part Name: TIE BAND
Effective: 2022-12-05
Price: 2,00 € : 2,00 €
-+
29
P/N (SKU): 6NTV-041601-2700
Part Name: BATTERY BOX
Effective: 2022-12-05
Price: 10,00 € : 10,00 €
-+
30
P/N (SKU): 8030-040800-00001
Part Name: NUT CLIP M6
Effective: 2022-12-05
Specification: M6
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 6NTV-001000-D200
Part Name: ECU ASSY
Effective: 2022-12-05
Remarks: A3
Specification: MSE6.0
Price: 199,00 € : 199,00 €
-+
31
P/N (SKU): 6NTV-001000-C100
Part Name: ECU ASSY
Effective: 2023-11-14
Remarks: A2
Specification: MSE6.0
Price: 190,00 € : 190,00 €
-+
32
P/N (SKU): 6NTV-150430-2700
Part Name: FRAME GROUND CABLE
Effective: 2022-12-05
Price: 24,00 € : 24,00 €
-+
33
P/N (SKU): 30006-060012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-12-05
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
34
P/N (SKU): 6NTV-041105-2700
Part Name: WATER-PROOF GUARD, RELAY
Effective: 2022-12-05
Price: 4,00 € : 4,00 €
-+
35
P/N (SKU): 6GUV-151800-7101-M1
Part Name: T-BOX
Effective: 2022-12-05
Remarks: US/CA/MX
Alternative parts: 6GUV-151800-7102-M1/SN1V-691100-1300-11/SN1V-691100-1301-11
Specification: AllyTech@North Amrica
Price: 472,00 € : 472,00 €
35
P/N (SKU): 6GUV-151800-7301-M1
Part Name: T-BOX
Effective: 2022-12-05
Remarks: OTHER COUNTRIES IN SOUTH AMERICA EXCEPT BRAZIL
Alternative parts: SN1V-691100-1401-11
Specification: AllyTech@South America except for Brazil
Price: 472,00 € : 472,00 €
35
P/N (SKU): 6GUV-151800-7501-M1
Part Name: T-BOX
Effective: 2022-12-05
Remarks: EU/AU/MIDDLE EAST/AFRICA/SOUTHEAST ASIA/WESTERN ASIA
Alternative parts: 6GUV-151800-7502-M1/SN1V-691100-1201-11
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 472,00 € : 472,00 €
-+
35
P/N (SKU): SN1V-691100-1301-11
Part Name: T-BOX
Effective: 2023-04-18
Remarks: US/CA/MX
Specification: North Amrica
Price: 420,00 € : 420,00 €
-+
35
P/N (SKU): 6GUV-151800-7502-M1
Part Name: T-BOX
Effective: 2023-04-18
Remarks: EU/AU/MIDDLE EAST/AFRICA/SOUTHEAST ASIA/WESTERN ASIA
Alternative parts: SN1V-691100-1201-11
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 428,00 € : 428,00 €
35
P/N (SKU): SN1V-691100-1201-11
Part Name: T-BOX
Effective: 2023-08-12
Remarks: AllyTech, Eurasia, Africa and Australia except Turkey
Specification: @Eurasia and Africa and Australia except Turkey,BN,IN,BD,MN,NP
Price: 420,00 € : 420,00 €
-+
35
P/N (SKU): SN1V-691100-1401-11
Part Name: T-BOX
Effective: 2023-08-12
Specification: AllyTech@South America except for Brazil
Price: 420,00 € : 420,00 €
-+
36
P/N (SKU): 6NQV-152700-B100
Part Name: GEAR CONTROL UNIT
Effective: 2022-12-05
Price: 35,00 € : 35,00 €
-+
