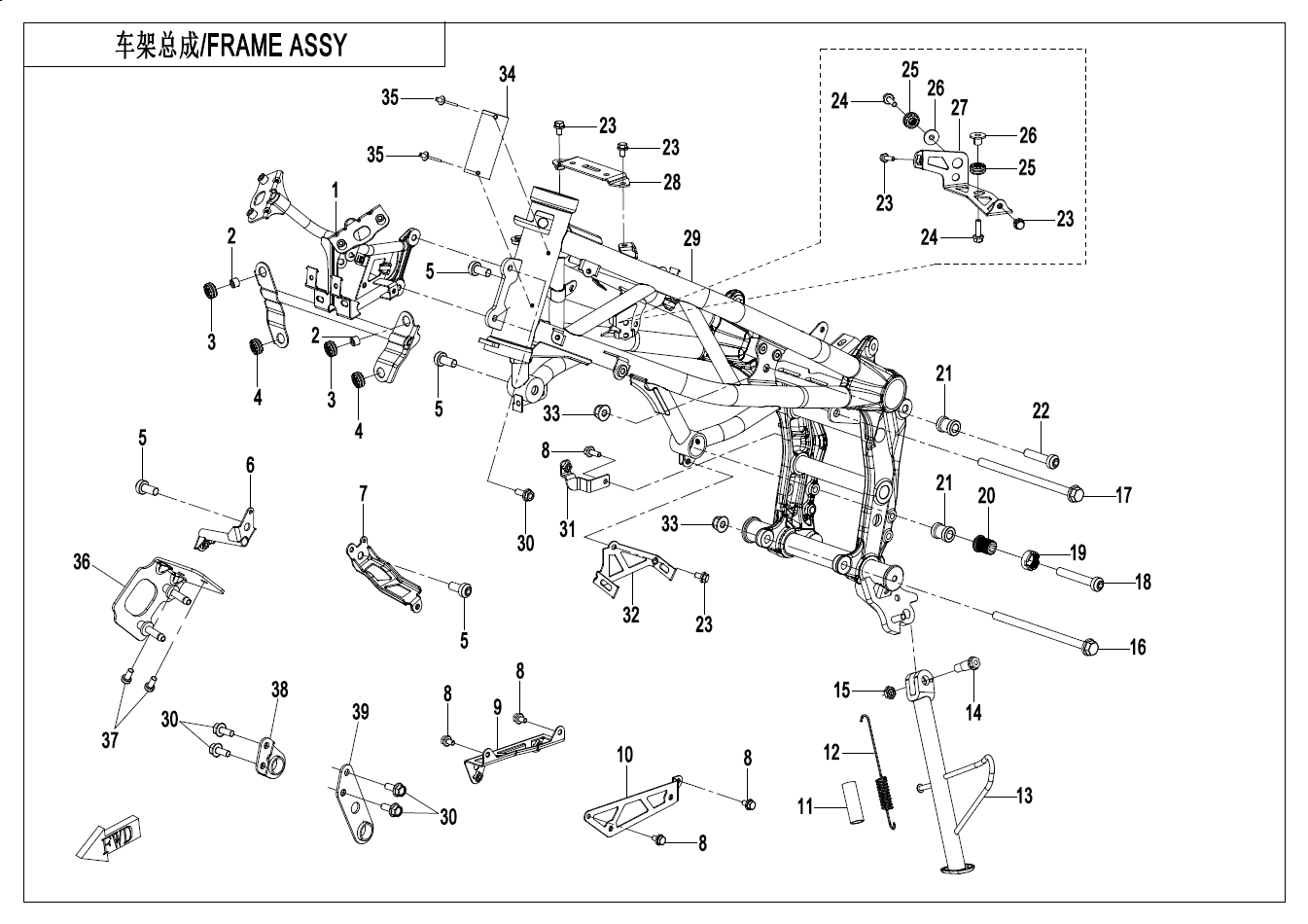

FRAME-1 - F03-1

FRAME-1 - F03-1

No.

01
P/N (SKU): 6AQV-030400-1003
Part Name: HEADLIGHT BRACKET ASSY
Effective: 2023-09-15
Remarks: null
Alternative parts: 6AQV-030400-1500
Specification: null
Price: 45,00 € : 45,00 €
02
P/N (SKU): 6090-040303
Part Name: BUSHING
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 6090-040302
Part Name: CUSHION SLEEVE
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 9010-160101
Part Name: HEADLIGHT RUBBER DAMPER
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 6L30-030092
Part Name: BOLT M10x22
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Specification: M10x22
Price: 2,00 € : 2,00 €
06
P/N (SKU): 6AQV-030030-1000
Part Name: RH GUARD ASSY
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Specification: null
Price: 6,00 € : 6,00 €
07
P/N (SKU): 6AQV-030008-1000
Part Name: LH GUARD BRACKET
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Specification: null
Price: 5,00 € : 5,00 €
-+
08
P/N (SKU): 30006-060010810
Part Name: BOLT
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Specification: M6×10
Price: 1,50 € : 1,50 €
09
P/N (SKU): 6AQV-030005-1000
Part Name: LOWER GUARD LH BRACKET
Effective: 2023-09-15
Alternative parts: null
Specification: null
Price: 4,50 € : 4,50 €
-+
10
P/N (SKU): 6AQV-030006-1000
Part Name: LOWER GUARD RH BRACKET
Effective: 2023-09-15
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
-+
11
P/N (SKU): A000-030004
Part Name: SPRING COLLAR, SIDE STAND
Effective: 2023-09-15
Remarks: null
Alternative parts: 6L30-030071-10000
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): A000-030210
Part Name: SIDE STAND SPRING ASSY
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Price: 7,00 € : 7,00 €
-+
13
P/N (SKU): 6AQV-030600-1001-0BP00
Part Name: SIDE STAND ASSY
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 18,00 € : 18,00 €
-+
14
P/N (SKU): 6080-030004
Part Name: SIDE STAND BOLT
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
-+
15
P/N (SKU): 30208-102010
Part Name: NUT
Effective: 2023-09-15
Alternative parts: null
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 30001-102170110
Part Name: BOLT
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Specification: M10×1.25×170
Price: 4,00 € : 4,00 €
17
P/N (SKU): 30006-102155110
Part Name: BOLT
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Specification: M10×1.25×155_COLOR-ZINC
Price: 3,50 € : 3,50 €
18
P/N (SKU): 6AQV-030093-1000
Part Name: INNER HEX SCREW
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 6NT1-000292
Part Name: NUT M18
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Specification: M18
Price: 4,00 € : 4,00 €
20
P/N (SKU): 6AQV-030092-1000
Part Name: ENGINE ADJUSTING SCREW SLEEVE
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Specification: null
Price: 4,00 € : 4,00 €
21
P/N (SKU): 6AQV-030004-1000
Part Name: ENGINE MOUNTING SLEEVE
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
-+
22
P/N (SKU): 6WWV-030011-5000
Part Name: INNER HEX SCREW M10x45
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
23
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2023-09-15
Remarks: null
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
24
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 6WWV-030019-5000
Part Name: RUBBER BUSHING
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
26
P/N (SKU): 9060-180029
Part Name: RADIATOR SLEEVE TUBE
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
27
P/N (SKU): 6AQV-030010-1000
Part Name: ABS BRACKET
Effective: 2023-09-15
Remarks: RUILI
Alternative parts: null
Specification: null
Price: 4,50 € : 4,50 €
28
P/N (SKU): 6AQV-030040-1000
Part Name: FUEL TANK FRONT BRACKET
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
29
P/N (SKU): 6AQV-031000-3000-10-0BP00
Part Name: FRONT FRAME ASSY
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 770,00 € : 770,00 €
30
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2023-09-15
Alternative parts: null
Specification: M8x20@COLOR ZINC PLATED
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 6AQV-030007-1001
Part Name: RESERVOIR TANK BRACKET
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Specification: null
Price: 2,50 € : 2,50 €
32
P/N (SKU): 6AQV-030003-1000
Part Name: CANSITER ADAPTER BRACKET
Effective: 2023-09-15
Remarks: null
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
33
P/N (SKU): 30204-102110
Part Name: NUT
Effective: 2023-09-15
Remarks: null
Alternative parts: 30204-102810
Specification: M10×1.25
Price: 1,50 € : 1,50 €
34
P/N (SKU): 6AQV-190011-3200
Part Name: VIN PLATE
Effective: 2023-09-15
Alternative parts: 6AQV-190011-3201
Specification: null
Price: 2,00 € : 2,00 €
35
P/N (SKU): 30902-0420820
Part Name: BLIND RIVET
Effective: 2023-09-15
Remarks: null
Alternative parts: 30902-0401320
Specification: 4.2x8
Price: 1,50 € : 1,50 €
36
P/N (SKU): 0SQV-140001-1000
Part Name: BRACKET, SECONDARY GULP VALVE
Effective: 2024-02-17
Remarks: null
Alternative parts: null
Specification: null
Price: 7,00 € : 7,00 €
37
P/N (SKU): 30102-050012810
Part Name: SCREW
Effective: 2024-02-17
Remarks: null
Alternative parts: null
Specification: M5x12@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
38
P/N (SKU): 6AQV-030020-3000
Part Name: RH BRACKET,MUFFLER
Effective: 2024-02-17
Remarks: null
Alternative parts: null
Specification: null
Price: 6,50 € : 6,50 €
39
P/N (SKU): 6AQV-030010-3000
Part Name: LH BRACKET,MUFFLER
Effective: 2024-02-17
Remarks: null
Alternative parts: null
Specification: null
Price: 6,50 € : 6,50 €
