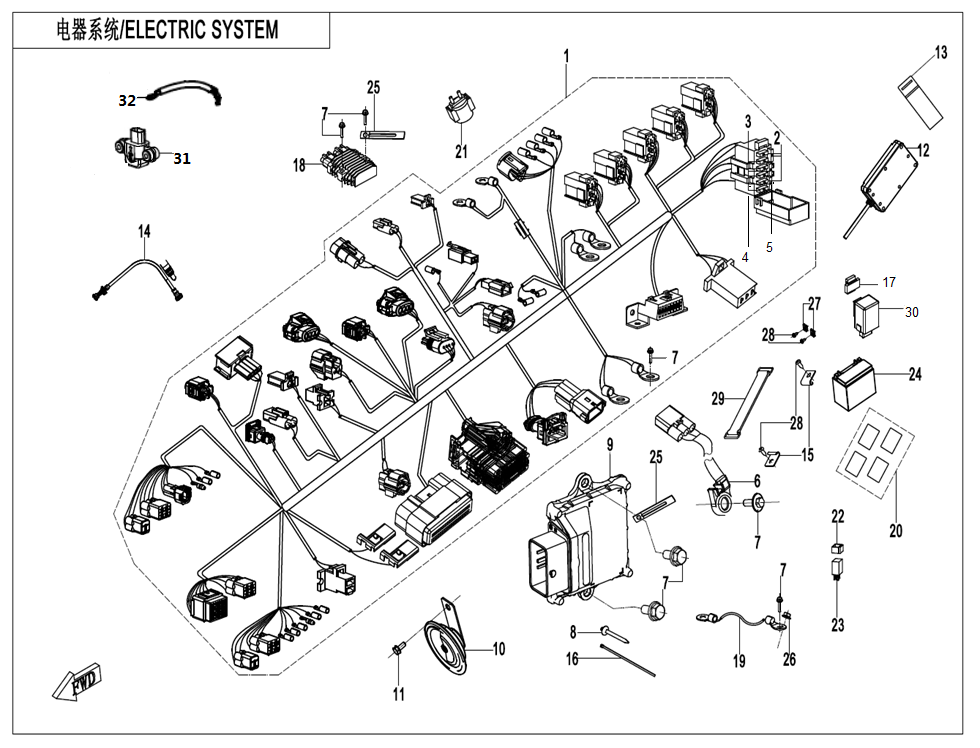

ELECTRIC SYSTEM - F15-A

ELECTRIC SYSTEM - F15-A

No.

1
P/N (SKU): 6AQV-150100-5000
Part Name: MAIN CABLE
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Specification: null
Price: 574,00 € : 574,00 €
1
P/N (SKU): 6AQV-150100-5002
Part Name: MAIN CABLE
Effective: 2023-08-07
Alternative parts: null
Specification: null
Price: 516,00 € : 516,00 €
1
P/N (SKU): 6AQV-150100-5003
Part Name: MAIN CABLE
Effective: 2023-12-22
Remarks: BOSCH 10.3MB
Alternative parts: null
Specification: null
Price: 488,00 € : 488,00 €
2
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Specification: 10A
Price: 2,50 € : 2,50 €
-+
3
P/N (SKU): 806A-151307
Part Name: 25A FUSE
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
4
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Specification: 15A
Price: 1,50 € : 1,50 €
5
P/N (SKU): 8010-151301
Part Name: FUSE 5A
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Specification: 5A
Price: 1,50 € : 1,50 €
6
P/N (SKU): 6KMV-151200-8501
Part Name: SIDE STAND SWITCH
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Specification: null
Price: 14,00 € : 14,00 €
-+
6
P/N (SKU): 6KMV-151500-3000
Part Name: SIDE STAND SWITCH
Effective: 2023-08-07
Remarks: null
Alternative parts: null
Price: 18,00 € : 18,00 €
-+
7
P/N (SKU): 8010-090005
Part Name: BOLT M6x16
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
8
P/N (SKU): 801F-100101
Part Name: TIE BAND
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
9
P/N (SKU): 6AQV-001000-5000
Part Name: ECU ASSY
Effective: 2022-11-29
Remarks: null
Alternative parts: 6AQV-001000-5001
Specification: MSE6.0
Price: 230,00 € : 230,00 €
-+
10
P/N (SKU): 6NT1-150600
Part Name: HORN
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Price: 8,50 € : 8,50 €
-+
11
P/N (SKU): 30006-080016870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 6GUV-151800-6801-M1
Part Name: T-BOX
Effective: 2022-11-29
Remarks: TURKEY
Alternative parts: SN1V-691100-1500-11/SN1V-691100-1501-11
Specification: AllyTech@Turkey
Price: 472,00 € : 472,00 €
12
P/N (SKU): 6GUV-151800-6901-M1
Part Name: T-BOX
Effective: 2022-11-29
Remarks: BRAZIL
Alternative parts: null
Specification: AllyTech@Brazil
Price: 472,00 € : 472,00 €
12
P/N (SKU): 6GUV-151800-7101-M1
Part Name: T-BOX
Effective: 2022-11-29
Remarks: NA
Alternative parts: 6GUV-151800-7102-M1/SN1V-691100-1300-11/SN1V-691100-1301-11
Specification: AllyTech@North Amrica
Price: 472,00 € : 472,00 €
12
P/N (SKU): 6GUV-151800-7301-M1
Part Name: T-BOX
Effective: 2022-11-29
Remarks: SA(EXCEPT FOR BRAZIL)
Alternative parts: SN1V-691100-1401-11
Specification: AllyTech@South America except for Brazil
Price: 472,00 € : 472,00 €
12
P/N (SKU): 6GUV-151800-7501-M1
Part Name: T-BOX
Effective: 2022-11-29
Remarks: EU/AU/MIDDLE EAST/AFRICA/SOUTHEAST ASIA/WESTERN ASIA
Alternative parts: 6GUV-151800-7502-M1/SN1V-691100-1201-11
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 472,00 € : 472,00 €
-+
12
P/N (SKU): SN1V-691100-1301-11
Part Name: T-BOX
Effective: 2023-04-18
Remarks: NA
Alternative parts: null
Specification: North Amrica
Price: 420,00 € : 420,00 €
-+
12
P/N (SKU): 6GUV-151800-7502-M1
Part Name: T-BOX
Effective: 2023-04-18
Remarks: EU/AU/MIDDLE EAST/AFRICA/SOUTHEAST ASIA/WESTERN ASIA
Alternative parts: SN1V-691100-1201-11
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 428,00 € : 428,00 €
12
P/N (SKU): SN1V-691100-1201-11
Part Name: T-BOX
Effective: 2023-08-12
Remarks: AllyTech, Eurasia, Africa and Australia except Turkey
Alternative parts: null
Specification: @Eurasia and Africa and Australia except Turkey,BN,IN,BD,MN,NP
Price: 420,00 € : 420,00 €
-+
12
P/N (SKU): SN1V-691100-1401-11
Part Name: T-BOX
Effective: 2023-08-12
Remarks: null
Alternative parts: null
Specification: AllyTech@South America except for Brazil
Price: 420,00 € : 420,00 €
12
P/N (SKU): SN1V-691100-1500-11
Part Name: T-BOX
Effective: 2023-10-10
Remarks: Turkey
Alternative parts: SN1V-691100-1501-11
Specification: Turkey
Price: 427,00 € : 427,00 €
13
P/N (SKU): 6KMV-150901-B001
Part Name: RUBBER RING, T-BOX
Effective: 2022-11-29
Remarks: null
Alternative parts: 6KMV-150901-B002
Specification: null
Price: 2,00 € : 2,00 €
14
P/N (SKU): 0HU0-176000
Part Name: OXYGEN SENSOR
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Price: 84,00 € : 84,00 €
-+
15
P/N (SKU): A000-030005
Part Name: VEHICLE TOOLS TIE BAND BRACKET
Effective: 2022-11-29
Alternative parts: null
Price: 3,00 € : 3,00 €
16
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Specification: 5x250
Price: 1,50 € : 1,50 €
17
P/N (SKU): 6100-150500
Part Name: RUBBER SLEEVE, FLASHER
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 6NTV-151000-3000
Part Name: REGULATOR
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Specification: null
Price: 54,00 € : 54,00 €
-+
19
P/N (SKU): 6AQV-150420-1001
Part Name: BATTERY NEGATIVE CABLE
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Specification: null
Price: 20,00 € : 20,00 €
20
P/N (SKU): 9010-120008
Part Name: SPONGE PAD, FUEL TANK
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Price: 25,00 € : 25,00 €
-+
22
P/N (SKU): 9010-150002
Part Name: AUXILIARY RELAY RUBBER RING
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Price: 4,50 € : 4,50 €
-+
23
P/N (SKU): 5BY4-150330
Part Name: AUXILIARY RELAY
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Price: 7,50 € : 7,50 €
-+
24
P/N (SKU): 31021200
Part Name: BATTERY
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Specification: 12V12AH
Price: 98,00 € : 98,00 €
25
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2022-11-29
Remarks: null
Alternative parts: 6WWV-030080-8000
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 30202-060110
Part Name: HEXAGON NUTS FLANGE
Effective: 2022-11-29
Remarks: null
Alternative parts: 30204-060810
Specification: M6@COLOR ZINC TRIVALENT CHROMI
Price: 1,50 € : 1,50 €
27
P/N (SKU): 8080-000002
Part Name: CLAMP
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Specification: ST4.8
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 30110-481130010
Part Name: CROSS-RECESSED FLAT ROUND HEAD TAPPING SCREWS
Effective: 2022-11-29
Remarks: null
Alternative parts: 30110-480130010
Specification: ST4.8x13@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 6060-150700
Part Name: BATTERY TIE BAND
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Price: 5,00 € : 5,00 €
-+
30
P/N (SKU): 6AQV-161000-1000
Part Name: FLASHER
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Specification: null
Price: 19,00 € : 19,00 €
-+
31
P/N (SKU): 6KJ0-150600
Part Name: ROLL-OVER SENSOR
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Price: 20,00 € : 20,00 €
-+
32
P/N (SKU): 6AQV-150310-1000
Part Name: STARTER MOTOR POSITIVE CABLE
Effective: 2022-11-29
Remarks: null
Alternative parts: null
Specification: null
Price: 17,00 € : 17,00 €
-+
