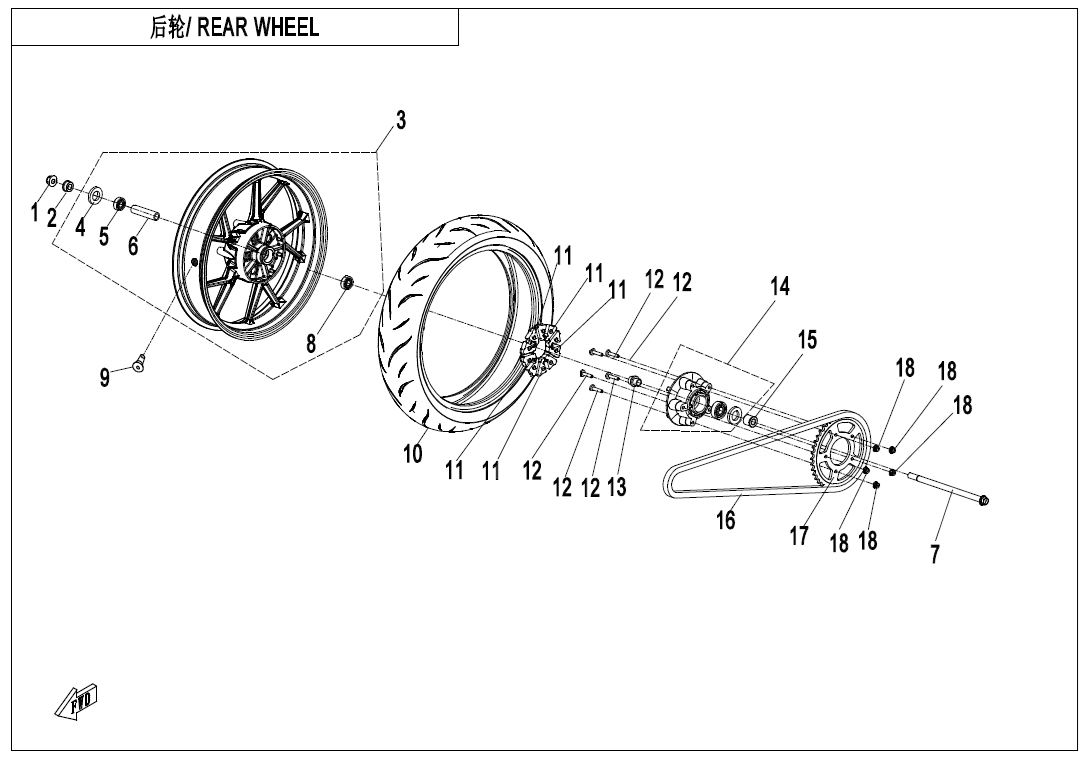

REAR WHEEL - F11

REAR WHEEL - F11

No.

01
P/N (SKU): 30204-143810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Specification: M14×1.5
Price: 3,00 € : 3,00 €
-+
02
P/N (SKU): 6KJ0-110001-10000
Part Name: REAR WHEEL RH SHAFT SLEEVE
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
03
P/N (SKU): 6KMV-110100-B000-10
Part Name: REAR RIM ASSY
Effective: 2022-12-12
Remarks: null
Alternative parts: 6KMV-110100-B000-0BM00
Price: 185,00 € : 185,00 €
04
P/N (SKU): 30500-027800N
Part Name: ROTARY SHAFT LIP-TYPE SEALS
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Specification: FB27x47x7
Price: 2,50 € : 2,50 €
-+
05
P/N (SKU): 30400-01583
Part Name: DEEP GROOVE BALL BEARING
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Specification: 6302-2RS
Price: 6,50 € : 6,50 €
06
P/N (SKU): 6KM#-110103-6001
Part Name: REAR RIM MIDDLE SPACER
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 3,50 € : 3,50 €
07
P/N (SKU): 6KJ0-110005-20000
Part Name: REAR WHEEL SHAFT
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 12,00 € : 12,00 €
-+
08
P/N (SKU): 30400-01580
Part Name: DEEP GROOVE BALL BEARING
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Specification: 6202-2RS
Price: 5,00 € : 5,00 €
09
P/N (SKU): 5190-070030-1000
Part Name: INFLATION VALVE
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 6,50 € : 6,50 €
10
P/N (SKU): 30705-1748
Part Name: TIRE
Effective: 2022-12-12
Remarks: null
Alternative parts: 3070SH-174800
Specification: 40/60R17M/C63H, CST
Price: 158,00 € : 158,00 €
11
P/N (SKU): 6KM0-110004
Part Name: SPROCKET SEAT RUBBER DAMPER
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 4,50 € : 4,50 €
-+
12
P/N (SKU): 6KJ0-110003
Part Name: BOLT
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 6KM0-110003-10000
Part Name: SPROCKET SEAT BUSHING
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 8,00 € : 8,00 €
-+
14
P/N (SKU): 6KM0-110200-10000
Part Name: SPROCKET ASSY
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 30,00 € : 30,00 €
-+
15
P/N (SKU): 6KM0-110002-10000
Part Name: REAR WHEEL SHAFT SLEEVE
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 11,00 € : 11,00 €
-+
16
P/N (SKU): 3120910
Part Name: CHAIN
Effective: 2022-12-12
Remarks: null
Alternative parts: 3120941
Price: 106,00 € : 106,00 €
16
P/N (SKU): 3120918
Part Name: CHAIN
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 103,00 € : 103,00 €
16
P/N (SKU): 3120941
Part Name: CHAIN
Effective: 2023-08-15
Remarks: null
Alternative parts: null
Specification: null
Price: 83,00 € : 83,00 €
-+
17
P/N (SKU): 6KN0-110007-10000
Part Name: REAR SPROCKET
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 35,00 € : 35,00 €
-+
18
P/N (SKU): 30204-080810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
