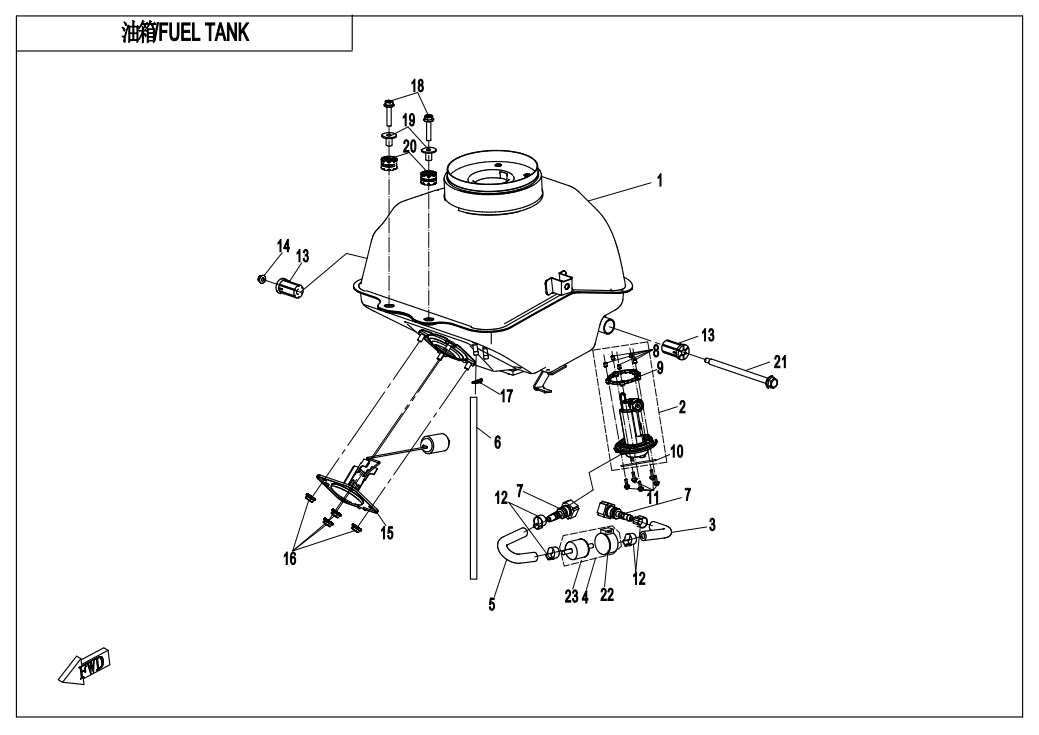

FUEL TANK - F12

FUEL TANK - F12

No.

01
P/N (SKU): 6KMV-121000-B000
Part Name: FUEL TANK ASSY
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Specification: null
Price: 178,00 € : 178,00 €
-+
02
P/N (SKU): 6KJV-150900-8001
Part Name: FUEL PUMP ASSY
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Specification: null
Price: 87,00 € : 87,00 €
03
P/N (SKU): 6KM0-120220
Part Name: HIGH-PRESSURE FUEL HOSE ASSY 2
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 6,50 € : 6,50 €
04
P/N (SKU): 6090-120220
Part Name: EFI FUEL FILTER ASSY
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 16,00 € : 16,00 €
-+
05
P/N (SKU): 6KM0-120210
Part Name: HIGH-PRESSURE FUEL HOSE ASSY 1
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 8,50 € : 8,50 €
06
P/N (SKU): 6NQ0-120001
Part Name: FUEL PIPE, FUEL TANK
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 4,00 € : 4,00 €
07
P/N (SKU): 6KJ0-120330-10000
Part Name: QUICK JOINT
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 8,50 € : 8,50 €
-+
08
P/N (SKU): 6KJ0-150903
Part Name: BUSHING
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
09
P/N (SKU): 6KJ0-150902
Part Name: TOP COVER SEALING WASHER
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 3,50 € : 3,50 €
10
P/N (SKU): 6KJ0-150901
Part Name: TOP COVER LOCK PAD
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 4,00 € : 4,00 €
11
P/N (SKU): 30006-050020810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Specification: M5×20
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 6070-120400
Part Name: CLAMP(Φ14.5)
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Specification: Dia14.5
Price: 1,50 € : 1,50 €
13
P/N (SKU): 6KM0-120002
Part Name: RUBBER BUSHING, FUEL TANK
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
14
P/N (SKU): 30204-060810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 6KMV-170200-B102
Part Name: FUEL LEVEL SENSOR
Effective: 2022-12-12
Remarks: For ABS
Alternative parts: 6KMV-170200-B103
Specification: null
Price: 23,00 € : 23,00 €
16
P/N (SKU): 30202-060110
Part Name: HEXAGON NUTS FLANGE
Effective: 2022-12-12
Remarks: null
Alternative parts: 30204-060810
Specification: M6@COLOR ZINC TRIVALENT CHROMI
Price: 1,50 € : 1,50 €
17
P/N (SKU): 30601-111010
Part Name: STEEL WIRE ELASTIC RING HOOP
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Specification: A11@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 30006-060025810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 6KM0-120010
Part Name: T-TYPE BUSHING ASSY
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): 5020-031001
Part Name: RUBBER SLEEVE, FRONT LICENSE BRACKET
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
21
P/N (SKU): 6KM0-120001-10000
Part Name: ROTATION SHAFT, FUEL TANK
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 4,50 € : 4,50 €
22
P/N (SKU): 6090-120221
Part Name: EFI FUEL FILTER RUBBER SLEEVE
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
23
P/N (SKU): 805A-120004
Part Name: EFI FUEL FILTER
Effective: 2022-12-12
Remarks: null
Alternative parts: null
Price: 11,00 € : 11,00 €
-+
