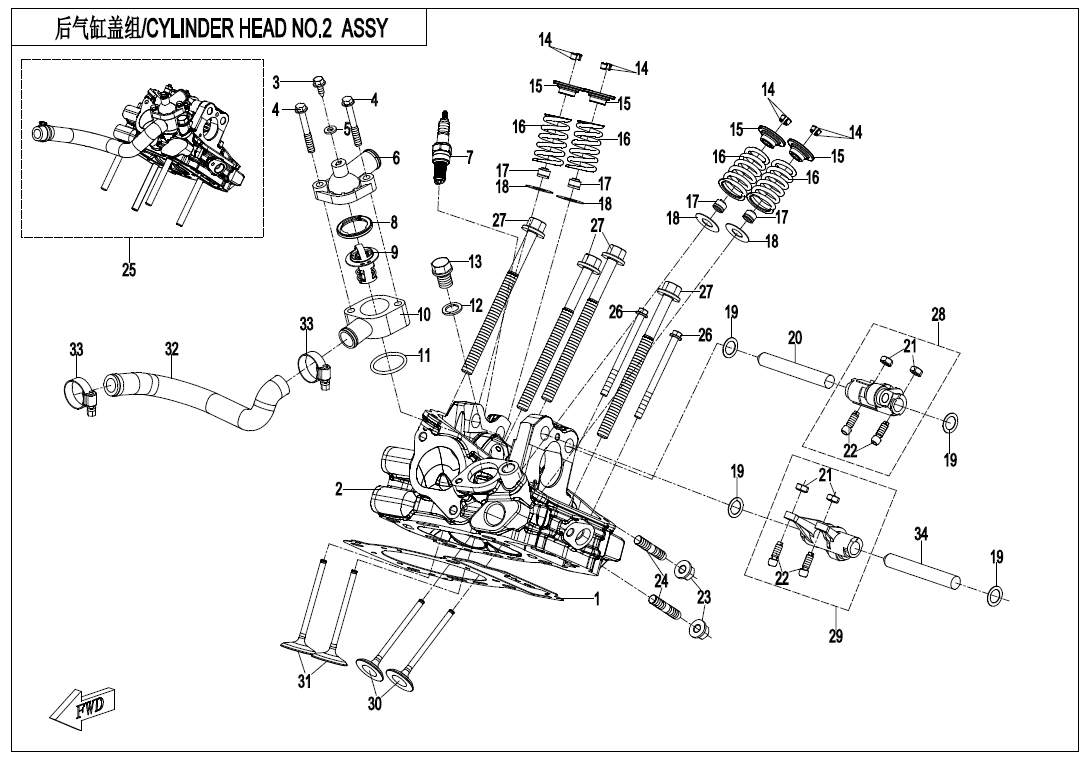

CYLINDER HEAD NO.2 ASSY - E02-6-A-V2

CYLINDER HEAD NO.2 ASSY - E02-6-A-V2

No.

1
P/N (SKU): 0800-022200-00002
Part Name: GASKET, CYLINDER HEAD
Effective: 2022-07-11
Price: 15,00 € : 15,00 €
-+
2
P/N (SKU): 0JYV-022100-4000
Part Name: CYLINDER HEAD ASSY
Effective: 2022-07-11
Alternative parts: 0JYV-022100-4002
Price: 209,00 € : 209,00 €
3
P/N (SKU): 30132-550160030
Part Name: SCREW ST5.5x16
Effective: 2022-07-11
Specification: ST5.5x16
Price: 1,50 € : 1,50 €
-+
4
P/N (SKU): 0180-013208-0010
Part Name: BOLT M6x45
Effective: 2022-07-11
Specification: M6x45
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 0800-022011
Part Name: WASHER 5.3x11x1.5
Effective: 2022-07-11
Specification: 5.3x11x1.5
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 0800-022013-10000
Part Name: THERMOSTAT CAP
Effective: 2022-07-11
Price: 5,00 € : 5,00 €
-+
7
P/N (SKU): 0JWD-170200-7000
Part Name: SPARK PLUG
Effective: 2022-07-11
Price: 28,00 € : 28,00 €
-+
8
P/N (SKU): 0010-022802
Part Name: SEAL RING
Effective: 2022-07-11
Price: 2,50 € : 2,50 €
-+
9
P/N (SKU): 0800-022700
Part Name: THERMOSTAT
Effective: 2022-07-11
Price: 14,00 € : 14,00 €
-+
10
P/N (SKU): 0800-022012
Part Name: SEAT, THERMOSTAT
Effective: 2022-07-11
Price: 4,50 € : 4,50 €
-+
11
P/N (SKU): 30502-028000N
Part Name: O-RING
Effective: 2022-07-11
Specification: 28x2.65
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 0800-022014
Part Name: WASHER 12.2x18x1.5
Effective: 2022-07-11
Specification: 12.2x18x1.5
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 0800-022015-00001
Part Name: SCREW PLUG M12x1.5
Effective: 2022-07-11
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 0JYV-022016-4000
Part Name: LOCK CLIP, VALVE
Effective: 2022-07-11
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 0JYV-022007-4000
Part Name: UPPER SEAT, VALVE SPRING
Effective: 2022-07-11
Price: 3,00 € : 3,00 €
-+
16
P/N (SKU): 0JYV-022006-4000
Part Name: VALVE SPRING
Effective: 2022-07-11
Alternative parts: 0JYV-022006-4001
Price: 3,50 € : 3,50 €
16
P/N (SKU): 0JYV-022006-4001
Part Name: VALVE SPRING
Effective: 2022-12-29
Price: 4,50 € : 4,50 €
-+
17
P/N (SKU): 0JYV-022300-4000
Part Name: OIL SEAL, VALVE
Effective: 2022-07-11
Price: 3,00 € : 3,00 €
-+
18
P/N (SKU): 0JYV-022008-4000
Part Name: LOWER SEAT, VALVE SPRING
Effective: 2022-07-11
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 0800-022002
Part Name: WASHER
Effective: 2022-07-11
Specification: 12.3x18.5x0.5
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 0800-022001
Part Name: ROCKER ARM SHAFT
Effective: 2022-07-11
Price: 4,50 € : 4,50 €
-+
21
P/N (SKU): 0800-022506
Part Name: ADJUST NUT, VALVE CLEARANCE
Effective: 2022-07-11
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 0800-022510
Part Name: ADJUST SCREW, VALVE CLEARANCE
Effective: 2022-07-11
Price: 3,00 € : 3,00 €
-+
23
P/N (SKU): 8010-020001
Part Name: NUT M8, MUFFLER JOINT
Effective: 2022-07-11
Specification: M8
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 0180-022003-00001
Part Name: STUD M8×42
Effective: 2022-07-11
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 0JYD-0260A0
Part Name: CYLINDER HEAD ASSY, SECOND CYLINDER
Effective: 2022-07-11
Price: 402,00 € : 402,00 €
-+
26
P/N (SKU): 0060-013021-00002
Part Name: BOLT M6x85
Effective: 2022-07-11
Specification: M6x85
Price: 2,00 € : 2,00 €
-+
27
P/N (SKU): 0JY0-022003-00001
Part Name: BOLT, CYLINDER
Effective: 2022-07-11
Price: 3,50 € : 3,50 €
-+
28
P/N (SKU): 0800-022600-20000
Part Name: ROCKER ARM ASSY, AIR EXHAUST
Effective: 2022-07-11
Price: 28,00 € : 28,00 €
-+
29
P/N (SKU): 0JYV-022500-4001
Part Name: SWING ARM, INTAKE
Effective: 2022-11-09
Price: 30,00 € : 30,00 €
-+
30
P/N (SKU): 0JYV-022005-4000
Part Name: EXHAUST VALVE
Effective: 2022-07-11
Price: 17,00 € : 17,00 €
-+
31
P/N (SKU): 0JYV-022004-4000
Part Name: INTAKE VALVE
Effective: 2022-07-11
Price: 12,00 € : 12,00 €
-+
32
P/N (SKU): 0JYA-026001
Part Name: CONNECTING PIPE, FRONT @^ REAR CYLINDER
Effective: 2022-07-11
Price: 8,00 € : 8,00 €
-+
33
P/N (SKU): 30603-125020
Part Name: CLAMP D25
Effective: 2022-07-11
Specification: D25
Price: 2,00 € : 2,00 €
-+
34
P/N (SKU): 0JYV-022001-4000-10
Part Name: SWING ARM SHAFT, INTAKE
Effective: 2022-10-26
Price: 7,00 € : 7,00 €
-+
